Collection: Springs - Compression
Springs -> CompressionThere are 1045 products in the sub-categories of Springs - Compression. Scroll down or follow the link to Springs - Compression in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

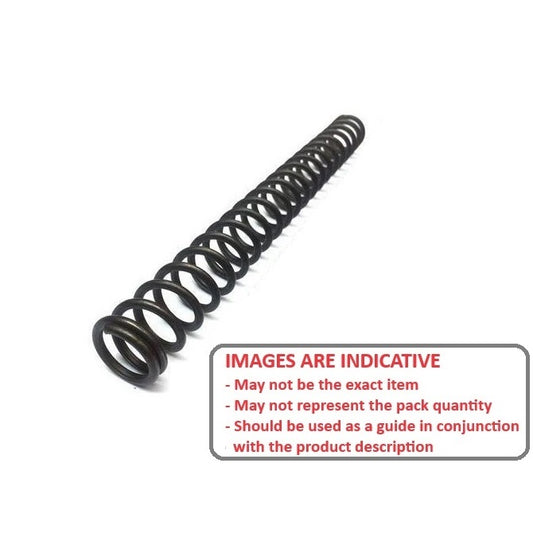

Springs - Compression - Music Wire
A selection of Music Wire Compression Springs. Carbon spring steel selection. Standard...

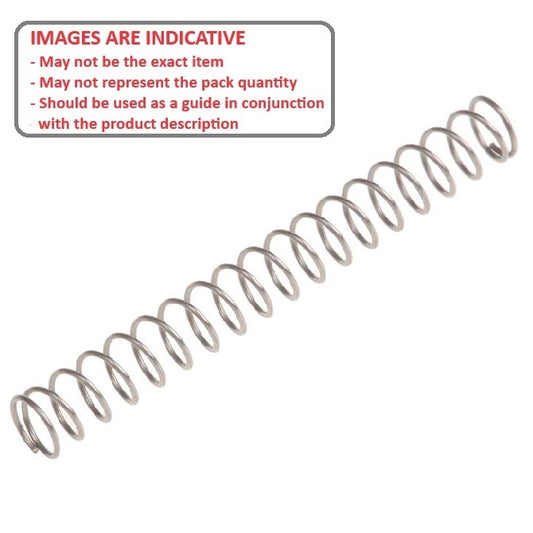

Springs - Compression - Stainless Steel
A selection of Stainless Steel Compression Springs. 300 gradd stainless steel selection,...
Category Details

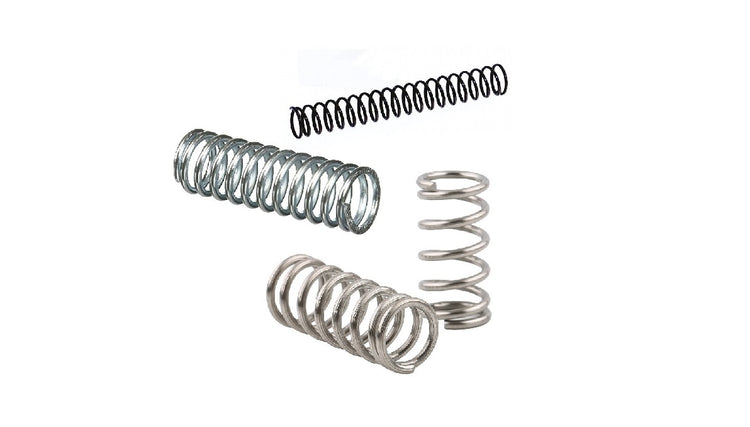

This category includes various types of compression springs.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Springs - Compression category on the Small Parts & Bearings online store.
| Spring OD (D0) | Free Length (L0) | Wire Diameter (d) | Loaded Height (L1) | Load at L1 | Rate (P/f) |

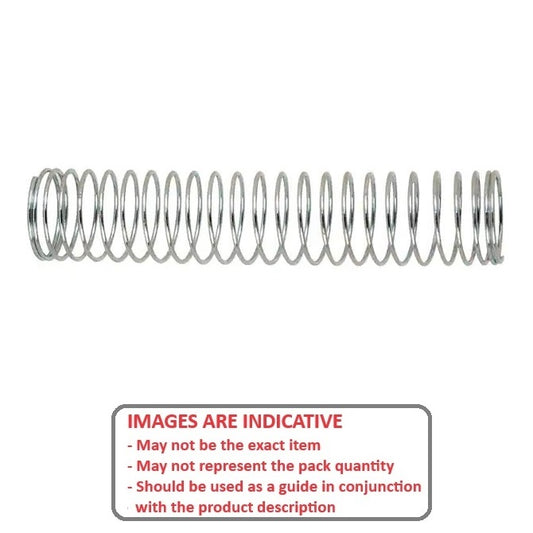

Indicative Image |
|---|---|---|---|---|---|---|
|
Spring OD (D0)
1.80
mm +/- 0.076
(Equiv. 0.071 in.) |
Free Length (L0)
3.0
mm +/- 0.38 (Equiv. 0.118 in.) |
Wire Diameter (d)
0.20
mm +/- 0.13 (Equiv. 0.008 in.) |
Loaded Height (L1)
1.50
mm |
Load at L1
1.50
N |
Rate (P/f)
1.0
N/mm |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Solid Height (Sh): 1.30 mm
Approx. ID: 1.4 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0180-0030-02-S2-C
Compression Springs - 1.8x3x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.60 AUD
Regular price
Unit price
per
Each
|
||||||
| Spring OD (D0) | Free Length (L0) | Wire Diameter (d) | Loaded Height (L1) |

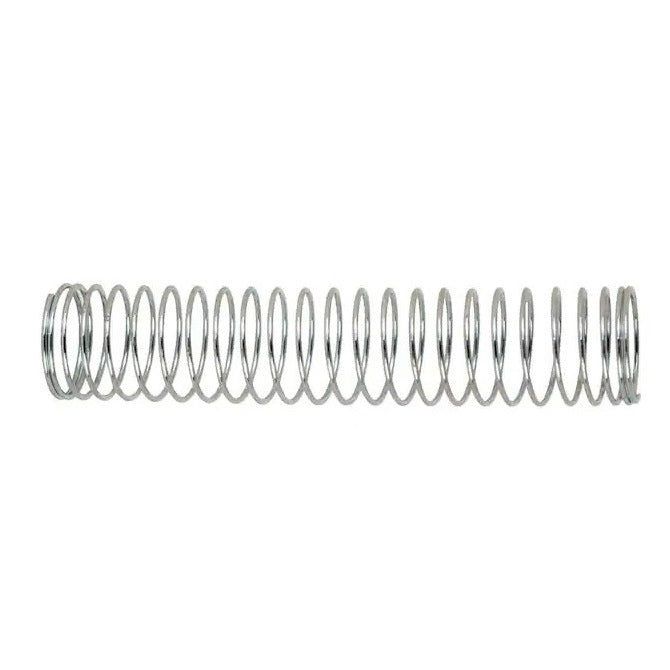

Indicative Image |
||
|
Spring OD (D0)
1.80
mm +/- 0.076 (Equiv. 0.071 in.) |
Free Length (L0)
3.0
mm +/- 0.38 (Equiv. 0.118 in.) |
Wire Diameter (d)
0.20
mm +/- 0.13 (Equiv. 0.008 in.) |
Loaded Height (L1)
1.50
mm |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Load at L1: 1.50 N
Rate (P/f): 1.0 N/mm
Solid Height (Sh): 1.30 mm
Approx. ID: 1.4 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0180-0030-02-S2-C
Compression Springs - 1.8x3x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$16.60 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
5.0
mm (Equiv. 0.197 in.) |
Wire Diameter (d)
0.13
mm (Equiv. 0.005 in.) |
Loaded Height (L1)
2.00
mm |
Load at L1
0.15
N |
Rate (P/f)
0.0
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 1.50 mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0050-013-S4-C (5 Pcs)
Compression Springs - 2x5x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$11.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
5.0
mm (Equiv. 0.197 in.) |
Wire Diameter (d)
0.13
mm (Equiv. 0.005 in.) |
Loaded Height (L1)
2.00
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 0.15 N
Rate (P/f): 0.0 N/mm
Solid Height (Sh): 1.50 mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0050-013-S4-C (5 Pcs)
Compression Springs - 2x5x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$11.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
5.0
mm (Equiv. 0.197 in.) |
Wire Diameter (d)
0.18
mm (Equiv. 0.007 in.) |
Loaded Height (L1)
2.50
mm |
Load at L1
0.49
N |
Rate (P/f)
0.2
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 2.00 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0050-018-S4-C (5 Pcs)
Compression Springs - 2x5x0.18 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
5.0
mm (Equiv. 0.197 in.) |
Wire Diameter (d)
0.18
mm (Equiv. 0.007 in.) |
Loaded Height (L1)
2.50
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 0.49 N
Rate (P/f): 0.2 N/mm
Solid Height (Sh): 2.00 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0050-018-S4-C (5 Pcs)
Compression Springs - 2x5x0.18 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
5.0
mm (Equiv. 0.197 in.) |
Wire Diameter (d)
0.20
mm (Equiv. 0.008 in.) |
Loaded Height (L1)
3.00
mm |
Load at L1
0.98
N |
Rate (P/f)
0.5
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 1.65 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0050-02-S4-C (5 Pcs)
Compression Springs - 2x5x0.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
5.0
mm (Equiv. 0.197 in.) |
Wire Diameter (d)
0.20
mm (Equiv. 0.008 in.) |
Loaded Height (L1)
3.00
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 0.98 N
Rate (P/f): 0.5 N/mm
Solid Height (Sh): 1.65 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0050-02-S4-C (5 Pcs)
Compression Springs - 2x5x0.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
10.0
mm (Equiv. 0.394 in.) |
Wire Diameter (d)
0.13
mm (Equiv. 0.005 in.) |
Loaded Height (L1)
4.00
mm |
Load at L1
0.29
N |
Rate (P/f)
0.0
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 1.50 mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0100-013-S4-C (5 Pcs)
Compression Springs - 2x10x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 8 units (40 pcs) Available Now | Further orders can be expected around Sun, Oct 05, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
10.0
mm (Equiv. 0.394 in.) |
Wire Diameter (d)
0.13
mm (Equiv. 0.005 in.) |
Loaded Height (L1)
4.00
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 0.29 N
Rate (P/f): 0.0 N/mm
Solid Height (Sh): 1.50 mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0100-013-S4-C (5 Pcs)
Compression Springs - 2x10x0.13 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 8 units (40 pcs) Available Now | Further orders can be expected around Sun, Oct 05, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
10.0
mm (Equiv. 0.394 in.) |
Wire Diameter (d)
0.18
mm (Equiv. 0.007 in.) |
Loaded Height (L1)
5.00
mm |
Load at L1
0.98
N |
Rate (P/f)
0.2
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 2.00 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0100-018-S4-C (5 Pcs)
Compression Springs - 2x10x0.18 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
10.0
mm (Equiv. 0.394 in.) |
Wire Diameter (d)
0.18
mm (Equiv. 0.007 in.) |
Loaded Height (L1)
5.00
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 0.98 N
Rate (P/f): 0.2 N/mm
Solid Height (Sh): 2.00 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0100-018-S4-C (5 Pcs)
Compression Springs - 2x10x0.18 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
10.0
mm (Equiv. 0.394 in.) |
Wire Diameter (d)
0.20
mm (Equiv. 0.008 in.) |
Loaded Height (L1)
5.50
mm |
Load at L1
1.30
N |
Rate (P/f)
0.3
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 2.35 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0100-02-S4-C (5 Pcs)
Compression Springs - 2x10x0.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
10.0
mm (Equiv. 0.394 in.) |
Wire Diameter (d)
0.20
mm (Equiv. 0.008 in.) |
Loaded Height (L1)
5.50
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 1.30 N
Rate (P/f): 0.3 N/mm
Solid Height (Sh): 2.35 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0100-02-S4-C (5 Pcs)
Compression Springs - 2x10x0.2 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
10.0
mm (Equiv. 0.394 in.) |
Wire Diameter (d)
0.26
mm (Equiv. 0.01 in.) |
Loaded Height (L1)
6.00
mm |
Load at L1
1.96
N |
Rate (P/f)
0.5
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 5.07 mm
Approx. ID: 1.5 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0100-026-S4-C (5 Pcs)
Compression Springs - 2x10x0.26 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
10.0
mm (Equiv. 0.394 in.) |
Wire Diameter (d)
0.26
mm (Equiv. 0.01 in.) |
Loaded Height (L1)
6.00
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 1.96 N
Rate (P/f): 0.5 N/mm
Solid Height (Sh): 5.07 mm
Approx. ID: 1.5 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0100-026-S4-C (5 Pcs)
Compression Springs - 2x10x0.26 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
15.0
mm (Equiv. 0.591 in.) |
Wire Diameter (d)
0.15
mm (Equiv. 0.006 in.) |
Loaded Height (L1)
6.00
mm |
Load at L1
0.44
N |
Rate (P/f)
0.0
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 2.70 mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0150-015-S4-C (5 Pcs)
Compression Springs - 2x15x0.15 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
15.0
mm (Equiv. 0.591 in.) |
Wire Diameter (d)
0.15
mm (Equiv. 0.006 in.) |
Loaded Height (L1)
6.00
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 0.44 N
Rate (P/f): 0.0 N/mm
Solid Height (Sh): 2.70 mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0150-015-S4-C (5 Pcs)
Compression Springs - 2x15x0.15 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
15.0
mm (Equiv. 0.591 in.) |
Wire Diameter (d)
0.23
mm (Equiv. 0.009 in.) |
Loaded Height (L1)
7.50
mm |
Load at L1
1.50
N |
Rate (P/f)
0.2
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 6.00 mm
Approx. ID: 1.5 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0150-023-S4-C (5 Pcs)
Compression Springs - 2x15x0.23 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
15.0
mm (Equiv. 0.591 in.) |
Wire Diameter (d)
0.23
mm (Equiv. 0.009 in.) |
Loaded Height (L1)
7.50
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 1.50 N
Rate (P/f): 0.2 N/mm
Solid Height (Sh): 6.00 mm
Approx. ID: 1.5 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0150-023-S4-C (5 Pcs)
Compression Springs - 2x15x0.23 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
15.0
mm (Equiv. 0.591 in.) |
Wire Diameter (d)
0.26
mm (Equiv. 0.01 in.) |
Loaded Height (L1)
9.00
mm |
Load at L1
2.94
N |
Rate (P/f)
0.5
N/mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Solid Height (Sh): 5.07 mm
Approx. ID: 1.5 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0150-026-S4-C (5 Pcs)
Compression Springs - 2x15x0.26 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 8 units (40 pcs) Available Now | Further orders can be expected around Sun, Oct 05, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Spring OD (D0)
2.00
mm (Equiv. 0.079 in.) |
Free Length (L0)
15.0
mm (Equiv. 0.591 in.) |
Wire Diameter (d)
0.26
mm (Equiv. 0.01 in.) |
Loaded Height (L1)
9.00
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Load at L1: 2.94 N
Rate (P/f): 0.5 N/mm
Solid Height (Sh): 5.07 mm
Approx. ID: 1.5 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0200-0150-026-S4-C (5 Pcs)
Compression Springs - 2x15x0.26 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Spring 8 units (40 pcs) Available Now | Further orders can be expected around Sun, Oct 05, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Spring OD (D0)
2.20
mm +/- 0.076
(Equiv. 0.087 in.) |
Free Length (L0)
8.7
mm +/- 0.38 (Equiv. 0.343 in.) |
Wire Diameter (d)
0.20
mm +/- 0.13 (Equiv. 0.008 in.) |
Loaded Height (L1)
2.90
mm |
Load at L1
1.24
N |
Rate (P/f)
0.2
N/mm |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Solid Height (Sh): 2.30 mm
Approx. ID: 1.8 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0220-0087-02-S2-C
Compression Springs - 2.2x8.7x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 330 Available Now | Item Discontinued - Up to 330 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.49 AUD
Regular price
Unit price
per
Each
|
||||||
|
Spring OD (D0)
2.20
mm +/- 0.076 (Equiv. 0.087 in.) |
Free Length (L0)
8.7
mm +/- 0.38 (Equiv. 0.343 in.) |
Wire Diameter (d)
0.20
mm +/- 0.13 (Equiv. 0.008 in.) |
Loaded Height (L1)
2.90
mm |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Load at L1: 1.24 N
Rate (P/f): 0.2 N/mm
Solid Height (Sh): 2.30 mm
Approx. ID: 1.8 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0220-0087-02-S2-C
Compression Springs - 2.2x8.7x0.2 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 330 Available Now | Item Discontinued - Up to 330 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.49 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076
(Equiv. 0.088 in.) |
Free Length (L0)
6.4
mm +/- 0.38 (Equiv. 0.252 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
Rate (P/f)
0.9
N/mm |
|
||
|
Material: Carbon Spring Steel
Approx. ID: 1.7 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0224-0064-02-M-C (200 Pcs)
Compression Springs - 2.24x6.4x0.25 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Dec 27, 2025 Regular price
$1,050.59 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076 (Equiv. 0.088 in.) |
Free Length (L0)
6.4
mm +/- 0.38 (Equiv. 0.252 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
|
|||
|
Material: Carbon Spring Steel
Rate (P/f): 0.9 N/mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0224-0064-02-M-C (200 Pcs)
Compression Springs - 2.24x6.4x0.25 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Dec 27, 2025 Regular price
$1,050.59 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076
(Equiv. 0.088 in.) |
Free Length (L0)
9.7
mm +/- 0.38 (Equiv. 0.382 in.) |
Wire Diameter (d)
0.31
mm +/- 0.015 (Equiv. 0.012 in.) |
Loaded Height (L1)
5.49
mm |
Load at L1
3.89
N |
Rate (P/f)
1.0
N/mm |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Solid Height (Sh): 4.369 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0224-0097-03-S2-G
Compression Springs - 2.24x9.7x0.31 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 371 Available Now | Item Discontinued - Up to 371 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$6.04 AUD
Regular price
Unit price
per
Each
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076 (Equiv. 0.088 in.) |
Free Length (L0)
9.7
mm +/- 0.38 (Equiv. 0.382 in.) |
Wire Diameter (d)
0.31
mm +/- 0.015 (Equiv. 0.012 in.) |
Loaded Height (L1)
5.49
mm |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Load at L1: 3.89 N
Rate (P/f): 1.0 N/mm
Solid Height (Sh): 4.369 mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0224-0097-03-S2-G
Compression Springs - 2.24x9.7x0.31 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 371 Available Now | Item Discontinued - Up to 371 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$6.04 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076
(Equiv. 0.088 in.) |
Free Length (L0)
12.7
mm +/- 0.38 (Equiv. 0.5 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
Rate (P/f)
0.5
N/mm |
|
||
|
Material: Carbon Spring Steel
Approx. ID: 1.7 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0224-0127-02-M-C (200 Pcs)
Compression Springs - 2.24x12.7x0.25 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1,050.59 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076 (Equiv. 0.088 in.) |
Free Length (L0)
12.7
mm +/- 0.38 (Equiv. 0.5 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
|
|||
|
Material: Carbon Spring Steel
Rate (P/f): 0.5 N/mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0224-0127-02-M-C (200 Pcs)
Compression Springs - 2.24x12.7x0.25 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1,050.59 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076
(Equiv. 0.088 in.) |
Free Length (L0)
19.1
mm +/- 0.64 (Equiv. 0.752 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
Rate (P/f)
0.3
N/mm |
|
||
|
Material: Carbon Spring Steel
Approx. ID: 1.7 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0224-0191-02-M-C (500 Pcs)
Compression Springs - 2.24x19.1x0.25 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$3,126.59 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076 (Equiv. 0.088 in.) |
Free Length (L0)
19.1
mm +/- 0.64 (Equiv. 0.752 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
|
|||
|
Material: Carbon Spring Steel
Rate (P/f): 0.3 N/mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0224-0191-02-M-C (500 Pcs)
Compression Springs - 2.24x19.1x0.25 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$3,126.59 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076
(Equiv. 0.088 in.) |
Free Length (L0)
19.1
mm +/- 0.64 (Equiv. 0.752 in.) |
Wire Diameter (d)
0.30
mm +/- 0.015 (Equiv. 0.012 in.) |
Rate (P/f)
0.5
N/mm |
|
||
|
Material: Carbon Spring Steel
Approx. ID: 1.6 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0224-0191-03-M-C
Compression Springs - 2.24x19.1x0.3 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$11.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Spring OD (D0)
2.24
mm +/- 0.076 (Equiv. 0.088 in.) |
Free Length (L0)
19.1
mm +/- 0.64 (Equiv. 0.752 in.) |
Wire Diameter (d)
0.30
mm +/- 0.015 (Equiv. 0.012 in.) |
|
|||
|
Material: Carbon Spring Steel
Rate (P/f): 0.5 N/mm
Approx. ID: 1.6 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0224-0191-03-M-C
Compression Springs - 2.24x19.1x0.3 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$11.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Spring OD (D0)
2.32
mm +/- 0.076
(Equiv. 0.091 in.) |
Free Length (L0)
10.9
mm +/- 0.38 (Equiv. 0.429 in.) |
Wire Diameter (d)
0.32
mm +/- 0.015 (Equiv. 0.013 in.) |
Loaded Height (L1)
5.90
mm |
Load at L1
4.69
N |
Rate (P/f)
0.9
N/mm |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Solid Height (Sh): 5.00 mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0232-0109-03-S2-C (2 Pcs)
Compression Springs - 2.32x10.9x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 157 units (314 pcs) Available Now | Item Discontinued - Up to 157 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.91 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Spring OD (D0)
2.32
mm +/- 0.076 (Equiv. 0.091 in.) |
Free Length (L0)
10.9
mm +/- 0.38 (Equiv. 0.429 in.) |
Wire Diameter (d)
0.32
mm +/- 0.015 (Equiv. 0.013 in.) |
Loaded Height (L1)
5.90
mm |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Load at L1: 4.69 N
Rate (P/f): 0.9 N/mm
Solid Height (Sh): 5.00 mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0232-0109-03-S2-C (2 Pcs)
Compression Springs - 2.32x10.9x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring 157 units (314 pcs) Available Now | Item Discontinued - Up to 157 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.91 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076
(Equiv. 0.094 in.) |
Free Length (L0)
41.3
mm +/- 1.27 (Equiv. 1.626 in.) |
Wire Diameter (d)
0.45
mm +/- 0.015 (Equiv. 0.018 in.) |
Rate (P/f)
1.5
N/mm |
|
||
|
Material: Carbon Spring Steel
Solid Height (Sh): 18.540 mm
Approx. ID: 1.5 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0238-0413-05-M-C
Compression Springs - 2.38x41.3x0.45 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 26, 2025 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076 (Equiv. 0.094 in.) |
Free Length (L0)
41.3
mm +/- 1.27 (Equiv. 1.626 in.) |
Wire Diameter (d)
0.45
mm +/- 0.015 (Equiv. 0.018 in.) |
|
|||
|
Material: Carbon Spring Steel
Rate (P/f): 1.5 N/mm
Solid Height (Sh): 18.540 mm
Approx. ID: 1.5 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0238-0413-05-M-C
Compression Springs - 2.38x41.3x0.45 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 26, 2025 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076
(Equiv. 0.094 in.) |
Free Length (L0)
254.0
mm +/- 7.62 (Equiv. 10 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
|
|||
|
Material: Carbon Spring Steel
Approx. ID: 1.9 mm

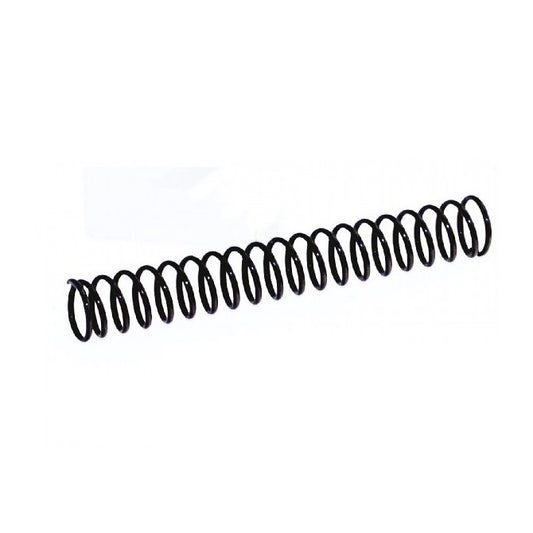

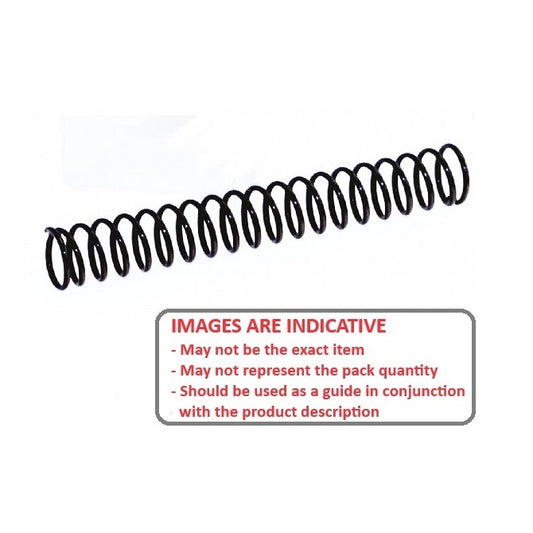

Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0238-2540-03-M (200 Pcs)
Compression Springs - 2.38x254x0.25 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1,226.77 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076 (Equiv. 0.094 in.) |
Free Length (L0)
254.0
mm +/- 7.62 (Equiv. 10 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
|
|||
|
Material: Carbon Spring Steel
Approx. ID: 1.9 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0238-2540-03-M (200 Pcs)
Compression Springs - 2.38x254x0.25 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1,226.77 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076
(Equiv. 0.094 in.) |
Free Length (L0)
254.0
mm +/- 7.62 (Equiv. 10 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
|
|||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. ID: 1.9 mm

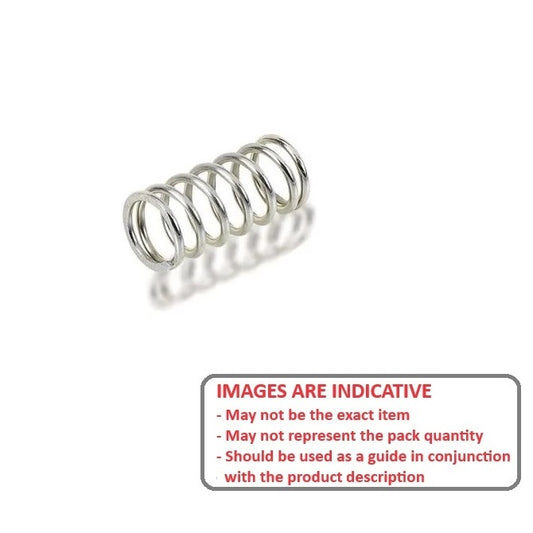

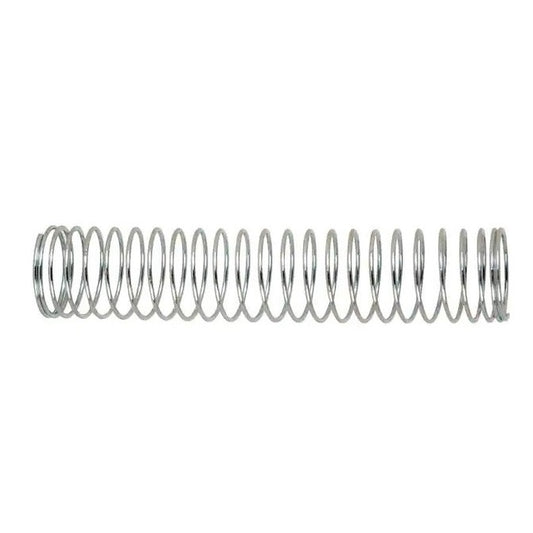

Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0238-2540-03-S2

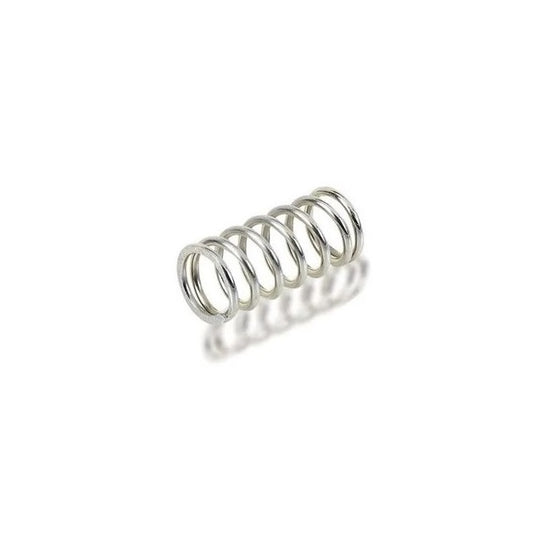

Compression Springs - 2.38x254x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076 (Equiv. 0.094 in.) |
Free Length (L0)
254.0
mm +/- 7.62 (Equiv. 10 in.) |
Wire Diameter (d)
0.25
mm +/- 0.015 (Equiv. 0.01 in.) |
|
|||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. ID: 1.9 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0238-2540-03-S2
Compression Springs - 2.38x254x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$4.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076
(Equiv. 0.094 in.) |
Free Length (L0)
254.0
mm +/- 7.62 (Equiv. 10 in.) |
Wire Diameter (d)
0.36
mm +/- 0.015 (Equiv. 0.014 in.) |
|
|||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. ID: 1.7 mm

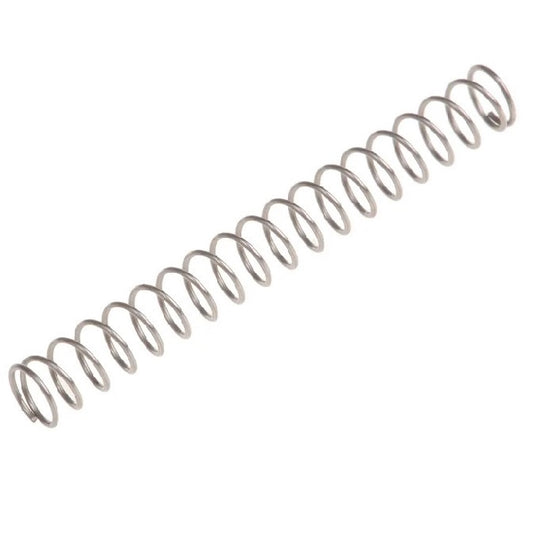

Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0238-2540-04-S2 (200 Pcs)
Compression Springs - 2.38x254x0.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1,364.86 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076 (Equiv. 0.094 in.) |
Free Length (L0)
254.0
mm +/- 7.62 (Equiv. 10 in.) |
Wire Diameter (d)
0.36
mm +/- 0.015 (Equiv. 0.014 in.) |
|
|||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. ID: 1.7 mm
Category: Springs - Compression - Stainless Steel |
||||||
|
Part Number: CS-0238-2540-04-S2 (200 Pcs)
Compression Springs - 2.38x254x0.36 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1,364.86 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076
(Equiv. 0.094 in.) |
Free Length (L0)
254.0
mm +/- 7.62 (Equiv. 10 in.) |
Wire Diameter (d)
0.36
mm +/- 0.015 (Equiv. 0.014 in.) |
|
|||
|
Material: Carbon Spring Steel
Approx. ID: 1.7 mm

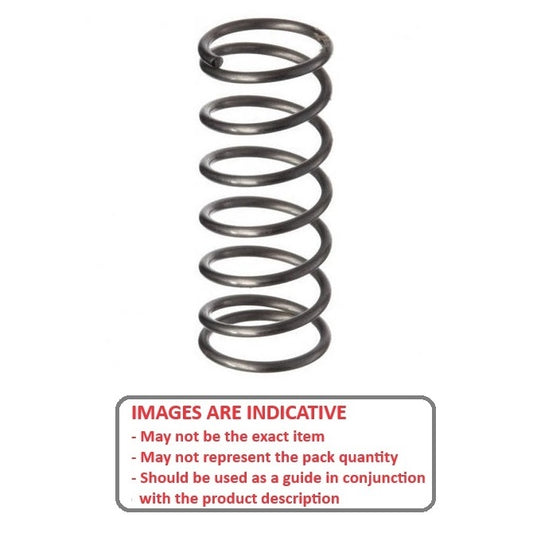

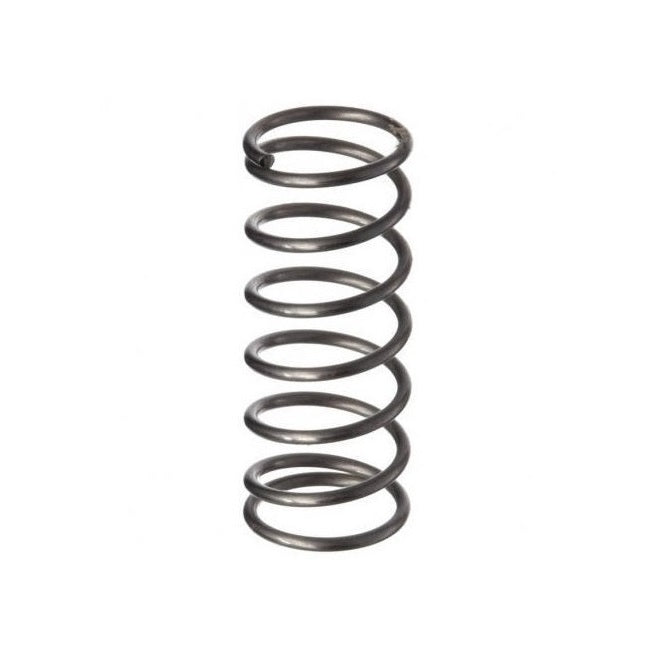

Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0238-2540-04-M
Compression Springs - 2.38x254x0.36 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Spring OD (D0)
2.38
mm +/- 0.076 (Equiv. 0.094 in.) |
Free Length (L0)
254.0
mm +/- 7.62 (Equiv. 10 in.) |
Wire Diameter (d)
0.36
mm +/- 0.015 (Equiv. 0.014 in.) |
|
|||
|
Material: Carbon Spring Steel
Approx. ID: 1.7 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0238-2540-04-M
Compression Springs - 2.38x254x0.36 mm Music Wire - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Spring OD (D0)
2.39
mm (Equiv. 0.094 in.) |
Free Length (L0)
914
mm (Equiv. 35.984 in.) |
Wire Diameter (d)
0.33
mm (Equiv. 0.013 in.) |
Rate (P/f)
0.4
N/mm |
|
||
|
Material: Music Wire
Approx. ID: 1.7 mm

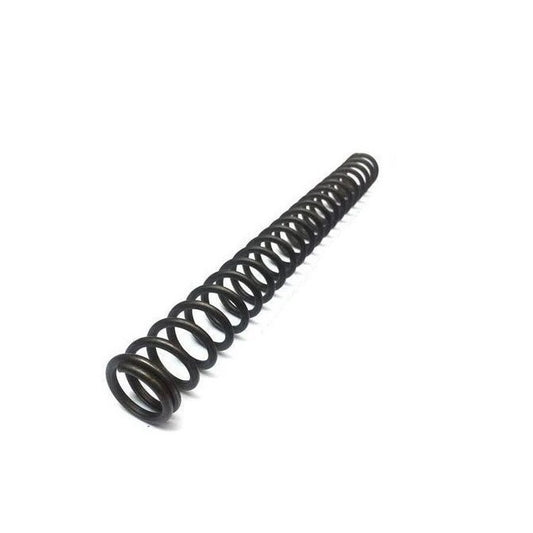

Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0239-9144-03-M
Compression Springs - 2.39x914x0.33 mm - Music Wire Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$27.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Spring OD (D0)
2.39
mm (Equiv. 0.094 in.) |
Free Length (L0)
914
mm (Equiv. 35.984 in.) |
Wire Diameter (d)
0.33
mm (Equiv. 0.013 in.) |
|
|||
|
Material: Music Wire
Rate (P/f): 0.4 N/mm
Approx. ID: 1.7 mm
Category: Springs - Compression - Music Wire |
||||||
|
Part Number: CS-0239-9144-03-M
Compression Springs - 2.39x914x0.33 mm - Music Wire Spring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$27.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
