P-020G-031-150A

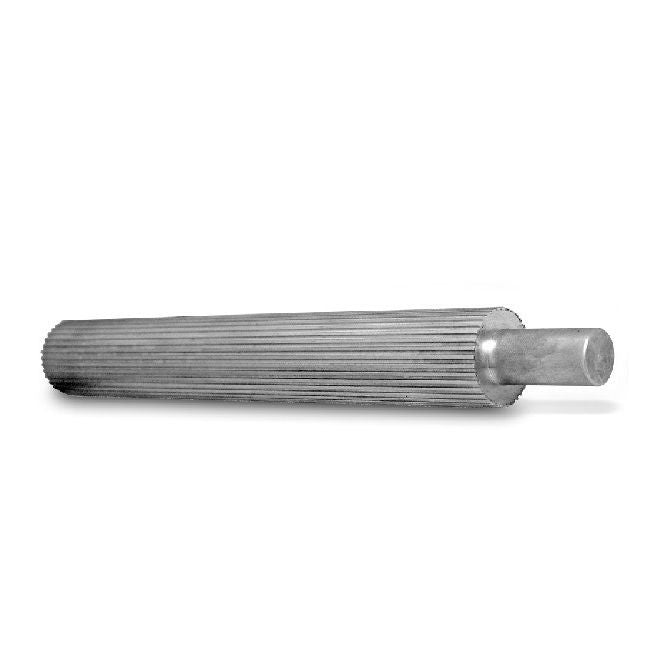

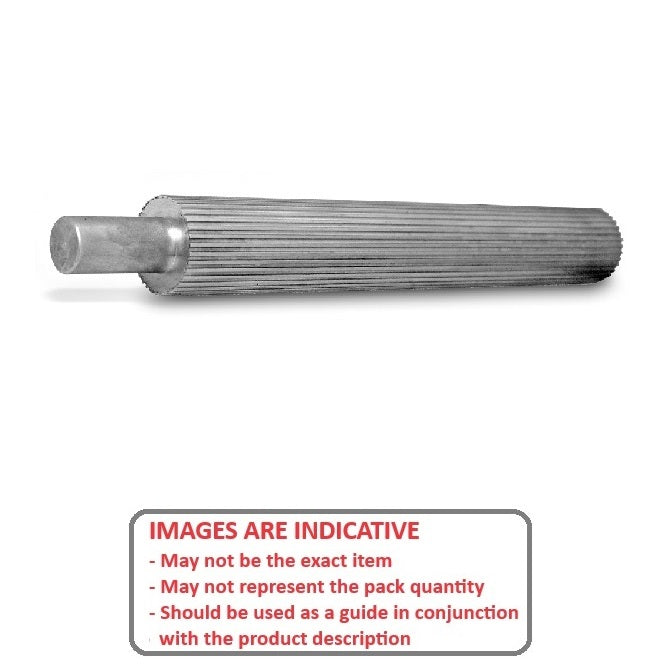

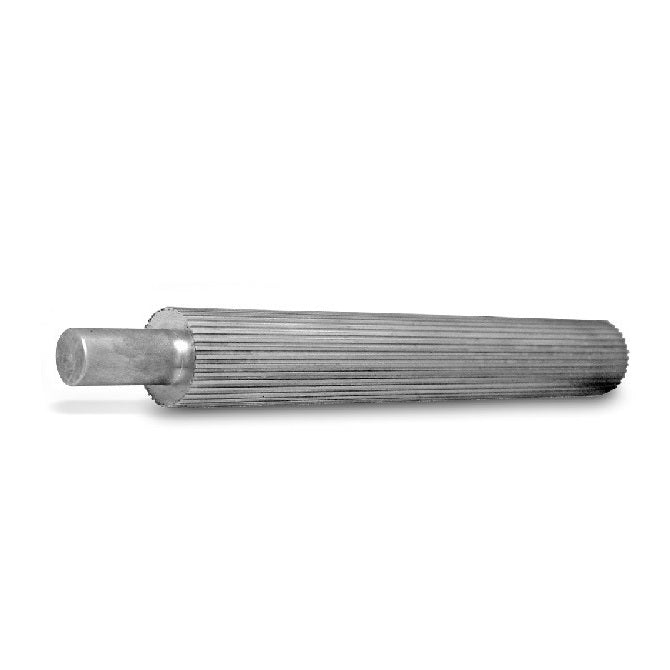

Metric Timing Stock Pulleys - 31 tooth - 150x19.8 mm 2.000mm Pitch - Aluminium
MBA
Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:Timing Pulleys Catalogue PDF
Pulley Flanges
2mm GT Timing Belts
Backorder
Order 50 or more for $82.51 AUD Each
Base Category: Pulleys - Metric Timing Stock
Top Level Category: Pulleys - Metric Timing Stock - 2.000mm Pitch - GT - Aluminium

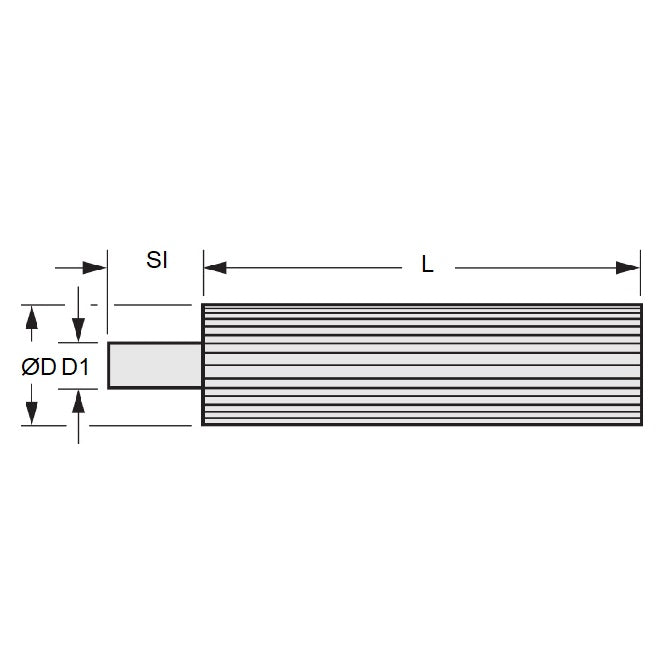

Product Details:Teeth: 31
Aluminium
- Min. Usable Length (L): 150.0mm
(150.0mm is 5.906 in.)
- Pitch Diameter (PD): 19.80mm
(19.80mm is 0.78 in.)
- Outside Diameter (OD): 19.20mm
- Shank Diameter (D1): 13.00mm
- Shank Length (Sl): 19.0mm
Brand: MBA
Country of Origin: IN
Alternative Parts Include: A6A50M031GT15, 31-2P-PS6A, 312PPS6A, Gates
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
