Collection: Pulleys - Metric Timing Stock
Pulleys -> Metric Timing StockThere are 614 products in the sub-categories of Pulleys - Metric Timing Stock. Scroll down or follow the link to Pulleys - Metric Timing Stock in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Pulleys - Metric Timing Stock - 10.000mm Pitch
This category includes various types of metric timing stock pulleys. Timing pulleys...
Pulleys - Metric Timing Stock - 2.000mm Pitch
This category includes various types of metric timing stock pulleys. Timing pulleys...
Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium
A selection of 2.500mm Pitch T2.5 Aluminium Metric Timing Stock Pulleys. For...
Pulleys - Metric Timing Stock - 3.000mm Pitch
This category includes various types of metric timing stock pulleys. Timing pulleys...
Pulleys - Metric Timing Stock - 5.000mm Pitch
This category includes various types of metric timing stock pulleys. Timing pulleys...
Pulleys - Metric Timing Stock - 8.000mm Pitch
This category includes various types of metric timing stock pulleys. Timing pulleys...
Category Details

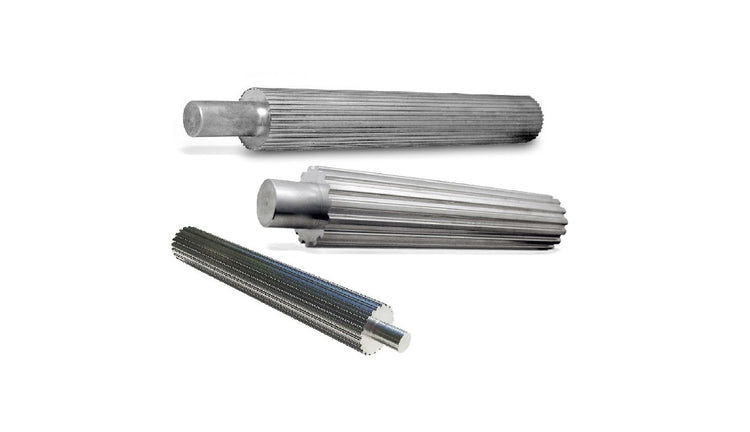

This category includes various types of metric timing stock pulleys.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Pulleys - Metric Timing Stock category on the Small Parts & Bearings online store.
| Number of Teeth | Min. Usable Length (L) | Pitch Diameter (PD) | Outside Diameter (OD) |

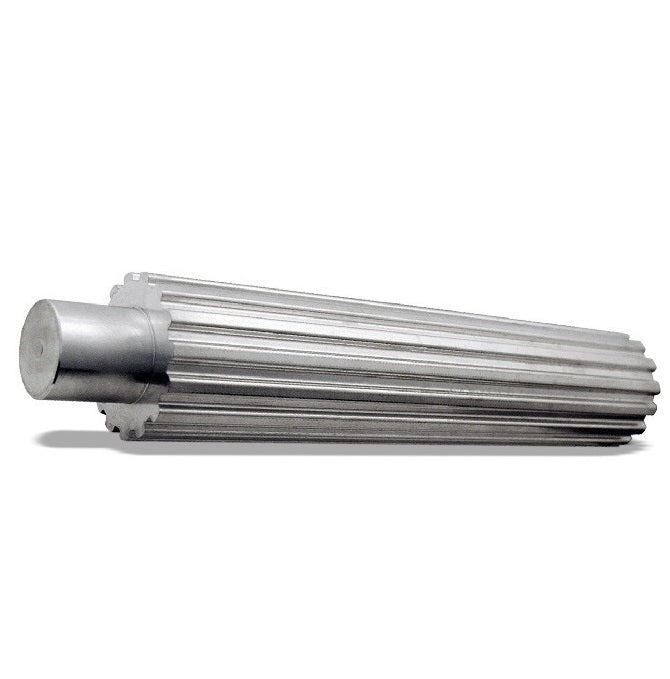

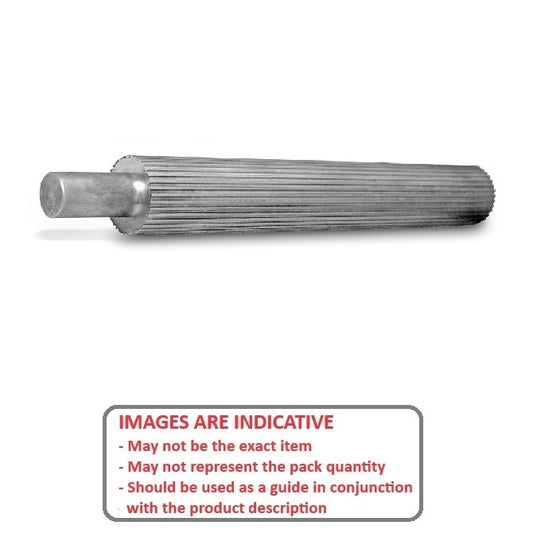

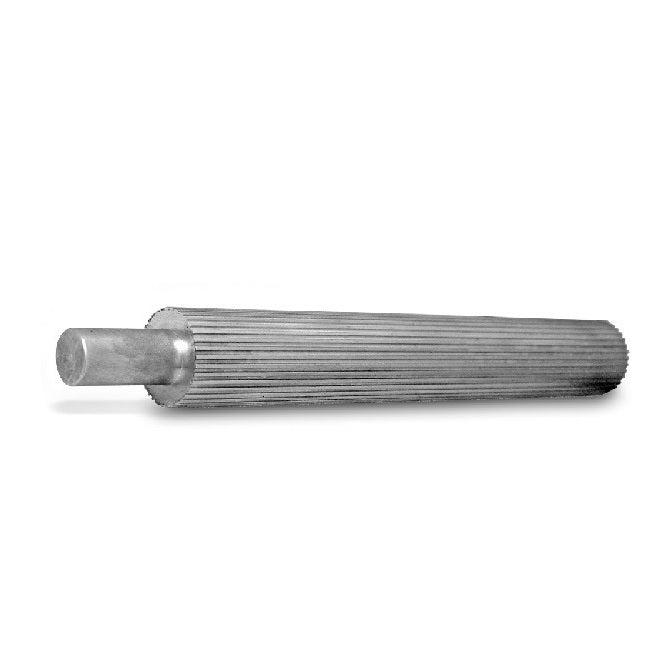

Indicative Image |
|---|---|---|---|---|
|
Number of Teeth
9
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
8.60
mm (Equiv. 0.339 in.) |
Outside Diameter (OD)
7.83
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 4.70 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030G-009-075A
Metric Timing Stock Pulleys - 9 tooth - 75x8.6 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$68.14 AUD
Regular price
Unit price
per
Each
|
||||
| Number of Teeth | Min. Usable Length (L) | Pitch Diameter (PD) | Outside Diameter (OD) |

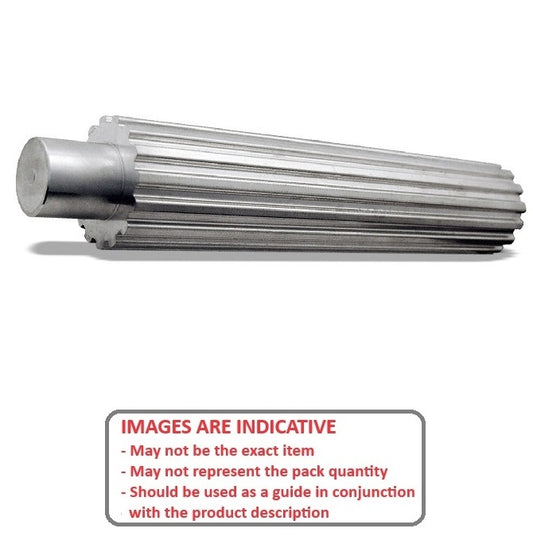

Indicative Image |
|
Number of Teeth
9
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
8.60
mm (Equiv. 0.339 in.) |
Outside Diameter (OD)
7.83
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 4.70 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030G-009-075A
Metric Timing Stock Pulleys - 9 tooth - 75x8.6 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$68.14 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
9
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
8.60
mm (Equiv. 0.339 in.) |
Outside Diameter (OD)
7.83
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 4.70 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-009-075A
Metric Timing Stock Pulleys - 9 tooth - 75x8.6 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$72.68 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
9
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
8.60
mm (Equiv. 0.339 in.) |
Outside Diameter (OD)
7.83
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 4.70 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-009-075A
Metric Timing Stock Pulleys - 9 tooth - 75x8.6 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$72.68 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
6.40
mm (Equiv. 0.252 in.) |
Outside Diameter (OD)
5.90
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.00 mm
Category: Pulleys - Metric Timing Stock - 2.000mm Pitch |
||||
|
Part Number: P-020G-010-050A
Metric Timing Stock Pulleys - 10 tooth - 50x6.4 mm 2.000mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$44.50 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
6.40
mm (Equiv. 0.252 in.) |
Outside Diameter (OD)
5.90
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.00 mm
Category: Pulleys - Metric Timing Stock - 2.000mm Pitch |
||||
|
Part Number: P-020G-010-050A
Metric Timing Stock Pulleys - 10 tooth - 50x6.4 mm 2.000mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$44.50 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
8.05
mm (Equiv. 0.317 in.) |
Outside Diameter (OD)
7.45
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.00 mm
Category: Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium |
||||
|
Part Number: P-025T-010-050A
Metric Timing Stock Pulleys - 10 tooth - 50x8.05 mm 2.5mm Pitch T2.5 Aluminium - Aluminium Pulley 1 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$55.23 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
8.05
mm (Equiv. 0.317 in.) |
Outside Diameter (OD)
7.45
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.00 mm
Category: Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium |
||||
|
Part Number: P-025T-010-050A
Metric Timing Stock Pulleys - 10 tooth - 50x8.05 mm 2.5mm Pitch T2.5 Aluminium - Aluminium Pulley 1 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$55.23 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
9.50
mm (Equiv. 0.374 in.) |
Outside Diameter (OD)
8.79
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 4.70 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030G-010-075A
Metric Timing Stock Pulleys - 10 tooth - 75x9.5 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$68.23 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
9.50
mm (Equiv. 0.374 in.) |
Outside Diameter (OD)
8.79
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 4.70 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030G-010-075A
Metric Timing Stock Pulleys - 10 tooth - 75x9.5 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$68.23 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
9.50
mm (Equiv. 0.374 in.) |
Outside Diameter (OD)
8.79
mm |
|
|
Material: Carbon Steel
Shank Diameter (D1): 9.50 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-010-075C
Metric Timing Stock Pulleys - 10 tooth - 75x9.5 mm 3mm Pitch - Carbon Steel Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$92.50 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
9.50
mm (Equiv. 0.374 in.) |
Outside Diameter (OD)
8.79
mm |
|
|
Material: Carbon Steel
Shank Diameter (D1): 9.50 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-010-075C
Metric Timing Stock Pulleys - 10 tooth - 75x9.5 mm 3mm Pitch - Carbon Steel Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$92.50 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
9.50
mm (Equiv. 0.374 in.) |
Outside Diameter (OD)
8.79
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 4.70 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-010-075A
Metric Timing Stock Pulleys - 10 tooth - 75x9.5 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$72.95 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
9.50
mm (Equiv. 0.374 in.) |
Outside Diameter (OD)
8.79
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 4.70 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-010-075A
Metric Timing Stock Pulleys - 10 tooth - 75x9.5 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$72.95 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
125.0
mm (Equiv. 4.921 in.) |
Pitch Diameter (PD)
15.05
mm (Equiv. 0.593 in.) |
Outside Diameter (OD)
15.05
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050T-010-125A
Metric Timing Stock Pulleys - 10 tooth - 125x15.05 mm 5mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$83.14 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
125.0
mm (Equiv. 4.921 in.) |
Pitch Diameter (PD)
15.05
mm (Equiv. 0.593 in.) |
Outside Diameter (OD)
15.05
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050T-010-125A
Metric Timing Stock Pulleys - 10 tooth - 125x15.05 mm 5mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$83.14 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
140.0
mm (Equiv. 5.512 in.) |
Pitch Diameter (PD)
29.98
mm (Equiv. 1.18 in.) |
Outside Diameter (OD)
29.98
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 10.000mm Pitch |
||||
|
Part Number: P-100T-010-140A
Metric Timing Stock Pulleys - 10 tooth - 140x29.98 mm 10mm Pitch - Aluminium Pulley 1 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$90.14 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
10
|
Min. Usable Length (L)
140.0
mm (Equiv. 5.512 in.) |
Pitch Diameter (PD)
29.98
mm (Equiv. 1.18 in.) |
Outside Diameter (OD)
29.98
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 10.000mm Pitch |
||||
|
Part Number: P-100T-010-140A
Metric Timing Stock Pulleys - 10 tooth - 140x29.98 mm 10mm Pitch - Aluminium Pulley 1 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$90.14 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
7.00
mm (Equiv. 0.276 in.) |
Outside Diameter (OD)
6.50
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.00 mm
Category: Pulleys - Metric Timing Stock - 2.000mm Pitch |
||||
|
Part Number: P-020G-011-050A
Metric Timing Stock Pulleys - 11 tooth - 50x7 mm 2mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$45.41 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
7.00
mm (Equiv. 0.276 in.) |
Outside Diameter (OD)
6.50
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.00 mm
Category: Pulleys - Metric Timing Stock - 2.000mm Pitch |
||||
|
Part Number: P-020G-011-050A
Metric Timing Stock Pulleys - 11 tooth - 50x7 mm 2mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$45.41 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
10.50
mm (Equiv. 0.413 in.) |
Outside Diameter (OD)
9.74
mm |
|
|
Material: Carbon Steel
Shank Diameter (D1): 9.50 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-011-075C
Metric Timing Stock Pulleys - 11 tooth - 75x10.5 mm 3.000mm Pitch - Carbon Steel Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$83.23 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
10.50
mm (Equiv. 0.413 in.) |
Outside Diameter (OD)
9.74
mm |
|
|
Material: Carbon Steel
Shank Diameter (D1): 9.50 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-011-075C
Metric Timing Stock Pulleys - 11 tooth - 75x10.5 mm 3.000mm Pitch - Carbon Steel Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$83.23 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
10.50
mm (Equiv. 0.413 in.) |
Outside Diameter (OD)
9.74
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.30 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030G-011-075A
Metric Timing Stock Pulleys - 11 tooth - 75x10.5 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$70.14 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
10.50
mm (Equiv. 0.413 in.) |
Outside Diameter (OD)
9.74
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.30 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030G-011-075A
Metric Timing Stock Pulleys - 11 tooth - 75x10.5 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$70.14 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
10.50
mm (Equiv. 0.413 in.) |
Outside Diameter (OD)
9.74
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 6.30 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-011-075A
Metric Timing Stock Pulleys - 11 tooth - 75x10.5 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$74.59 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
75.0
mm (Equiv. 2.953 in.) |
Pitch Diameter (PD)
10.50
mm (Equiv. 0.413 in.) |
Outside Diameter (OD)
9.74
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 6.30 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-011-075A
Metric Timing Stock Pulleys - 11 tooth - 75x10.5 mm 3mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$74.59 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
125.0
mm (Equiv. 4.921 in.) |
Pitch Diameter (PD)
16.65
mm (Equiv. 0.656 in.) |
Outside Diameter (OD)
16.65
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050T-011-125A
Metric Timing Stock Pulleys - 11 tooth - 125x16.65 mm 5.000mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$71.77 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
125.0
mm (Equiv. 4.921 in.) |
Pitch Diameter (PD)
16.65
mm (Equiv. 0.656 in.) |
Outside Diameter (OD)
16.65
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050T-011-125A
Metric Timing Stock Pulleys - 11 tooth - 125x16.65 mm 5.000mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$71.77 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
140.0
mm (Equiv. 5.512 in.) |
Pitch Diameter (PD)
33.16
mm (Equiv. 1.306 in.) |
Outside Diameter (OD)
33.16
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 10.000mm Pitch |
||||
|
Part Number: P-100T-011-140A
Metric Timing Stock Pulleys - 11 tooth - 140x33.16 mm 10.000mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$116.86 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
11
|
Min. Usable Length (L)
140.0
mm (Equiv. 5.512 in.) |
Pitch Diameter (PD)
33.16
mm (Equiv. 1.306 in.) |
Outside Diameter (OD)
33.16
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 10.000mm Pitch |
||||
|
Part Number: P-100T-011-140A
Metric Timing Stock Pulleys - 11 tooth - 140x33.16 mm 10.000mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$116.86 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
7.60
mm (Equiv. 0.299 in.) |
Outside Diameter (OD)
7.10
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.00 mm
Category: Pulleys - Metric Timing Stock - 2.000mm Pitch |
||||
|
Part Number: P-020G-012-050A
Metric Timing Stock Pulleys - 12 tooth - 50x7.6 mm 2mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$46.14 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
7.60
mm (Equiv. 0.299 in.) |
Outside Diameter (OD)
7.10
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.00 mm
Category: Pulleys - Metric Timing Stock - 2.000mm Pitch |
||||
|
Part Number: P-020G-012-050A
Metric Timing Stock Pulleys - 12 tooth - 50x7.6 mm 2mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$46.14 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
9.60
mm (Equiv. 0.378 in.) |
Outside Diameter (OD)
9.00
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 9.50 mm
Category: Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium |
||||
|
Part Number: P-025T-012-050A
Metric Timing Stock Pulleys - 12 tooth - 50x9.6 mm 2.5mm Pitch T2.5 Aluminium - Aluminium Pulley 1 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$56.32 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
50.0
mm (Equiv. 1.969 in.) |
Pitch Diameter (PD)
9.60
mm (Equiv. 0.378 in.) |
Outside Diameter (OD)
9.00
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 9.50 mm
Category: Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium |
||||
|
Part Number: P-025T-012-050A
Metric Timing Stock Pulleys - 12 tooth - 50x9.6 mm 2.5mm Pitch T2.5 Aluminium - Aluminium Pulley 1 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$56.32 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
100.0
mm (Equiv. 3.937 in.) |
Pitch Diameter (PD)
11.50
mm (Equiv. 0.453 in.) |
Outside Diameter (OD)
10.70
mm |
|
|
Material: Carbon Steel
Shank Diameter (D1): 9.50 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-012-100C
Metric Timing Stock Pulleys - 12 tooth - 100x11.5 mm 3.000mm Pitch - Carbon Steel Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$89.32 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
100.0
mm (Equiv. 3.937 in.) |
Pitch Diameter (PD)
11.50
mm (Equiv. 0.453 in.) |
Outside Diameter (OD)
10.70
mm |
|
|
Material: Carbon Steel
Shank Diameter (D1): 9.50 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-012-100C
Metric Timing Stock Pulleys - 12 tooth - 100x11.5 mm 3.000mm Pitch - Carbon Steel Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$89.32 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
100.0
mm (Equiv. 3.937 in.) |
Pitch Diameter (PD)
11.50
mm (Equiv. 0.453 in.) |
Outside Diameter (OD)
10.70
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 6.30 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-012-100A
Metric Timing Stock Pulleys - 12 tooth - 100x11.5 mm 3mm Pitch - Aluminium Pulley 1 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$61.32 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
100.0
mm (Equiv. 3.937 in.) |
Pitch Diameter (PD)
11.50
mm (Equiv. 0.453 in.) |
Outside Diameter (OD)
10.70
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 6.30 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030H-012-100A
Metric Timing Stock Pulleys - 12 tooth - 100x11.5 mm 3mm Pitch - Aluminium Pulley 1 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$61.32 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
100.0
mm (Equiv. 3.937 in.) |
Pitch Diameter (PD)
11.50
mm (Equiv. 0.453 in.) |
Outside Diameter (OD)
10.70
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.30 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030G-012-100A
Metric Timing Stock Pulleys - 12 tooth - 100x11.5 mm 3mm Pitch - Aluminium Pulley 8 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$59.05 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
100.0
mm (Equiv. 3.937 in.) |
Pitch Diameter (PD)
11.50
mm (Equiv. 0.453 in.) |
Outside Diameter (OD)
10.70
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 8.30 mm
Category: Pulleys - Metric Timing Stock - 3.000mm Pitch |
||||
|
Part Number: P-030G-012-100A
Metric Timing Stock Pulleys - 12 tooth - 100x11.5 mm 3mm Pitch - Aluminium Pulley 8 Available Now | Further orders can be expected around Sun, Oct 19, 2025 Regular price
$59.05 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
125.0
mm (Equiv. 4.921 in.) |
Pitch Diameter (PD)
18.25
mm (Equiv. 0.719 in.) |
Outside Diameter (OD)
18.25
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050T-012-125A
Metric Timing Stock Pulleys - 12 tooth - 125x18.25 mm 5mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$72.32 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
125.0
mm (Equiv. 4.921 in.) |
Pitch Diameter (PD)
18.25
mm (Equiv. 0.719 in.) |
Outside Diameter (OD)
18.25
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050T-012-125A
Metric Timing Stock Pulleys - 12 tooth - 125x18.25 mm 5mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$72.32 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
140.0
mm (Equiv. 5.512 in.) |
Pitch Diameter (PD)
19.09
mm (Equiv. 0.752 in.) |
|
|
|
Material: Aluminium
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050A-012-140A
Metric Timing Stock Pulleys - 12 tooth - 140x19.09 mm 5mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$108.86 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
140.0
mm (Equiv. 5.512 in.) |
Pitch Diameter (PD)
19.09
mm (Equiv. 0.752 in.) |
|
|
|
Material: Aluminium
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050A-012-140A
Metric Timing Stock Pulleys - 12 tooth - 140x19.09 mm 5mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$108.86 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
140.0
mm (Equiv. 5.512 in.) |
Pitch Diameter (PD)
36.35
mm (Equiv. 1.431 in.) |
Outside Diameter (OD)
36.35
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 10.000mm Pitch |
||||
|
Part Number: P-100T-012-140A
Metric Timing Stock Pulleys - 12 tooth - 140x36.35 mm 10mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$125.59 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
140.0
mm (Equiv. 5.512 in.) |
Pitch Diameter (PD)
36.35
mm (Equiv. 1.431 in.) |
Outside Diameter (OD)
36.35
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 10.000mm Pitch |
||||
|
Part Number: P-100T-012-140A
Metric Timing Stock Pulleys - 12 tooth - 140x36.35 mm 10mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$125.59 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
150.0
mm (Equiv. 5.906 in.) |
Pitch Diameter (PD)
19.10
mm (Equiv. 0.752 in.) |
Outside Diameter (OD)
17.96
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050G-012-150A
Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$96.95 AUD
Regular price
Unit price
per
Each
|
||||
|
Number of Teeth
12
|
Min. Usable Length (L)
150.0
mm (Equiv. 5.906 in.) |
Pitch Diameter (PD)
19.10
mm (Equiv. 0.752 in.) |
Outside Diameter (OD)
17.96
mm |
|
|
Material: Aluminium
Shank Diameter (D1): 12.70 mm
Category: Pulleys - Metric Timing Stock - 5.000mm Pitch |
||||
|
Part Number: P-050G-012-150A
Metric Timing Stock Pulleys - 12 tooth - 150x19.1 mm 5mm Pitch - Aluminium Pulley Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 19, 2025 Regular price
$96.95 AUD
Regular price
Unit price
per
Each
|
||||
|
||||
