IP-265RS

Tapped Base Housing and Bearing Assembly - 31.75x42.863x101.6 mm Thermoplastic and Steel

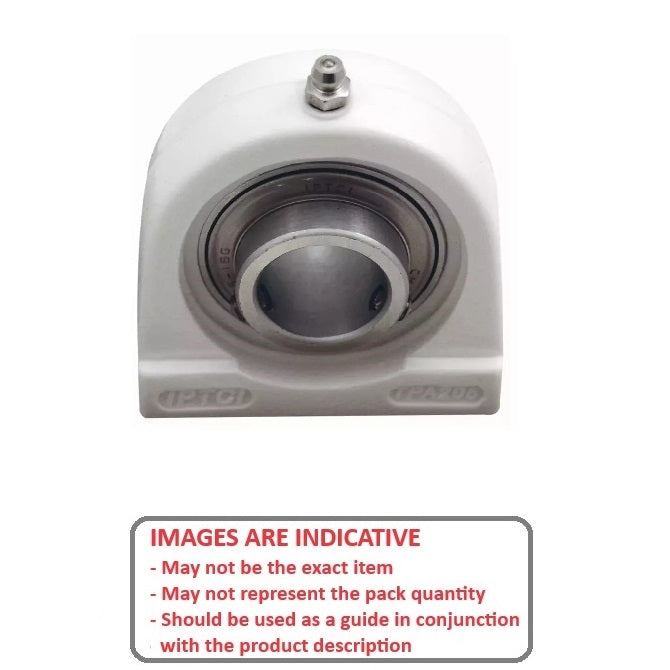

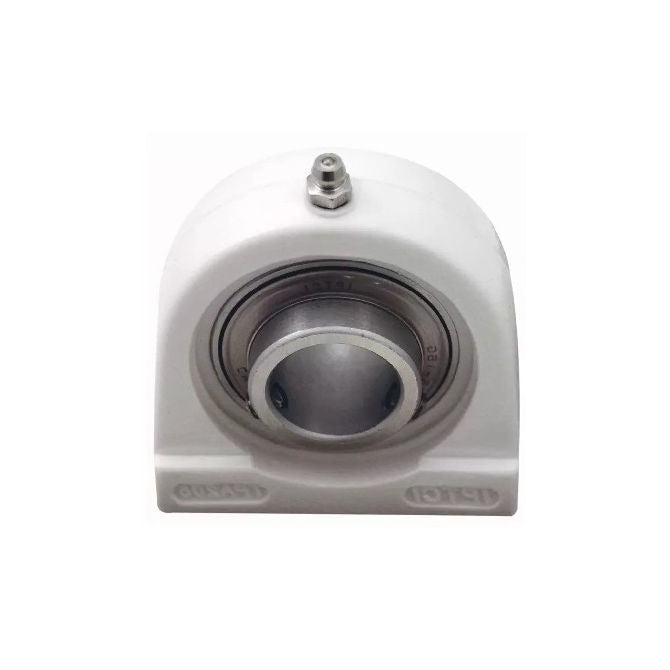

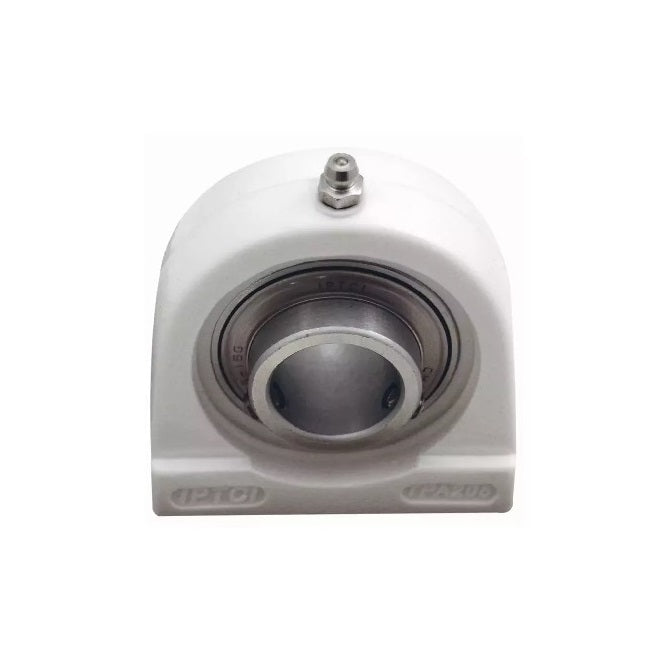

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Tapped Base Housing Assembly - 31.75 S 42.863x101.6 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale
Price:
$262.23 AUD
$314.67 AUD $262.23 AUD
Excludes GST and overseas Taxes & Duties
 Each
Backorder
Order 50 or more for $236.01 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Sep 29, 2025

Base Category: Housing and Bearing Assembly - Tapped Base

Top Level Category: Housing and Bearing Assembly - Tapped Base - Thermoplastic and Steel

Product Details

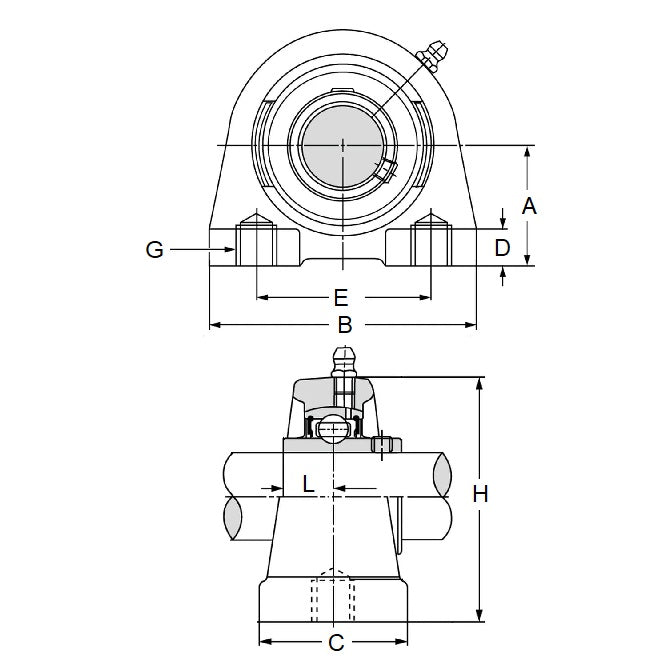

Bore: 31.75mm
(31.75mm is 1.25 in.)
  • Bore: 31.75mm
    (31.75mm is 1.25 in.)
  • Centre Height (A): 42.863mm
    (42.863mm is 1.688 in.)
  • Width (B): 101.600mm
    (101.600mm is 4 in.)
  • Depth (C): 42.863mm
  • Bolt Depth (D): 12.700mm
  • Bolt Distances (E): 76.200mm
  • Thread (G): 7/16-14 UNC (11.11mm)
  • K: 84.138mm
  • L: 22.200mm

Brand: MBA
Country of Origin: US

Product Compliance and Data
