Housing and Bearing Assembly - Tapped Base - Thermoplastic and Steel

Housing and Bearing Assembly -> Tapped Base -> Thermoplastic and Steel

There are 15 products in the sub-categories of Housing and Bearing Assembly - Tapped Base - Thermoplastic and Steel. Browse the Housing and Bearing Assembly - Tapped Base - Thermoplastic and Steel products table.

Category Details

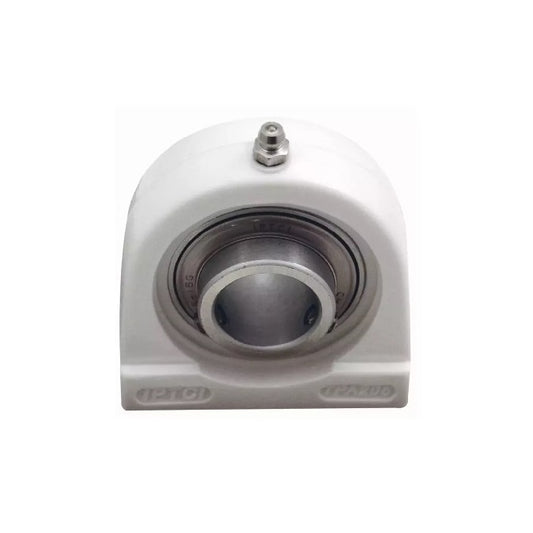

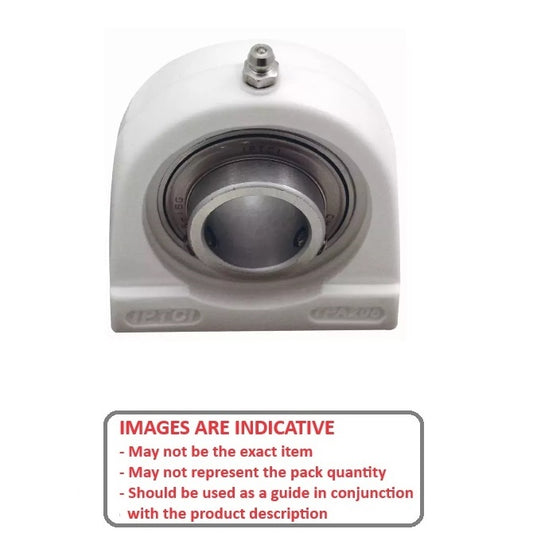

A selection of Thermoplastic and Chrome Steel Tapped Base Housing Assembly. Thermoplastic housed units offer a more favourable economic choice. Hard chrome inserts offer an intermediate level of corrosion resistance.

  • Operating temperature minus 20 oC to +95 deg C
  • Thermoplastic hosuings are offwhite and are made from glass reinforced PBT resin. Favourable chemical resistance. Very resistant to moisture absorption.
  • Excellent mechanical, thermal and electrical properties.
  • All sleeves, bushings and grease fittings are 300 grade stainless steel.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housing and Bearing Assembly - Tapped Base - Thermoplastic and Steel category on the Small Parts & Bearings online store.
Bore Centre Height (A) Width (B) Depth (C) Bolt Depth (D) Bolt Distances (E) Indicative
Bore
19.050
mm

(Equiv. 0.75 in.)
Centre Height (A)
33.325
mm

(Equiv. 1.312 in.)
Width (B)
73.025
mm

(Equiv. 2.875 in.)
Depth (C)
34.925
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 19.05x33.325x73.025 mm
Thread (G): 3/8-16 UNC (9.53mm)    K: 65.881 mm    L: 18.301 mm
Part Number: IP-257RS
Tapped Base Housing and Bearing Assembly - 19.05x33.325x73.025 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$216.23 AUD
$216.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore Centre Height (A) Width (B) Depth (C) Indicative
Bore
19.050
mm

(Equiv. 0.75 in.)
Centre Height (A)
33.325
mm

(Equiv. 1.312 in.)
Width (B)
73.025
mm

(Equiv. 2.875 in.)
Depth (C)
34.925
mm
Tapped Base Housing Assembly - 19.05x33.325x73.025 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 50.800 mm    Thread (G): 3/8-16 UNC (9.53mm)    K: 65.881 mm    L: 18.301 mm
Part Number: IP-257RS
Tapped Base Housing and Bearing Assembly - 19.05x33.325x73.025 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$216.23 AUD
$216.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
20.000
mm

(Equiv. 0.787 in.)
Centre Height (A)
33.300
mm

(Equiv. 1.311 in.)
Width (B)
73.000
mm

(Equiv. 2.874 in.)
Depth (C)
35.000
mm
Bolt Depth (D)
13.000
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 20x33.3x73 mm
Thread (G): UNC    K: 66.000 mm    L: 18.300 mm
Part Number: IP-258RS
Tapped Base Housing and Bearing Assembly - 20x33.3x73 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$202.77 AUD
$243.33 AUD $202.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
20.000
mm

(Equiv. 0.787 in.)
Centre Height (A)
33.300
mm

(Equiv. 1.311 in.)
Width (B)
73.000
mm

(Equiv. 2.874 in.)
Depth (C)
35.000
mm
Tapped Base Housing Assembly - 20x33.3x73 mm
Bolt Depth (D): 13.000 mm    Bolt Distances (E): 50.800 mm    Thread (G): UNC    K: 66.000 mm    L: 18.300 mm
Part Number: IP-258RS
Tapped Base Housing and Bearing Assembly - 20x33.3x73 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$202.77 AUD
$243.33 AUD $202.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
22.225
mm

(Equiv. 0.875 in.)
Centre Height (A)
36.500
mm

(Equiv. 1.437 in.)
Width (B)
76.200
mm

(Equiv. 3 in.)
Depth (C)
39.675
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 22.225x36.5x76.2 mm
Thread (G): 3/8-16 UNC (9.53mm)    K: 73.819 mm    L: 19.700 mm
Part Number: IP-259RS
Tapped Base Housing and Bearing Assembly - 22.225x36.5x76.2 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$203.77 AUD
$244.53 AUD $203.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
22.225
mm

(Equiv. 0.875 in.)
Centre Height (A)
36.500
mm

(Equiv. 1.437 in.)
Width (B)
76.200
mm

(Equiv. 3 in.)
Depth (C)
39.675
mm
Tapped Base Housing Assembly - 22.225x36.5x76.2 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 50.800 mm    Thread (G): 3/8-16 UNC (9.53mm)    K: 73.819 mm    L: 19.700 mm
Part Number: IP-259RS
Tapped Base Housing and Bearing Assembly - 22.225x36.5x76.2 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$203.77 AUD
$244.53 AUD $203.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
25.000
mm

(Equiv. 0.984 in.)
Centre Height (A)
36.500
mm

(Equiv. 1.437 in.)
Width (B)
76.000
mm

(Equiv. 2.992 in.)
Depth (C)
40.000
mm
Bolt Depth (D)
13.000
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 25x36.5x76 mm
Thread (G): UNC    K: 74.000 mm    L: 19.700 mm
Part Number: IP-260RS
Tapped Base Housing and Bearing Assembly - 25x36.5x76 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$215.05 AUD
$258.05 AUD $215.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
25.000
mm

(Equiv. 0.984 in.)
Centre Height (A)
36.500
mm

(Equiv. 1.437 in.)
Width (B)
76.000
mm

(Equiv. 2.992 in.)
Depth (C)
40.000
mm
Tapped Base Housing Assembly - 25x36.5x76 mm
Bolt Depth (D): 13.000 mm    Bolt Distances (E): 50.800 mm    Thread (G): UNC    K: 74.000 mm    L: 19.700 mm
Part Number: IP-260RS
Tapped Base Housing and Bearing Assembly - 25x36.5x76 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$215.05 AUD
$258.05 AUD $215.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
25.400
mm

(Equiv. 1 in.)
Centre Height (A)
36.513
mm

(Equiv. 1.438 in.)
Width (B)
76.200
mm

(Equiv. 3 in.)
Depth (C)
39.675
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
50.800
mm
Tapped Base Housing Assembly - 25.4x36.513x76.2 mm
Thread (G): 3/8-16 UNC (9.53mm)    K: 73.819 mm    L: 19.700 mm
Part Number: IP-261RS
Tapped Base Housing and Bearing Assembly - 25.4x36.513x76.2 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$203.86 AUD
$244.64 AUD $203.86 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
25.400
mm

(Equiv. 1 in.)
Centre Height (A)
36.513
mm

(Equiv. 1.438 in.)
Width (B)
76.200
mm

(Equiv. 3 in.)
Depth (C)
39.675
mm
Tapped Base Housing Assembly - 25.4x36.513x76.2 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 50.800 mm    Thread (G): 3/8-16 UNC (9.53mm)    K: 73.819 mm    L: 19.700 mm
Part Number: IP-261RS
Tapped Base Housing and Bearing Assembly - 25.4x36.513x76.2 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$203.86 AUD
$244.64 AUD $203.86 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
28.575
mm

(Equiv. 1.125 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Width (B)
101.600
mm

(Equiv. 4 in.)
Depth (C)
42.863
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 28.575x42.863x101.6 mm
Thread (G): 7/16-14 UNC (11.11mm)    K: 84.125 mm    L: 22.200 mm
Part Number: IP-262RS
Tapped Base Housing and Bearing Assembly - 28.575x42.863x101.6 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$262.23 AUD
$314.67 AUD $262.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
28.575
mm

(Equiv. 1.125 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Width (B)
101.600
mm

(Equiv. 4 in.)
Depth (C)
42.863
mm
Tapped Base Housing Assembly - 28.575x42.863x101.6 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 76.200 mm    Thread (G): 7/16-14 UNC (11.11mm)    K: 84.125 mm    L: 22.200 mm
Part Number: IP-262RS
Tapped Base Housing and Bearing Assembly - 28.575x42.863x101.6 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$262.23 AUD
$314.67 AUD $262.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
30.000
mm

(Equiv. 1.181 in.)
Centre Height (A)
42.900
mm

(Equiv. 1.689 in.)
Width (B)
102.000
mm

(Equiv. 4.016 in.)
Depth (C)
43.000
mm
Bolt Depth (D)
13.000
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 30x42.9x102 mm
Thread (G): UNC    K: 84.000 mm    L: 22.200 mm
Part Number: IP-263RS
Tapped Base Housing and Bearing Assembly - 30x42.9x102 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$280.32 AUD
$336.38 AUD $280.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
30.000
mm

(Equiv. 1.181 in.)
Centre Height (A)
42.900
mm

(Equiv. 1.689 in.)
Width (B)
102.000
mm

(Equiv. 4.016 in.)
Depth (C)
43.000
mm
Tapped Base Housing Assembly - 30x42.9x102 mm
Bolt Depth (D): 13.000 mm    Bolt Distances (E): 76.200 mm    Thread (G): UNC    K: 84.000 mm    L: 22.200 mm
Part Number: IP-263RS
Tapped Base Housing and Bearing Assembly - 30x42.9x102 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$280.32 AUD
$336.38 AUD $280.32 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
30.163
mm

(Equiv. 1.188 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Width (B)
101.600
mm

(Equiv. 4 in.)
Depth (C)
42.863
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 30.163x42.863x101.6 mm
Thread (G): 7/16-14 UNC (11.11mm)    K: 84.138 mm    L: 22.200 mm
Part Number: IP-264RS
Tapped Base Housing and Bearing Assembly - 30.163x42.863x101.6 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$251.23 AUD
$301.47 AUD $251.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
30.163
mm

(Equiv. 1.188 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Width (B)
101.600
mm

(Equiv. 4 in.)
Depth (C)
42.863
mm
Tapped Base Housing Assembly - 30.163x42.863x101.6 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 76.200 mm    Thread (G): 7/16-14 UNC (11.11mm)    K: 84.138 mm    L: 22.200 mm
Part Number: IP-264RS
Tapped Base Housing and Bearing Assembly - 30.163x42.863x101.6 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$251.23 AUD
$301.47 AUD $251.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
31.75
mm

(Equiv. 1.25 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Width (B)
101.600
mm

(Equiv. 4 in.)
Depth (C)
42.863
mm
Bolt Depth (D)
12.700
mm
Bolt Distances (E)
76.200
mm
Tapped Base Housing Assembly - 31.75 S 42.863x101.6 mm
Thread (G): 7/16-14 UNC (11.11mm)    K: 84.138 mm    L: 22.200 mm
Part Number: IP-265RS
Tapped Base Housing and Bearing Assembly - 31.75x42.863x101.6 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$262.23 AUD
$314.67 AUD $262.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
31.75
mm

(Equiv. 1.25 in.)
Centre Height (A)
42.863
mm

(Equiv. 1.688 in.)
Width (B)
101.600
mm

(Equiv. 4 in.)
Depth (C)
42.863
mm
Tapped Base Housing Assembly - 31.75 S 42.863x101.6 mm
Bolt Depth (D): 12.700 mm    Bolt Distances (E): 76.200 mm    Thread (G): 7/16-14 UNC (11.11mm)    K: 84.138 mm    L: 22.200 mm
Part Number: IP-265RS
Tapped Base Housing and Bearing Assembly - 31.75x42.863x101.6 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$262.23 AUD
$314.67 AUD $262.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
31.750
mm

(Equiv. 1.25 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Width (B)
109.528
mm

(Equiv. 4.312 in.)
Depth (C)
47.625
mm
Bolt Depth (D)
16.272
mm
Bolt Distances (E)
82.550
mm
Tapped Base Housing Assembly - 31.75x47.625x109.528 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 95.250 mm    L: 25.400 mm
Part Number: IP-266RS
Tapped Base Housing and Bearing Assembly - 31.75x47.625x109.528 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$321.23 AUD
$385.47 AUD $321.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
31.750
mm

(Equiv. 1.25 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Width (B)
109.528
mm

(Equiv. 4.312 in.)
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 31.75x47.625x109.528 mm
Bolt Depth (D): 16.272 mm    Bolt Distances (E): 82.550 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 95.250 mm    L: 25.400 mm
Part Number: IP-266RS
Tapped Base Housing and Bearing Assembly - 31.75x47.625x109.528 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$321.23 AUD
$385.47 AUD $321.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
34.925
mm

(Equiv. 1.375 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Width (B)
109.528
mm

(Equiv. 4.312 in.)
Depth (C)
47.625
mm
Bolt Depth (D)
16.272
mm
Bolt Distances (E)
82.550
mm
Tapped Base Housing Assembly - 34.925x47.625x109.528 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 95.250 mm    L: 25.400 mm
Part Number: IP-267RS
Tapped Base Housing and Bearing Assembly - 34.925x47.625x109.528 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$321.23 AUD
$385.47 AUD $321.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
34.925
mm

(Equiv. 1.375 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Width (B)
109.528
mm

(Equiv. 4.312 in.)
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 34.925x47.625x109.528 mm
Bolt Depth (D): 16.272 mm    Bolt Distances (E): 82.550 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 95.250 mm    L: 25.400 mm
Part Number: IP-267RS
Tapped Base Housing and Bearing Assembly - 34.925x47.625x109.528 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$321.23 AUD
$385.47 AUD $321.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
35.000
mm

(Equiv. 1.378 in.)
Centre Height (A)
47.600
mm

(Equiv. 1.874 in.)
Width (B)
110.000
mm

(Equiv. 4.331 in.)
Depth (C)
48.000
mm
Bolt Depth (D)
16.000
mm
Bolt Distances (E)
82.600
mm
Tapped Base Housing Assembly - 35x47.6x110 mm
Thread (G): UNC    K: 95.000 mm    L: 25.400 mm
Part Number: IP-268RS
Tapped Base Housing and Bearing Assembly - 35x47.6x110 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$332.23 AUD
$398.67 AUD $332.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
35.000
mm

(Equiv. 1.378 in.)
Centre Height (A)
47.600
mm

(Equiv. 1.874 in.)
Width (B)
110.000
mm

(Equiv. 4.331 in.)
Depth (C)
48.000
mm
Tapped Base Housing Assembly - 35x47.6x110 mm
Bolt Depth (D): 16.000 mm    Bolt Distances (E): 82.600 mm    Thread (G): UNC    K: 95.000 mm    L: 25.400 mm
Part Number: IP-268RS
Tapped Base Housing and Bearing Assembly - 35x47.6x110 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$332.23 AUD
$398.67 AUD $332.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
36.513
mm

(Equiv. 1.438 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Width (B)
109.528
mm

(Equiv. 4.312 in.)
Depth (C)
47.625
mm
Bolt Depth (D)
16.272
mm
Bolt Distances (E)
82.550
mm
Tapped Base Housing Assembly - 36.513x47.625x109.528 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 95.250 mm    L: 25.400 mm
Part Number: IP-269RS
Tapped Base Housing and Bearing Assembly - 36.513x47.625x109.528 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$321.23 AUD
$385.47 AUD $321.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
36.513
mm

(Equiv. 1.438 in.)
Centre Height (A)
47.625
mm

(Equiv. 1.875 in.)
Width (B)
109.528
mm

(Equiv. 4.312 in.)
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 36.513x47.625x109.528 mm
Bolt Depth (D): 16.272 mm    Bolt Distances (E): 82.550 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 95.250 mm    L: 25.400 mm
Part Number: IP-269RS
Tapped Base Housing and Bearing Assembly - 36.513x47.625x109.528 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$321.23 AUD
$385.47 AUD $321.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
38.100
mm

(Equiv. 1.5 in.)
Centre Height (A)
49.213
mm

(Equiv. 1.938 in.)
Width (B)
120.650
mm

(Equiv. 4.75 in.)
Depth (C)
47.625
mm
Bolt Depth (D)
16.272
mm
Bolt Distances (E)
88.900
mm
Tapped Base Housing Assembly - 38.1x49.213x120.65 mm
Thread (G): 1/2-13 UNC (12.7mm)    K: 101.600 mm    L: 30.201 mm
Part Number: IP-270RS
Tapped Base Housing and Bearing Assembly - 38.1x49.213x120.65 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$393.95 AUD
$472.75 AUD $393.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
38.100
mm

(Equiv. 1.5 in.)
Centre Height (A)
49.213
mm

(Equiv. 1.938 in.)
Width (B)
120.650
mm

(Equiv. 4.75 in.)
Depth (C)
47.625
mm
Tapped Base Housing Assembly - 38.1x49.213x120.65 mm
Bolt Depth (D): 16.272 mm    Bolt Distances (E): 88.900 mm    Thread (G): 1/2-13 UNC (12.7mm)    K: 101.600 mm    L: 30.201 mm
Part Number: IP-270RS
Tapped Base Housing and Bearing Assembly - 38.1x49.213x120.65 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$393.95 AUD
$472.75 AUD $393.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
40.000
mm

(Equiv. 1.575 in.)
Centre Height (A)
49.200
mm

(Equiv. 1.937 in.)
Width (B)
120.000
mm

(Equiv. 4.724 in.)
Depth (C)
48.000
mm
Bolt Depth (D)
16.000
mm
Bolt Distances (E)
88.900
mm
Tapped Base Housing Assembly - 40x49.2x120 mm
Thread (G): UNC    K: 101.000 mm    L: 30.200 mm
Part Number: IP-271RS
Tapped Base Housing and Bearing Assembly - 40x49.2x120 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$412.59 AUD
$495.11 AUD $412.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore
40.000
mm

(Equiv. 1.575 in.)
Centre Height (A)
49.200
mm

(Equiv. 1.937 in.)
Width (B)
120.000
mm

(Equiv. 4.724 in.)
Depth (C)
48.000
mm
Tapped Base Housing Assembly - 40x49.2x120 mm
Bolt Depth (D): 16.000 mm    Bolt Distances (E): 88.900 mm    Thread (G): UNC    K: 101.000 mm    L: 30.200 mm
Part Number: IP-271RS
Tapped Base Housing and Bearing Assembly - 40x49.2x120 mm Thermoplastic and Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 29, 2025
$412.59 AUD
$495.11 AUD $412.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
