CS-0224-0097-03-S2-G

Name: 1040925 | CS-0224-0097-03-S2-G --- Compression Springs - 2.24x9.7x0.31 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring
Brand: MBA
SKU: CS0224009703S2G
Price: 6.04 AUD
Availability: InStock

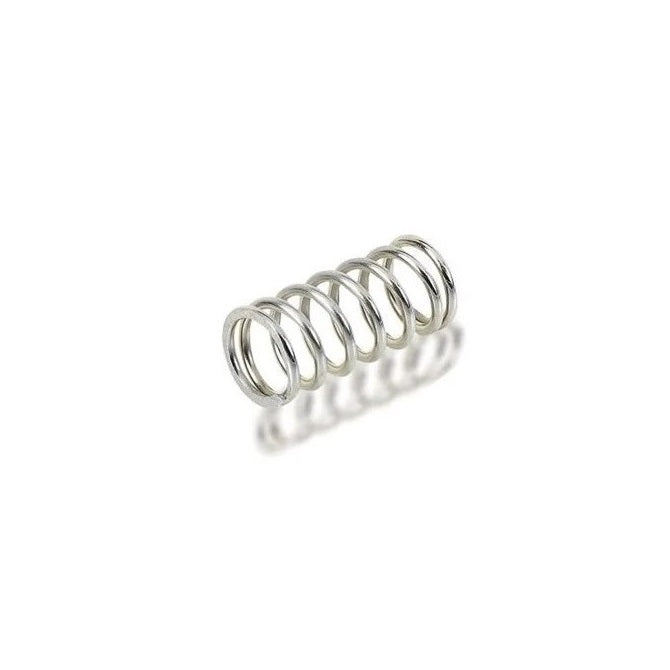

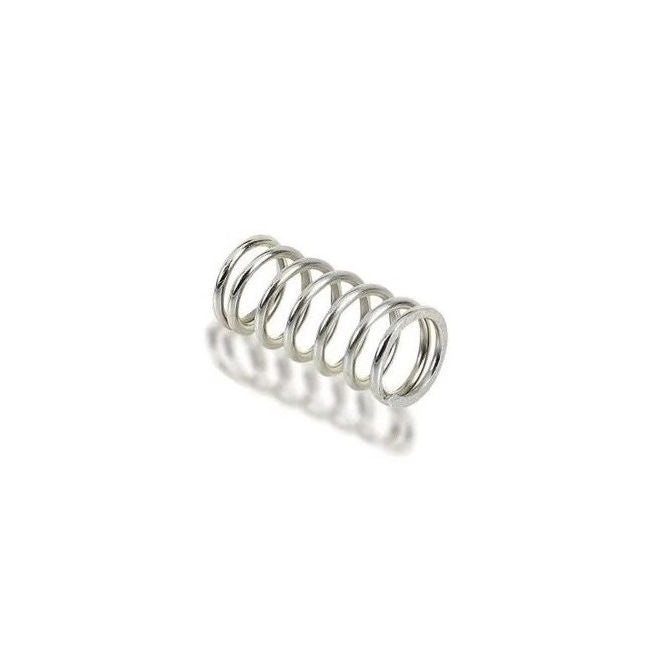

Compression Springs - 2.24x9.7x0.31 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring

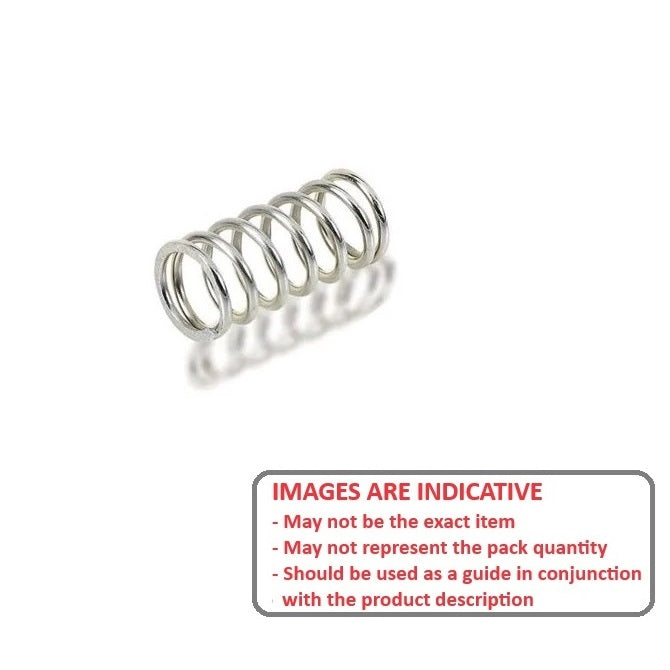

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Springs - Compression - Stainless Steel

Additional resources:
Spings Catalogue PDF
Assortment Kits

Price:

$6.04 AUD

~~$12.10 AUD~~ $6.04 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 371 available now
Order 50 or more for $5.44 AUD

Product Details

Deleted Item. Available while stocks last.

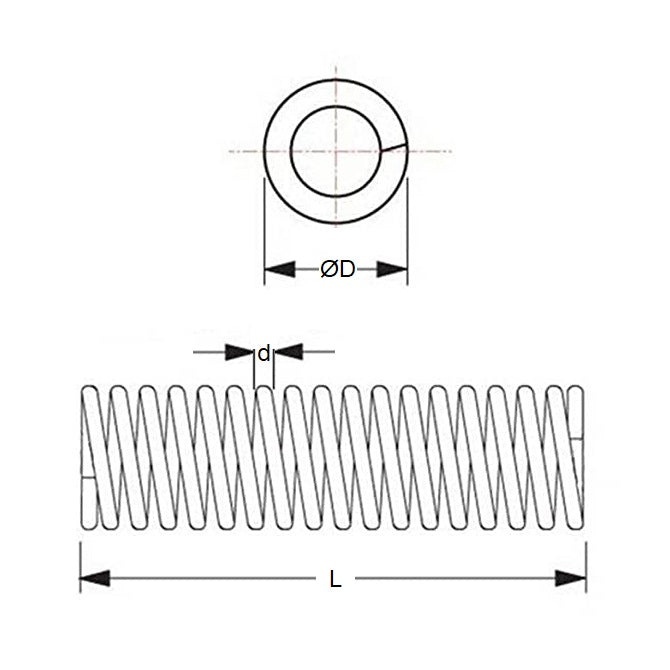

Spring OD (D0): 2.24mm
_{+/- 0.076}
_{(2.24mm is 0.088 in.)}

Stainless Steel 302/304 (Similar to A2, 18-8)

Spring OD (D0): 2.24mm
_{+/- 0.076}
_{(2.24mm is 0.088 in.)}
Free Length (L0): 9.7mm
_{+/- 0.38}
_{(9.7mm is 0.382 in.)}
Wire Diameter (d): 0.31mm
_{+/- 0.015}
_{(0.31mm is 0.012 in.)}
Loaded Height (L1): 5.49mm
Load at L1: 3.89N
Rate (P/f): 1.0N/mm
Solid Height (Sh): 4.369mm
Approx. ID: 1.6mm
End Type: Closed Ground Flush
Max Rod Dia. (A): 1.51mm

Brand: MBA
Country of Origin: AU

Product Compliance and Data

Similar to

S78CSY-008012038
S78CSY008012038

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
