Collection: Washers - Disc Spring - Standard - Stainless Steel

Washers (With Images)

Disc Spring

Standard

Carbon Steel
Plastic
Stainless Steel

106 Products in this selection

Includes disc springs to DIN 2093 and belleville washers to DIN 6796.
Manufactured under strict quality control to conform to DIN 2093

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard - Stainless Steel. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.53 mm	Load at L1 15.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.90 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.50 mm
Part Number: W0080-D-016-004-S17 (50 Pcs) Disc Spring Washers - 16x8x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $155.23 AUD Regular price Sale price $155.23 AUD Unit price per Per 50
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.53 mm Load at L1: 15.0 kg Free Height (E): 0.90 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.50 mm
Part Number: W0080-D-016-004-S17 (50 Pcs) Disc Spring Washers - 16x8x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $155.23 AUD Regular price Sale price $155.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-016-004-S17 (50 Pcs) --- Disc Spring Washers - 16x8x0.4 mm - Stainless Steel 17-7 PH W0080-D-016-004-S17 (50 Pcs) --- Disc Spring Washers - 16x8x0.4 mm - Stainless Steel 17-7 PH Regular price $155.23 AUD Regular price Sale price $155.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.90 mm	Load at L1 83.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.20 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-016-008-S17 (50 Pcs) Disc Spring Washers - 16x8x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $115.95 AUD Regular price Sale price $115.95 AUD Unit price per Per 50
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.90 mm Load at L1: 83.0 kg Free Height (E): 1.20 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-016-008-S17 (50 Pcs) Disc Spring Washers - 16x8x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $115.95 AUD Regular price Sale price $115.95 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-016-008-S17 (50 Pcs) --- Disc Spring Washers - 16x8x0.8 mm - Stainless Steel 17-7 PH W0080-D-016-008-S17 (50 Pcs) --- Disc Spring Washers - 16x8x0.8 mm - Stainless Steel 17-7 PH Regular price $115.95 AUD Regular price Sale price $115.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 0.99 mm	Load at L1 101.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.25 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.35 mm
Part Number: W0080-D-016-009-S17 (50 Pcs) Disc Spring Washers - 16x8x0.9 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $115.95 AUD Regular price Sale price $115.95 AUD Unit price per Per 50
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.99 mm Load at L1: 101.0 kg Free Height (E): 1.25 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.35 mm
Part Number: W0080-D-016-009-S17 (50 Pcs) Disc Spring Washers - 16x8x0.9 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $115.95 AUD Regular price Sale price $115.95 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-016-009-S17 (50 Pcs) --- Disc Spring Washers - 16x8x0.9 mm - Stainless Steel 17-7 PH W0080-D-016-009-S17 (50 Pcs) --- Disc Spring Washers - 16x8x0.9 mm - Stainless Steel 17-7 PH Regular price $115.95 AUD Regular price Sale price $115.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}	Load to flatten N/A kg	Loaded Height (L1) 0.26 mm	Load at L1 93.0 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Free Height (E): 1.25 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.35 mm
Part Number: W0080-D-016-009-S4 (10 Pcs) Disc Spring Washers - 16x8x0.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 10
Nominal OD (A) 16.00 mm _{(0.63 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}	Load to flatten N/A kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Loaded Height (L1): 0.26 mm Load at L1: 93.0 kg Free Height (E): 1.25 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.35 mm
Part Number: W0080-D-016-009-S4 (10 Pcs) Disc Spring Washers - 16x8x0.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 10 View the product page first if you are unsure.
W0080-D-016-009-S4 (10 Pcs) --- Disc Spring Washers - 16x8x0.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 W0080-D-016-009-S4 (10 Pcs) --- Disc Spring Washers - 16x8x0.9 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.92 mm	Load at L1 73.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.30 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.50 mm
Part Number: W0060-D-018-008-S17 (50 Pcs) Disc Spring Washers - 18x6x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 6.00 mm + 0.20 / - 0.00 _{(0.236 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.92 mm Load at L1: 73.0 kg Free Height (E): 1.30 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.50 mm
Part Number: W0060-D-018-008-S17 (50 Pcs) Disc Spring Washers - 18x6x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-018-008-S17 (50 Pcs) --- Disc Spring Washers - 18x6x0.8 mm - Stainless Steel 17-7 PH W0060-D-018-008-S17 (50 Pcs) --- Disc Spring Washers - 18x6x0.8 mm - Stainless Steel 17-7 PH Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.38 mm
Material: Stainless Steel 17-7 PH Load at 0.75 Height: 84.82 Kg Free Height (E): 1.30 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.51 mm
Part Number: W0080-D-018-008-S17 (50 Pcs) Disc Spring Washers - 18x8x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.38 mm Load at 0.75 Height: 84.82 Kg Free Height (E): 1.30 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.51 mm
Part Number: W0080-D-018-008-S17 (50 Pcs) Disc Spring Washers - 18x8x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-018-008-S17 (50 Pcs) --- Disc Spring Washers - 18x8x0.8 mm - Stainless Steel 17-7 PH W0080-D-018-008-S17 (50 Pcs) --- Disc Spring Washers - 18x8x0.8 mm - Stainless Steel 17-7 PH Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 0.45 mm _{(0.018 in.)}		Loaded Height (L1) 0.60 mm	Load at L1 21.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.05 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.60 mm
Part Number: W0090-D-018-005-S17 (50 Pcs) Disc Spring Washers - 18x9x0.45 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $153.32 AUD Regular price Sale price $153.32 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 0.45 mm _{(0.018 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.60 mm Load at L1: 21.0 kg Free Height (E): 1.05 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.60 mm
Part Number: W0090-D-018-005-S17 (50 Pcs) Disc Spring Washers - 18x9x0.45 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $153.32 AUD Regular price Sale price $153.32 AUD Unit price per Per 50 View the product page first if you are unsure.
W0090-D-018-005-S17 (50 Pcs) --- Disc Spring Washers - 18x9x0.45 mm - Stainless Steel 17-7 PH W0090-D-018-005-S17 (50 Pcs) --- Disc Spring Washers - 18x9x0.45 mm - Stainless Steel 17-7 PH Regular price $153.32 AUD Regular price Sale price $153.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}		Loaded Height (L1) 0.83 mm	Load at L1 57.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.20 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.50 mm
Part Number: W0090-D-018-007-S17 (50 Pcs) Disc Spring Washers - 18x9x0.7 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 0.70 mm _{(0.028 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.83 mm Load at L1: 57.0 kg Free Height (E): 1.20 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.50 mm
Part Number: W0090-D-018-007-S17 (50 Pcs) Disc Spring Washers - 18x9x0.7 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W0090-D-018-007-S17 (50 Pcs) --- Disc Spring Washers - 18x9x0.7 mm - Stainless Steel 17-7 PH W0090-D-018-007-S17 (50 Pcs) --- Disc Spring Washers - 18x9x0.7 mm - Stainless Steel 17-7 PH Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.10 mm	Load at L1 125.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.40 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.40 mm
Part Number: W0090-D-018-010-S17 (50 Pcs) Disc Spring Washers - 18x9x1 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Per 50
Nominal OD (A) 18.00 mm _{(0.709 in.)}	Nominal ID (B) 9.00 mm + 0.20 / - 0.00 _{(0.354 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.10 mm Load at L1: 125.0 kg Free Height (E): 1.40 mm Actual ID (Ref): 9.2 mm Inside Height (D): 0.40 mm
Part Number: W0090-D-018-010-S17 (50 Pcs) Disc Spring Washers - 18x9x1 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W0090-D-018-010-S17 (50 Pcs) --- Disc Spring Washers - 18x9x1 mm - Stainless Steel 17-7 PH W0090-D-018-010-S17 (50 Pcs) --- Disc Spring Washers - 18x9x1 mm - Stainless Steel 17-7 PH Regular price $137.50 AUD Regular price Sale price $137.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 19.05 mm _{(0.75 in.)}	Nominal ID (B) 9.53 mm + 0.20 / - 0.00 _{(0.375 in.)}	Stock Thickness (C) 1.02 mm _{(0.04 in.)}	Load to flatten 185.27 kg	Loaded Height (L1) 1.24 mm	Load at L1 104.9 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Free Height (E): 1.50 mm Inside Height (D): 0.48 mm
Part Number: W0095-D-019-010-S2 Disc Spring Washers - 19.05x9.53x1.02 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Each
Nominal OD (A) 19.05 mm _{(0.75 in.)}	Nominal ID (B) 9.53 mm + 0.20 / - 0.00 _{(0.375 in.)}	Stock Thickness (C) 1.02 mm _{(0.04 in.)}	Load to flatten 185.27 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 1.24 mm Load at L1: 104.9 kg Free Height (E): 1.50 mm Inside Height (D): 0.48 mm
Part Number: W0095-D-019-010-S2 Disc Spring Washers - 19.05x9.53x1.02 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Each View the product page first if you are unsure.
W0095-D-019-010-S2 --- Disc Spring Washers - 19.05x9.53x1.02 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0095-D-019-010-S2 --- Disc Spring Washers - 19.05x9.53x1.02 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 1.04 mm	Load at L1 95.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.45 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm
Part Number: W0080-D-020-009-S17 (50 Pcs) Disc Spring Washers - 20x8x0.9 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.04 mm Load at L1: 95.0 kg Free Height (E): 1.45 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.55 mm
Part Number: W0080-D-020-009-S17 (50 Pcs) Disc Spring Washers - 20x8x0.9 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-020-009-S17 (50 Pcs) --- Disc Spring Washers - 20x8x0.9 mm - Stainless Steel 17-7 PH W0080-D-020-009-S17 (50 Pcs) --- Disc Spring Washers - 20x8x0.9 mm - Stainless Steel 17-7 PH Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.66 mm	Load at L1 25.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.15 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.65 mm
Part Number: W0100-D-020-005-S17 (50 Pcs) Disc Spring Washers - 20x10x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.66 mm Load at L1: 25.0 kg Free Height (E): 1.15 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.65 mm
Part Number: W0100-D-020-005-S17 (50 Pcs) Disc Spring Washers - 20x10x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-005-S17 (50 Pcs) --- Disc Spring Washers - 20x10x0.5 mm - Stainless Steel 17-7 PH W0100-D-020-005-S17 (50 Pcs) --- Disc Spring Washers - 20x10x0.5 mm - Stainless Steel 17-7 PH Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.94 mm	Load at L1 75.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.35 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-008-S17 (50 Pcs) Disc Spring Washers - 20x10x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.94 mm Load at L1: 75.0 kg Free Height (E): 1.35 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-008-S17 (50 Pcs) Disc Spring Washers - 20x10x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-008-S17 (50 Pcs) --- Disc Spring Washers - 20x10x0.8 mm - Stainless Steel 17-7 PH W0100-D-020-008-S17 (50 Pcs) --- Disc Spring Washers - 20x10x0.8 mm - Stainless Steel 17-7 PH Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}		Loaded Height (L1) 1.04 mm	Load at L1 105.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.45 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-009-S17 (50 Pcs) Disc Spring Washers - 20x10x0.9 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 0.90 mm _{(0.035 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.04 mm Load at L1: 105.0 kg Free Height (E): 1.45 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.55 mm
Part Number: W0100-D-020-009-S17 (50 Pcs) Disc Spring Washers - 20x10x0.9 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-009-S17 (50 Pcs) --- Disc Spring Washers - 20x10x0.9 mm - Stainless Steel 17-7 PH W0100-D-020-009-S17 (50 Pcs) --- Disc Spring Washers - 20x10x0.9 mm - Stainless Steel 17-7 PH Regular price $158.86 AUD Regular price Sale price $158.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 0.42 mm
Material: Stainless Steel 17-7 PH Load at 0.75 Height: 155.58 Kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.56 mm
Part Number: W0100-D-020-010-S17 (50 Pcs) Disc Spring Washers - 20x10x1 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.42 mm Load at 0.75 Height: 155.58 Kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.56 mm
Part Number: W0100-D-020-010-S17 (50 Pcs) Disc Spring Washers - 20x10x1 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-010-S17 (50 Pcs) --- Disc Spring Washers - 20x10x1 mm - Stainless Steel 17-7 PH W0100-D-020-010-S17 (50 Pcs) --- Disc Spring Washers - 20x10x1 mm - Stainless Steel 17-7 PH Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.10 mm _{(0.043 in.)}	Load to flatten N/A kg	Loaded Height (L1) 0.34 mm	Load at L1 140.0 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.45 mm
Part Number: W0100-D-020-011-S4 (50 Pcs) Disc Spring Washers - 20x10x1.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.10 mm _{(0.043 in.)}	Load to flatten N/A kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Loaded Height (L1): 0.34 mm Load at L1: 140.0 kg Free Height (E): 1.55 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.45 mm
Part Number: W0100-D-020-011-S4 (50 Pcs) Disc Spring Washers - 20x10x1.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-011-S4 (50 Pcs) --- Disc Spring Washers - 20x10x1.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 W0100-D-020-011-S4 (50 Pcs) --- Disc Spring Washers - 20x10x1.1 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.20 mm _{(0.047 in.)}		Loaded Height (L1) 1.38 mm	Load at L1 248.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.75 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.50 mm
Part Number: W0100-D-020-012-S17 (50 Pcs) Disc Spring Washers - 20x10x1.2 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.20 mm _{(0.047 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.38 mm Load at L1: 248.0 kg Free Height (E): 1.75 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.50 mm
Part Number: W0100-D-020-012-S17 (50 Pcs) Disc Spring Washers - 20x10x1.2 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-012-S17 (50 Pcs) --- Disc Spring Washers - 20x10x1.2 mm - Stainless Steel 17-7 PH W0100-D-020-012-S17 (50 Pcs) --- Disc Spring Washers - 20x10x1.2 mm - Stainless Steel 17-7 PH Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.58 mm	Load at L1 252.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.80 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.30 mm
Part Number: W0100-D-020-015-S17 (50 Pcs) Disc Spring Washers - 20x10x1.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Per 50
Nominal OD (A) 20.00 mm _{(0.787 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.58 mm Load at L1: 252.0 kg Free Height (E): 1.80 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.30 mm
Part Number: W0100-D-020-015-S17 (50 Pcs) Disc Spring Washers - 20x10x1.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0100-D-020-015-S17 (50 Pcs) --- Disc Spring Washers - 20x10x1.5 mm - Stainless Steel 17-7 PH W0100-D-020-015-S17 (50 Pcs) --- Disc Spring Washers - 20x10x1.5 mm - Stainless Steel 17-7 PH Regular price $180.41 AUD Regular price Sale price $180.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}		Loaded Height (L1) 0.80 mm	Load at L1 43.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.40 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.80 mm
Part Number: W0110-D-023-006-S17 (50 Pcs) Disc Spring Washers - 22.5x11x0.6 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $187.77 AUD Regular price Sale price $187.77 AUD Unit price per Per 50
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 0.60 mm _{(0.024 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.80 mm Load at L1: 43.0 kg Free Height (E): 1.40 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.80 mm
Part Number: W0110-D-023-006-S17 (50 Pcs) Disc Spring Washers - 22.5x11x0.6 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $187.77 AUD Regular price Sale price $187.77 AUD Unit price per Per 50 View the product page first if you are unsure.
W0110-D-023-006-S17 (50 Pcs) --- Disc Spring Washers - 22.5x11x0.6 mm - Stainless Steel 17-7 PH W0110-D-023-006-S17 (50 Pcs) --- Disc Spring Washers - 22.5x11x0.6 mm - Stainless Steel 17-7 PH Regular price $187.77 AUD Regular price Sale price $187.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.96 mm	Load at L1 71.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.45 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.65 mm
Part Number: W0110-D-023-008-S17 (50 Pcs) Disc Spring Washers - 22.5x11x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $190.32 AUD Regular price Sale price $190.32 AUD Unit price per Per 50
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.96 mm Load at L1: 71.0 kg Free Height (E): 1.45 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.65 mm
Part Number: W0110-D-023-008-S17 (50 Pcs) Disc Spring Washers - 22.5x11x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $190.32 AUD Regular price Sale price $190.32 AUD Unit price per Per 50 View the product page first if you are unsure.
W0110-D-023-008-S17 (50 Pcs) --- Disc Spring Washers - 22.5x11x0.8 mm - Stainless Steel 17-7 PH W0110-D-023-008-S17 (50 Pcs) --- Disc Spring Washers - 22.5x11x0.8 mm - Stainless Steel 17-7 PH Regular price $190.32 AUD Regular price Sale price $190.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}		Loaded Height (L1) 1.38 mm	Load at L1 193.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.75 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.50 mm
Part Number: W0110-D-023-013-S17 (50 Pcs) Disc Spring Washers - 22.5x11x1.25 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $187.95 AUD Regular price Sale price $187.95 AUD Unit price per Per 50
Nominal OD (A) 22.50 mm _{(0.886 in.)}	Nominal ID (B) 11.00 mm + 0.20 / - 0.00 _{(0.433 in.)}	Stock Thickness (C) 1.25 mm _{(0.049 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.38 mm Load at L1: 193.0 kg Free Height (E): 1.75 mm Actual ID (Ref): 11.2 mm Inside Height (D): 0.50 mm
Part Number: W0110-D-023-013-S17 (50 Pcs) Disc Spring Washers - 22.5x11x1.25 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $187.95 AUD Regular price Sale price $187.95 AUD Unit price per Per 50 View the product page first if you are unsure.
W0110-D-023-013-S17 (50 Pcs) --- Disc Spring Washers - 22.5x11x1.25 mm - Stainless Steel 17-7 PH W0110-D-023-013-S17 (50 Pcs) --- Disc Spring Washers - 22.5x11x1.25 mm - Stainless Steel 17-7 PH Regular price $187.95 AUD Regular price Sale price $187.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}		Loaded Height (L1) 0.99 mm	Load at L1 72.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.55 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.75 mm
Part Number: W0080-D-023-008-S17 (2 Pcs) Disc Spring Washers - 23x8x0.8 mm - Stainless Steel 17-7 PH 6 units (12 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.04 AUD Regular price ~~$6.34 AUD~~ Sale price $3.04 AUD Unit price per Per 2
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 8.00 mm + 0.20 / - 0.00 _{(0.315 in.)}	Stock Thickness (C) 0.80 mm _{(0.031 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.99 mm Load at L1: 72.0 kg Free Height (E): 1.55 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.75 mm

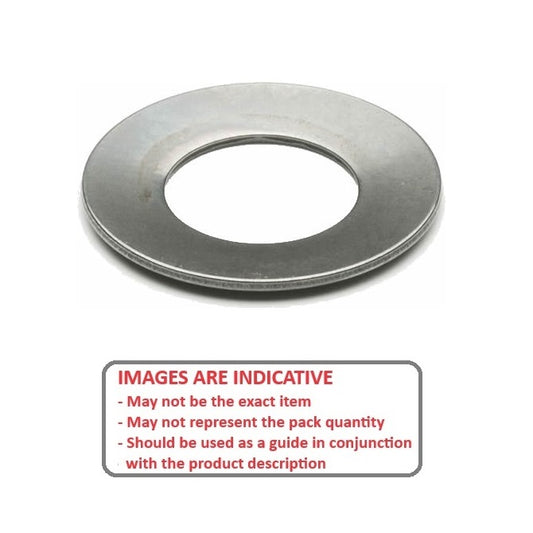

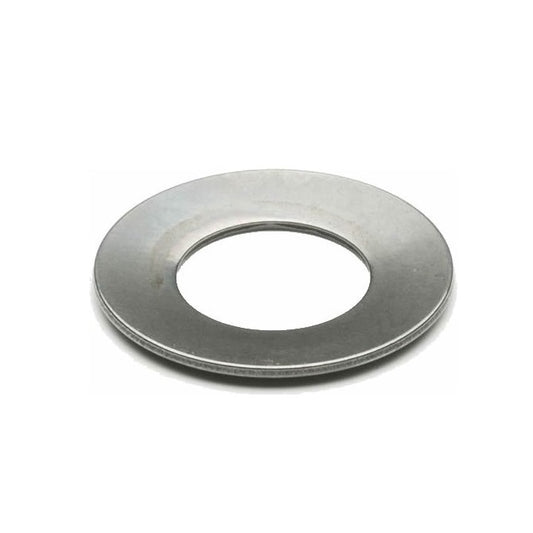

Part Number: W0080-D-023-008-S17 (2 Pcs) Disc Spring Washers - 23x8x0.8 mm - Stainless Steel 17-7 PH 6 units (12 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.04 AUD Regular price ~~$6.34 AUD~~ Sale price $3.04 AUD Unit price per Per 2
W0080-D-023-008-S17 (2 Pcs) --- Disc Spring Washers - 23x8x0.8 mm - Stainless Steel 17-7 PH Sale W0080-D-023-008-S17 (2 Pcs) --- Disc Spring Washers - 23x8x0.8 mm - Stainless Steel 17-7 PH Regular price $3.04 AUD Regular price ~~$6.34 AUD~~ Sale price $3.04 AUD Unit price per 6 Available Now Sale
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}		Loaded Height (L1) 1.17 mm	Load at L1 132.0 kg
Material: Stainless Steel 17-7 PH Load at 0.75 Height: 146.7 Kg Free Height (E): 1.70 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.70 mm
Part Number: W0100-D-023-010-S17 Disc Spring Washers - 23x10x1 mm - Stainless Steel 17-7 PH 3 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Each
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 10.00 mm + 0.20 / - 0.00 _{(0.394 in.)}	Stock Thickness (C) 1.00 mm _{(0.039 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.17 mm Load at L1: 132.0 kg Load at 0.75 Height: 146.7 Kg Free Height (E): 1.70 mm Actual ID (Ref): 10.2 mm Inside Height (D): 0.70 mm
Part Number: W0100-D-023-010-S17 Disc Spring Washers - 23x10x1 mm - Stainless Steel 17-7 PH 3 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Each
W0100-D-023-010-S17 --- Disc Spring Washers - 23x10x1 mm - Stainless Steel 17-7 PH Sale W0100-D-023-010-S17 --- Disc Spring Washers - 23x10x1 mm - Stainless Steel 17-7 PH Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per 3 Available Now Sale
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}		Loaded Height (L1) 1.63 mm	Load at L1 330.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 2.00 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.50 mm
Part Number: W0120-D-023-015-S17 (50 Pcs) Disc Spring Washers - 23x12x1.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $198.05 AUD Regular price Sale price $198.05 AUD Unit price per Per 50
Nominal OD (A) 23.00 mm _{(0.906 in.)}	Nominal ID (B) 12.00 mm + 0.20 / - 0.00 _{(0.472 in.)}	Stock Thickness (C) 1.50 mm _{(0.059 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 1.63 mm Load at L1: 330.0 kg Free Height (E): 2.00 mm Actual ID (Ref): 12.2 mm Inside Height (D): 0.50 mm
Part Number: W0120-D-023-015-S17 (50 Pcs) Disc Spring Washers - 23x12x1.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $198.05 AUD Regular price Sale price $198.05 AUD Unit price per Per 50 View the product page first if you are unsure.
W0120-D-023-015-S17 (50 Pcs) --- Disc Spring Washers - 23x12x1.5 mm - Stainless Steel 17-7 PH W0120-D-023-015-S17 (50 Pcs) --- Disc Spring Washers - 23x12x1.5 mm - Stainless Steel 17-7 PH Regular price $198.05 AUD Regular price Sale price $198.05 AUD Unit price per Out of stock! Backorder Now
