Collection: Washers - Disc Spring - Standard - Stainless Steel

Washers (With Images)

Disc Spring

Standard

Carbon Steel
Plastic
Stainless Steel

106 Products in this selection

Includes disc springs to DIN 2093 and belleville washers to DIN 6796.
Manufactured under strict quality control to conform to DIN 2093

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard - Stainless Steel. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 4.76 mm + 0.01 / + 0.07	Nominal ID (B) 2.38 mm + 0.10 / - 0.00	Stock Thickness (C) 0.25 mm	Load to flatten 12.41 kg	Loaded Height (L1) 0.30 mm	Load at L1 6.8 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Free Height (E): 0.38 mm Inside Height (D): 0.13 mm

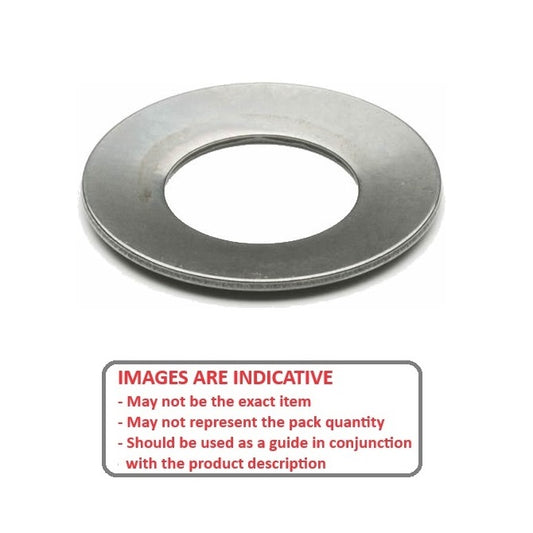

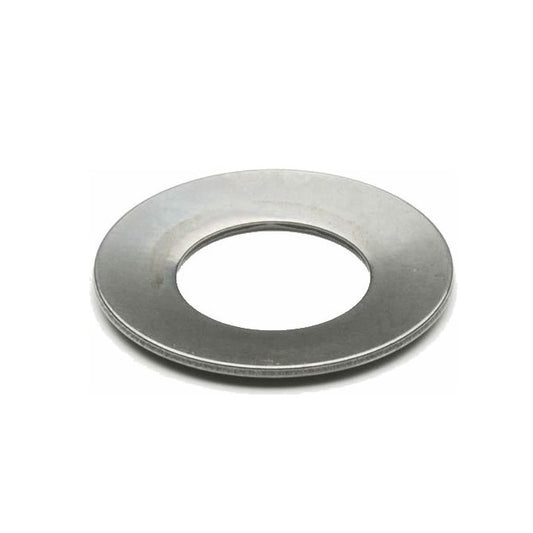

Part Number: W0024-D-005-003-S2 Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 272 Available Immediately \| Further orders can be expected around Mon, Aug 11, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 4.76 mm + 0.01 / + 0.07	Nominal ID (B) 2.38 mm + 0.10 / - 0.00	Stock Thickness (C) 0.25 mm	Load to flatten 12.41 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.30 mm Load at L1: 6.8 kg Free Height (E): 0.38 mm Inside Height (D): 0.13 mm
Part Number: W0024-D-005-003-S2 Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 272 Available Immediately \| Further orders can be expected around Mon, Aug 11, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each View the product page first if you are unsure.
W0024-D-005-003-S2 --- Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0024-D-005-003-S2 --- Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per 272 Available Now
Nominal OD (A) 6.00 mm	Nominal ID (B) 3.00 mm + 0.10 / - 0.00	Stock Thickness (C) 0.30 mm		Loaded Height (L1) 0.34 mm	Load at L1 12.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.45 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.15 mm

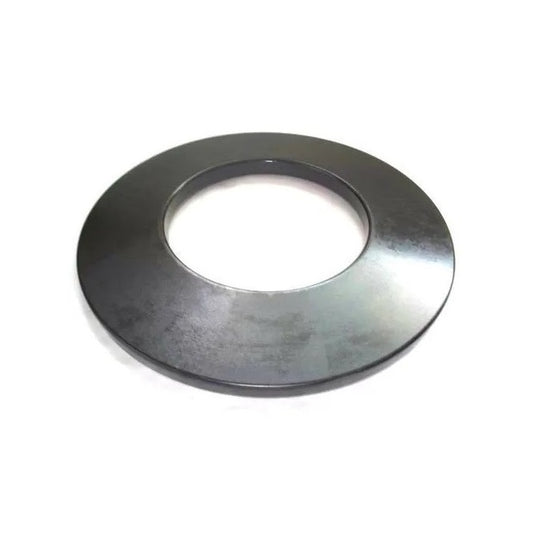

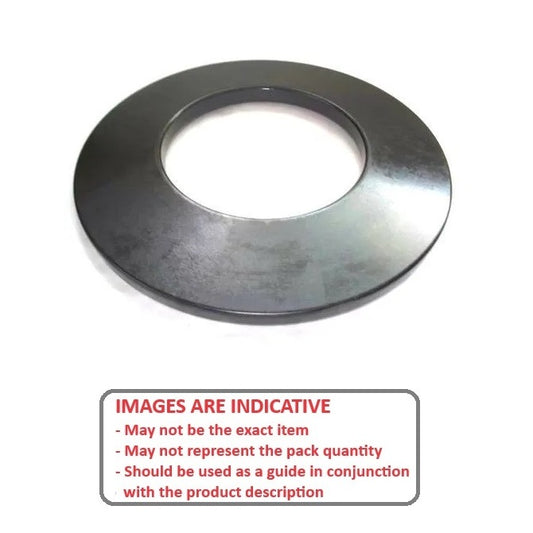

Part Number: W0030-D-006-003-S17 (50 Pcs) Disc Spring Washers - 6x3x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $136.23 AUD Regular price Sale price $136.23 AUD Unit price per Per 50
Nominal OD (A) 6.00 mm	Nominal ID (B) 3.00 mm + 0.10 / - 0.00	Stock Thickness (C) 0.30 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.34 mm Load at L1: 12.0 kg Free Height (E): 0.45 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.15 mm
Part Number: W0030-D-006-003-S17 (50 Pcs) Disc Spring Washers - 6x3x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $136.23 AUD Regular price Sale price $136.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-006-003-S17 (50 Pcs) --- Disc Spring Washers - 6x3x0.3 mm - Stainless Steel 17-7 PH W0030-D-006-003-S17 (50 Pcs) --- Disc Spring Washers - 6x3x0.3 mm - Stainless Steel 17-7 PH Regular price $136.23 AUD Regular price Sale price $136.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 6.35 mm + 0.01 / + 0.07	Nominal ID (B) 3.20 mm + 0.10 / - 0.00	Stock Thickness (C) 0.34 mm	Load to flatten 21.43 kg	Loaded Height (L1) 0.43 mm	Load at L1 11.7 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Free Height (E): 0.51 mm Inside Height (D): 0.17 mm
Part Number: W0032-D-006-003-S2 (5 Pcs) Disc Spring Washers - 6.35x3.2x0.34 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each
Nominal OD (A) 6.35 mm + 0.01 / + 0.07	Nominal ID (B) 3.20 mm + 0.10 / - 0.00	Stock Thickness (C) 0.34 mm	Load to flatten 21.43 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.43 mm Load at L1: 11.7 kg Free Height (E): 0.51 mm Inside Height (D): 0.17 mm
Part Number: W0032-D-006-003-S2 (5 Pcs) Disc Spring Washers - 6.35x3.2x0.34 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each View the product page first if you are unsure.
W0032-D-006-003-S2 (5 Pcs) --- Disc Spring Washers - 6.35x3.2x0.34 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0032-D-006-003-S2 (5 Pcs) --- Disc Spring Washers - 6.35x3.2x0.34 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 7.94 mm + 0.01 / + 0.07	Nominal ID (B) 3.96 mm + 0.10 / - 0.00	Stock Thickness (C) 0.41 mm	Load to flatten 33.48 kg	Loaded Height (L1) 0.53 mm	Load at L1 18.3 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Free Height (E): 0.64 mm Inside Height (D): 0.23 mm
Part Number: W0040-D-008-004-S4 (100 Pcs) Disc Spring Washers - 7.94x3.96x0.41 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 100
Nominal OD (A) 7.94 mm + 0.01 / + 0.07	Nominal ID (B) 3.96 mm + 0.10 / - 0.00	Stock Thickness (C) 0.41 mm	Load to flatten 33.48 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Loaded Height (L1): 0.53 mm Load at L1: 18.3 kg Free Height (E): 0.64 mm Inside Height (D): 0.23 mm
Part Number: W0040-D-008-004-S4 (100 Pcs) Disc Spring Washers - 7.94x3.96x0.41 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 100 View the product page first if you are unsure.
W0040-D-008-004-S4 (100 Pcs) --- Disc Spring Washers - 7.94x3.96x0.41 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 W0040-D-008-004-S4 (100 Pcs) --- Disc Spring Washers - 7.94x3.96x0.41 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm	Nominal ID (B) 3.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.30 mm		Loaded Height (L1) 0.36 mm	Load at L1 10.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.55 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x3x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm	Nominal ID (B) 3.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.30 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.36 mm Load at L1: 10.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x3x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm - Stainless Steel 17-7 PH W0030-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm - Stainless Steel 17-7 PH Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm	Nominal ID (B) 3.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.40 mm		Loaded Height (L1) 0.45 mm	Load at L1 19.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.60 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-004-S17 (50 Pcs) Disc Spring Washers - 8x3x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm	Nominal ID (B) 3.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.40 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.45 mm Load at L1: 19.0 kg Free Height (E): 0.60 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-004-S17 (50 Pcs) Disc Spring Washers - 8x3x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-004-S17 (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm - Stainless Steel 17-7 PH W0030-D-008-004-S17 (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm - Stainless Steel 17-7 PH Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm	Nominal ID (B) 4.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.30 mm		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.55 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x4x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm	Nominal ID (B) 4.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.30 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x4x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x4x0.3 mm - Stainless Steel 17-7 PH W0040-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x4x0.3 mm - Stainless Steel 17-7 PH Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm	Nominal ID (B) 4.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.40 mm		Loaded Height (L1) 0.45 mm	Load at L1 21.0 kg
Material: Stainless Steel 17-7 PH Load at 0.75 Height: 23.4 Kg Free Height (E): 0.60 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.20 mm
Part Number: W0040-D-008-004-S17 (5 Pcs) Disc Spring Washers - 8x4x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Each
Nominal OD (A) 8.00 mm	Nominal ID (B) 4.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.40 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.45 mm Load at L1: 21.0 kg Load at 0.75 Height: 23.4 Kg Free Height (E): 0.60 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.20 mm
Part Number: W0040-D-008-004-S17 (5 Pcs) Disc Spring Washers - 8x4x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Each View the product page first if you are unsure.
W0040-D-008-004-S17 (5 Pcs) --- Disc Spring Washers - 8x4x0.4 mm - Stainless Steel 17-7 PH W0040-D-008-004-S17 (5 Pcs) --- Disc Spring Washers - 8x4x0.4 mm - Stainless Steel 17-7 PH Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 9.53 mm + 0.01 / + 0.07	Nominal ID (B) 4.76 mm + 0.20 / - 0.00	Stock Thickness (C) 0.51 mm - 0.00 / - 0.08	Load to flatten 49.11 kg	Loaded Height (L1) 0.64 mm	Load at L1 26.8 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Free Height (E): 0.76 mm Inside Height (D): 0.25 mm
Part Number: W0048-D-010-005-S2 Disc Spring Washers - 9.53x4.76x0.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 2235 Available Immediately \| Further orders can be expected around Sat, Jul 05, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each
Nominal OD (A) 9.53 mm + 0.01 / + 0.07	Nominal ID (B) 4.76 mm + 0.20 / - 0.00	Stock Thickness (C) 0.51 mm - 0.00 / - 0.08	Load to flatten 49.11 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.64 mm Load at L1: 26.8 kg Free Height (E): 0.76 mm Inside Height (D): 0.25 mm
Part Number: W0048-D-010-005-S2 Disc Spring Washers - 9.53x4.76x0.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 2235 Available Immediately \| Further orders can be expected around Sat, Jul 05, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each View the product page first if you are unsure.
W0048-D-010-005-S2 --- Disc Spring Washers - 9.53x4.76x0.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0048-D-010-005-S2 --- Disc Spring Washers - 9.53x4.76x0.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 2235 Available Now
Nominal OD (A) 10.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.40 mm		Loaded Height (L1) 0.48 mm	Load at L1 21.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.70 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-004-S17 (50 Pcs) Disc Spring Washers - 10x5x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $55.23 AUD Regular price Sale price $55.23 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.40 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.48 mm Load at L1: 21.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-004-S17 (50 Pcs) Disc Spring Washers - 10x5x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $55.23 AUD Regular price Sale price $55.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-010-004-S17 (50 Pcs) --- Disc Spring Washers - 10x5x0.4 mm - Stainless Steel 17-7 PH W0050-D-010-004-S17 (50 Pcs) --- Disc Spring Washers - 10x5x0.4 mm - Stainless Steel 17-7 PH Regular price $55.23 AUD Regular price Sale price $55.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm		Loaded Height (L1) 0.56 mm	Load at L1 33.0 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Free Height (E): 0.75 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.25 mm
Part Number: W0050-D-010-005-S4 (100 Pcs) Disc Spring Washers - 10x5x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $31.86 AUD Regular price Sale price $31.86 AUD Unit price per Per 100
Nominal OD (A) 10.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Loaded Height (L1): 0.56 mm Load at L1: 33.0 kg Free Height (E): 0.75 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.25 mm
Part Number: W0050-D-010-005-S4 (100 Pcs) Disc Spring Washers - 10x5x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $31.86 AUD Regular price Sale price $31.86 AUD Unit price per Per 100 View the product page first if you are unsure.
W0050-D-010-005-S4 (100 Pcs) --- Disc Spring Washers - 10x5x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 W0050-D-010-005-S4 (100 Pcs) --- Disc Spring Washers - 10x5x0.5 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $31.86 AUD Regular price Sale price $31.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.60 mm		Loaded Height (L1) 0.69 mm	Load at L1 51.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.95 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.35 mm
Part Number: W0050-D-012-006-S17 (50 Pcs) Disc Spring Washers - 12x5x0.6 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $116.86 AUD Regular price Sale price $116.86 AUD Unit price per Per 50
Nominal OD (A) 12.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.60 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.69 mm Load at L1: 51.0 kg Free Height (E): 0.95 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.35 mm
Part Number: W0050-D-012-006-S17 (50 Pcs) Disc Spring Washers - 12x5x0.6 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $116.86 AUD Regular price Sale price $116.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-012-006-S17 (50 Pcs) --- Disc Spring Washers - 12x5x0.6 mm - Stainless Steel 17-7 PH W0050-D-012-006-S17 (50 Pcs) --- Disc Spring Washers - 12x5x0.6 mm - Stainless Steel 17-7 PH Regular price $116.86 AUD Regular price Sale price $116.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.00 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm		Loaded Height (L1) 0.59 mm	Load at L1 33.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-012-005-S17 (50 Pcs) Disc Spring Washers - 12x6x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $116.86 AUD Regular price Sale price $116.86 AUD Unit price per Per 50
Nominal OD (A) 12.00 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.59 mm Load at L1: 33.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-012-005-S17 (50 Pcs) Disc Spring Washers - 12x6x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $116.86 AUD Regular price Sale price $116.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-012-005-S17 (50 Pcs) --- Disc Spring Washers - 12x6x0.5 mm - Stainless Steel 17-7 PH W0060-D-012-005-S17 (50 Pcs) --- Disc Spring Washers - 12x6x0.5 mm - Stainless Steel 17-7 PH Regular price $116.86 AUD Regular price Sale price $116.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.50 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm		Loaded Height (L1) 0.59 mm	Load at L1 29.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-013-005-S17 (50 Pcs) Disc Spring Washers - 12.5x6x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $121.23 AUD Regular price Sale price $121.23 AUD Unit price per Per 50
Nominal OD (A) 12.50 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.59 mm Load at L1: 29.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.35 mm
Part Number: W0060-D-013-005-S17 (50 Pcs) Disc Spring Washers - 12.5x6x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $121.23 AUD Regular price Sale price $121.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-013-005-S17 (50 Pcs) --- Disc Spring Washers - 12.5x6x0.5 mm - Stainless Steel 17-7 PH W0060-D-013-005-S17 (50 Pcs) --- Disc Spring Washers - 12.5x6x0.5 mm - Stainless Steel 17-7 PH Regular price $121.23 AUD Regular price Sale price $121.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.70 mm	Nominal ID (B) 6.35 mm + 0.20 / - 0.00	Stock Thickness (C) 0.64 mm	Load to flatten 71.43 kg	Loaded Height (L1) 0.79 mm	Load at L1 42.4 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Free Height (E): 0.97 mm Inside Height (D): 0.33 mm
Part Number: W0064-D-013-006-S2 Disc Spring Washers - 12.7x6.35x0.64 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Each
Nominal OD (A) 12.70 mm	Nominal ID (B) 6.35 mm + 0.20 / - 0.00	Stock Thickness (C) 0.64 mm	Load to flatten 71.43 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.79 mm Load at L1: 42.4 kg Free Height (E): 0.97 mm Inside Height (D): 0.33 mm
Part Number: W0064-D-013-006-S2 Disc Spring Washers - 12.7x6.35x0.64 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Each View the product page first if you are unsure.
W0064-D-013-006-S2 --- Disc Spring Washers - 12.7x6.35x0.64 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0064-D-013-006-S2 --- Disc Spring Washers - 12.7x6.35x0.64 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.50 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.70 mm		Loaded Height (L1) 0.22 mm	Load at L1 60.0 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.30 mm
Part Number: W0060-D-013-007-S4 (100 Pcs) Disc Spring Washers - 12.5x6x0.7 mm - Stainless Steel 304 (Similar to A2, 18-8) HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $33.14 AUD Regular price Sale price $33.14 AUD Unit price per Per 100
Nominal OD (A) 12.50 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.70 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Loaded Height (L1): 0.22 mm Load at L1: 60.0 kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.30 mm
Part Number: W0060-D-013-007-S4 (100 Pcs) Disc Spring Washers - 12.5x6x0.7 mm - Stainless Steel 304 (Similar to A2, 18-8) HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $33.14 AUD Regular price Sale price $33.14 AUD Unit price per Per 100 View the product page first if you are unsure.
W0060-D-013-007-S4 (100 Pcs) --- Disc Spring Washers - 12.5x6x0.7 mm - Stainless Steel 304 (Similar to A2, 18-8) HRB80 W0060-D-013-007-S4 (100 Pcs) --- Disc Spring Washers - 12.5x6x0.7 mm - Stainless Steel 304 (Similar to A2, 18-8) HRB80 Regular price $33.14 AUD Regular price Sale price $33.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 12.50 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.70 mm		Loaded Height (L1) 0.78 mm	Load at L1 66.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.30 mm
Part Number: W0060-D-013-007-S17 (50 Pcs) Disc Spring Washers - 12.5x6x0.7 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $121.23 AUD Regular price Sale price $121.23 AUD Unit price per Per 50
Nominal OD (A) 12.50 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.70 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.78 mm Load at L1: 66.0 kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.30 mm
Part Number: W0060-D-013-007-S17 (50 Pcs) Disc Spring Washers - 12.5x6x0.7 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $121.23 AUD Regular price Sale price $121.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-013-007-S17 (50 Pcs) --- Disc Spring Washers - 12.5x6x0.7 mm - Stainless Steel 17-7 PH W0060-D-013-007-S17 (50 Pcs) --- Disc Spring Washers - 12.5x6x0.7 mm - Stainless Steel 17-7 PH Regular price $121.23 AUD Regular price Sale price $121.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 14.00 mm	Nominal ID (B) 7.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm		Loaded Height (L1) 0.60 mm	Load at L1 28.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.90 mm Actual ID (Ref): 7.2 mm Inside Height (D): 0.40 mm
Part Number: W0070-D-014-005-S17 (50 Pcs) Disc Spring Washers - 14x7x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $133.77 AUD Regular price Sale price $133.77 AUD Unit price per Per 50
Nominal OD (A) 14.00 mm	Nominal ID (B) 7.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.60 mm Load at L1: 28.0 kg Free Height (E): 0.90 mm Actual ID (Ref): 7.2 mm Inside Height (D): 0.40 mm
Part Number: W0070-D-014-005-S17 (50 Pcs) Disc Spring Washers - 14x7x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $133.77 AUD Regular price Sale price $133.77 AUD Unit price per Per 50 View the product page first if you are unsure.
W0070-D-014-005-S17 (50 Pcs) --- Disc Spring Washers - 14x7x0.5 mm - Stainless Steel 17-7 PH W0070-D-014-005-S17 (50 Pcs) --- Disc Spring Washers - 14x7x0.5 mm - Stainless Steel 17-7 PH Regular price $133.77 AUD Regular price Sale price $133.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 14.00 mm	Nominal ID (B) 7.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.80 mm		Loaded Height (L1) 0.23 mm
Material: Stainless Steel 17-7 PH Load at 0.75 Height: 86.64 Kg Free Height (E): 1.10 mm Actual ID (Ref): 7.2 mm Inside Height (D): 0.30 mm
Part Number: W0070-D-014-008-S17 (50 Pcs) Disc Spring Washers - 14x7x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $85.86 AUD Regular price Sale price $85.86 AUD Unit price per Per 50
Nominal OD (A) 14.00 mm	Nominal ID (B) 7.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.80 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.23 mm Load at 0.75 Height: 86.64 Kg Free Height (E): 1.10 mm Actual ID (Ref): 7.2 mm Inside Height (D): 0.30 mm
Part Number: W0070-D-014-008-S17 (50 Pcs) Disc Spring Washers - 14x7x0.8 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $85.86 AUD Regular price Sale price $85.86 AUD Unit price per Per 50 View the product page first if you are unsure.
W0070-D-014-008-S17 (50 Pcs) --- Disc Spring Washers - 14x7x0.8 mm - Stainless Steel 17-7 PH W0070-D-014-008-S17 (50 Pcs) --- Disc Spring Washers - 14x7x0.8 mm - Stainless Steel 17-7 PH Regular price $85.86 AUD Regular price Sale price $85.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.40 mm		Loaded Height (L1) 0.54 mm	Load at L1 18.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 0.95 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.55 mm
Part Number: W0050-D-015-004-S17 (2 Pcs) Disc Spring Washers - 15x5x0.4 mm - Stainless Steel 17-7 PH 50 units (100 pcs) Available Immediately \| Further orders can be expected around Mon, Jul 21, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2
Nominal OD (A) 15.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.40 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.54 mm Load at L1: 18.0 kg Free Height (E): 0.95 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.55 mm
Part Number: W0050-D-015-004-S17 (2 Pcs) Disc Spring Washers - 15x5x0.4 mm - Stainless Steel 17-7 PH 50 units (100 pcs) Available Immediately \| Further orders can be expected around Mon, Jul 21, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2 View the product page first if you are unsure.
W0050-D-015-004-S17 (2 Pcs) --- Disc Spring Washers - 15x5x0.4 mm - Stainless Steel 17-7 PH W0050-D-015-004-S17 (2 Pcs) --- Disc Spring Washers - 15x5x0.4 mm - Stainless Steel 17-7 PH Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 50 Available Now
Nominal OD (A) 15.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.70 mm		Loaded Height (L1) 0.80 mm	Load at L1 56.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.10 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.40 mm
Part Number: W0050-D-015-007-S17 (50 Pcs) Disc Spring Washers - 15x5x0.7 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $49.59 AUD Regular price Sale price $49.59 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm	Nominal ID (B) 5.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.70 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.80 mm Load at L1: 56.0 kg Free Height (E): 1.10 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.40 mm
Part Number: W0050-D-015-007-S17 (50 Pcs) Disc Spring Washers - 15x5x0.7 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $49.59 AUD Regular price Sale price $49.59 AUD Unit price per Per 50 View the product page first if you are unsure.
W0050-D-015-007-S17 (50 Pcs) --- Disc Spring Washers - 15x5x0.7 mm - Stainless Steel 17-7 PH W0050-D-015-007-S17 (50 Pcs) --- Disc Spring Washers - 15x5x0.7 mm - Stainless Steel 17-7 PH Regular price $49.59 AUD Regular price Sale price $49.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm		Loaded Height (L1) 0.63 mm	Load at L1 29.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.50 mm
Part Number: W0060-D-015-005-S17 (50 Pcs) Disc Spring Washers - 15x6x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $142.41 AUD Regular price Sale price $142.41 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm	Nominal ID (B) 6.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.50 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.63 mm Load at L1: 29.0 kg Free Height (E): 1.00 mm Actual ID (Ref): 6.2 mm Inside Height (D): 0.50 mm
Part Number: W0060-D-015-005-S17 (50 Pcs) Disc Spring Washers - 15x6x0.5 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $142.41 AUD Regular price Sale price $142.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0060-D-015-005-S17 (50 Pcs) --- Disc Spring Washers - 15x6x0.5 mm - Stainless Steel 17-7 PH W0060-D-015-005-S17 (50 Pcs) --- Disc Spring Washers - 15x6x0.5 mm - Stainless Steel 17-7 PH Regular price $142.41 AUD Regular price Sale price $142.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.00 mm	Nominal ID (B) 8.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.70 mm		Loaded Height (L1) 0.80 mm	Load at L1 67.0 kg
Material: Stainless Steel 17-7 PH Free Height (E): 1.10 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-015-007-S17 (50 Pcs) Disc Spring Washers - 15x8x0.7 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $100.41 AUD Regular price Sale price $100.41 AUD Unit price per Per 50
Nominal OD (A) 15.00 mm	Nominal ID (B) 8.00 mm + 0.20 / - 0.00	Stock Thickness (C) 0.70 mm
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.80 mm Load at L1: 67.0 kg Free Height (E): 1.10 mm Actual ID (Ref): 8.2 mm Inside Height (D): 0.40 mm
Part Number: W0080-D-015-007-S17 (50 Pcs) Disc Spring Washers - 15x8x0.7 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jul 21, 2025 Regular price $100.41 AUD Regular price Sale price $100.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0080-D-015-007-S17 (50 Pcs) --- Disc Spring Washers - 15x8x0.7 mm - Stainless Steel 17-7 PH W0080-D-015-007-S17 (50 Pcs) --- Disc Spring Washers - 15x8x0.7 mm - Stainless Steel 17-7 PH Regular price $100.41 AUD Regular price Sale price $100.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 15.88 mm	Nominal ID (B) 7.94 mm + 0.20 / - 0.00	Stock Thickness (C) 0.81 mm	Load to flatten 116.07 kg	Loaded Height (L1) 1.02 mm	Load at L1 64.7 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Free Height (E): 1.22 mm Inside Height (D): 0.41 mm
Part Number: W0079-D-016-008-S2 Disc Spring Washers - 15.88x7.94x0.81 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each
Nominal OD (A) 15.88 mm	Nominal ID (B) 7.94 mm + 0.20 / - 0.00	Stock Thickness (C) 0.81 mm	Load to flatten 116.07 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 1.02 mm Load at L1: 64.7 kg Free Height (E): 1.22 mm Inside Height (D): 0.41 mm
Part Number: W0079-D-016-008-S2 Disc Spring Washers - 15.88x7.94x0.81 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each View the product page first if you are unsure.
W0079-D-016-008-S2 --- Disc Spring Washers - 15.88x7.94x0.81 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0079-D-016-008-S2 --- Disc Spring Washers - 15.88x7.94x0.81 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Out of stock! Backorder Now
