Collection: Washers - Disc Spring - Standard

Washers (With Images)

Disc Spring

370 Products in this selection

This is a combined category of Standard Disc Spring Washers.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 4.76 mm + 0.01 / + 0.07 _{(0.187 in.)}	Nominal ID (B) 2.38 mm + 0.10 / - 0.00 _{(0.094 in.)}	Stock Thickness (C) 0.25 mm _{(0.01 in.)}	Load to flatten 12.41 kg	Loaded Height (L1) 0.30 mm	Load at L1 6.8 kg
Material: Spring Steel AISI C1095 Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0024-D-005-003-C Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 4.76 mm + 0.01 / + 0.07 _{(0.187 in.)}	Nominal ID (B) 2.38 mm + 0.10 / - 0.00 _{(0.094 in.)}	Stock Thickness (C) 0.25 mm _{(0.01 in.)}	Load to flatten 12.41 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 0.30 mm Load at L1: 6.8 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0024-D-005-003-C Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
W0024-D-005-003-C --- Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095 W0024-D-005-003-C --- Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 4.76 mm + 0.01 / + 0.07 _{(0.187 in.)}	Nominal ID (B) 2.38 mm + 0.10 / - 0.00 _{(0.094 in.)}	Stock Thickness (C) 0.25 mm _{(0.01 in.)}	Load to flatten 12.41 kg	Loaded Height (L1) 0.30 mm	Load at L1 6.8 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0024-D-005-003-S2 Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 272 Available Immediately \| Further orders can be expected around Thu, Aug 14, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each
Nominal OD (A) 4.76 mm + 0.01 / + 0.07 _{(0.187 in.)}	Nominal ID (B) 2.38 mm + 0.10 / - 0.00 _{(0.094 in.)}	Stock Thickness (C) 0.25 mm _{(0.01 in.)}	Load to flatten 12.41 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.30 mm Load at L1: 6.8 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0024-D-005-003-S2 Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 272 Available Immediately \| Further orders can be expected around Thu, Aug 14, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Each View the product page first if you are unsure.
W0024-D-005-003-S2 --- Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0024-D-005-003-S2 --- Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per 272 Available Now
Nominal OD (A) 6.00 mm _{(0.236 in.)}	Nominal ID (B) 3.00 mm + 0.10 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.34 mm	Load at L1 12.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-006-003-S17 (50 Pcs) Disc Spring Washers - 6x3x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $136.23 AUD Regular price Sale price $136.23 AUD Unit price per Per 50
Nominal OD (A) 6.00 mm _{(0.236 in.)}	Nominal ID (B) 3.00 mm + 0.10 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.34 mm Load at L1: 12.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-006-003-S17 (50 Pcs) Disc Spring Washers - 6x3x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $136.23 AUD Regular price Sale price $136.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-006-003-S17 (50 Pcs) --- Disc Spring Washers - 6x3x0.3 mm - Stainless Steel 17-7 PH W0030-D-006-003-S17 (50 Pcs) --- Disc Spring Washers - 6x3x0.3 mm - Stainless Steel 17-7 PH Regular price $136.23 AUD Regular price Sale price $136.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 6.35 mm + 0.01 / + 0.07 _{(0.25 in.)}	Nominal ID (B) 3.20 mm + 0.10 / - 0.00 _{(0.126 in.)}	Stock Thickness (C) 0.34 mm _{(0.013 in.)}	Load to flatten 21.43 kg	Loaded Height (L1) 0.43 mm	Load at L1 11.7 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0032-D-006-003-S2 Disc Spring Washers - 6.35x3.2x0.34 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each
Nominal OD (A) 6.35 mm + 0.01 / + 0.07 _{(0.25 in.)}	Nominal ID (B) 3.20 mm + 0.10 / - 0.00 _{(0.126 in.)}	Stock Thickness (C) 0.34 mm _{(0.013 in.)}	Load to flatten 21.43 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.43 mm Load at L1: 11.7 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0032-D-006-003-S2 Disc Spring Washers - 6.35x3.2x0.34 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each View the product page first if you are unsure.
W0032-D-006-003-S2 --- Disc Spring Washers - 6.35x3.2x0.34 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0032-D-006-003-S2 --- Disc Spring Washers - 6.35x3.2x0.34 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 6.35 mm + 0.01 / + 0.07 _{(0.25 in.)}	Nominal ID (B) 3.20 mm + 0.10 / - 0.00 _{(0.126 in.)}	Stock Thickness (C) 0.34 mm _{(0.013 in.)}	Load to flatten 21.43 kg	Loaded Height (L1) 0.43 mm	Load at L1 11.7 kg
Material: Spring Steel AISI C1095 Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0032-D-006-003-C Disc Spring Washers - 6.35x3.2x0.34 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Each
Nominal OD (A) 6.35 mm + 0.01 / + 0.07 _{(0.25 in.)}	Nominal ID (B) 3.20 mm + 0.10 / - 0.00 _{(0.126 in.)}	Stock Thickness (C) 0.34 mm _{(0.013 in.)}	Load to flatten 21.43 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 0.43 mm Load at L1: 11.7 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0032-D-006-003-C Disc Spring Washers - 6.35x3.2x0.34 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Each View the product page first if you are unsure.
W0032-D-006-003-C --- Disc Spring Washers - 6.35x3.2x0.34 mm - Spring Steel AISI C1095 W0032-D-006-003-C --- Disc Spring Washers - 6.35x3.2x0.34 mm - Spring Steel AISI C1095 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 7.94 mm + 0.01 / + 0.07 _{(0.313 in.)}	Nominal ID (B) 3.96 mm + 0.10 / - 0.00 _{(0.156 in.)}	Stock Thickness (C) 0.41 mm _{(0.016 in.)}	Load to flatten 33.48 kg	Loaded Height (L1) 0.53 mm	Load at L1 18.3 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-004-S4 (100 Pcs) Disc Spring Washers - 7.94x3.96x0.41 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 100
Nominal OD (A) 7.94 mm + 0.01 / + 0.07 _{(0.313 in.)}	Nominal ID (B) 3.96 mm + 0.10 / - 0.00 _{(0.156 in.)}	Stock Thickness (C) 0.41 mm _{(0.016 in.)}	Load to flatten 33.48 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Loaded Height (L1): 0.53 mm Load at L1: 18.3 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-004-S4 (100 Pcs) Disc Spring Washers - 7.94x3.96x0.41 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 100 View the product page first if you are unsure.
W0040-D-008-004-S4 (100 Pcs) --- Disc Spring Washers - 7.94x3.96x0.41 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 W0040-D-008-004-S4 (100 Pcs) --- Disc Spring Washers - 7.94x3.96x0.41 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.36 mm	Load at L1 10.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-003-C (50 Pcs) Disc Spring Washers - 8x3x0.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.05 AUD Regular price Sale price $48.05 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 10.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-003-C (50 Pcs) Disc Spring Washers - 8x3x0.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.05 AUD Regular price Sale price $48.05 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm - Carbon Steel W0030-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm - Carbon Steel Regular price $48.05 AUD Regular price Sale price $48.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.36 mm	Load at L1 10.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x3x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.36 mm Load at L1: 10.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x3x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm - Stainless Steel 17-7 PH W0030-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm - Stainless Steel 17-7 PH Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.45 mm	Load at L1 19.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-004-C (50 Pcs) Disc Spring Washers - 8x3x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.45 mm Load at L1: 19.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-004-C (50 Pcs) Disc Spring Washers - 8x3x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm - Carbon Steel W0030-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm - Carbon Steel Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.45 mm	Load at L1 19.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-008-004-S17 (50 Pcs) Disc Spring Washers - 8x3x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.45 mm Load at L1: 19.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-008-004-S17 (50 Pcs) Disc Spring Washers - 8x3x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-004-S17 (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm - Stainless Steel 17-7 PH W0030-D-008-004-S17 (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm - Stainless Steel 17-7 PH Regular price $108.23 AUD Regular price Sale price $108.23 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.55 mm	Load at L1 36.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-005-C (50 Pcs) Disc Spring Washers - 8x3x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.55 mm Load at L1: 36.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-005-C (50 Pcs) Disc Spring Washers - 8x3x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-008-005-C (50 Pcs) --- Disc Spring Washers - 8x3x0.5 mm - Carbon Steel W0030-D-008-005-C (50 Pcs) --- Disc Spring Washers - 8x3x0.5 mm - Carbon Steel Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.20 mm _{(0.008 in.)}		Loaded Height (L1) 0.26 mm	Load at L1 4.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-002-C (50 Pcs) Disc Spring Washers - 8x4x0.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.20 mm _{(0.008 in.)}
Material: Carbon Steel Loaded Height (L1): 0.26 mm Load at L1: 4.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-002-C (50 Pcs) Disc Spring Washers - 8x4x0.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-008-002-C (50 Pcs) --- Disc Spring Washers - 8x4x0.2 mm - Carbon Steel W0040-D-008-002-C (50 Pcs) --- Disc Spring Washers - 8x4x0.2 mm - Carbon Steel Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x4x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x4x0.3 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x4x0.3 mm - Stainless Steel 17-7 PH W0040-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x4x0.3 mm - Stainless Steel 17-7 PH Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-003-C (10 Pcs) Disc Spring Washers - 8x4x0.3 mm - Carbon Steel 4 units (40 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$7.56 AUD~~ Sale price $3.19 AUD Unit price per Per 10
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-003-C (10 Pcs) Disc Spring Washers - 8x4x0.3 mm - Carbon Steel 4 units (40 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$7.56 AUD~~ Sale price $3.19 AUD Unit price per Per 10
W0040-D-008-003-C (10 Pcs) --- Disc Spring Washers - 8x4x0.3 mm - Carbon Steel Sale W0040-D-008-003-C (10 Pcs) --- Disc Spring Washers - 8x4x0.3 mm - Carbon Steel Regular price $3.19 AUD Regular price ~~$7.56 AUD~~ Sale price $3.19 AUD Unit price per 4 Available Now Sale
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.45 mm	Load at L1 21.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.45 mm Load at L1: 21.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Per 50 View the product page first if you are unsure.
W0040-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4x0.4 mm - Carbon Steel W0040-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4x0.4 mm - Carbon Steel Regular price $48.14 AUD Regular price Sale price $48.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.45 mm	Load at L1 21.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-004-S17 Disc Spring Washers - 8x4x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Each
Nominal OD (A) 8.00 mm _{(0.315 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.45 mm Load at L1: 21.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-004-S17 Disc Spring Washers - 8x4x0.4 mm - Stainless Steel 17-7 PH Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Each View the product page first if you are unsure.
W0040-D-008-004-S17 --- Disc Spring Washers - 8x4x0.4 mm - Stainless Steel 17-7 PH W0040-D-008-004-S17 --- Disc Spring Washers - 8x4x0.4 mm - Stainless Steel 17-7 PH Regular price $1.41 AUD Regular price Sale price $1.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm + 0.00 / - 0.15 _{(0.315 in.)}	Nominal ID (B) 4.20 mm + 0.15 / - 0.00 _{(0.165 in.)}	Stock Thickness (C) 0.300 mm _{(0.012 in.)}			Load at L1 119.00 kg
Material: Spring Steel 50CrVA Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W-0042-D-008-003-C (50 Pcs) Disc Spring Washers - 8x4.2x0.3 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm + 0.00 / - 0.15 _{(0.315 in.)}	Nominal ID (B) 4.20 mm + 0.15 / - 0.00 _{(0.165 in.)}	Stock Thickness (C) 0.300 mm _{(0.012 in.)}
Material: Spring Steel 50CrVA Load at L1: 119.00 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W-0042-D-008-003-C (50 Pcs) Disc Spring Washers - 8x4.2x0.3 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0042-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.3 mm - Spring Steel 50CrVA W-0042-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.3 mm - Spring Steel 50CrVA Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 8.00 mm + 0.00 / - 0.15 _{(0.315 in.)}	Nominal ID (B) 4.20 mm + 0.15 / - 0.00 _{(0.165 in.)}	Stock Thickness (C) 0.400 mm _{(0.016 in.)}			Load at L1 210.00 kg
Material: Spring Steel 50CrVA Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W-0042-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4.2x0.4 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Per 50
Nominal OD (A) 8.00 mm + 0.00 / - 0.15 _{(0.315 in.)}	Nominal ID (B) 4.20 mm + 0.15 / - 0.00 _{(0.165 in.)}	Stock Thickness (C) 0.400 mm _{(0.016 in.)}
Material: Spring Steel 50CrVA Load at L1: 210.00 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W-0042-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4.2x0.4 mm - Spring Steel 50CrVA Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Per 50 View the product page first if you are unsure.
W-0042-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.4 mm - Spring Steel 50CrVA W-0042-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.4 mm - Spring Steel 50CrVA Regular price $81.14 AUD Regular price Sale price $81.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 9.53 mm + 0.01 / + 0.07 _{(0.375 in.)}	Nominal ID (B) 4.76 mm + 0.20 / - 0.00 _{(0.187 in.)}	Stock Thickness (C) 0.51 mm - 0.00 / - 0.08 _{(0.02 in.)}	Load to flatten 49.11 kg	Loaded Height (L1) 0.64 mm	Load at L1 26.8 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0048-D-010-005-S2 Disc Spring Washers - 9.53x4.76x0.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 2235 Available Immediately \| Further orders can be expected around Tue, Jul 08, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each
Nominal OD (A) 9.53 mm + 0.01 / + 0.07 _{(0.375 in.)}	Nominal ID (B) 4.76 mm + 0.20 / - 0.00 _{(0.187 in.)}	Stock Thickness (C) 0.51 mm - 0.00 / - 0.08 _{(0.02 in.)}	Load to flatten 49.11 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.64 mm Load at L1: 26.8 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0048-D-010-005-S2 Disc Spring Washers - 9.53x4.76x0.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 2235 Available Immediately \| Further orders can be expected around Tue, Jul 08, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each View the product page first if you are unsure.
W0048-D-010-005-S2 --- Disc Spring Washers - 9.53x4.76x0.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 W0048-D-010-005-S2 --- Disc Spring Washers - 9.53x4.76x0.51 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 2235 Available Now
Nominal OD (A) 9.53 mm + 0.01 / + 0.07 _{(0.375 in.)}	Nominal ID (B) 4.76 mm + 0.20 / - 0.00 _{(0.187 in.)}	Stock Thickness (C) 0.51 mm _{(0.02 in.)}	Load to flatten 49.11 kg	Loaded Height (L1) 0.64 mm	Load at L1 26.8 kg
Material: Spring Steel AISI C1095 Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0048-D-010-005-C Disc Spring Washers - 9.53x4.76x0.51 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Each
Nominal OD (A) 9.53 mm + 0.01 / + 0.07 _{(0.375 in.)}	Nominal ID (B) 4.76 mm + 0.20 / - 0.00 _{(0.187 in.)}	Stock Thickness (C) 0.51 mm _{(0.02 in.)}	Load to flatten 49.11 kg
Material: Spring Steel AISI C1095 Loaded Height (L1): 0.64 mm Load at L1: 26.8 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0048-D-010-005-C Disc Spring Washers - 9.53x4.76x0.51 mm - Spring Steel AISI C1095 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Each View the product page first if you are unsure.
W0048-D-010-005-C --- Disc Spring Washers - 9.53x4.76x0.51 mm - Spring Steel AISI C1095 W0048-D-010-005-C --- Disc Spring Washers - 9.53x4.76x0.51 mm - Spring Steel AISI C1095 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}		Loaded Height (L1) 0.39 mm	Load at L1 10.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-003-C (10 Pcs) Disc Spring Washers - 10x3x0.3 mm - Carbon Steel 10 units (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.30 mm _{(0.012 in.)}
Material: Carbon Steel Loaded Height (L1): 0.39 mm Load at L1: 10.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-003-C (10 Pcs) Disc Spring Washers - 10x3x0.3 mm - Carbon Steel 10 units (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0030-D-010-003-C (10 Pcs) --- Disc Spring Washers - 10x3x0.3 mm - Carbon Steel Sale W0030-D-010-003-C (10 Pcs) --- Disc Spring Washers - 10x3x0.3 mm - Carbon Steel Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per 10 Available Now Sale
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.48 mm	Load at L1 18.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-004-C (50 Pcs) Disc Spring Washers - 10x3x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 18.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel

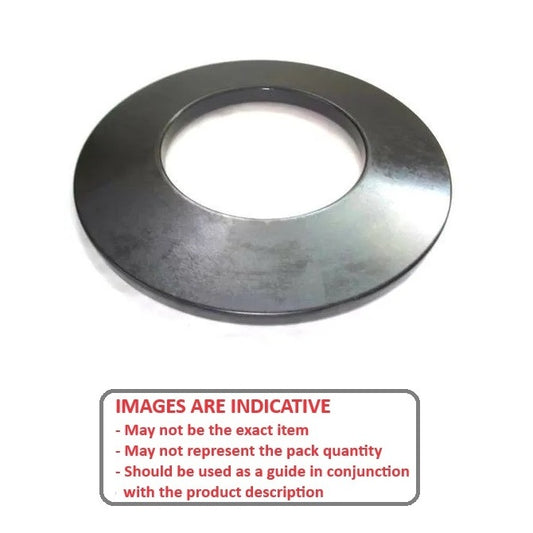

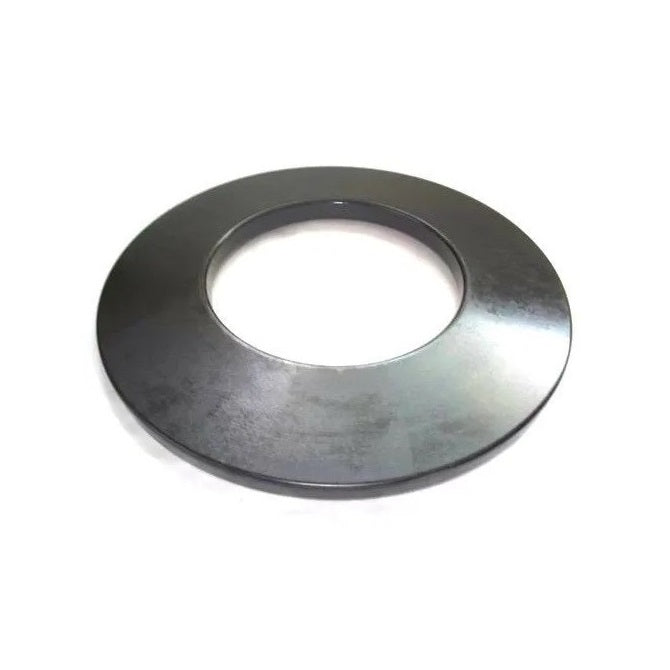

Part Number: W0030-D-010-004-C (50 Pcs) Disc Spring Washers - 10x3x0.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x3x0.4 mm - Carbon Steel W0030-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x3x0.4 mm - Carbon Steel Regular price $48.41 AUD Regular price Sale price $48.41 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}		Loaded Height (L1) 0.56 mm	Load at L1 28.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-005-C (50 Pcs) Disc Spring Washers - 10x3x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 3.00 mm + 0.20 / - 0.00 _{(0.118 in.)}	Stock Thickness (C) 0.50 mm _{(0.02 in.)}
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 28.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-005-C (50 Pcs) Disc Spring Washers - 10x3x0.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Per 50 View the product page first if you are unsure.
W0030-D-010-005-C (50 Pcs) --- Disc Spring Washers - 10x3x0.5 mm - Carbon Steel W0030-D-010-005-C (50 Pcs) --- Disc Spring Washers - 10x3x0.5 mm - Carbon Steel Regular price $48.68 AUD Regular price Sale price $48.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}		Loaded Height (L1) 0.48 mm	Load at L1 19.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-010-004-C (10 Pcs) Disc Spring Washers - 10x4x0.4 mm - Carbon Steel 2 units (20 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
Nominal OD (A) 10.00 mm _{(0.394 in.)}	Nominal ID (B) 4.00 mm + 0.20 / - 0.00 _{(0.157 in.)}	Stock Thickness (C) 0.40 mm _{(0.016 in.)}
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 19.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-010-004-C (10 Pcs) Disc Spring Washers - 10x4x0.4 mm - Carbon Steel 2 units (20 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per Per 10
W0040-D-010-004-C (10 Pcs) --- Disc Spring Washers - 10x4x0.4 mm - Carbon Steel Sale W0040-D-010-004-C (10 Pcs) --- Disc Spring Washers - 10x4x0.4 mm - Carbon Steel Regular price $3.26 AUD Regular price ~~$7.60 AUD~~ Sale price $3.26 AUD Unit price per 2 Available Now Sale
