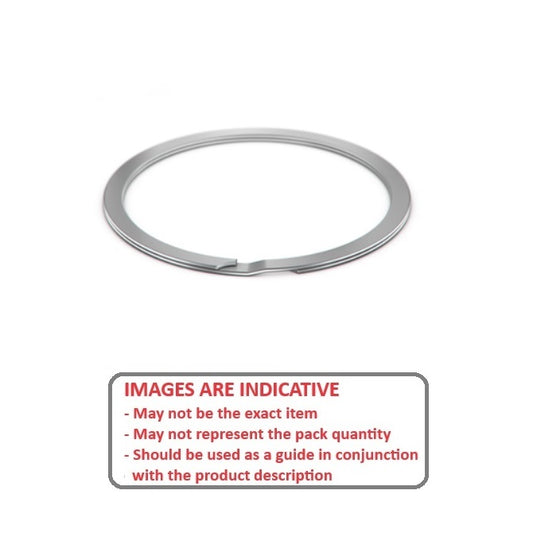

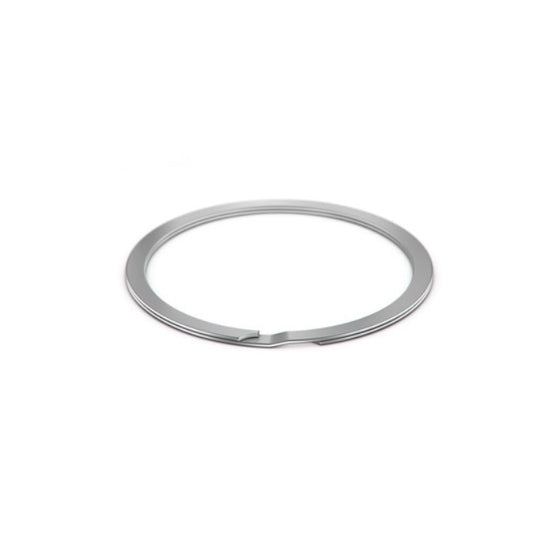

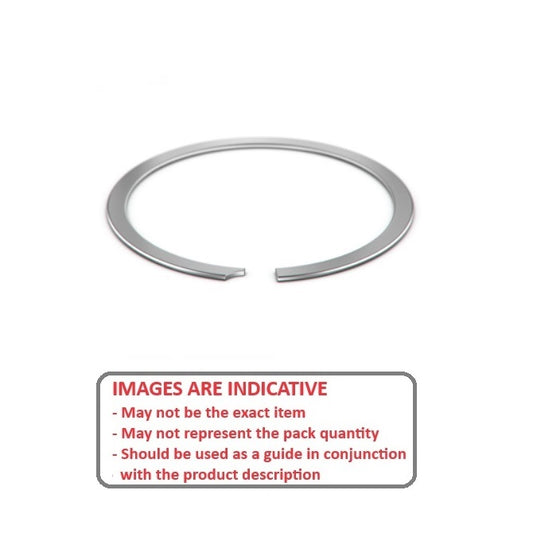

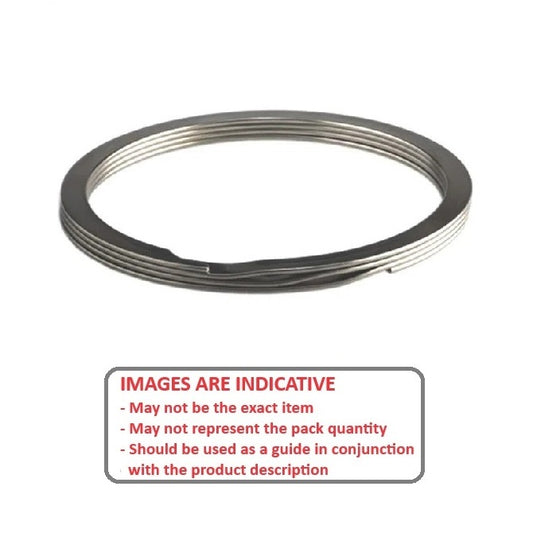

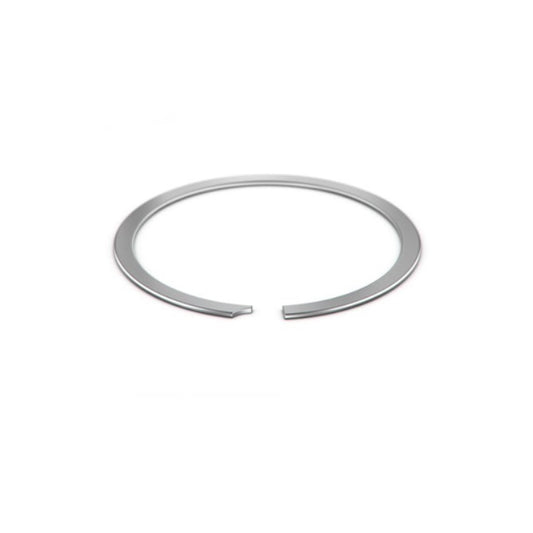

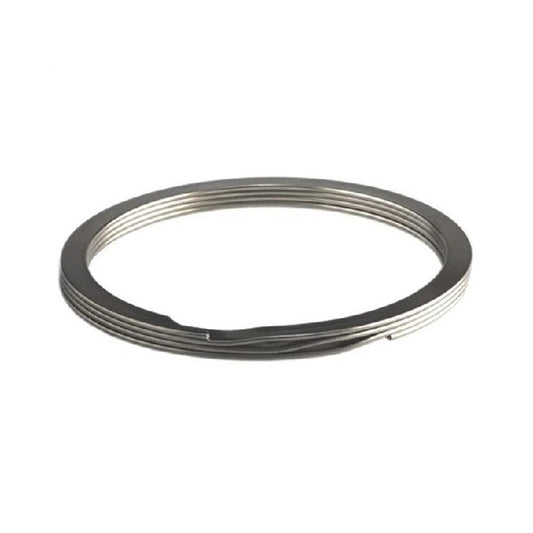

Collection: Retaining Rings - Internal - Spiral Rings

Retaining Rings (With Images)

Internal

109 Products in this selection

This is a combined category of Spiral Rings Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Spiral Rings. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 27.08 mm _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 27.10 mm + 0.33 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip ID: 22.78 +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-100 (5 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 27.08 mm _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 27.10 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip ID: 22.78 +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-100 (5 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RRN-100 (5 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm - Spring Steel RRN-100 (5 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm - Spring Steel Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 27.08 mm _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 27.10 mm + 0.33 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 22.78 +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-100-S02 (5 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 5
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 27.08 mm _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 27.10 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip ID: 22.78 +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-100-S02 (5 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 5 View the product page first if you are unsure.
RRN-100-S02 (5 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel 302/304 Similar to A2, 18-8 RRN-100-S02 (5 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 27.08 mm _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 27.12 mm + 0.33 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip ID: 23.3 +/- 0.03 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-102 Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Each
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 27.08 mm _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 27.12 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip ID: 23.3 +/- 0.03 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-102 Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Each View the product page first if you are unsure.
RR-102 --- Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel RR-102 --- Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 27.72 mm _{(1.091 in.)}	Approx. Loose Circlip OD (Dr) 27.72 mm + 0.33 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 23.4 +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-102-S02 (2 Pcs) Internal Retaining Rings - 25.98x1.07x27.72 mm - Stainless Steel 302/304 Similar to A2, 18-8 5 units (10 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Per 2
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 1.07 mm +/- 0.05 _{(0.042 in.)}	Groove Dia. (Dg) 27.72 mm _{(1.091 in.)}	Approx. Loose Circlip OD (Dr) 27.72 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip ID: 23.4 +/- 0.04 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-102-S02 (2 Pcs) Internal Retaining Rings - 25.98x1.07x27.72 mm - Stainless Steel 302/304 Similar to A2, 18-8 5 units (10 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Per 2 View the product page first if you are unsure.
RRN-102-S02 (2 Pcs) --- Internal Retaining Rings - 25.98x1.07x27.72 mm - Stainless Steel 302/304 Similar to A2, 18-8 RRN-102-S02 (2 Pcs) --- Internal Retaining Rings - 25.98x1.07x27.72 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per 5 Available Now
Housing Bore (B) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 28.04 mm _{(1.104 in.)}	Approx. Loose Circlip OD (Dr) 28.16 mm + 0.38 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 24.34 +/- 0.03 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-106 (9 Pcs) Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 9
Housing Bore (B) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 28.04 mm _{(1.104 in.)}	Approx. Loose Circlip OD (Dr) 28.16 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip ID: 24.34 +/- 0.03 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-106 (9 Pcs) Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 9 View the product page first if you are unsure.
RR-106 (9 Pcs) --- Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel RR-106 (9 Pcs) --- Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 29.64 mm _{(1.167 in.)}	Approx. Loose Circlip OD (Dr) 29.84 mm + 0.38 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 26.02 +/- 0.03 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-112 (2 Pcs) Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel 54 units (108 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $1.86 AUD Regular price Sale price $1.86 AUD Unit price per Per 2
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 29.64 mm _{(1.167 in.)}	Approx. Loose Circlip OD (Dr) 29.84 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip ID: 26.02 +/- 0.03 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-112 (2 Pcs) Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel 54 units (108 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $1.86 AUD Regular price Sale price $1.86 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-112 (2 Pcs) --- Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel RR-112 (2 Pcs) --- Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel Regular price $1.86 AUD Regular price Sale price $1.86 AUD Unit price per 54 Available Now
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 30.41 mm _{(1.197 in.)}	Approx. Loose Circlip OD (Dr) 30.49 mm + 0.33 / - 0.00	Radial Wall (S) 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.11
Material: Spring Steel Approx. Loose Clip ID: 25.25 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-112 (6 Pcs) Internal Retaining Rings - 28.58x1.27x30.41 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Per 6
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 30.41 mm _{(1.197 in.)}	Approx. Loose Circlip OD (Dr) 30.49 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.11 Approx. Loose Clip ID: 25.25 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-112 (6 Pcs) Internal Retaining Rings - 28.58x1.27x30.41 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Per 6 View the product page first if you are unsure.
RRN-112 (6 Pcs) --- Internal Retaining Rings - 28.58x1.27x30.41 mm - Spring Steel RRN-112 (6 Pcs) --- Internal Retaining Rings - 28.58x1.27x30.41 mm - Spring Steel Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 32.06 mm _{(1.262 in.)}	Approx. Loose Circlip OD (Dr) 32.20 mm + 0.33 / - 0.00	Radial Wall (S) 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 26.96 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-118 Internal Retaining Rings - 30.18x1.27x32.06 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Housing Bore (B) 30.18 mm _{(1.188 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 32.06 mm _{(1.262 in.)}	Approx. Loose Circlip OD (Dr) 32.20 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip ID: 26.96 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-118 Internal Retaining Rings - 30.18x1.27x32.06 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
RRN-118 --- Internal Retaining Rings - 30.18x1.27x32.06 mm - Spring Steel RRN-118 --- Internal Retaining Rings - 30.18x1.27x32.06 mm - Spring Steel Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 30.94 mm _{(1.218 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.16 mm _{(1.266 in.)}	Approx. Loose Circlip OD (Dr) 32.30 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.11
Material: Spring Steel Approx. Loose Clip ID: 27.98 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-121 (27 Pcs) Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Per 27
Housing Bore (B) 30.94 mm _{(1.218 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.16 mm _{(1.266 in.)}	Approx. Loose Circlip OD (Dr) 32.30 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.11 Approx. Loose Clip ID: 27.98 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-121 (27 Pcs) Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Per 27 View the product page first if you are unsure.
RR-121 (27 Pcs) --- Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel RR-121 (27 Pcs) --- Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.97 mm _{(1.298 in.)}	Approx. Loose Circlip OD (Dr) 33.15 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 28.83 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-125 (10 Pcs) Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel 19 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 10
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.97 mm _{(1.298 in.)}	Approx. Loose Circlip OD (Dr) 33.15 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 28.83 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-125 (10 Pcs) Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel 19 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 10 View the product page first if you are unsure.
RR-125 (10 Pcs) --- Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel RR-125 (10 Pcs) --- Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 19 Available Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 33.53 mm _{(1.32 in.)}	Approx. Loose Circlip OD (Dr) 33.72 mm + 0.38 / - 0.00	Radial Wall (S) 2.36 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 29 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy
Part Number: RRT-125-S02 Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Each
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 33.53 mm _{(1.32 in.)}	Approx. Loose Circlip OD (Dr) 33.72 mm + 0.38 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 2.36 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip ID: 29 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy
Part Number: RRT-125-S02 Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Each View the product page first if you are unsure.
RRT-125-S02 --- Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 RRT-125-S02 --- Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 33.78 mm _{(1.33 in.)}	Approx. Loose Circlip OD (Dr) 33.88 mm + 0.33 / - 0.00	Radial Wall (S) 2.62 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 28.64 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-125 (100 Pcs) Internal Retaining Rings - 31.75x1.27x33.78 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 100
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 33.78 mm _{(1.33 in.)}	Approx. Loose Circlip OD (Dr) 33.88 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 2.62 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip ID: 28.64 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-125 (100 Pcs) Internal Retaining Rings - 31.75x1.27x33.78 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 100 View the product page first if you are unsure.
RRN-125 (100 Pcs) --- Internal Retaining Rings - 31.75x1.27x33.78 mm - Spring Steel RRN-125 (100 Pcs) --- Internal Retaining Rings - 31.75x1.27x33.78 mm - Spring Steel Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.34 mm _{(1.313 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 34.54 mm _{(1.36 in.)}	Approx. Loose Circlip OD (Dr) 34.81 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 30.49 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-131 (5 Pcs) Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel 19 units (95 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 5
Housing Bore (B) 33.34 mm _{(1.313 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 34.54 mm _{(1.36 in.)}	Approx. Loose Circlip OD (Dr) 34.81 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 30.49 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-131 (5 Pcs) Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel 19 units (95 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-131 (5 Pcs) --- Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel RR-131 (5 Pcs) --- Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per 19 Available Now
Housing Bore (B) 34.11 mm _{(1.343 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 35.43 mm _{(1.395 in.)}	Approx. Loose Circlip OD (Dr) 35.61 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 31.29 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-134 (19 Pcs) Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Per 19
Housing Bore (B) 34.11 mm _{(1.343 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 35.43 mm _{(1.395 in.)}	Approx. Loose Circlip OD (Dr) 35.61 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 31.29 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-134 (19 Pcs) Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Per 19 View the product page first if you are unsure.
RR-134 (19 Pcs) --- Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel RR-134 (19 Pcs) --- Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.80 mm _{(1.37 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 36.24 mm _{(1.427 in.)}	Approx. Loose Circlip OD (Dr) 36.33 mm + 0.38 / - 0.00	Radial Wall (S) 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 31.51 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-137 Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel 4876 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each
Housing Bore (B) 34.80 mm _{(1.37 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 36.24 mm _{(1.427 in.)}	Approx. Loose Circlip OD (Dr) 36.33 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 31.51 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-137 Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel 4876 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each View the product page first if you are unsure.
RR-137 --- Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel RR-137 --- Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 4876 Available Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.04 _{(0.025 in.)}	Groove Dia. (Dg) 36.04 mm _{(1.419 in.)}	Approx. Loose Circlip OD (Dr) 36.61 mm + 0.38 / - 0.00	Radial Wall (S) 2.24 mm + 0.08 / - 0.13	Groove Width (W) 0.79 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 32.13 + 0.05 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings - Light Duty
Part Number: UR-137 (5 Pcs) Internal Retaining Rings - 34.93x0.64x36.04 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Per 5
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 0.64 mm +/- 0.04 _{(0.025 in.)}	Groove Dia. (Dg) 36.04 mm _{(1.419 in.)}	Approx. Loose Circlip OD (Dr) 36.61 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.24 mm + 0.08 / - 0.13 Groove Width (W): 0.79 mm +/- 0.10 Approx. Loose Clip ID: 32.13 + 0.05 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings - Light Duty
Part Number: UR-137 (5 Pcs) Internal Retaining Rings - 34.93x0.64x36.04 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Per 5 View the product page first if you are unsure.
UR-137 (5 Pcs) --- Internal Retaining Rings - 34.93x0.64x36.04 mm - Spring Steel UR-137 (5 Pcs) --- Internal Retaining Rings - 34.93x0.64x36.04 mm - Spring Steel Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 36.83 mm _{(1.45 in.)}	Approx. Loose Circlip OD (Dr) 37.10 mm + 0.38 / - 0.00	Radial Wall (S) 2.49 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 32.12 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-137 (4 Pcs) Internal Retaining Rings - 34.93x1.27x36.83 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Per 4
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 36.83 mm _{(1.45 in.)}	Approx. Loose Circlip OD (Dr) 37.10 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.49 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip ID: 32.12 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-137 (4 Pcs) Internal Retaining Rings - 34.93x1.27x36.83 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Per 4 View the product page first if you are unsure.
RRT-137 (4 Pcs) --- Internal Retaining Rings - 34.93x1.27x36.83 mm - Spring Steel RRT-137 (4 Pcs) --- Internal Retaining Rings - 34.93x1.27x36.83 mm - Spring Steel Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 37.27 mm + 0.33 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 31.27 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-137 (2 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 2
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 37.27 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip ID: 31.27 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-137 (2 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 2 View the product page first if you are unsure.
RRN-137 (2 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Spring Steel RRN-137 (2 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Spring Steel Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.50 mm _{(1.437 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 37.82 mm _{(1.489 in.)}	Approx. Loose Circlip OD (Dr) 38.11 mm + 0.38 / - 0.00	Radial Wall (S) 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 33.29 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-143 Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel 44 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per Each
Housing Bore (B) 36.50 mm _{(1.437 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 37.82 mm _{(1.489 in.)}	Approx. Loose Circlip OD (Dr) 38.11 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 33.29 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-143 Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel 44 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per Each View the product page first if you are unsure.
RR-143 --- Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel RR-143 --- Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per 44 Available Now
Housing Bore (B) 36.55 mm _{(1.439 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 39.00 mm + 0.33 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 33 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-143 Internal Retaining Rings - 36.55x1.27x38.81 mm - Spring Steel 7 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Each
Housing Bore (B) 36.55 mm _{(1.439 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 39.00 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip ID: 33 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-143 Internal Retaining Rings - 36.55x1.27x38.81 mm - Spring Steel 7 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Each
RRN-143 --- Internal Retaining Rings - 36.55x1.27x38.81 mm - Spring Steel Sale RRN-143 --- Internal Retaining Rings - 36.55x1.27x38.81 mm - Spring Steel Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per 7 Available Now Sale
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 40.13 mm _{(1.58 in.)}	Approx. Loose Circlip OD (Dr) 40.46 mm + 0.38 / - 0.00	Radial Wall (S) 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 34.98 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-150 Internal Retaining Rings - 38.1x1.27x40.13 mm - Spring Steel 31 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 40.13 mm _{(1.58 in.)}	Approx. Loose Circlip OD (Dr) 40.46 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip ID: 34.98 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-150 Internal Retaining Rings - 38.1x1.27x40.13 mm - Spring Steel 31 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each View the product page first if you are unsure.
RRT-150 --- Internal Retaining Rings - 38.1x1.27x40.13 mm - Spring Steel RRT-150 --- Internal Retaining Rings - 38.1x1.27x40.13 mm - Spring Steel Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 31 Available Now
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 40.49 mm _{(1.594 in.)}	Approx. Loose Circlip OD (Dr) 40.65 mm + 0.33 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 34.65 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-150 (7 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Per 7
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.05 _{(0.05 in.)}	Groove Dia. (Dg) 40.49 mm _{(1.594 in.)}	Approx. Loose Circlip OD (Dr) 40.65 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.10 Approx. Loose Clip ID: 34.65 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-150 (7 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Per 7 View the product page first if you are unsure.
RRN-150 (7 Pcs) --- Internal Retaining Rings - 38.1x1.27x40.49 mm - Spring Steel RRN-150 (7 Pcs) --- Internal Retaining Rings - 38.1x1.27x40.49 mm - Spring Steel Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.77 mm _{(1.684 in.)}	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00	Radial Wall (S) 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 37.62 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-162-S02 (2 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Per 2
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.77 mm _{(1.684 in.)}	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 37.62 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-162-S02 (2 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-162-S02 (2 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm - Stainless Steel 302/304 Similar to A2, 18-8 RR-162-S02 (2 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.77 mm _{(1.684 in.)}	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00	Radial Wall (S) 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 37.62 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-162 (5 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Per 5
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.77 mm _{(1.684 in.)}	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 37.62 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-162 (5 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-162 (5 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel RR-162 (5 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Out of stock! Backorder Now
