RRT-137 (4 Pcs)

Name: RRT-137 (4 Pack) - Internal Retaining Rings - 34.93x1.27x36.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Brand: MBA
SKU: RRT137
Price: 10.68 AUD
Availability: BackOrder

Internal Retaining Rings - 34.93x1.27x36.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring

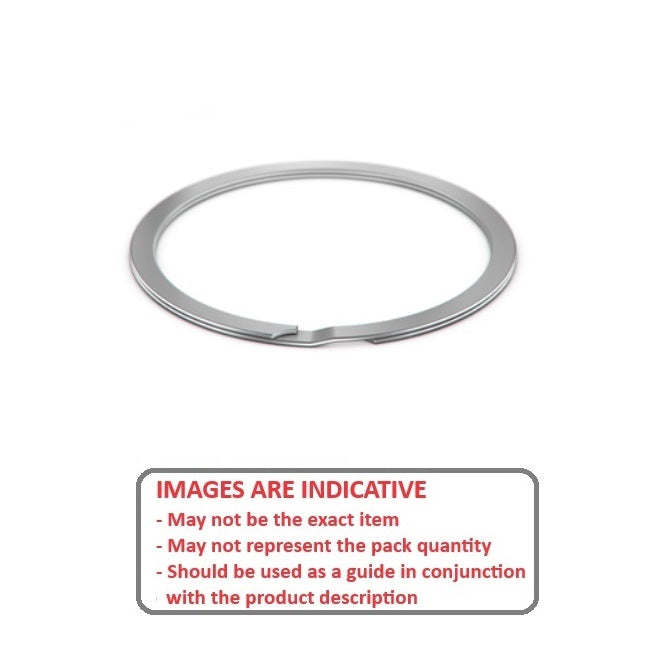

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$10.68 AUD

~~$12.82 AUD~~ $10.68 AUD

per 4
Backorder
Order 50 or more pack (200 pcs) for $9.61 AUD per 4

Backorder now! Backorders for more than the stock quantity are expected before Sep 26, 2025

Quantity

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel

Product Details

Additional stock available from USA subject to Prior Sale = 175

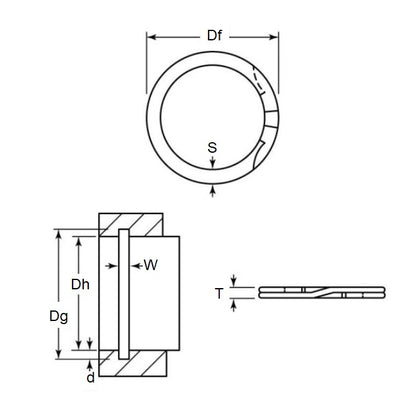

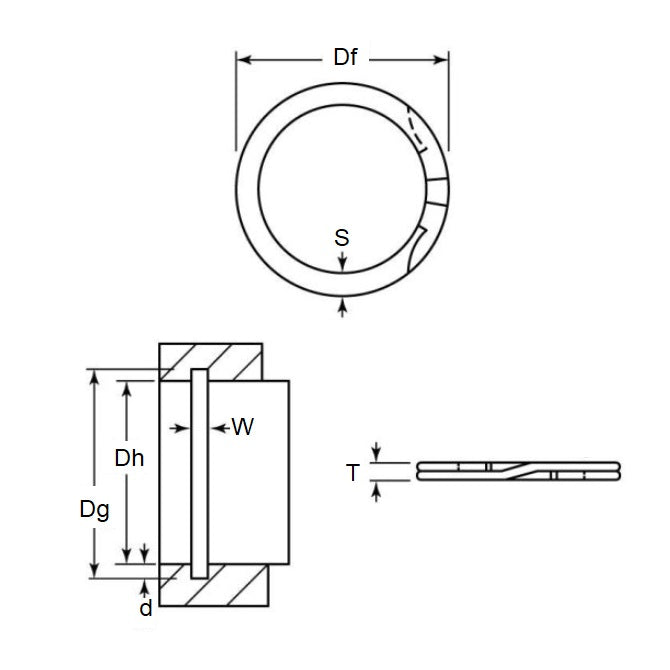

Housing Bore (B): 34.93mm
_{(34.93mm is 1.375 in.)}

Carbon Spring Steel

Clip Thickness (T): 1.27mm
_{+/- 0.05}
_{(1.27mm is 0.05 in.)}
Groove Dia. (Dg): 36.83mm
_{(36.83mm is 1.45 in.)}
Approx. Loose Circlip OD (Dr): 37.10mm
_{+ 0.38 / - 0.00}
Radial Wall (S): 2.49mm
_{+/- 0.10}
Groove Width (W): 1.47mm
_{+/- 0.10}
Approx. Loose Clip ID: 32.12
_{+/- 0.05}
Groove Depth (d): 0.97

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Associated Spring AMI-137
Smalley WHT-137
WHT137
AMI137

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
