Collection: Retaining Rings - Internal - Spiral Rings

Retaining Rings (With Images)

Internal

109 Products in this selection

This is a combined category of Spiral Rings Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Spiral Rings. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 44.45 mm _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 44.74 mm + 0.51 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 38.74 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-168 (5 Pcs) Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 5
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 44.45 mm _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 44.74 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 38.74 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-168 (5 Pcs) Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-168 (5 Pcs) --- Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel RR-168 (5 Pcs) --- Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 42.88 mm _{(1.688 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 45.22 mm _{(1.78 in.)}	Approx. Loose Circlip OD (Dr) 45.54 mm + 0.51 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 39.54 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-168 (28 Pcs) Internal Retaining Rings - 42.88x1.58x45.22 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Per 28
Housing Bore (B) 42.88 mm _{(1.688 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 45.22 mm _{(1.78 in.)}	Approx. Loose Circlip OD (Dr) 45.54 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip ID: 39.54 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-168 (28 Pcs) Internal Retaining Rings - 42.88x1.58x45.22 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Per 28 View the product page first if you are unsure.
RRT-168 (28 Pcs) --- Internal Retaining Rings - 42.88x1.58x45.22 mm - Spring Steel RRT-168 (28 Pcs) --- Internal Retaining Rings - 42.88x1.58x45.22 mm - Spring Steel Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 46.05 mm _{(1.813 in.)}	Approx. Loose Circlip OD (Dr) 46.41 mm + 0.51 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 40.41 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-175-S02 (50 Pcs) Internal Retaining Rings - 44.45x1.25x46.05 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $201.50 AUD Regular price Sale price $201.50 AUD Unit price per Per 50
Housing Bore (B) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 46.05 mm _{(1.813 in.)}	Approx. Loose Circlip OD (Dr) 46.41 mm + 0.51 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 40.41 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-175-S02 (50 Pcs) Internal Retaining Rings - 44.45x1.25x46.05 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $201.50 AUD Regular price Sale price $201.50 AUD Unit price per Per 50 View the product page first if you are unsure.
RR-175-S02 (50 Pcs) --- Internal Retaining Rings - 44.45x1.25x46.05 mm - Stainless Steel 302/304 Similar to A2, 18-8 RR-175-S02 (50 Pcs) --- Internal Retaining Rings - 44.45x1.25x46.05 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $201.50 AUD Regular price Sale price $201.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 46.05 mm _{(1.813 in.)}	Approx. Loose Circlip OD (Dr) 46.41 mm + 0.51 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 40.41 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-175 (5 Pcs) Internal Retaining Rings - 44.45x1.25x46.05 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 5
Housing Bore (B) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 46.05 mm _{(1.813 in.)}	Approx. Loose Circlip OD (Dr) 46.41 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 40.41 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-175 (5 Pcs) Internal Retaining Rings - 44.45x1.25x46.05 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-175 (5 Pcs) --- Internal Retaining Rings - 44.45x1.25x46.05 mm - Spring Steel RR-175 (5 Pcs) --- Internal Retaining Rings - 44.45x1.25x46.05 mm - Spring Steel Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 46.87 mm _{(1.845 in.)}	Approx. Loose Circlip OD (Dr) 47.21 mm + 0.51 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 41.21 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-175 (166 Pcs) Internal Retaining Rings - 44.45x1.58x46.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $1,047.68 AUD Regular price Sale price $1,047.68 AUD Unit price per Per 166
Housing Bore (B) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 46.87 mm _{(1.845 in.)}	Approx. Loose Circlip OD (Dr) 47.21 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip ID: 41.21 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-175 (166 Pcs) Internal Retaining Rings - 44.45x1.58x46.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $1,047.68 AUD Regular price Sale price $1,047.68 AUD Unit price per Per 166 View the product page first if you are unsure.
RRT-175 (166 Pcs) --- Internal Retaining Rings - 44.45x1.58x46.87 mm - Spring Steel RRT-175 (166 Pcs) --- Internal Retaining Rings - 44.45x1.58x46.87 mm - Spring Steel Regular price $1,047.68 AUD Regular price Sale price $1,047.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 46.02 mm _{(1.812 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 48.52 mm _{(1.91 in.)}	Approx. Loose Circlip OD (Dr) 48.87 mm + 0.51 / - 0.00	Radial Wall (S) 3.13 mm +/- 0.11	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 42.61 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-181 (29 Pcs) Internal Retaining Rings - 46.02x1.58x48.52 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Per 29
Housing Bore (B) 46.02 mm _{(1.812 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 48.52 mm _{(1.91 in.)}	Approx. Loose Circlip OD (Dr) 48.87 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.13 mm +/- 0.11 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip ID: 42.61 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-181 (29 Pcs) Internal Retaining Rings - 46.02x1.58x48.52 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Per 29 View the product page first if you are unsure.
RRT-181 (29 Pcs) --- Internal Retaining Rings - 46.02x1.58x48.52 mm - Spring Steel RRT-181 (29 Pcs) --- Internal Retaining Rings - 46.02x1.58x48.52 mm - Spring Steel Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 50.17 mm _{(1.975 in.)}	Approx. Loose Circlip OD (Dr) 50.58 mm + 0.51 / - 0.00	Radial Wall (S) 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 44.08 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-187 (28 Pcs) Internal Retaining Rings - 47.63x1.58x50.17 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.86 AUD Regular price Sale price $10.86 AUD Unit price per Per 28
Housing Bore (B) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 50.17 mm _{(1.975 in.)}	Approx. Loose Circlip OD (Dr) 50.58 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip ID: 44.08 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-187 (28 Pcs) Internal Retaining Rings - 47.63x1.58x50.17 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.86 AUD Regular price Sale price $10.86 AUD Unit price per Per 28 View the product page first if you are unsure.
RRT-187 (28 Pcs) --- Internal Retaining Rings - 47.63x1.58x50.17 mm - Spring Steel RRT-187 (28 Pcs) --- Internal Retaining Rings - 47.63x1.58x50.17 mm - Spring Steel Regular price $10.86 AUD Regular price Sale price $10.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 49.23 mm _{(1.938 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 51.82 mm _{(2.04 in.)}	Approx. Loose Circlip OD (Dr) 52.28 mm + 0.51 / - 0.00	Radial Wall (S) 3.25 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 45.78 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-193 (8 Pcs) Internal Retaining Rings - 49.23x1.58x51.82 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Per 8
Housing Bore (B) 49.23 mm _{(1.938 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 51.82 mm _{(2.04 in.)}	Approx. Loose Circlip OD (Dr) 52.28 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.25 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip ID: 45.78 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-193 (8 Pcs) Internal Retaining Rings - 49.23x1.58x51.82 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Per 8 View the product page first if you are unsure.
RRT-193 (8 Pcs) --- Internal Retaining Rings - 49.23x1.58x51.82 mm - Spring Steel RRT-193 (8 Pcs) --- Internal Retaining Rings - 49.23x1.58x51.82 mm - Spring Steel Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 52.25 mm _{(2.057 in.)}	Approx. Loose Circlip OD (Dr) 53.24 mm + 0.51 / - 0.00	Radial Wall (S) 3.00 mm + 0.08 / - 0.13	Groove Width (W) 1.00 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 47.24 + 0.07 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings - Light Duty
Part Number: UR-200 (2 Pcs) Internal Retaining Rings - 50.8x0.79x52.25 mm - Spring Steel 496 units (992 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.14 AUD Regular price ~~$6.16 AUD~~ Sale price $5.14 AUD Unit price per Per 2
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 52.25 mm _{(2.057 in.)}	Approx. Loose Circlip OD (Dr) 53.24 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm + 0.08 / - 0.13 Groove Width (W): 1.00 mm +/- 0.13 Approx. Loose Clip ID: 47.24 + 0.07 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings - Light Duty
Part Number: UR-200 (2 Pcs) Internal Retaining Rings - 50.8x0.79x52.25 mm - Spring Steel 496 units (992 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.14 AUD Regular price ~~$6.16 AUD~~ Sale price $5.14 AUD Unit price per Per 2
UR-200 (2 Pcs) --- Internal Retaining Rings - 50.8x0.79x52.25 mm - Spring Steel Sale UR-200 (2 Pcs) --- Internal Retaining Rings - 50.8x0.79x52.25 mm - Spring Steel Regular price $5.14 AUD Regular price ~~$6.16 AUD~~ Sale price $5.14 AUD Unit price per 496 Available Now Sale
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.60 mm _{(2.071 in.)}	Approx. Loose Circlip OD (Dr) 53.04 mm + 0.51 / - 0.00	Radial Wall (S) 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 46.54 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-200 Internal Retaining Rings - 50.8x1.25x52.6 mm - Spring Steel 60 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Each
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.60 mm _{(2.071 in.)}	Approx. Loose Circlip OD (Dr) 53.04 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 46.54 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-200 Internal Retaining Rings - 50.8x1.25x52.6 mm - Spring Steel 60 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Each View the product page first if you are unsure.
RR-200 --- Internal Retaining Rings - 50.8x1.25x52.6 mm - Spring Steel RR-200 --- Internal Retaining Rings - 50.8x1.25x52.6 mm - Spring Steel Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per 60 Available Now
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 53.60 mm _{(2.11 in.)}	Approx. Loose Circlip OD (Dr) 53.95 mm + 0.51 / - 0.00	Radial Wall (S) 3.51 mm +/- 0.11	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 46.93 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-200 Internal Retaining Rings - 50.8x1.58x53.6 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 53.60 mm _{(2.11 in.)}	Approx. Loose Circlip OD (Dr) 53.95 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.51 mm +/- 0.11 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip ID: 46.93 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-200 Internal Retaining Rings - 50.8x1.58x53.6 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each View the product page first if you are unsure.
RRT-200 --- Internal Retaining Rings - 50.8x1.58x53.6 mm - Spring Steel RRT-200 --- Internal Retaining Rings - 50.8x1.58x53.6 mm - Spring Steel Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 54.20 mm + 0.51 / - 0.00	Radial Wall (S) 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 46.18 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-200 Internal Retaining Rings - 50.8x1.58x53.9 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 54.20 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip ID: 46.18 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-200 Internal Retaining Rings - 50.8x1.58x53.9 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each View the product page first if you are unsure.
RRN-200 --- Internal Retaining Rings - 50.8x1.58x53.9 mm - Spring Steel RRN-200 --- Internal Retaining Rings - 50.8x1.58x53.9 mm - Spring Steel Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 54.20 mm + 0.51 / - 0.00	Radial Wall (S) 4.01 mm +/- 0.10	Groove Width (W) 1.78 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 46.18 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-200-S02 Internal Retaining Rings - 50.8x1.58x53.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Each
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.58 mm +/- 0.08 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 54.20 mm + 0.51 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 4.01 mm +/- 0.10 Groove Width (W): 1.78 mm +/- 0.13 Approx. Loose Clip ID: 46.18 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-200-S02 Internal Retaining Rings - 50.8x1.58x53.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Each View the product page first if you are unsure.
RRN-200-S02 --- Internal Retaining Rings - 50.8x1.58x53.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 RRN-200-S02 --- Internal Retaining Rings - 50.8x1.58x53.9 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 54.31 mm _{(2.138 in.)}	Approx. Loose Circlip OD (Dr) 54.88 mm + 0.64 / - 0.00	Radial Wall (S) 4.01 mm + 0.08 / - 0.13	Groove Width (W) 1.00 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip ID: 46.86 + 0.07 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings - Light Duty
Part Number: UR-206 (37 Pcs) Internal Retaining Rings - 52.37x0.79x54.31 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $146.32 AUD Regular price Sale price $146.32 AUD Unit price per Per 37
Housing Bore (B) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 54.31 mm _{(2.138 in.)}	Approx. Loose Circlip OD (Dr) 54.88 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 4.01 mm + 0.08 / - 0.13 Groove Width (W): 1.00 mm +/- 0.16 Approx. Loose Clip ID: 46.86 + 0.07 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings - Light Duty
Part Number: UR-206 (37 Pcs) Internal Retaining Rings - 52.37x0.79x54.31 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $146.32 AUD Regular price Sale price $146.32 AUD Unit price per Per 37 View the product page first if you are unsure.
UR-206 (37 Pcs) --- Internal Retaining Rings - 52.37x0.79x54.31 mm - Spring Steel UR-206 (37 Pcs) --- Internal Retaining Rings - 52.37x0.79x54.31 mm - Spring Steel Regular price $146.32 AUD Regular price Sale price $146.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 55.75 mm _{(2.195 in.)}	Approx. Loose Circlip OD (Dr) 56.36 mm + 0.64 / - 0.00	Radial Wall (S) 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip ID: 49.86 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-212 (100 Pcs) Internal Retaining Rings - 53.98x1.25x55.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 100
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 55.75 mm _{(2.195 in.)}	Approx. Loose Circlip OD (Dr) 56.36 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip ID: 49.86 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-212 (100 Pcs) Internal Retaining Rings - 53.98x1.25x55.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 100 View the product page first if you are unsure.
RR-212 (100 Pcs) --- Internal Retaining Rings - 53.98x1.25x55.75 mm - Spring Steel RR-212 (100 Pcs) --- Internal Retaining Rings - 53.98x1.25x55.75 mm - Spring Steel Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 54.99 mm _{(2.165 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip OD (Dr) 57.41 mm + 0.64 / - 0.00	Radial Wall (S) 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip ID: 50.39 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-216 (2 Pcs) Internal Retaining Rings - 54.99x1.25x56.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 2
Housing Bore (B) 54.99 mm _{(2.165 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 56.87 mm _{(2.239 in.)}	Approx. Loose Circlip OD (Dr) 57.41 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip ID: 50.39 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-216 (2 Pcs) Internal Retaining Rings - 54.99x1.25x56.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-216 (2 Pcs) --- Internal Retaining Rings - 54.99x1.25x56.87 mm - Spring Steel RR-216 (2 Pcs) --- Internal Retaining Rings - 54.99x1.25x56.87 mm - Spring Steel Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 55.55 mm _{(2.187 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 57.48 mm _{(2.263 in.)}	Approx. Loose Circlip OD (Dr) 58.22 mm + 0.64 / - 0.00	Radial Wall (S) 4.01 mm + 0.08 / - 0.13	Groove Width (W) 1.00 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip ID: 50.2 + 0.07 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings - Light Duty
Part Number: UR-218 (5 Pcs) Internal Retaining Rings - 55.55x0.79x57.48 mm - Spring Steel 9 units (45 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 5
Housing Bore (B) 55.55 mm _{(2.187 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 57.48 mm _{(2.263 in.)}	Approx. Loose Circlip OD (Dr) 58.22 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 4.01 mm + 0.08 / - 0.13 Groove Width (W): 1.00 mm +/- 0.15 Approx. Loose Clip ID: 50.2 + 0.07 / - 0.00 Category: Retaining Rings - Internal - Spiral Rings - Light Duty
Part Number: UR-218 (5 Pcs) Internal Retaining Rings - 55.55x0.79x57.48 mm - Spring Steel 9 units (45 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 5
UR-218 (5 Pcs) --- Internal Retaining Rings - 55.55x0.79x57.48 mm - Spring Steel Sale UR-218 (5 Pcs) --- Internal Retaining Rings - 55.55x0.79x57.48 mm - Spring Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 9 Available Now Sale
Housing Bore (B) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 59.03 mm _{(2.324 in.)}	Approx. Loose Circlip OD (Dr) 59.66 mm + 0.64 / - 0.00	Radial Wall (S) 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip ID: 52.64 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-225 Internal Retaining Rings - 57.15x1.25x59.03 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Each
Housing Bore (B) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 59.03 mm _{(2.324 in.)}	Approx. Loose Circlip OD (Dr) 59.66 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip ID: 52.64 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-225 Internal Retaining Rings - 57.15x1.25x59.03 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Each View the product page first if you are unsure.
RR-225 --- Internal Retaining Rings - 57.15x1.25x59.03 mm - Spring Steel RR-225 --- Internal Retaining Rings - 57.15x1.25x59.03 mm - Spring Steel Regular price $11.86 AUD Regular price Sale price $11.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 60.20 mm _{(2.37 in.)}	Approx. Loose Circlip OD (Dr) 60.69 mm + 0.64 / - 0.00	Radial Wall (S) 3.58 mm +/- 0.10	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip ID: 53.53 +/- 0.06 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-225 (2 Pcs) Internal Retaining Rings - 57.15x1.99x60.2 mm - Spring Steel 6 units (12 pcs) Available Immediately \| Further orders can be expected around Fri, Jun 20, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 2
Housing Bore (B) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 60.20 mm _{(2.37 in.)}	Approx. Loose Circlip OD (Dr) 60.69 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 3.58 mm +/- 0.10 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip ID: 53.53 +/- 0.06 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-225 (2 Pcs) Internal Retaining Rings - 57.15x1.99x60.2 mm - Spring Steel 6 units (12 pcs) Available Immediately \| Further orders can be expected around Fri, Jun 20, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 2 View the product page first if you are unsure.
RRT-225 (2 Pcs) --- Internal Retaining Rings - 57.15x1.99x60.2 mm - Spring Steel RRT-225 (2 Pcs) --- Internal Retaining Rings - 57.15x1.99x60.2 mm - Spring Steel Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per 6 Available Now
Housing Bore (B) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 60.51 mm _{(2.382 in.)}	Approx. Loose Circlip OD (Dr) 60.98 mm + 0.64 / - 0.00	Radial Wall (S) 4.27 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip ID: 52.44 +/- 0.06 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-225 (4 Pcs) Internal Retaining Rings - 57.15x1.99x60.51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Per 4
Housing Bore (B) 57.15 mm _{(2.25 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 60.51 mm _{(2.382 in.)}	Approx. Loose Circlip OD (Dr) 60.98 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 4.27 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip ID: 52.44 +/- 0.06 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty
Part Number: RRN-225 (4 Pcs) Internal Retaining Rings - 57.15x1.99x60.51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Per 4 View the product page first if you are unsure.
RRN-225 (4 Pcs) --- Internal Retaining Rings - 57.15x1.99x60.51 mm - Spring Steel RRN-225 (4 Pcs) --- Internal Retaining Rings - 57.15x1.99x60.51 mm - Spring Steel Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 62.30 mm _{(2.453 in.)}	Approx. Loose Circlip OD (Dr) 62.98 mm + 0.64 / - 0.00	Radial Wall (S) 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip ID: 55.96 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-237 Internal Retaining Rings - 60.33x1.25x62.3 mm - Spring Steel 60 Available Immediately \| Further orders can be expected around Fri, Jun 20, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each
Housing Bore (B) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 62.30 mm _{(2.453 in.)}	Approx. Loose Circlip OD (Dr) 62.98 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip ID: 55.96 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-237 Internal Retaining Rings - 60.33x1.25x62.3 mm - Spring Steel 60 Available Immediately \| Further orders can be expected around Fri, Jun 20, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each View the product page first if you are unsure.
RR-237 --- Internal Retaining Rings - 60.33x1.25x62.3 mm - Spring Steel RR-237 --- Internal Retaining Rings - 60.33x1.25x62.3 mm - Spring Steel Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 60 Available Now
Housing Bore (B) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 63.63 mm _{(2.505 in.)}	Approx. Loose Circlip OD (Dr) 64.07 mm + 0.64 / - 0.00	Radial Wall (S) 4.78 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip ID: 54.51 +/- 0.06 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-237 (8 Pcs) Internal Retaining Rings - 60.33x1.99x63.63 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 8
Housing Bore (B) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 63.63 mm _{(2.505 in.)}	Approx. Loose Circlip OD (Dr) 64.07 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 4.78 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.16 Approx. Loose Clip ID: 54.51 +/- 0.06 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-237 (8 Pcs) Internal Retaining Rings - 60.33x1.99x63.63 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 8 View the product page first if you are unsure.
RRT-237 (8 Pcs) --- Internal Retaining Rings - 60.33x1.99x63.63 mm - Spring Steel RRT-237 (8 Pcs) --- Internal Retaining Rings - 60.33x1.99x63.63 mm - Spring Steel Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 61.79 mm _{(2.433 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 63.98 mm _{(2.519 in.)}	Approx. Loose Circlip OD (Dr) 64.51 mm + 0.64 / - 0.00	Radial Wall (S) 3.76 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.15

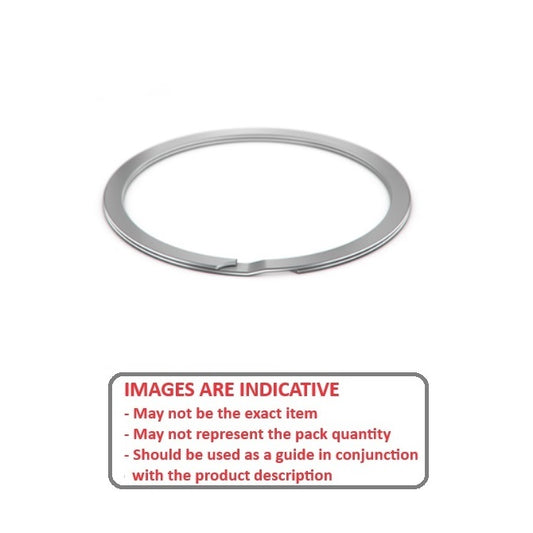

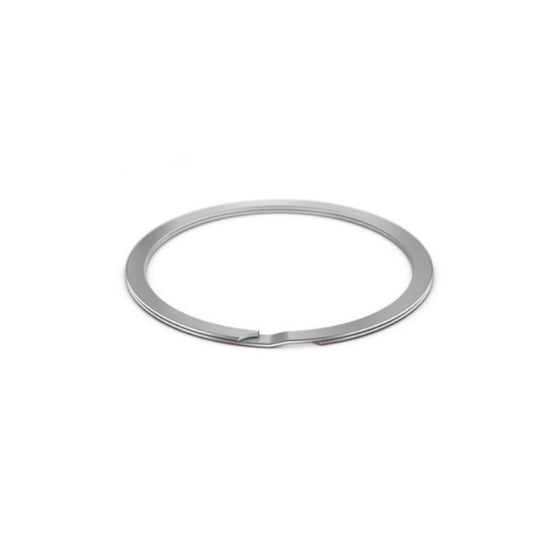

Material: Spring Steel Approx. Loose Clip ID: 56.99 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-243 (50 Pcs) Internal Retaining Rings - 61.79x1.25x63.98 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $853.86 AUD Regular price Sale price $853.86 AUD Unit price per Per 50
Housing Bore (B) 61.79 mm _{(2.433 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 63.98 mm _{(2.519 in.)}	Approx. Loose Circlip OD (Dr) 64.51 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 3.76 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip ID: 56.99 +/- 0.05 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty
Part Number: RR-243 (50 Pcs) Internal Retaining Rings - 61.79x1.25x63.98 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $853.86 AUD Regular price Sale price $853.86 AUD Unit price per Per 50 View the product page first if you are unsure.
RR-243 (50 Pcs) --- Internal Retaining Rings - 61.79x1.25x63.98 mm - Spring Steel RR-243 (50 Pcs) --- Internal Retaining Rings - 61.79x1.25x63.98 mm - Spring Steel Regular price $853.86 AUD Regular price Sale price $853.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 66.93 mm _{(2.635 in.)}	Approx. Loose Circlip OD (Dr) 67.44 mm + 0.64 / - 0.00	Radial Wall (S) 4.78 mm +/- 0.13	Groove Width (W) 2.25 mm +/- 0.15

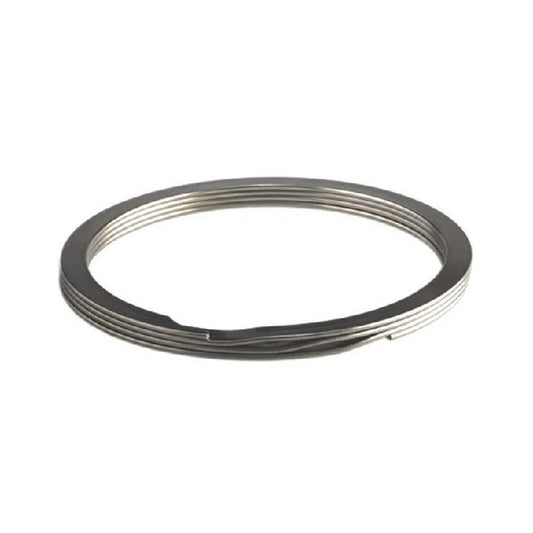

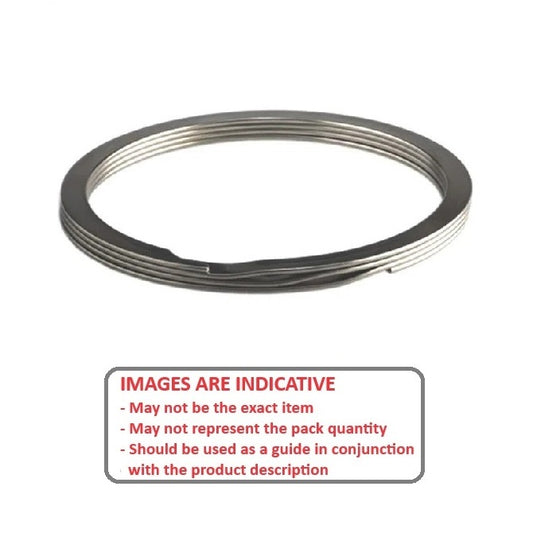

Material: Spring Steel Approx. Loose Clip ID: 57.88 +/- 0.06 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-250 (40 Pcs) Internal Retaining Rings - 63.5x1.99x66.93 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 40
Housing Bore (B) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.99 mm +/- 0.08 _{(0.078 in.)}	Groove Dia. (Dg) 66.93 mm _{(2.635 in.)}	Approx. Loose Circlip OD (Dr) 67.44 mm + 0.64 / - 0.00
Material: Spring Steel Radial Wall (S): 4.78 mm +/- 0.13 Groove Width (W): 2.25 mm +/- 0.15 Approx. Loose Clip ID: 57.88 +/- 0.06 Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty
Part Number: RRT-250 (40 Pcs) Internal Retaining Rings - 63.5x1.99x66.93 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Per 40 View the product page first if you are unsure.
RRT-250 (40 Pcs) --- Internal Retaining Rings - 63.5x1.99x66.93 mm - Spring Steel RRT-250 (40 Pcs) --- Internal Retaining Rings - 63.5x1.99x66.93 mm - Spring Steel Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Out of stock! Backorder Now
