| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

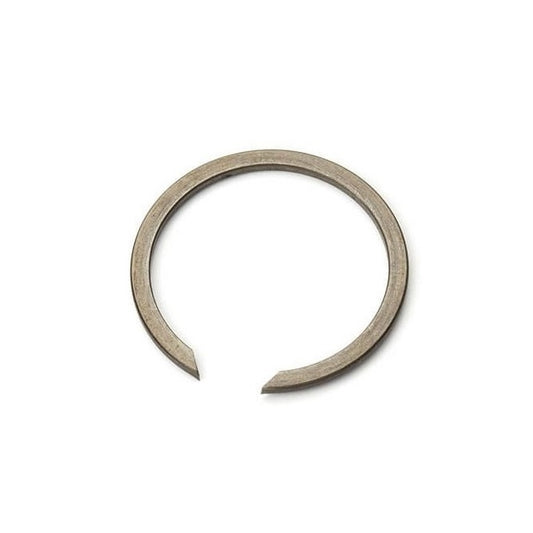

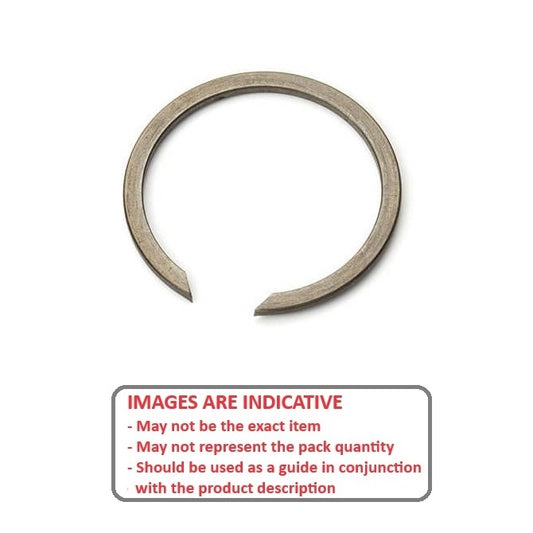

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.20
mm +/- 0.15 (Equiv. 3.315 in.) |
Approx. Loose Circlip OD (Dr)
85.17
mm + 2.55 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 74.09
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0794-LS-N (2 Pcs)
Internal Retaining Rings - 79.38x2.77x84.2 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.20
mm +/- 0.15 (Equiv. 3.315 in.) |
Approx. Loose Circlip OD (Dr)
85.17
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 74.09
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0794-LS-N (2 Pcs)
Internal Retaining Rings - 79.38x2.77x84.2 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
79.99
mm (Equiv. 3.149 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.86
mm +/- 0.15 (Equiv. 3.341 in.) |
Approx. Loose Circlip OD (Dr)
86.06
mm + 2.55 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 74.98
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0800-LS-N
Internal Retaining Rings - 79.99x2.77x84.86 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
79.99
mm (Equiv. 3.149 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.86
mm +/- 0.15 (Equiv. 3.341 in.) |
Approx. Loose Circlip OD (Dr)
86.06
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 74.98
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0800-LS-N
Internal Retaining Rings - 79.99x2.77x84.86 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
80.00
mm (Equiv. 3.15 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
81.80
mm + 0.22 / - 0.00 (Equiv. 3.22 in.) |
Approx. Loose Circlip OD (Dr)
82.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 77
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0800-LS
Internal Retaining Rings - 80x2x81.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
80.00
mm (Equiv. 3.15 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
81.80
mm + 0.22 / - 0.00 (Equiv. 3.22 in.) |
Approx. Loose Circlip OD (Dr)
82.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 77
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0800-LS
Internal Retaining Rings - 80x2x81.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
80.16
mm (Equiv. 3.156 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
83.72
mm +/- 0.15 (Equiv. 3.296 in.) |
Approx. Loose Circlip OD (Dr)
84.89
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 73.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0802-LS-O
Internal Retaining Rings - 80.16x2.77x83.72 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
80.16
mm (Equiv. 3.156 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
83.72
mm +/- 0.15 (Equiv. 3.296 in.) |
Approx. Loose Circlip OD (Dr)
84.89
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 73.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0802-LS-O
Internal Retaining Rings - 80.16x2.77x83.72 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
81.00
mm (Equiv. 3.189 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
82.80
mm + 0.22 / - 0.00 (Equiv. 3.26 in.) |
Approx. Loose Circlip OD (Dr)
83.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 78
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0810-LS
Internal Retaining Rings - 81x2x82.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
81.00
mm (Equiv. 3.189 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
82.80
mm + 0.22 / - 0.00 (Equiv. 3.26 in.) |
Approx. Loose Circlip OD (Dr)
83.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 78
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0810-LS
Internal Retaining Rings - 81x2x82.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
82.00
mm (Equiv. 3.228 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
83.80
mm + 0.22 / - 0.00 (Equiv. 3.299 in.) |
Approx. Loose Circlip OD (Dr)
84.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 79
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0820-LS
Internal Retaining Rings - 82x2x83.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
82.00
mm (Equiv. 3.228 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
83.80
mm + 0.22 / - 0.00 (Equiv. 3.299 in.) |
Approx. Loose Circlip OD (Dr)
84.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 79
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0820-LS
Internal Retaining Rings - 82x2x83.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
85.70
mm +/- 0.15 (Equiv. 3.374 in.) |
Approx. Loose Circlip OD (Dr)
86.46
mm + 1.98 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 76.96
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0826-LS-O
Internal Retaining Rings - 82.55x1.58x85.7 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
85.70
mm +/- 0.15 (Equiv. 3.374 in.) |
Approx. Loose Circlip OD (Dr)
86.46
mm + 1.98 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Approx. Loose Clip ID: 76.96
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0826-LS-O
Internal Retaining Rings - 82.55x1.58x85.7 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
86.21
mm +/- 0.15 (Equiv. 3.394 in.) |
Approx. Loose Circlip OD (Dr)
87.43
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 76.35
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0826-LS-HO
Internal Retaining Rings - 82.55x2.77x86.21 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
86.21
mm +/- 0.15 (Equiv. 3.394 in.) |
Approx. Loose Circlip OD (Dr)
87.43
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 76.35
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0826-LS-HO
Internal Retaining Rings - 82.55x2.77x86.21 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
87.53
mm +/- 0.15 (Equiv. 3.446 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm + 2.55 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 77.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0826-LS-N
Internal Retaining Rings - 82.55x2.77x87.53 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
82.55
mm (Equiv. 3.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
87.53
mm +/- 0.15 (Equiv. 3.446 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 77.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0826-LS-N
Internal Retaining Rings - 82.55x2.77x87.53 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
83.00
mm (Equiv. 3.268 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
84.80
mm + 0.22 / - 0.00 (Equiv. 3.339 in.) |
Approx. Loose Circlip OD (Dr)
85.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 80
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0830-LS
Internal Retaining Rings - 83x2x84.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
83.00
mm (Equiv. 3.268 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
84.80
mm + 0.22 / - 0.00 (Equiv. 3.339 in.) |
Approx. Loose Circlip OD (Dr)
85.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 80
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0830-LS
Internal Retaining Rings - 83x2x84.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
84.99
mm (Equiv. 3.346 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
88.65
mm +/- 0.15 (Equiv. 3.49 in.) |
Approx. Loose Circlip OD (Dr)
89.89
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 78.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0850-LS-O
Internal Retaining Rings - 84.99x2.77x88.65 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
84.99
mm (Equiv. 3.346 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
88.65
mm +/- 0.15 (Equiv. 3.49 in.) |
Approx. Loose Circlip OD (Dr)
89.89
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 78.81
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0850-LS-O
Internal Retaining Rings - 84.99x2.77x88.65 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
85.00
mm (Equiv. 3.346 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
86.80
mm + 0.22 / - 0.00 (Equiv. 3.417 in.) |
Approx. Loose Circlip OD (Dr)
87.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 82
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0850-LS
Internal Retaining Rings - 85x2x86.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
85.00
mm (Equiv. 3.346 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
86.80
mm + 0.22 / - 0.00 (Equiv. 3.417 in.) |
Approx. Loose Circlip OD (Dr)
87.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 82
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0850-LS
Internal Retaining Rings - 85x2x86.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
86.00
mm (Equiv. 3.386 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
87.80
mm + 0.22 / - 0.00 (Equiv. 3.457 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 83
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0860-LS
Internal Retaining Rings - 86x2x87.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
86.00
mm (Equiv. 3.386 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
87.80
mm + 0.22 / - 0.00 (Equiv. 3.457 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 83
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0860-LS
Internal Retaining Rings - 86x2x87.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.00
mm (Equiv. 3.465 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
90.00
mm + 0.22 / - 0.00 (Equiv. 3.543 in.) |
Approx. Loose Circlip OD (Dr)
91.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 84.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0880-LS
Internal Retaining Rings - 88x2.5x90 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.00
mm (Equiv. 3.465 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
90.00
mm + 0.22 / - 0.00 (Equiv. 3.543 in.) |
Approx. Loose Circlip OD (Dr)
91.00
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 84.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0880-LS
Internal Retaining Rings - 88x2.5x90 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.11
mm (Equiv. 3.469 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm +/- 0.15 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
94.51
mm + 2.55 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 83.43
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0881-LS-N
Internal Retaining Rings - 88.11x2.77x93.35 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.11
mm (Equiv. 3.469 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm +/- 0.15 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
94.51
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 83.43
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0881-LS-N
Internal Retaining Rings - 88.11x2.77x93.35 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.11
mm (Equiv. 3.469 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
91.77
mm +/- 0.15 (Equiv. 3.613 in.) |
Approx. Loose Circlip OD (Dr)
93.04
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 81.96
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0881-LS-O
Internal Retaining Rings - 88.11x2.77x91.77 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.11
mm (Equiv. 3.469 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
91.77
mm +/- 0.15 (Equiv. 3.613 in.) |
Approx. Loose Circlip OD (Dr)
93.04
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 81.96
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0881-LS-O
Internal Retaining Rings - 88.11x2.77x91.77 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
92.05
mm +/- 0.15 (Equiv. 3.624 in.) |
Approx. Loose Circlip OD (Dr)
92.81
mm + 1.98 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 83.31
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0889-LS-O
Internal Retaining Rings - 88.9x1.58x92.05 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
92.05
mm +/- 0.15 (Equiv. 3.624 in.) |
Approx. Loose Circlip OD (Dr)
92.81
mm + 1.98 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Approx. Loose Clip ID: 83.31
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0889-LS-O
Internal Retaining Rings - 88.9x1.58x92.05 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
92.66
mm +/- 0.15 (Equiv. 3.648 in.) |
Approx. Loose Circlip OD (Dr)
93.98
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 81.28
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0889-LS-HO
Internal Retaining Rings - 88.9x2.77x92.66 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
92.66
mm +/- 0.15 (Equiv. 3.648 in.) |
Approx. Loose Circlip OD (Dr)
93.98
mm + 2.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 81.28
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0889-LS-HO
Internal Retaining Rings - 88.9x2.77x92.66 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm +/- 0.15 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 2.55 / - 0.00 |
Section (Rd)
5.94
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 83.62
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0889-LS-N
Internal Retaining Rings - 88.9x2.77x94.23 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm +/- 0.15 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.94 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 83.62
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0889-LS-N
Internal Retaining Rings - 88.9x2.77x94.23 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.75
mm +/- 0.15 (Equiv. 3.691 in.) |
Approx. Loose Circlip OD (Dr)
95.12
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 82.42
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0900-LS-O
Internal Retaining Rings - 89.99x2.77x93.75 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.75
mm +/- 0.15 (Equiv. 3.691 in.) |
Approx. Loose Circlip OD (Dr)
95.12
mm + 2.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 82.42
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0900-LS-O
Internal Retaining Rings - 89.99x2.77x93.75 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
92.00
mm + 0.22 / - 0.00 (Equiv. 3.622 in.) |
Approx. Loose Circlip OD (Dr)
93.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 86.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0900-LS (5 Pcs)
Internal Retaining Rings - 90x2.5x92 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Apr 23, 2026 Regular price
$14.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
92.00
mm + 0.22 / - 0.00 (Equiv. 3.622 in.) |
Approx. Loose Circlip OD (Dr)
93.00
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 86.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0900-LS (5 Pcs)
Internal Retaining Rings - 90x2.5x92 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Apr 23, 2026 Regular price
$14.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
90.48
mm (Equiv. 3.562 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
95.91
mm +/- 0.15 (Equiv. 3.776 in.) |
Approx. Loose Circlip OD (Dr)
96.65
mm + 2.55 / - 0.00 |
Section (Rd)
5.94
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 84.77
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0905-LS-N
Internal Retaining Rings - 90.48x2.77x95.91 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
90.48
mm (Equiv. 3.562 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
95.91
mm +/- 0.15 (Equiv. 3.776 in.) |
Approx. Loose Circlip OD (Dr)
96.65
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.94 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 84.77
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0905-LS-N
Internal Retaining Rings - 90.48x2.77x95.91 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
90.48
mm (Equiv. 3.562 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm +/- 0.15 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
95.66
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 82.96
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0905-LS-O
Internal Retaining Rings - 90.48x2.77x94.23 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
90.48
mm (Equiv. 3.562 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm +/- 0.15 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
95.66
mm + 2.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 82.96
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0905-LS-O
Internal Retaining Rings - 90.48x2.77x94.23 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
92.00
mm (Equiv. 3.622 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
94.00
mm + 0.22 / - 0.00 (Equiv. 3.701 in.) |
Approx. Loose Circlip OD (Dr)
95.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 88.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0920-LS
Internal Retaining Rings - 92x2.5x94 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
92.00
mm (Equiv. 3.622 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
94.00
mm + 0.22 / - 0.00 (Equiv. 3.701 in.) |
Approx. Loose Circlip OD (Dr)
95.00
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 88.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0920-LS
Internal Retaining Rings - 92x2.5x94 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
