| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

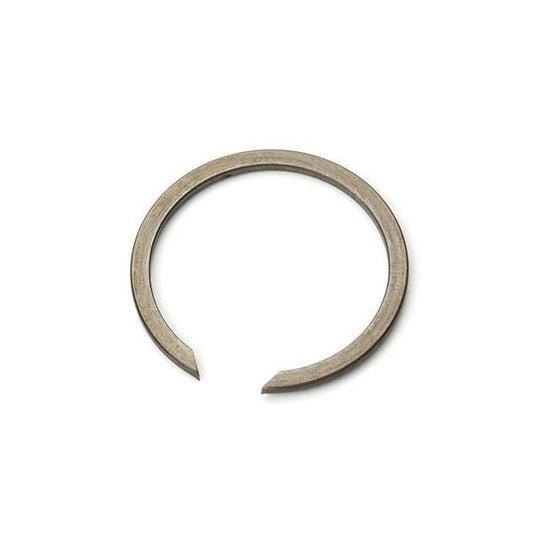

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
68.28
mm (Equiv. 2.688 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.34
mm +/- 0.15 (Equiv. 2.848 in.) |
Approx. Loose Circlip OD (Dr)
72.85
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 63.29
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0683-LS-N
Internal Retaining Rings - 68.28x2.36x72.34 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

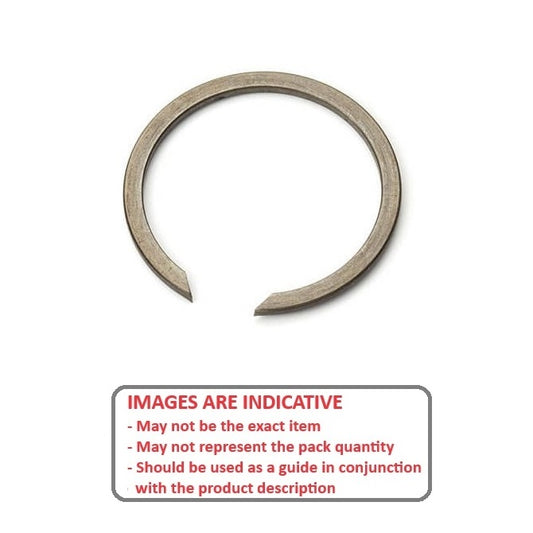

Indicative Image |
||
|
Housing Bore (B)
68.28
mm (Equiv. 2.688 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.34
mm +/- 0.15 (Equiv. 2.848 in.) |
Approx. Loose Circlip OD (Dr)
72.85
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 63.29
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0683-LS-N
Internal Retaining Rings - 68.28x2.36x72.34 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
69.01
mm (Equiv. 2.717 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.19
mm +/- 0.15 (Equiv. 2.842 in.) |
Approx. Loose Circlip OD (Dr)
73.20
mm + 1.20 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 63.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0690-LS-O
Internal Retaining Rings - 69.01x2.36x72.19 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
69.01
mm (Equiv. 2.717 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.19
mm +/- 0.15 (Equiv. 2.842 in.) |
Approx. Loose Circlip OD (Dr)
73.20
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 63.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0690-LS-O
Internal Retaining Rings - 69.01x2.36x72.19 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.02
mm +/- 0.15 (Equiv. 2.914 in.) |
Approx. Loose Circlip OD (Dr)
74.78
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 65.22
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0699-LS-N
Internal Retaining Rings - 69.85x2.36x74.02 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.02
mm +/- 0.15 (Equiv. 2.914 in.) |
Approx. Loose Circlip OD (Dr)
74.78
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 65.22
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0699-LS-N
Internal Retaining Rings - 69.85x2.36x74.02 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
73.10
mm +/- 0.15 (Equiv. 2.878 in.) |
Approx. Loose Circlip OD (Dr)
74.12
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 64.62
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0699-LS-O
Internal Retaining Rings - 69.85x2.36x73.1 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
73.10
mm +/- 0.15 (Equiv. 2.878 in.) |
Approx. Loose Circlip OD (Dr)
74.12
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 64.62
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0699-LS-O
Internal Retaining Rings - 69.85x2.36x73.1 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
71.50
mm + 0.19 / - 0.00 (Equiv. 2.815 in.) |
Approx. Loose Circlip OD (Dr)
72.30
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 67.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0700-LS
Internal Retaining Rings - 70x1.5x71.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
71.50
mm + 0.19 / - 0.00 (Equiv. 2.815 in.) |
Approx. Loose Circlip OD (Dr)
72.30
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Approx. Loose Clip ID: 67.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0700-LS
Internal Retaining Rings - 70x1.5x71.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
71.45
mm (Equiv. 2.813 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.80
mm +/- 0.15 (Equiv. 2.945 in.) |
Approx. Loose Circlip OD (Dr)
75.82
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 66.32
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0715-LS-O
Internal Retaining Rings - 71.45x2.36x74.8 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
71.45
mm (Equiv. 2.813 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.80
mm +/- 0.15 (Equiv. 2.945 in.) |
Approx. Loose Circlip OD (Dr)
75.82
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 66.32
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0715-LS-O
Internal Retaining Rings - 71.45x2.36x74.8 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
71.98
mm (Equiv. 2.834 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.34
mm +/- 0.15 (Equiv. 2.966 in.) |
Approx. Loose Circlip OD (Dr)
76.35
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 66.85
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0720-LS-O
Internal Retaining Rings - 71.98x2.36x75.34 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
71.98
mm (Equiv. 2.834 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.34
mm +/- 0.15 (Equiv. 2.966 in.) |
Approx. Loose Circlip OD (Dr)
76.35
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 66.85
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0720-LS-O
Internal Retaining Rings - 71.98x2.36x75.34 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
73.80
mm + 0.19 / - 0.00 (Equiv. 2.906 in.) |
Approx. Loose Circlip OD (Dr)
74.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 69
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0720-LS (5 Pcs)
Internal Retaining Rings - 72x2x73.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$12.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
73.80
mm + 0.19 / - 0.00 (Equiv. 2.906 in.) |
Approx. Loose Circlip OD (Dr)
74.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 69
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0720-LS (5 Pcs)
Internal Retaining Rings - 72x2x73.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$12.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
71.43
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm +/- 0.15 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 67.28
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0714-LS-N (2 Pcs)
Internal Retaining Rings - 71.43x2.36x75.69 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
71.43
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm +/- 0.15 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 67.28
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0714-LS-N (2 Pcs)
Internal Retaining Rings - 71.43x2.36x75.69 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
72.01
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.33
mm +/- 0.15 (Equiv. 3.005 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 67.28
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0720-LS-N
Internal Retaining Rings - 72.01x2.36x76.33 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.01
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.33
mm +/- 0.15 (Equiv. 3.005 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 67.28
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0720-LS-N
Internal Retaining Rings - 72.01x2.36x76.33 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
73.00
mm (Equiv. 2.874 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
74.80
mm + 0.19 / - 0.00 (Equiv. 2.945 in.) |
Approx. Loose Circlip OD (Dr)
75.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 70
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0730-LS (6 Pcs)
Internal Retaining Rings - 73x2x74.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$9.32 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
Housing Bore (B)
73.00
mm (Equiv. 2.874 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
74.80
mm + 0.19 / - 0.00 (Equiv. 2.945 in.) |
Approx. Loose Circlip OD (Dr)
75.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 70
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0730-LS (6 Pcs)
Internal Retaining Rings - 73x2x74.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$9.32 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.48
mm +/- 0.15 (Equiv. 3.011 in.) |
Approx. Loose Circlip OD (Dr)
77.62
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 68.12
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0730-LS-O
Internal Retaining Rings - 73.03x2.36x76.48 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.48
mm +/- 0.15 (Equiv. 3.011 in.) |
Approx. Loose Circlip OD (Dr)
77.62
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 68.12
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0730-LS-O
Internal Retaining Rings - 73.03x2.36x76.48 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm +/- 0.15 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
78.38
mm + 2.05 / - 0.00 |
Section (Rd)
5.16
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 68.06
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0730-LS-N
Internal Retaining Rings - 73.03x2.36x77.5 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm +/- 0.15 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
78.38
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.16 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 68.06
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0730-LS-N
Internal Retaining Rings - 73.03x2.36x77.5 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
74.00
mm (Equiv. 2.913 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
75.80
mm + 0.19 / - 0.00 (Equiv. 2.984 in.) |
Approx. Loose Circlip OD (Dr)
76.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 71
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0740-LS
Internal Retaining Rings - 74x2x75.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
74.00
mm (Equiv. 2.913 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
75.80
mm + 0.19 / - 0.00 (Equiv. 2.984 in.) |
Approx. Loose Circlip OD (Dr)
76.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 71
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0740-LS
Internal Retaining Rings - 74x2x75.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
75.01
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
79.63
mm +/- 0.15 (Equiv. 3.135 in.) |
Approx. Loose Circlip OD (Dr)
80.65
mm + 2.05 / - 0.00 |
Section (Rd)
5.16
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 70.33
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0750-LS-N
Internal Retaining Rings - 75.01x2.36x79.63 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
75.01
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
79.63
mm +/- 0.15 (Equiv. 3.135 in.) |
Approx. Loose Circlip OD (Dr)
80.65
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.16 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 70.33
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0750-LS-N
Internal Retaining Rings - 75.01x2.36x79.63 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.00
mm (Equiv. 2.992 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
77.80
mm + 0.19 / - 0.00 (Equiv. 3.063 in.) |
Approx. Loose Circlip OD (Dr)
78.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 73
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0760-LS (5 Pcs)
Internal Retaining Rings - 76x2x77.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
76.00
mm (Equiv. 2.992 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
77.80
mm + 0.19 / - 0.00 (Equiv. 3.063 in.) |
Approx. Loose Circlip OD (Dr)
78.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 73
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0760-LS (5 Pcs)
Internal Retaining Rings - 76x2x77.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 26, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
79.35
mm +/- 0.15 (Equiv. 3.124 in.) |
Approx. Loose Circlip OD (Dr)
80.11
mm + 1.98 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 70.61
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0762-LS-O
Internal Retaining Rings - 76.2x1.58x79.35 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
79.35
mm +/- 0.15 (Equiv. 3.124 in.) |
Approx. Loose Circlip OD (Dr)
80.11
mm + 1.98 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Approx. Loose Clip ID: 70.61
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0762-LS-O
Internal Retaining Rings - 76.2x1.58x79.35 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.15 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.84
mm + 2.05 / - 0.00 |
Section (Rd)
5.16
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 71.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0762-LS-N
Internal Retaining Rings - 76.2x2.36x80.82 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.15 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.84
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.16 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 71.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0762-LS-N
Internal Retaining Rings - 76.2x2.36x80.82 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
79.65
mm +/- 0.15 (Equiv. 3.136 in.) |
Approx. Loose Circlip OD (Dr)
80.80
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 71.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0762-LS-HO
Internal Retaining Rings - 76.2x2.77x79.65 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
79.65
mm +/- 0.15 (Equiv. 3.136 in.) |
Approx. Loose Circlip OD (Dr)
80.80
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 71.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0762-LS-HO
Internal Retaining Rings - 76.2x2.77x79.65 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
77.78
mm (Equiv. 3.062 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
81.33
mm +/- 0.15 (Equiv. 3.202 in.) |
Approx. Loose Circlip OD (Dr)
82.47
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 71.39
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0778-LS-O
Internal Retaining Rings - 77.78x2.77x81.33 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
77.78
mm (Equiv. 3.062 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
81.33
mm +/- 0.15 (Equiv. 3.202 in.) |
Approx. Loose Circlip OD (Dr)
82.47
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 71.39
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0778-LS-O
Internal Retaining Rings - 77.78x2.77x81.33 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
77.78
mm (Equiv. 3.062 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.50
mm +/- 0.15 (Equiv. 3.248 in.) |
Approx. Loose Circlip OD (Dr)
83.52
mm + 2.55 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 72.44
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0778-LS-N
Internal Retaining Rings - 77.78x2.77x82.5 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
77.78
mm (Equiv. 3.062 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.50
mm +/- 0.15 (Equiv. 3.248 in.) |
Approx. Loose Circlip OD (Dr)
83.52
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 72.44
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0778-LS-N
Internal Retaining Rings - 77.78x2.77x82.5 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
78.00
mm (Equiv. 3.071 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
79.80
mm + 0.19 / - 0.00 (Equiv. 3.142 in.) |
Approx. Loose Circlip OD (Dr)
80.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 75
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0780-LS
Internal Retaining Rings - 78x2x79.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
78.00
mm (Equiv. 3.071 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
79.80
mm + 0.19 / - 0.00 (Equiv. 3.142 in.) |
Approx. Loose Circlip OD (Dr)
80.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 75
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0780-LS
Internal Retaining Rings - 78x2x79.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
79.00
mm (Equiv. 3.11 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
80.80
mm + 0.22 / - 0.00 (Equiv. 3.181 in.) |
Approx. Loose Circlip OD (Dr)
81.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 76
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0790-LS
Internal Retaining Rings - 79x2x80.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
79.00
mm (Equiv. 3.11 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
80.80
mm + 0.22 / - 0.00 (Equiv. 3.181 in.) |
Approx. Loose Circlip OD (Dr)
81.60
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip ID: 76
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0790-LS
Internal Retaining Rings - 79x2x80.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.93
mm +/- 0.15 (Equiv. 3.265 in.) |
Approx. Loose Circlip OD (Dr)
84.10
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 73.02
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0794-LS-O
Internal Retaining Rings - 79.38x2.77x82.93 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.93
mm +/- 0.15 (Equiv. 3.265 in.) |
Approx. Loose Circlip OD (Dr)
84.10
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.54 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip ID: 73.02
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0794-LS-O
Internal Retaining Rings - 79.38x2.77x82.93 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
