| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

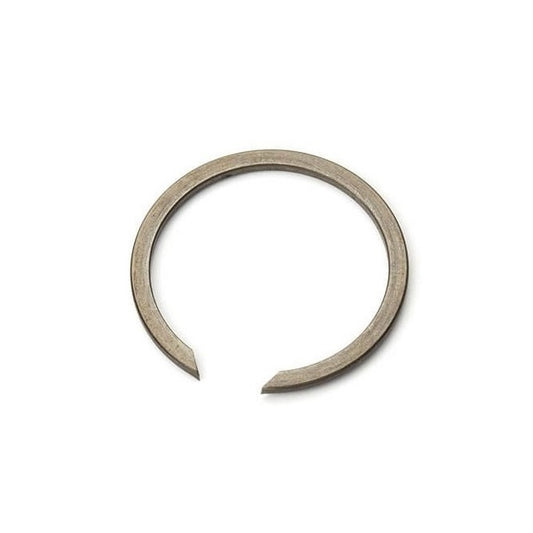

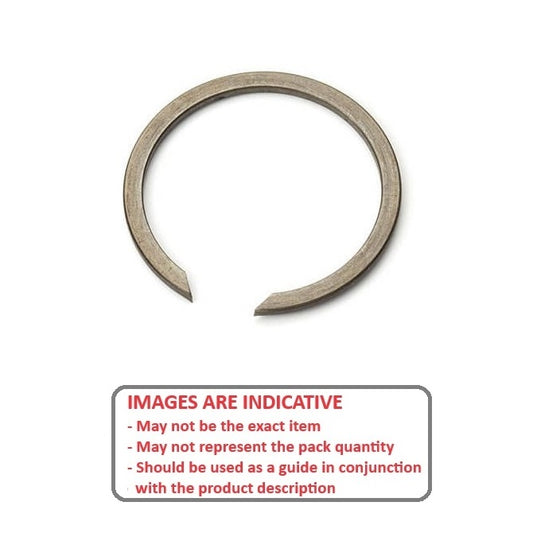

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
57.15
mm (2.25 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
60.50
mm +/- 0.15 (2.382 in.) |
Approx. Loose Circlip OD (Dr)
61.01
mm + 1.80 / - 0.00 |
Section (Rd)
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 52.33
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0572-LS-N Internal Retaining Rings - 57.15x1.98x60.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
57.15
mm (2.25 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
60.50
mm +/- 0.15 (2.382 in.) |
Approx. Loose Circlip OD (Dr)
61.01
mm + 1.80 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 52.33
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0572-LS-N Internal Retaining Rings - 57.15x1.98x60.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.00
mm (2.283 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
59.50
mm + 0.19 / - 0.00 (2.343 in.) |
Approx. Loose Circlip OD (Dr)
60.30
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 55.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0580-LS Internal Retaining Rings - 58x1.5x59.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.00
mm (2.283 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
59.50
mm + 0.19 / - 0.00 (2.343 in.) |
Approx. Loose Circlip OD (Dr)
60.30
mm |
|
||
|
Material: Spring Steel
Section (Rd): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Approx. Loose Clip ID: 55.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0580-LS Internal Retaining Rings - 58x1.5x59.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.73
mm (2.312 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (0.042 in.) |
Groove Dia. (Dg)
61.01
mm +/- 0.15 (2.402 in.) |
Approx. Loose Circlip OD (Dr)
61.77
mm + 1.58 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 53.85
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0587-LS-O Internal Retaining Rings - 58.73x1.07x61.01 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.73
mm (2.312 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (0.042 in.) |
Groove Dia. (Dg)
61.01
mm +/- 0.15 (2.402 in.) |
Approx. Loose Circlip OD (Dr)
61.77
mm + 1.58 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 3.96 mm +/- 0.13
Groove Width (W): 1.17 mm
Approx. Loose Clip ID: 53.85
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0587-LS-O Internal Retaining Rings - 58.73x1.07x61.01 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.73
mm (2.312 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
61.57
mm +/- 0.15 (2.424 in.) |
Approx. Loose Circlip OD (Dr)
62.46
mm + 1.20 / - 0.00 |
Section (Rd)
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 53.78
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0587-LS-HO Internal Retaining Rings - 58.73x1.98x61.57 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.73
mm (2.312 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
61.57
mm +/- 0.15 (2.424 in.) |
Approx. Loose Circlip OD (Dr)
62.46
mm + 1.20 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 53.78
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0587-LS-HO Internal Retaining Rings - 58.73x1.98x61.57 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.73
mm (2.312 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
62.23
mm +/- 0.15 (2.45 in.) |
Approx. Loose Circlip OD (Dr)
62.74
mm + 1.80 / - 0.00 |
Section (Rd)
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 54.06
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0587-LS-N Internal Retaining Rings - 58.73x1.98x62.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.73
mm (2.312 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
62.23
mm +/- 0.15 (2.45 in.) |
Approx. Loose Circlip OD (Dr)
62.74
mm + 1.80 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 54.06
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0587-LS-N Internal Retaining Rings - 58.73x1.98x62.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (2.362 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
61.50
mm + 0.19 / - 0.00 (2.421 in.) |
Approx. Loose Circlip OD (Dr)
62.30
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 57.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0600-LS Internal Retaining Rings - 60x1.5x61.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (2.362 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
61.50
mm + 0.19 / - 0.00 (2.421 in.) |
Approx. Loose Circlip OD (Dr)
62.30
mm |
|
||
|
Material: Spring Steel
Section (Rd): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Approx. Loose Clip ID: 57.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0600-LS Internal Retaining Rings - 60x1.5x61.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
63.17
mm +/- 0.15 (2.487 in.) |
Approx. Loose Circlip OD (Dr)
64.08
mm + 1.20 / - 0.00 |
Section (Rd)
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 55.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0603-LS-O Internal Retaining Rings - 60.33x1.98x63.17 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
63.17
mm +/- 0.15 (2.487 in.) |
Approx. Loose Circlip OD (Dr)
64.08
mm + 1.20 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 55.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0603-LS-O Internal Retaining Rings - 60.33x1.98x63.17 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
63.93
mm +/- 0.15 (2.517 in.) |
Approx. Loose Circlip OD (Dr)
64.44
mm + 1.80 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 54.88
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0603-LS-N Internal Retaining Rings - 60.33x1.98x63.93 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
63.93
mm +/- 0.15 (2.517 in.) |
Approx. Loose Circlip OD (Dr)
64.44
mm + 1.80 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 54.88
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0603-LS-N Internal Retaining Rings - 60.33x1.98x63.93 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
61.90
mm (2.437 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (0.042 in.) |
Groove Dia. (Dg)
64.19
mm +/- 0.15 (2.527 in.) |
Approx. Loose Circlip OD (Dr)
64.95
mm + 1.58 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 57.03
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0619-LS-O Internal Retaining Rings - 61.9x1.07x64.19 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
61.90
mm (2.437 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (0.042 in.) |
Groove Dia. (Dg)
64.19
mm +/- 0.15 (2.527 in.) |
Approx. Loose Circlip OD (Dr)
64.95
mm + 1.58 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 3.96 mm +/- 0.13
Groove Width (W): 1.17 mm
Approx. Loose Clip ID: 57.03
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0619-LS-O Internal Retaining Rings - 61.9x1.07x64.19 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
61.98
mm (2.44 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
64.92
mm +/- 0.15 (2.556 in.) |
Approx. Loose Circlip OD (Dr)
65.84
mm + 1.20 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 56.34
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0620-LS-O Internal Retaining Rings - 61.98x1.98x64.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
61.98
mm (2.44 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
64.92
mm +/- 0.15 (2.556 in.) |
Approx. Loose Circlip OD (Dr)
65.84
mm + 1.20 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 56.34
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0620-LS-O Internal Retaining Rings - 61.98x1.98x64.92 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
62.00
mm (2.441 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
63.50
mm + 0.19 / - 0.00 (2.5 in.) |
Approx. Loose Circlip OD (Dr)
64.30
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 59.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0620-LS Internal Retaining Rings - 62x1.5x63.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
62.00
mm (2.441 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
63.50
mm + 0.19 / - 0.00 (2.5 in.) |
Approx. Loose Circlip OD (Dr)
64.30
mm |
|
||
|
Material: Spring Steel
Section (Rd): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Approx. Loose Clip ID: 59.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0620-LS Internal Retaining Rings - 62x1.5x63.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
63.00
mm (2.48 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
64.50
mm + 0.19 / - 0.00 (2.539 in.) |
Approx. Loose Circlip OD (Dr)
65.30
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 60.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0630-LS Internal Retaining Rings - 63x1.5x64.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
63.00
mm (2.48 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
64.50
mm + 0.19 / - 0.00 (2.539 in.) |
Approx. Loose Circlip OD (Dr)
65.30
mm |
|
||
|
Material: Spring Steel
Section (Rd): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Approx. Loose Clip ID: 60.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0630-LS Internal Retaining Rings - 63x1.5x64.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
63.50
mm (2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
66.45
mm +/- 0.15 (2.616 in.) |
Approx. Loose Circlip OD (Dr)
67.39
mm + 1.20 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 57.89
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0635-LS-O Internal Retaining Rings - 63.5x1.98x66.45 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
63.50
mm (2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
66.45
mm +/- 0.15 (2.616 in.) |
Approx. Loose Circlip OD (Dr)
67.39
mm + 1.20 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 57.89
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0635-LS-O Internal Retaining Rings - 63.5x1.98x66.45 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
63.50
mm (2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
67.26
mm +/- 0.15 (2.648 in.) |
Approx. Loose Circlip OD (Dr)
67.89
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 58.33
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0635-LS-N Internal Retaining Rings - 63.5x1.98x67.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
63.50
mm (2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
67.26
mm +/- 0.15 (2.648 in.) |
Approx. Loose Circlip OD (Dr)
67.89
mm + 2.05 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 58.33
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0635-LS-N Internal Retaining Rings - 63.5x1.98x67.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (2.531 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
67.34
mm +/- 0.15 (2.651 in.) |
Approx. Loose Circlip OD (Dr)
68.28
mm + 1.20 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 58.78
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0643-LS-O Internal Retaining Rings - 64.29x1.98x67.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (2.531 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
67.34
mm +/- 0.15 (2.651 in.) |
Approx. Loose Circlip OD (Dr)
68.28
mm + 1.20 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 58.78
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0643-LS-O Internal Retaining Rings - 64.29x1.98x67.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (2.531 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
68.10
mm +/- 0.15 (2.681 in.) |
Approx. Loose Circlip OD (Dr)
68.73
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 59.17
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0643-LS-N Internal Retaining Rings - 64.29x1.98x68.1 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (2.531 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
68.10
mm +/- 0.15 (2.681 in.) |
Approx. Loose Circlip OD (Dr)
68.73
mm + 2.05 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.18 mm
Approx. Loose Clip ID: 59.17
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0643-LS-N Internal Retaining Rings - 64.29x1.98x68.1 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (2.559 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
66.50
mm + 0.19 / - 0.00 (2.618 in.) |
Approx. Loose Circlip OD (Dr)
67.30
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 62.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0650-LS Internal Retaining Rings - 65x1.5x66.5 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025 Regular price
$15.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
65.00
mm (2.559 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (0.059 in.) |
Groove Dia. (Dg)
66.50
mm + 0.19 / - 0.00 (2.618 in.) |
Approx. Loose Circlip OD (Dr)
67.30
mm |
|
||
|
Material: Spring Steel
Section (Rd): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Approx. Loose Clip ID: 62.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0650-LS Internal Retaining Rings - 65x1.5x66.5 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025 Regular price
$15.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
65.08
mm (2.562 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (0.042 in.) |
Groove Dia. (Dg)
67.36
mm +/- 0.15 (2.652 in.) |
Approx. Loose Circlip OD (Dr)
68.12
mm + 1.58 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 60.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0651-LS-O Internal Retaining Rings - 65.08x1.07x67.36 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.08
mm (2.562 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (0.042 in.) |
Groove Dia. (Dg)
67.36
mm +/- 0.15 (2.652 in.) |
Approx. Loose Circlip OD (Dr)
68.12
mm + 1.58 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 3.96 mm +/- 0.13
Groove Width (W): 1.17 mm
Approx. Loose Clip ID: 60.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0651-LS-O Internal Retaining Rings - 65.08x1.07x67.36 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.08
mm (2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
68.22
mm +/- 0.15 (2.686 in.) |
Approx. Loose Circlip OD (Dr)
69.24
mm + 1.20 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 59.74
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0651-LS-HO Internal Retaining Rings - 65.08x2.36x68.22 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.08
mm (2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
68.22
mm +/- 0.15 (2.686 in.) |
Approx. Loose Circlip OD (Dr)
69.24
mm + 1.20 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 59.74
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0651-LS-HO Internal Retaining Rings - 65.08x2.36x68.22 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.00
mm (2.598 in.) |
Clip Thickness (T)
1.50
mm (0.059 in.) |
Groove Dia. (Dg)
67.50
mm (2.657 in.) |
Approx. Loose Circlip OD (Dr)
68.30
mm |
|
||
|
Material: Spring Steel
Approx. Loose Clip ID: 63.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0660-LS Internal Retaining Rings - 66x1.5x67.5 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
66.00
mm (2.598 in.) |
Clip Thickness (T)
1.50
mm (0.059 in.) |
Groove Dia. (Dg)
67.50
mm (2.657 in.) |
Approx. Loose Circlip OD (Dr)
68.30
mm |
|
||
|
Material: Spring Steel
Approx. Loose Clip ID: 63.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0660-LS Internal Retaining Rings - 66x1.5x67.5 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 17, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
66.68
mm (2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
69.85
mm +/- 0.15 (2.75 in.) |
Approx. Loose Circlip OD (Dr)
70.87
mm + 1.20 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 61.37
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0667-LS-O Internal Retaining Rings - 66.68x2.36x69.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.68
mm (2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
69.85
mm +/- 0.15 (2.75 in.) |
Approx. Loose Circlip OD (Dr)
70.87
mm + 1.20 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 61.37
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0667-LS-O Internal Retaining Rings - 66.68x2.36x69.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.68
mm (2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
70.64
mm +/- 0.15 (2.781 in.) |
Approx. Loose Circlip OD (Dr)
71.27
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 61.71
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0667-LS-N Internal Retaining Rings - 66.68x2.36x70.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.68
mm (2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
70.64
mm +/- 0.15 (2.781 in.) |
Approx. Loose Circlip OD (Dr)
71.27
mm + 2.05 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 61.71
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0667-LS-N Internal Retaining Rings - 66.68x2.36x70.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
68.00
mm (2.677 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.06
mm +/- 0.15 (2.837 in.) |
Approx. Loose Circlip OD (Dr)
72.85
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 63.29
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0680-LS-N Internal Retaining Rings - 68x2.36x72.06 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
68.00
mm (2.677 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.06
mm +/- 0.15 (2.837 in.) |
Approx. Loose Circlip OD (Dr)
72.85
mm + 2.05 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 63.29
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0680-LS-N Internal Retaining Rings - 68x2.36x72.06 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
68.28
mm (2.688 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
71.53
mm +/- 0.15 (2.816 in.) |
Approx. Loose Circlip OD (Dr)
72.54
mm + 1.20 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 63.04
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0683-LS-O Internal Retaining Rings - 68.28x2.36x71.53 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
68.28
mm (2.688 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
71.53
mm +/- 0.15 (2.816 in.) |
Approx. Loose Circlip OD (Dr)
72.54
mm + 1.20 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 63.04
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-0683-LS-O Internal Retaining Rings - 68.28x2.36x71.53 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
