| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

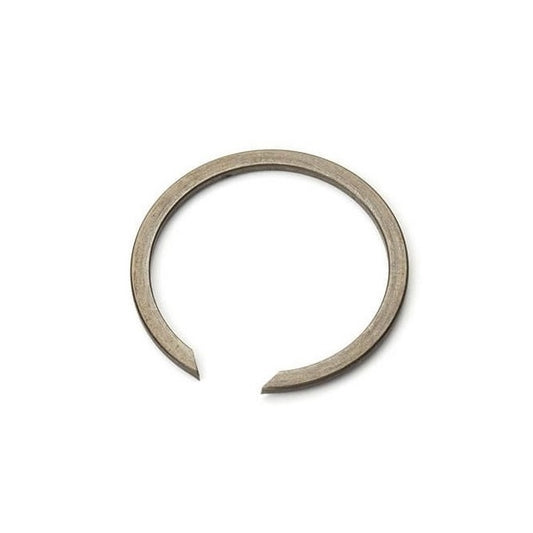

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
241.30
mm (9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
249.68
mm +/- 0.20 (9.83 in.) |
Approx. Loose Circlip OD (Dr)
252.86
mm + 4.75 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 227.46
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2413-LS-O Internal Retaining Rings - 241.3x4.75x249.68 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
241.30
mm (9.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
249.68
mm +/- 0.20 (9.83 in.) |
Approx. Loose Circlip OD (Dr)
252.86
mm + 4.75 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 227.46
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2413-LS-O Internal Retaining Rings - 241.3x4.75x249.68 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
247.65
mm (9.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
258.83
mm +/- 0.20 (10.19 in.) |
Approx. Loose Circlip OD (Dr)
263.27
mm + 5.60 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 237.87
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2477-LS-N Internal Retaining Rings - 247.65x4.75x258.83 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
247.65
mm (9.75 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
258.83
mm +/- 0.20 (10.19 in.) |
Approx. Loose Circlip OD (Dr)
263.27
mm + 5.60 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 237.87
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2477-LS-N Internal Retaining Rings - 247.65x4.75x258.83 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
249.94
mm (9.84 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
258.32
mm +/- 0.20 (10.17 in.) |
Approx. Loose Circlip OD (Dr)
261.49
mm + 4.75 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 236.09
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2499-LS-O Internal Retaining Rings - 249.94x4.75x258.32 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
249.94
mm (9.84 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
258.32
mm +/- 0.20 (10.17 in.) |
Approx. Loose Circlip OD (Dr)
261.49
mm + 4.75 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 236.09
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2499-LS-O Internal Retaining Rings - 249.94x4.75x258.32 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
250.00
mm (9.843 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
253.0
mm + 0.32 / - 0.00 (9.961 in.) |
Approx. Loose Circlip OD (Dr)
255.50
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 245.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2500-LS Internal Retaining Rings - 250x3x253 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
250.00
mm (9.843 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (0.118 in.) |
Groove Dia. (Dg)
253.0
mm + 0.32 / - 0.00 (9.961 in.) |
Approx. Loose Circlip OD (Dr)
255.50
mm |
|
||
|
Material: Spring Steel
Section (Rd): 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip ID: 245.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2500-LS Internal Retaining Rings - 250x3x253 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
254.00
mm (10 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
262.38
mm +/- 0.20 (10.33 in.) |
Approx. Loose Circlip OD (Dr)
265.56
mm + 0.79 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 240.16
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2540-LS-O Internal Retaining Rings - 254x4.75x262.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
254.00
mm (10 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
262.38
mm +/- 0.20 (10.33 in.) |
Approx. Loose Circlip OD (Dr)
265.56
mm + 0.79 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 240.16
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2540-LS-O Internal Retaining Rings - 254x4.75x262.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
254.00
mm (10 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
265.43
mm +/- 0.20 (10.45 in.) |
Approx. Loose Circlip OD (Dr)
270.00
mm + 5.60 / - 0.00 |
Section (Rd)
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 244.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2540-LS-N Internal Retaining Rings - 254x4.75x265.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
254.00
mm (10 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (0.187 in.) |
Groove Dia. (Dg)
265.43
mm +/- 0.20 (10.45 in.) |
Approx. Loose Circlip OD (Dr)
270.00
mm + 5.60 / - 0.00 |
|
||
|
Material: Spring Steel
Section (Rd): 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 244.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2540-LS-N Internal Retaining Rings - 254x4.75x265.43 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
260.00
mm (10.236 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
265.0
mm + 0.32 / - 0.00 (10.433 in.) |
Approx. Loose Circlip OD (Dr)
267.60
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 252.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2600-LS Internal Retaining Rings - 260x4x265 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
260.00
mm (10.236 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
265.0
mm + 0.32 / - 0.00 (10.433 in.) |
Approx. Loose Circlip OD (Dr)
267.60
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 252.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2600-LS Internal Retaining Rings - 260x4x265 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
270.00
mm (10.63 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
275.0
mm + 0.32 / - 0.00 (10.827 in.) |
Approx. Loose Circlip OD (Dr)
277.70
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 262.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2700-LS Internal Retaining Rings - 270x4x275 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
270.00
mm (10.63 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
275.0
mm + 0.32 / - 0.00 (10.827 in.) |
Approx. Loose Circlip OD (Dr)
277.70
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 262.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2700-LS Internal Retaining Rings - 270x4x275 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
280.00
mm (11.024 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
285.0
mm + 0.32 / - 0.00 (11.22 in.) |
Approx. Loose Circlip OD (Dr)
287.80
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 272.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2800-LS Internal Retaining Rings - 280x4x285 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
280.00
mm (11.024 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
285.0
mm + 0.32 / - 0.00 (11.22 in.) |
Approx. Loose Circlip OD (Dr)
287.80
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 272.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2800-LS Internal Retaining Rings - 280x4x285 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
290.00
mm (11.417 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
295.0
mm + 0.32 / - 0.00 (11.614 in.) |
Approx. Loose Circlip OD (Dr)
297.90
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 282.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2900-LS Internal Retaining Rings - 290x4x295 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
290.00
mm (11.417 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
295.0
mm + 0.32 / - 0.00 (11.614 in.) |
Approx. Loose Circlip OD (Dr)
297.90
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 282.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-2900-LS Internal Retaining Rings - 290x4x295 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
300.00
mm (11.811 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
305.0
mm + 0.32 / - 0.00 (12.008 in.) |
Approx. Loose Circlip OD (Dr)
307.90
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 292.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3000-LS Internal Retaining Rings - 300x4x305 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
300.00
mm (11.811 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
305.0
mm + 0.32 / - 0.00 (12.008 in.) |
Approx. Loose Circlip OD (Dr)
307.90
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 292.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3000-LS Internal Retaining Rings - 300x4x305 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
310.00
mm (12.205 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
315.0
mm + 0.32 / - 0.00 (12.402 in.) |
Approx. Loose Circlip OD (Dr)
318.00
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 303
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3100-LS Internal Retaining Rings - 310x4x315 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
310.00
mm (12.205 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
315.0
mm + 0.32 / - 0.00 (12.402 in.) |
Approx. Loose Circlip OD (Dr)
318.00
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 303
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3100-LS Internal Retaining Rings - 310x4x315 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
320.00
mm (12.598 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
325.0
mm + 0.36 / - 0.00 (12.795 in.) |
Approx. Loose Circlip OD (Dr)
328.10
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 313.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3200-LS Internal Retaining Rings - 320x4x325 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
320.00
mm (12.598 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
325.0
mm + 0.36 / - 0.00 (12.795 in.) |
Approx. Loose Circlip OD (Dr)
328.10
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 313.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3200-LS Internal Retaining Rings - 320x4x325 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
325.00
mm (12.795 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
330.0
mm + 0.36 / - 0.00 (12.992 in.) |
Approx. Loose Circlip OD (Dr)
333.10
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 318.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3250-LS Internal Retaining Rings - 325x4x330 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
325.00
mm (12.795 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
330.0
mm + 0.36 / - 0.00 (12.992 in.) |
Approx. Loose Circlip OD (Dr)
333.10
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 318.1
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3250-LS Internal Retaining Rings - 325x4x330 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
330.00
mm (12.992 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
335.0
mm + 0.36 / - 0.00 (13.189 in.) |
Approx. Loose Circlip OD (Dr)
338.20
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 323.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3300-LS Internal Retaining Rings - 330x4x335 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
330.00
mm (12.992 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
335.0
mm + 0.36 / - 0.00 (13.189 in.) |
Approx. Loose Circlip OD (Dr)
338.20
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 323.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3300-LS Internal Retaining Rings - 330x4x335 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
340.00
mm (13.386 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
345.0
mm + 0.36 / - 0.00 (13.583 in.) |
Approx. Loose Circlip OD (Dr)
348.30
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 333.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3400-LS Internal Retaining Rings - 340x4x345 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
340.00
mm (13.386 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
345.0
mm + 0.36 / - 0.00 (13.583 in.) |
Approx. Loose Circlip OD (Dr)
348.30
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 333.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3400-LS Internal Retaining Rings - 340x4x345 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
350.00
mm (13.78 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
355.0
mm + 0.36 / - 0.00 (13.976 in.) |
Approx. Loose Circlip OD (Dr)
358.40
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 343.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3500-LS Internal Retaining Rings - 350x4x355 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
350.00
mm (13.78 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
355.0
mm + 0.36 / - 0.00 (13.976 in.) |
Approx. Loose Circlip OD (Dr)
358.40
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 343.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3500-LS Internal Retaining Rings - 350x4x355 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
355.00
mm (13.976 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
360.0
mm + 0.36 / - 0.00 (14.173 in.) |
Approx. Loose Circlip OD (Dr)
363.40
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 348.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3550-LS Internal Retaining Rings - 355x4x360 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
355.00
mm (13.976 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
360.0
mm + 0.36 / - 0.00 (14.173 in.) |
Approx. Loose Circlip OD (Dr)
363.40
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 348.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3550-LS Internal Retaining Rings - 355x4x360 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
360.00
mm (14.173 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
365.0
mm + 0.36 / - 0.00 (14.37 in.) |
Approx. Loose Circlip OD (Dr)
368.50
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 353.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3600-LS Internal Retaining Rings - 360x4x365 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
360.00
mm (14.173 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
365.0
mm + 0.36 / - 0.00 (14.37 in.) |
Approx. Loose Circlip OD (Dr)
368.50
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 353.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3600-LS Internal Retaining Rings - 360x4x365 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
370.00
mm (14.567 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
375.0
mm + 0.36 / - 0.00 (14.764 in.) |
Approx. Loose Circlip OD (Dr)
378.50
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 363.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3700-LS Internal Retaining Rings - 370x4x375 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
370.00
mm (14.567 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
375.0
mm + 0.36 / - 0.00 (14.764 in.) |
Approx. Loose Circlip OD (Dr)
378.50
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 363.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3700-LS Internal Retaining Rings - 370x4x375 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
375.00
mm (14.764 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
380.0
mm + 0.36 / - 0.00 (14.961 in.) |
Approx. Loose Circlip OD (Dr)
383.50
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 368.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3750-LS Internal Retaining Rings - 375x4x380 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
375.00
mm (14.764 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
380.0
mm + 0.36 / - 0.00 (14.961 in.) |
Approx. Loose Circlip OD (Dr)
383.50
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 368.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3750-LS Internal Retaining Rings - 375x4x380 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
380.00
mm (14.961 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
385.0
mm + 0.36 / - 0.00 (15.157 in.) |
Approx. Loose Circlip OD (Dr)
388.60
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 373.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3800-LS Internal Retaining Rings - 380x4x385 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
380.00
mm (14.961 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
385.0
mm + 0.36 / - 0.00 (15.157 in.) |
Approx. Loose Circlip OD (Dr)
388.60
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 373.6
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3800-LS Internal Retaining Rings - 380x4x385 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
390.00
mm (15.354 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
395.0
mm + 0.36 / - 0.00 (15.551 in.) |
Approx. Loose Circlip OD (Dr)
398.70
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 383.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3900-LS Internal Retaining Rings - 390x4x395 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
390.00
mm (15.354 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
395.0
mm + 0.36 / - 0.00 (15.551 in.) |
Approx. Loose Circlip OD (Dr)
398.70
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 383.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3900-LS Internal Retaining Rings - 390x4x395 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
395.00
mm (15.551 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
400.0
mm + 0.40 / - 0.00 (15.748 in.) |
Approx. Loose Circlip OD (Dr)
403.70
mm |
Section (Rd)
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip ID: 388.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3950-LS Internal Retaining Rings - 395x4x400 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
395.00
mm (15.551 in.) |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 (0.157 in.) |
Groove Dia. (Dg)
400.0
mm + 0.40 / - 0.00 (15.748 in.) |
Approx. Loose Circlip OD (Dr)
403.70
mm |
|
||
|
Material: Spring Steel
Section (Rd): 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip ID: 388.7
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-3950-LS Internal Retaining Rings - 395x4x400 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
