| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

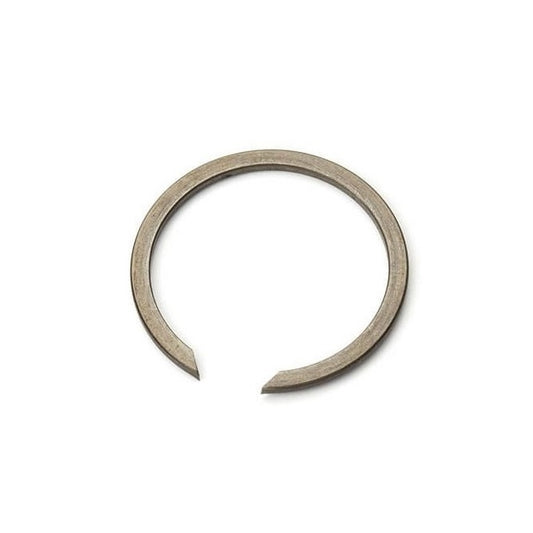

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
160.00
mm (Equiv. 6.299 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
162.6
mm + 0.25 / - 0.00 (Equiv. 6.402 in.) |
Approx. Loose Circlip OD (Dr)
164.20
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 156.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1600-LS (25 Pcs)
Internal Retaining Rings - 160x2.5x162.6 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$748.23 AUD
Regular price
Unit price
per
Per 25
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

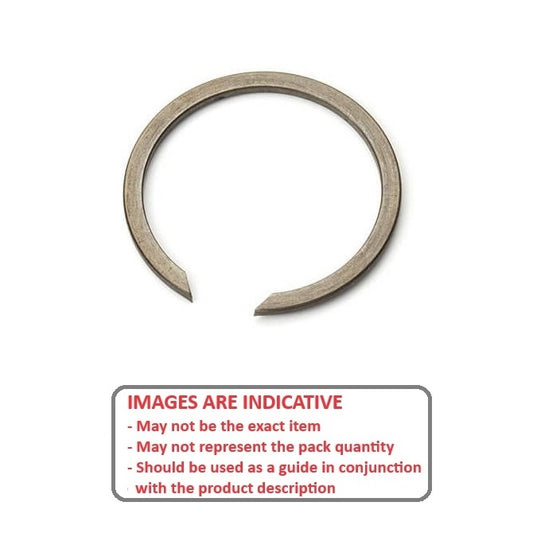

Indicative Image |
||
|
Housing Bore (B)
160.00
mm (Equiv. 6.299 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
162.6
mm + 0.25 / - 0.00 (Equiv. 6.402 in.) |
Approx. Loose Circlip OD (Dr)
164.20
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 156.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1600-LS (25 Pcs)
Internal Retaining Rings - 160x2.5x162.6 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 26, 2025 Regular price
$748.23 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Housing Bore (B)
163.00
mm (Equiv. 6.417 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
165.6
mm + 0.25 / - 0.00 (Equiv. 6.52 in.) |
Approx. Loose Circlip OD (Dr)
167.20
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 159.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1630-LS
Internal Retaining Rings - 163x2.5x165.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
163.00
mm (Equiv. 6.417 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
165.6
mm + 0.25 / - 0.00 (Equiv. 6.52 in.) |
Approx. Loose Circlip OD (Dr)
167.20
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 159.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1630-LS
Internal Retaining Rings - 163x2.5x165.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.00
mm (Equiv. 6.496 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
167.6
mm + 0.25 / - 0.00 (Equiv. 6.598 in.) |
Approx. Loose Circlip OD (Dr)
169.20
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 161.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1650-LS
Internal Retaining Rings - 165x2.5x167.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.00
mm (Equiv. 6.496 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
167.6
mm + 0.25 / - 0.00 (Equiv. 6.598 in.) |
Approx. Loose Circlip OD (Dr)
169.20
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 161.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1650-LS
Internal Retaining Rings - 165x2.5x167.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.10
mm (Equiv. 6.5 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
169.16
mm +/- 0.20 (Equiv. 6.66 in.) |
Approx. Loose Circlip OD (Dr)
170.94
mm + 3.18 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 158.24
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1651-LS-O
Internal Retaining Rings - 165.1x2.36x169.16 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.10
mm (Equiv. 6.5 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
169.16
mm +/- 0.20 (Equiv. 6.66 in.) |
Approx. Loose Circlip OD (Dr)
170.94
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 158.24
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1651-LS-O
Internal Retaining Rings - 165.1x2.36x169.16 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.10
mm (Equiv. 6.5 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
172.47
mm +/- 0.20 (Equiv. 6.79 in.) |
Approx. Loose Circlip OD (Dr)
175.39
mm + 3.80 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 157.97
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1651-LS-N
Internal Retaining Rings - 165.1x3.96x172.47 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.10
mm (Equiv. 6.5 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
172.47
mm +/- 0.20 (Equiv. 6.79 in.) |
Approx. Loose Circlip OD (Dr)
175.39
mm + 3.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 157.97
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1651-LS-N
Internal Retaining Rings - 165.1x3.96x172.47 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.10
mm (Equiv. 6.5 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
170.49
mm +/- 0.20 (Equiv. 6.712 in.) |
Approx. Loose Circlip OD (Dr)
173.53
mm + 4.00 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 156.11
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1651-LS-HO
Internal Retaining Rings - 165.1x3.96x170.49 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
165.10
mm (Equiv. 6.5 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
170.49
mm +/- 0.20 (Equiv. 6.712 in.) |
Approx. Loose Circlip OD (Dr)
173.53
mm + 4.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 156.11
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1651-LS-HO
Internal Retaining Rings - 165.1x3.96x170.49 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
168.28
mm (Equiv. 6.625 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
175.90
mm +/- 0.20 (Equiv. 6.925 in.) |
Approx. Loose Circlip OD (Dr)
178.94
mm + 3.80 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 161.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1683-LS-N
Internal Retaining Rings - 168.28x3.96x175.9 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
168.28
mm (Equiv. 6.625 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
175.90
mm +/- 0.20 (Equiv. 6.925 in.) |
Approx. Loose Circlip OD (Dr)
178.94
mm + 3.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 161.52
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1683-LS-N
Internal Retaining Rings - 168.28x3.96x175.9 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
168.28
mm (Equiv. 6.625 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
173.86
mm +/- 0.20 (Equiv. 6.845 in.) |
Approx. Loose Circlip OD (Dr)
177.17
mm + 4.00 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 159.75
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1683-LS-O
Internal Retaining Rings - 168.28x3.96x173.86 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
168.28
mm (Equiv. 6.625 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
173.86
mm +/- 0.20 (Equiv. 6.845 in.) |
Approx. Loose Circlip OD (Dr)
177.17
mm + 4.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 159.75
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1683-LS-O
Internal Retaining Rings - 168.28x3.96x173.86 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
170.00
mm (Equiv. 6.693 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
172.6
mm + 0.25 / - 0.00 (Equiv. 6.795 in.) |
Approx. Loose Circlip OD (Dr)
174.30
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 166.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1700-LS
Internal Retaining Rings - 170x2.5x172.6 mm Snap Rings - Carbon Spring Steel Snap Ring 50 Available Now | Further orders can be expected around Fri, Sep 26, 2025 Regular price
$6.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
170.00
mm (Equiv. 6.693 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
172.6
mm + 0.25 / - 0.00 (Equiv. 6.795 in.) |
Approx. Loose Circlip OD (Dr)
174.30
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 166.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1700-LS
Internal Retaining Rings - 170x2.5x172.6 mm Snap Rings - Carbon Spring Steel Snap Ring 50 Available Now | Further orders can be expected around Fri, Sep 26, 2025 Regular price
$6.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
171.45
mm (Equiv. 6.75 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
177.04
mm +/- 0.20 (Equiv. 6.97 in.) |
Approx. Loose Circlip OD (Dr)
180.34
mm + 4.00 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 162.92
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1715-LS-O
Internal Retaining Rings - 171.45x3.96x177.04 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
171.45
mm (Equiv. 6.75 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
177.04
mm +/- 0.20 (Equiv. 6.97 in.) |
Approx. Loose Circlip OD (Dr)
180.34
mm + 4.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 162.92
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1715-LS-O
Internal Retaining Rings - 171.45x3.96x177.04 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
171.45
mm (Equiv. 6.75 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
179.20
mm +/- 0.20 (Equiv. 7.055 in.) |
Approx. Loose Circlip OD (Dr)
182.37
mm + 3.80 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 164.95
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1715-LS-N
Internal Retaining Rings - 171.45x3.96x179.2 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
171.45
mm (Equiv. 6.75 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
179.20
mm +/- 0.20 (Equiv. 7.055 in.) |
Approx. Loose Circlip OD (Dr)
182.37
mm + 3.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 164.95
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1715-LS-N
Internal Retaining Rings - 171.45x3.96x179.2 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
173.00
mm (Equiv. 6.811 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
175.6
mm + 0.25 / - 0.00 (Equiv. 6.913 in.) |
Approx. Loose Circlip OD (Dr)
177.30
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 169.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1730-LS
Internal Retaining Rings - 173x2.5x175.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
173.00
mm (Equiv. 6.811 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
175.6
mm + 0.25 / - 0.00 (Equiv. 6.913 in.) |
Approx. Loose Circlip OD (Dr)
177.30
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 169.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1730-LS
Internal Retaining Rings - 173x2.5x175.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
175.00
mm (Equiv. 6.89 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
177.6
mm + 0.25 / - 0.00 (Equiv. 6.992 in.) |
Approx. Loose Circlip OD (Dr)
179.30
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 171.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1750-LS
Internal Retaining Rings - 175x2.5x177.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
175.00
mm (Equiv. 6.89 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
177.6
mm + 0.25 / - 0.00 (Equiv. 6.992 in.) |
Approx. Loose Circlip OD (Dr)
179.30
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 171.3
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1750-LS
Internal Retaining Rings - 175x2.5x177.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
177.80
mm (Equiv. 7 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
181.86
mm +/- 0.20 (Equiv. 7.16 in.) |
Approx. Loose Circlip OD (Dr)
183.90
mm + 3.18 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 171.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1778-LS-O
Internal Retaining Rings - 177.8x2.36x181.86 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
177.80
mm (Equiv. 7 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
181.86
mm +/- 0.20 (Equiv. 7.16 in.) |
Approx. Loose Circlip OD (Dr)
183.90
mm + 3.18 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 171.2
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1778-LS-O
Internal Retaining Rings - 177.8x2.36x181.86 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
177.80
mm (Equiv. 7 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
181.23
mm +/- 0.20 (Equiv. 7.135 in.) |
Approx. Loose Circlip OD (Dr)
189.10
mm + 3.80 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 171.68
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1778-LS-N
Internal Retaining Rings - 177.8x3.96x181.23 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
177.80
mm (Equiv. 7 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
181.23
mm +/- 0.20 (Equiv. 7.135 in.) |
Approx. Loose Circlip OD (Dr)
189.10
mm + 3.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 171.68
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1778-LS-N
Internal Retaining Rings - 177.8x3.96x181.23 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
177.80
mm (Equiv. 7 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
183.39
mm +/- 0.20 (Equiv. 7.22 in.) |
Approx. Loose Circlip OD (Dr)
186.69
mm + 4.00 / - 0.00 |
Section (Rd)
8.71
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 169.27
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1778-LS-HO
Internal Retaining Rings - 177.8x3.96x183.39 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
177.80
mm (Equiv. 7 in.) |
Clip Thickness (T)
3.96
mm +/- 0.05 (Equiv. 0.156 in.) |
Groove Dia. (Dg)
183.39
mm +/- 0.20 (Equiv. 7.22 in.) |
Approx. Loose Circlip OD (Dr)
186.69
mm + 4.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 8.71 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip ID: 169.27
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1778-LS-HO
Internal Retaining Rings - 177.8x3.96x183.39 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
183.00
mm (Equiv. 7.205 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
185.6
mm + 0.29 / - 0.00 (Equiv. 7.307 in.) |
Approx. Loose Circlip OD (Dr)
187.50
mm |
Section (Rd)
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 179.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1830-LS
Internal Retaining Rings - 183x2.5x185.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
183.00
mm (Equiv. 7.205 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
185.6
mm + 0.29 / - 0.00 (Equiv. 7.307 in.) |
Approx. Loose Circlip OD (Dr)
187.50
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 179.5
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1830-LS
Internal Retaining Rings - 183x2.5x185.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
184.15
mm (Equiv. 7.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
188.21
mm +/- 0.20 (Equiv. 7.41 in.) |
Approx. Loose Circlip OD (Dr)
190.50
mm + 4.75 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 177.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1842-LS-O
Internal Retaining Rings - 184.15x2.36x188.21 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
184.15
mm (Equiv. 7.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
188.21
mm +/- 0.20 (Equiv. 7.41 in.) |
Approx. Loose Circlip OD (Dr)
190.50
mm + 4.75 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 177.8
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1842-LS-O
Internal Retaining Rings - 184.15x2.36x188.21 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
184.15
mm (Equiv. 7.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
190.50
mm +/- 0.20 (Equiv. 7.5 in.) |
Approx. Loose Circlip OD (Dr)
193.80
mm + 4.75 / - 0.00 |
Section (Rd)
9.53
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 174.74
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1842-LS-HO
Internal Retaining Rings - 184.15x4.75x190.5 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
184.15
mm (Equiv. 7.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
190.50
mm +/- 0.20 (Equiv. 7.5 in.) |
Approx. Loose Circlip OD (Dr)
193.80
mm + 4.75 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 9.53 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 174.74
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1842-LS-HO
Internal Retaining Rings - 184.15x4.75x190.5 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
184.15
mm (Equiv. 7.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
192.41
mm +/- 0.20 (Equiv. 7.575 in.) |
Approx. Loose Circlip OD (Dr)
195.71
mm + 4.60 / - 0.00 |
Section (Rd)
9.53
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 176.65
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1842-LS-N
Internal Retaining Rings - 184.15x4.75x192.41 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
184.15
mm (Equiv. 7.25 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
192.41
mm +/- 0.20 (Equiv. 7.575 in.) |
Approx. Loose Circlip OD (Dr)
195.71
mm + 4.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 9.53 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 176.65
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1842-LS-N
Internal Retaining Rings - 184.15x4.75x192.41 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
190.00
mm (Equiv. 7.48 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
193.0
mm + 0.29 / - 0.00 (Equiv. 7.598 in.) |
Approx. Loose Circlip OD (Dr)
194.90
mm |
Section (Rd)
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 184.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1900-LS
Internal Retaining Rings - 190x3x193 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
190.00
mm (Equiv. 7.48 in.) |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
193.0
mm + 0.29 / - 0.00 (Equiv. 7.598 in.) |
Approx. Loose Circlip OD (Dr)
194.90
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip ID: 184.9
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1900-LS
Internal Retaining Rings - 190x3x193 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
190.50
mm (Equiv. 7.5 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
194.56
mm +/- 0.20 (Equiv. 7.66 in.) |
Approx. Loose Circlip OD (Dr)
197.10
mm + 4.75 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 184.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1905-LS-O
Internal Retaining Rings - 190.5x2.36x194.56 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
190.50
mm (Equiv. 7.5 in.) |
Clip Thickness (T)
2.36
mm +/- 0.06 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
194.56
mm +/- 0.20 (Equiv. 7.66 in.) |
Approx. Loose Circlip OD (Dr)
197.10
mm + 4.75 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip ID: 184.4
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1905-LS-O
Internal Retaining Rings - 190.5x2.36x194.56 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
190.50
mm (Equiv. 7.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
196.85
mm +/- 0.20 (Equiv. 7.75 in.) |
Approx. Loose Circlip OD (Dr)
200.41
mm + 4.75 / - 0.00 |
Section (Rd)
9.53
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 181.35
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1905-LS-HO
Internal Retaining Rings - 190.5x4.75x196.85 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
190.50
mm (Equiv. 7.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
196.85
mm +/- 0.20 (Equiv. 7.75 in.) |
Approx. Loose Circlip OD (Dr)
200.41
mm + 4.75 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 9.53 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 181.35
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1905-LS-HO
Internal Retaining Rings - 190.5x4.75x196.85 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
190.50
mm (Equiv. 7.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
199.14
mm +/- 0.20 (Equiv. 7.84 in.) |
Approx. Loose Circlip OD (Dr)
202.57
mm + 4.60 / - 0.00 |
Section (Rd)
9.53
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 183.51
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1905-LS-N
Internal Retaining Rings - 190.5x4.75x199.14 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
190.50
mm (Equiv. 7.5 in.) |
Clip Thickness (T)
4.75
mm +/- 0.05 (Equiv. 0.187 in.) |
Groove Dia. (Dg)
199.14
mm +/- 0.20 (Equiv. 7.84 in.) |
Approx. Loose Circlip OD (Dr)
202.57
mm + 4.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 9.53 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip ID: 183.51
Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel |
||||||
|
Part Number: WRI-1905-LS-N
Internal Retaining Rings - 190.5x4.75x199.14 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
