WRI-3100-LS

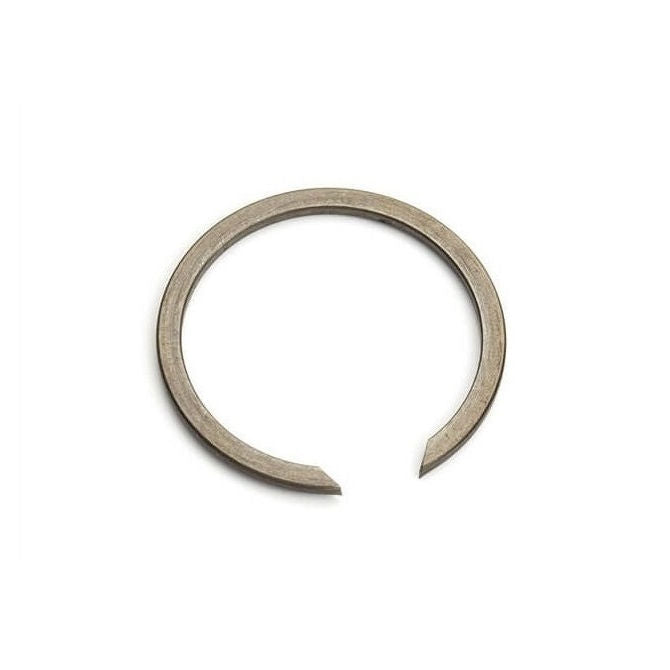

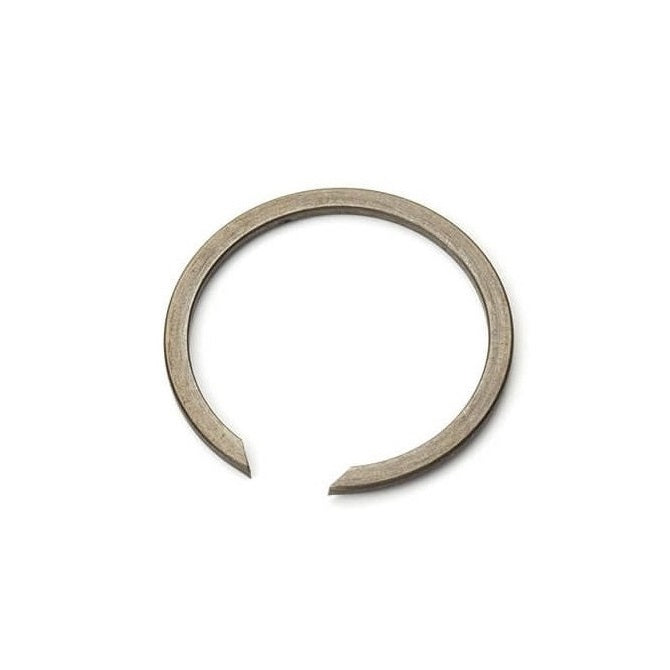

Internal Retaining Rings - 310x4x315 mm - Spring Steel

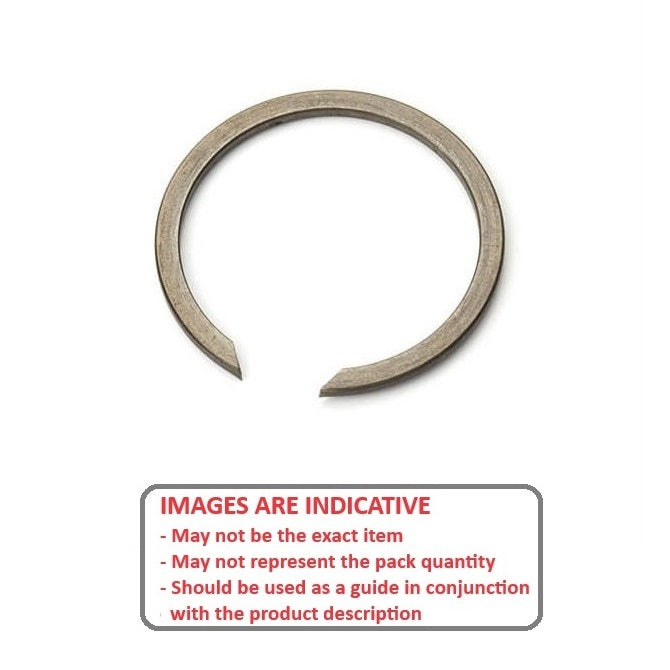

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Snap Rings and Spiral Rings PDF
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel

Product Details:

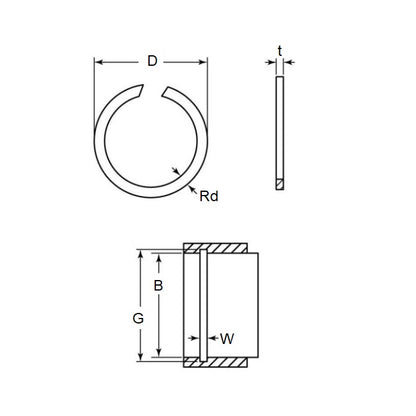

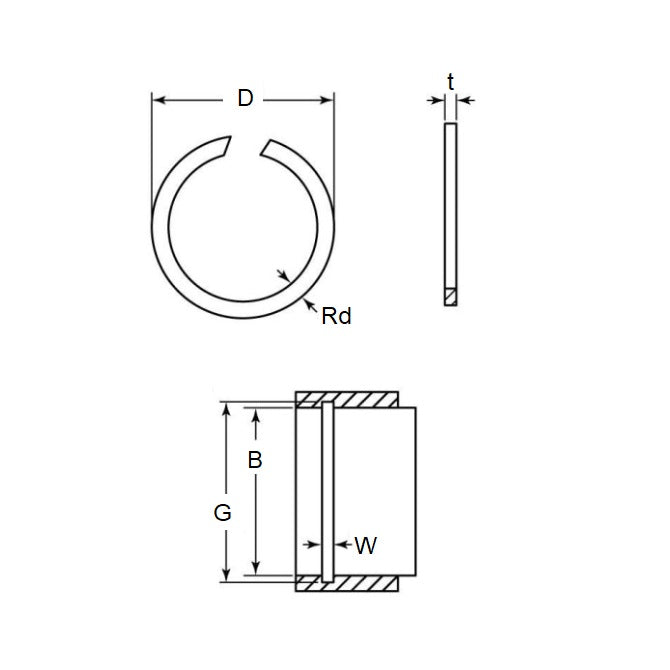

Housing Bore (B): 310.00mm
(310.00mm is 12.205 in.)

Spring Steel
  • Clip Thickness (T): 4.00mm
    + 0 / - 0.10
    (4.00mm is 0.157 in.)
  • Groove Dia. (Dg): 315.0mm
    + 0.32 / - 0.00
    (315.0mm is 12.402 in.)
  • Approx. Loose Circlip OD (Dr): 318.00mm
  • Section (Rd): 7.50mm
    + 0 / - 0.10
  • Groove Width (W): 4.20mm
  • Approx. Loose Clip ID: 303
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: DE

Alternative Parts Include: WRI3100SQ, DSB-310, DSB310, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
