Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings (With Images)

Internal

Circlips

Tabbed

511 Products in this selection

This is a combined category of Standard Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Standard. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 36.98 mm _{(1.456 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 39.32 mm + 0.00 / - 0.06 _{(1.548 in.)}	Approx. Loose Circlip OD (Dr) 41.05 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00

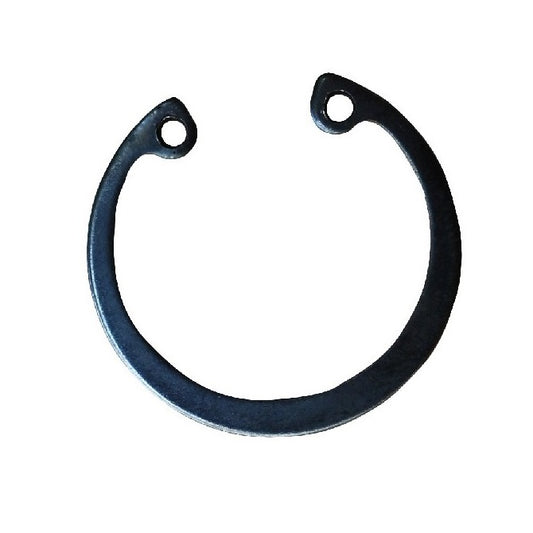

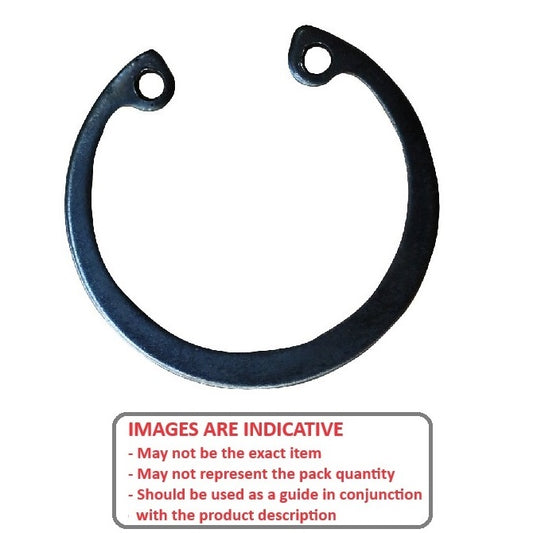

Material: Carbon Steel Clearance in Bore (C): 27.43 mm Clearance in Groove (C1): 29.72 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.51 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03698-C (50 Pcs) Internal Retaining Rings - 36.98x1.27x39.32 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $384.05 AUD Regular price Sale price $384.05 AUD Unit price per Per 50
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 36.98 mm _{(1.456 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 39.32 mm + 0.00 / - 0.06 _{(1.548 in.)}	Approx. Loose Circlip OD (Dr) 41.05 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 27.43 mm Clearance in Groove (C1): 29.72 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.51 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03698-C (50 Pcs) Internal Retaining Rings - 36.98x1.27x39.32 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $384.05 AUD Regular price Sale price $384.05 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03698-C (50 Pcs) --- Internal Retaining Rings - 36.98x1.27x39.32 mm - Carbon Steel CCI-03698-C (50 Pcs) --- Internal Retaining Rings - 36.98x1.27x39.32 mm - Carbon Steel Regular price $384.05 AUD Regular price Sale price $384.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 28.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03700-C (5 Pcs) Internal Retaining Rings - 37x1.5x39 mm - Carbon Steel 41 units (205 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 5
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 28.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03700-C (5 Pcs) Internal Retaining Rings - 37x1.5x39 mm - Carbon Steel 41 units (205 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03700-C (5 Pcs) --- Internal Retaining Rings - 37x1.5x39 mm - Carbon Steel CCI-03700-C (5 Pcs) --- Internal Retaining Rings - 37x1.5x39 mm - Carbon Steel Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 41 Available Now
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00

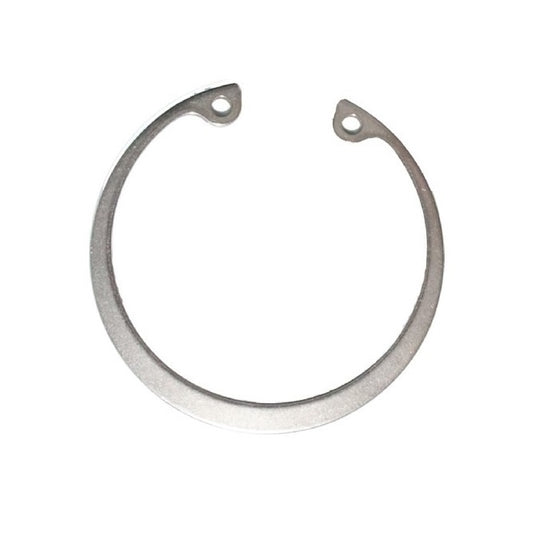

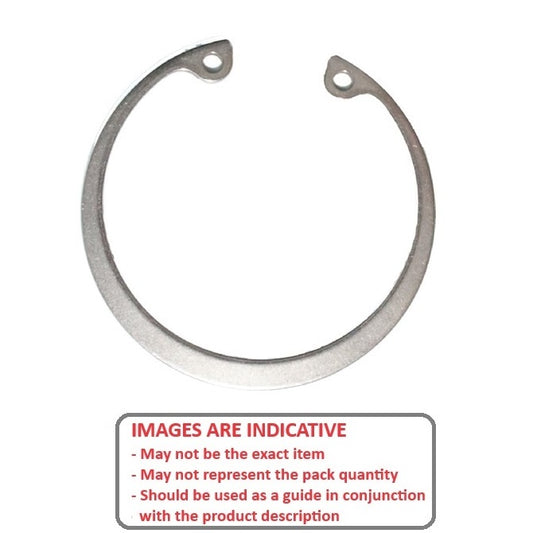

Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 28.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03700-S15 Internal Retaining Rings - 37x1.5x39 mm - Stainless Steel Grade PH15-7 Mo 10 Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 28.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03700-S15 Internal Retaining Rings - 37x1.5x39 mm - Stainless Steel Grade PH15-7 Mo 10 Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each View the product page first if you are unsure.
CCI-03700-S15 --- Internal Retaining Rings - 37x1.5x39 mm - Stainless Steel Grade PH15-7 Mo CCI-03700-S15 --- Internal Retaining Rings - 37x1.5x39 mm - Stainless Steel Grade PH15-7 Mo Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per 10 Available Now
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03700H-C Internal Retaining Rings - 37x1.75x39 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.85 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03700H-C Internal Retaining Rings - 37x1.75x39 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 26.40 mm Clearance in Groove (C1): 29.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03800-C (2 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel 268 units (536 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 03, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Per 2
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.40 mm Clearance in Groove (C1): 29.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03800-C (2 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel 268 units (536 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 03, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03800-C (2 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel CCI-03800-C (2 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 268 Available Now
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 26.40 mm Clearance in Groove (C1): 29.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03800-S15 (2 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Per 2
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.40 mm Clearance in Groove (C1): 29.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03800-S15 (2 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03800-S15 (2 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Stainless Steel Grade PH15-7 Mo CCI-03800-S15 (2 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Stainless Steel Grade PH15-7 Mo Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03800H-C Internal Retaining Rings - 38x1.75x40 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.85 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03800H-C Internal Retaining Rings - 38x1.75x40 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 40.49 mm + 0.00 / - 0.06 _{(1.594 in.)}	Approx. Loose Circlip OD (Dr) 42.16 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 28.70 mm Clearance in Groove (C1): 30.99 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.58 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03810-C (50 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $90.95 AUD Regular price Sale price $90.95 AUD Unit price per Per 50
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 40.49 mm + 0.00 / - 0.06 _{(1.594 in.)}	Approx. Loose Circlip OD (Dr) 42.16 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 28.70 mm Clearance in Groove (C1): 30.99 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.58 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03810-C (50 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $90.95 AUD Regular price Sale price $90.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03810-C (50 Pcs) --- Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel CCI-03810-C (50 Pcs) --- Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Regular price $90.95 AUD Regular price Sale price $90.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 40.49 mm + 0.00 / - 0.06 _{(1.594 in.)}	Approx. Loose Circlip OD (Dr) 42.16 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 28.70 mm Clearance in Groove (C1): 30.99 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.58 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03810-S15 (2 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Per 2
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 40.49 mm + 0.00 / - 0.06 _{(1.594 in.)}	Approx. Loose Circlip OD (Dr) 42.16 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 28.70 mm Clearance in Groove (C1): 30.99 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.58 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03810-S15 (2 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03810-S15 (2 Pcs) --- Internal Retaining Rings - 38.1x1.27x40.49 mm - Stainless Steel Grade PH15-7 Mo CCI-03810-S15 (2 Pcs) --- Internal Retaining Rings - 38.1x1.27x40.49 mm - Stainless Steel Grade PH15-7 Mo Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 40.49 mm + 0.00 / - 0.06 _{(1.594 in.)}	Approx. Loose Circlip OD (Dr) 42.16 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 28.70 mm Clearance in Groove (C1): 30.99 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.58 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03810-CZY (7 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Per 7
Housing Bore (B) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 40.49 mm + 0.00 / - 0.06 _{(1.594 in.)}	Approx. Loose Circlip OD (Dr) 42.16 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 28.70 mm Clearance in Groove (C1): 30.99 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.58 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03810-CZY (7 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Per 7 View the product page first if you are unsure.
CCI-03810-CZY (7 Pcs) --- Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Zinc Plated CCI-03810-CZY (7 Pcs) --- Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Zinc Plated Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 39.00 mm _{(1.535 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 41.00 mm + 0.00 / - 0.06 _{(1.614 in.)}	Approx. Loose Circlip OD (Dr) 42.00 mm + 0.90 / - 0.39		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 27.40 mm Clearance in Groove (C1): 30.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03900-C (250 Pcs) Internal Retaining Rings - 39x1.5x41 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Aug 09, 2025 Regular price $327.77 AUD Regular price Sale price $327.77 AUD Unit price per Per 250
Housing Bore (B) 39.00 mm _{(1.535 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 41.00 mm + 0.00 / - 0.06 _{(1.614 in.)}	Approx. Loose Circlip OD (Dr) 42.00 mm + 0.90 / - 0.39
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 27.40 mm Clearance in Groove (C1): 30.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03900-C (250 Pcs) Internal Retaining Rings - 39x1.5x41 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Aug 09, 2025 Regular price $327.77 AUD Regular price Sale price $327.77 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03900-C (250 Pcs) --- Internal Retaining Rings - 39x1.5x41 mm - Carbon Steel CCI-03900-C (250 Pcs) --- Internal Retaining Rings - 39x1.5x41 mm - Carbon Steel Regular price $327.77 AUD Regular price Sale price $327.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 42.11 mm + 0.00 / - 0.06 _{(1.658 in.)}	Approx. Loose Circlip OD (Dr) 44.04 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 29.21 mm Clearance in Groove (C1): 31.50 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.66 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03967-C (5 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel 6 units (30 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 5
Housing Bore (B) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 42.11 mm + 0.00 / - 0.06 _{(1.658 in.)}	Approx. Loose Circlip OD (Dr) 44.04 mm + 0.89 / - 0.64
Material: Carbon Steel Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 29.21 mm Clearance in Groove (C1): 31.50 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.66 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03967-C (5 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel 6 units (30 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03967-C (5 Pcs) --- Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel CCI-03967-C (5 Pcs) --- Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per 6 Available Now
Housing Bore (B) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 42.11 mm + 0.00 / - 0.06 _{(1.658 in.)}	Approx. Loose Circlip OD (Dr) 44.04 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 29.21 mm Clearance in Groove (C1): 31.50 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.66 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03967-CZY (5 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Per 5
Housing Bore (B) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 42.11 mm + 0.00 / - 0.06 _{(1.658 in.)}	Approx. Loose Circlip OD (Dr) 44.04 mm + 0.89 / - 0.64
Material: Carbon Steel Zinc Plated Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 29.21 mm Clearance in Groove (C1): 31.50 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.66 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03967-CZY (5 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03967-CZY (5 Pcs) --- Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Zinc Plated CCI-03967-CZY (5 Pcs) --- Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Zinc Plated Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 42.11 mm + 0.00 / - 0.06 _{(1.658 in.)}	Approx. Loose Circlip OD (Dr) 44.04 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 29.21 mm Clearance in Groove (C1): 31.50 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.66 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03967-S15 (2 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $27.77 AUD Regular price Sale price $27.77 AUD Unit price per Per 2
Housing Bore (B) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 42.11 mm + 0.00 / - 0.06 _{(1.658 in.)}	Approx. Loose Circlip OD (Dr) 44.04 mm + 0.89 / - 0.64
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 29.21 mm Clearance in Groove (C1): 31.50 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.66 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03967-S15 (2 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $27.77 AUD Regular price Sale price $27.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03967-S15 (2 Pcs) --- Internal Retaining Rings - 39.67x1.57x42.11 mm - Stainless Steel Grade PH15-7 Mo CCI-03967-S15 (2 Pcs) --- Internal Retaining Rings - 39.67x1.57x42.11 mm - Stainless Steel Grade PH15-7 Mo Regular price $27.77 AUD Regular price Sale price $27.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 40.00 mm _{(1.575 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 42.50 mm + 0.00 / - 0.06 _{(1.673 in.)}	Approx. Loose Circlip OD (Dr) 43.50 mm + 0.90 / - 0.39		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 27.80 mm Clearance in Groove (C1): 30.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04000-C (5 Pcs) Internal Retaining Rings - 40x1.75x42.5 mm - Carbon Steel 17 units (85 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 5
Housing Bore (B) 40.00 mm _{(1.575 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 42.50 mm + 0.00 / - 0.06 _{(1.673 in.)}	Approx. Loose Circlip OD (Dr) 43.50 mm + 0.90 / - 0.39
Material: Carbon Steel Groove Width (W): 1.85 mm + 0.10 / - 0.00 Clearance in Bore (C): 27.80 mm Clearance in Groove (C1): 30.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04000-C (5 Pcs) Internal Retaining Rings - 40x1.75x42.5 mm - Carbon Steel 17 units (85 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-04000-C (5 Pcs) --- Internal Retaining Rings - 40x1.75x42.5 mm - Carbon Steel CCI-04000-C (5 Pcs) --- Internal Retaining Rings - 40x1.75x42.5 mm - Carbon Steel Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 17 Available Now
Housing Bore (B) 40.00 mm _{(1.575 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 42.50 mm + 0.00 / - 0.06 _{(1.673 in.)}	Approx. Loose Circlip OD (Dr) 43.50 mm + 0.90 / - 0.39		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 27.80 mm Clearance in Groove (C1): 30.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04000-S15 (3 Pcs) Internal Retaining Rings - 40x1.75x42.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Per 3
Housing Bore (B) 40.00 mm _{(1.575 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 42.50 mm + 0.00 / - 0.06 _{(1.673 in.)}	Approx. Loose Circlip OD (Dr) 43.50 mm + 0.90 / - 0.39
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm + 0.10 / - 0.00 Clearance in Bore (C): 27.80 mm Clearance in Groove (C1): 30.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04000-S15 (3 Pcs) Internal Retaining Rings - 40x1.75x42.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-04000-S15 (3 Pcs) --- Internal Retaining Rings - 40x1.75x42.5 mm - Stainless Steel Grade PH15-7 Mo CCI-04000-S15 (3 Pcs) --- Internal Retaining Rings - 40x1.75x42.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.00 mm _{(1.614 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 43.50 mm + 0.00 / - 0.06 _{(1.713 in.)}	Approx. Loose Circlip OD (Dr) 44.50 mm + 0.90 / - 0.39		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 28.60 mm Clearance in Groove (C1): 31.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04100-C (5 Pcs) Internal Retaining Rings - 41x1.75x43.5 mm - Carbon Steel 9 units (45 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 5
Housing Bore (B) 41.00 mm _{(1.614 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 43.50 mm + 0.00 / - 0.06 _{(1.713 in.)}	Approx. Loose Circlip OD (Dr) 44.50 mm + 0.90 / - 0.39
Material: Carbon Steel Groove Width (W): 1.85 mm + 0.10 / - 0.00 Clearance in Bore (C): 28.60 mm Clearance in Groove (C1): 31.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04100-C (5 Pcs) Internal Retaining Rings - 41x1.75x43.5 mm - Carbon Steel 9 units (45 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-04100-C (5 Pcs) --- Internal Retaining Rings - 41x1.75x43.5 mm - Carbon Steel CCI-04100-C (5 Pcs) --- Internal Retaining Rings - 41x1.75x43.5 mm - Carbon Steel Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 9 Available Now
Housing Bore (B) 41.00 mm _{(1.614 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 43.50 mm + 0.00 / - 0.06 _{(1.713 in.)}	Approx. Loose Circlip OD (Dr) 44.50 mm + 0.90 / - 0.39		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 28.60 mm Clearance in Groove (C1): 31.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04100-S15 (250 Pcs) Internal Retaining Rings - 41x1.75x43.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Aug 09, 2025 Regular price $6,640.05 AUD Regular price Sale price $6,640.05 AUD Unit price per Per 250
Housing Bore (B) 41.00 mm _{(1.614 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 43.50 mm + 0.00 / - 0.06 _{(1.713 in.)}	Approx. Loose Circlip OD (Dr) 44.50 mm + 0.90 / - 0.39
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm + 0.10 / - 0.00 Clearance in Bore (C): 28.60 mm Clearance in Groove (C1): 31.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04100-S15 (250 Pcs) Internal Retaining Rings - 41x1.75x43.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Aug 09, 2025 Regular price $6,640.05 AUD Regular price Sale price $6,640.05 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-04100-S15 (250 Pcs) --- Internal Retaining Rings - 41x1.75x43.5 mm - Stainless Steel Grade PH15-7 Mo CCI-04100-S15 (250 Pcs) --- Internal Retaining Rings - 41x1.75x43.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $6,640.05 AUD Regular price Sale price $6,640.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.82 mm + 0.00 / - 0.06 _{(1.725 in.)}	Approx. Loose Circlip OD (Dr) 45.82 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 30.73 mm Clearance in Groove (C1): 33.27 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.81 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-04128-CZY (5 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Per 5
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.82 mm + 0.00 / - 0.06 _{(1.725 in.)}	Approx. Loose Circlip OD (Dr) 45.82 mm + 0.89 / - 0.64
Material: Carbon Steel Zinc Plated Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 30.73 mm Clearance in Groove (C1): 33.27 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.81 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-04128-CZY (5 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-04128-CZY (5 Pcs) --- Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated CCI-04128-CZY (5 Pcs) --- Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.82 mm + 0.00 / - 0.06 _{(1.725 in.)}	Approx. Loose Circlip OD (Dr) 45.82 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 30.73 mm Clearance in Groove (C1): 33.27 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.81 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04128-S15 (2 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $31.41 AUD Regular price Sale price $31.41 AUD Unit price per Per 2
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.82 mm + 0.00 / - 0.06 _{(1.725 in.)}	Approx. Loose Circlip OD (Dr) 45.82 mm + 0.89 / - 0.64
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 30.73 mm Clearance in Groove (C1): 33.27 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.81 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04128-S15 (2 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $31.41 AUD Regular price Sale price $31.41 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-04128-S15 (2 Pcs) --- Internal Retaining Rings - 41.28x1.57x43.82 mm - Stainless Steel Grade PH15-7 Mo CCI-04128-S15 (2 Pcs) --- Internal Retaining Rings - 41.28x1.57x43.82 mm - Stainless Steel Grade PH15-7 Mo Regular price $31.41 AUD Regular price Sale price $31.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.82 mm + 0.00 / - 0.06 _{(1.725 in.)}	Approx. Loose Circlip OD (Dr) 45.82 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 30.73 mm Clearance in Groove (C1): 33.27 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.81 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04128-C (50 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $84.86 AUD Regular price Sale price $84.86 AUD Unit price per Per 50
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.82 mm + 0.00 / - 0.06 _{(1.725 in.)}	Approx. Loose Circlip OD (Dr) 45.82 mm + 0.89 / - 0.64
Material: Carbon Steel Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 30.73 mm Clearance in Groove (C1): 33.27 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.81 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04128-C (50 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $84.86 AUD Regular price Sale price $84.86 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-04128-C (50 Pcs) --- Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel CCI-04128-C (50 Pcs) --- Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Regular price $84.86 AUD Regular price Sale price $84.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.99 mm _{(1.653 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 44.46 mm + 0.00 / - 0.06 _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 46.61 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 31.50 mm Clearance in Groove (C1): 34.04 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.89 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04199-C (4 Pcs) Internal Retaining Rings - 41.99x1.57x44.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 4
Housing Bore (B) 41.99 mm _{(1.653 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 44.46 mm + 0.00 / - 0.06 _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 46.61 mm + 0.89 / - 0.64
Material: Carbon Steel Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 31.50 mm Clearance in Groove (C1): 34.04 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.89 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04199-C (4 Pcs) Internal Retaining Rings - 41.99x1.57x44.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-04199-C (4 Pcs) --- Internal Retaining Rings - 41.99x1.57x44.46 mm - Carbon Steel CCI-04199-C (4 Pcs) --- Internal Retaining Rings - 41.99x1.57x44.46 mm - Carbon Steel Regular price $49.23 AUD Regular price Sale price $49.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.99 mm _{(1.653 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 44.46 mm + 0.00 / - 0.06 _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 46.61 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 31.50 mm Clearance in Groove (C1): 34.04 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.89 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04199-S15 (2 Pcs) Internal Retaining Rings - 41.99x1.57x44.46 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Per 2
Housing Bore (B) 41.99 mm _{(1.653 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 44.46 mm + 0.00 / - 0.06 _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 46.61 mm + 0.89 / - 0.64
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 31.50 mm Clearance in Groove (C1): 34.04 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.89 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04199-S15 (2 Pcs) Internal Retaining Rings - 41.99x1.57x44.46 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 09, 2025 Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-04199-S15 (2 Pcs) --- Internal Retaining Rings - 41.99x1.57x44.46 mm - Stainless Steel Grade PH15-7 Mo CCI-04199-S15 (2 Pcs) --- Internal Retaining Rings - 41.99x1.57x44.46 mm - Stainless Steel Grade PH15-7 Mo Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 42.00 mm _{(1.654 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 44.45 mm + 0.00 / - 0.06 _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 45.50 mm + 0.90 / - 0.39		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 29.60 mm Clearance in Groove (C1): 32.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04200-C (5 Pcs) Internal Retaining Rings - 42x1.75x44.45 mm - Carbon Steel 20 units (100 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 5
Housing Bore (B) 42.00 mm _{(1.654 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 44.45 mm + 0.00 / - 0.06 _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 45.50 mm + 0.90 / - 0.39
Material: Carbon Steel Groove Width (W): 1.85 mm + 0.10 / - 0.00 Clearance in Bore (C): 29.60 mm Clearance in Groove (C1): 32.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04200-C (5 Pcs) Internal Retaining Rings - 42x1.75x44.45 mm - Carbon Steel 20 units (100 pcs) Available Immediately \| Further orders can be expected around Mon, Jun 09, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-04200-C (5 Pcs) --- Internal Retaining Rings - 42x1.75x44.45 mm - Carbon Steel CCI-04200-C (5 Pcs) --- Internal Retaining Rings - 42x1.75x44.45 mm - Carbon Steel Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 20 Available Now
