Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings (With Images)

Internal

Circlips

Tabbed

511 Products in this selection

This is a combined category of Standard Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Standard. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 48.00 mm _{(1.89 in.)}	Clip Thickness (T) 1.75 mm + 0.30 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 50.50 mm + 0.00 / - 0.07 _{(1.988 in.)}	Approx. Loose Circlip OD (Dr) 51.50 mm + 1.10 / - 0.46		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 34.50 mm Clearance in Groove (C1): 37.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04800-S15 (25 Pcs) Internal Retaining Rings - 48x1.75x50.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 12, 2025 Regular price $176.59 AUD Regular price ~~$296.40 AUD~~ Sale price $176.59 AUD Unit price per Per 25
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 48.00 mm _{(1.89 in.)}	Clip Thickness (T) 1.75 mm + 0.30 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 50.50 mm + 0.00 / - 0.07 _{(1.988 in.)}	Approx. Loose Circlip OD (Dr) 51.50 mm + 1.10 / - 0.46
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm + 0.10 / - 0.00 Clearance in Bore (C): 34.50 mm Clearance in Groove (C1): 37.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04800-S15 (25 Pcs) Internal Retaining Rings - 48x1.75x50.5 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 12, 2025 Regular price $176.59 AUD Regular price ~~$296.40 AUD~~ Sale price $176.59 AUD Unit price per Per 25 View the product page first if you are unsure.
CCI-04800-S15 (25 Pcs) --- Internal Retaining Rings - 48x1.75x50.5 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-04800-S15 (25 Pcs) --- Internal Retaining Rings - 48x1.75x50.5 mm - Stainless Steel Grade PH15-7 Mo Regular price $176.59 AUD Regular price ~~$296.40 AUD~~ Sale price $176.59 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 48.00 mm _{(1.89 in.)}	Clip Thickness (T) 1.75 mm + 0.30 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 50.50 mm + 0.00 / - 0.06 _{(1.988 in.)}	Approx. Loose Circlip OD (Dr) 51.50 mm + 1.10 / - 0.46		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 34.50 mm Clearance in Groove (C1): 37.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04800-C (5 Pcs) Internal Retaining Rings - 48x1.75x50.5 mm - Carbon Steel 130 units (650 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 5
Housing Bore (B) 48.00 mm _{(1.89 in.)}	Clip Thickness (T) 1.75 mm + 0.30 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 50.50 mm + 0.00 / - 0.06 _{(1.988 in.)}	Approx. Loose Circlip OD (Dr) 51.50 mm + 1.10 / - 0.46
Material: Carbon Steel Groove Width (W): 1.85 mm + 0.10 / - 0.00 Clearance in Bore (C): 34.50 mm Clearance in Groove (C1): 37.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04800-C (5 Pcs) Internal Retaining Rings - 48x1.75x50.5 mm - Carbon Steel 130 units (650 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-04800-C (5 Pcs) --- Internal Retaining Rings - 48x1.75x50.5 mm - Carbon Steel CCI-04800-C (5 Pcs) --- Internal Retaining Rings - 48x1.75x50.5 mm - Carbon Steel Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per 130 Available Now

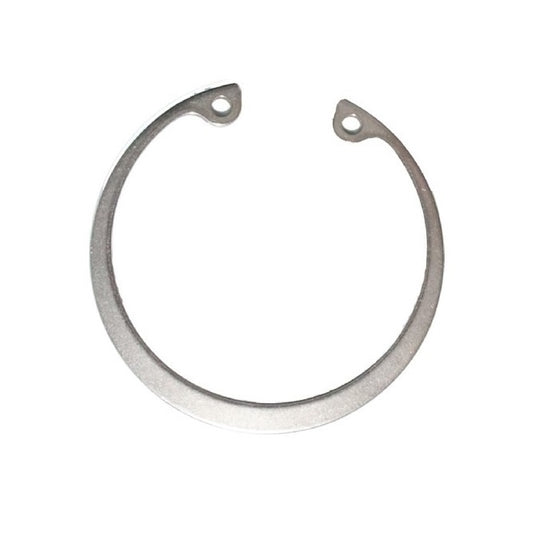

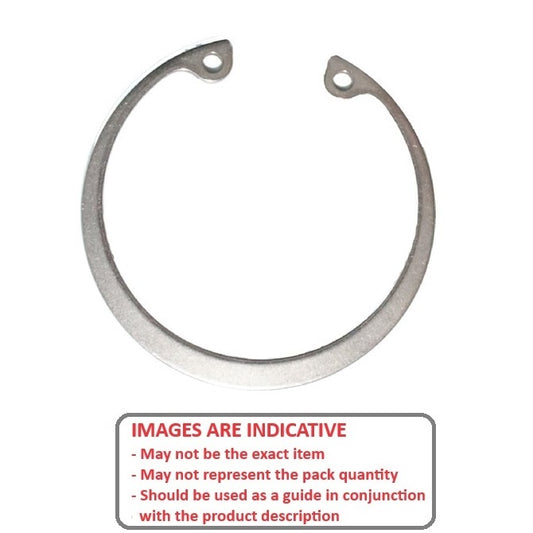

Housing Bore (B) 49.23 mm _{(1.938 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 52.22 mm + 0.00 / - 0.07 _{(2.056 in.)}	Approx. Loose Circlip OD (Dr) 54.38 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 38.61 mm Clearance in Groove (C1): 41.66 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04923-S15 Internal Retaining Rings - 49.23x1.57x52.22 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Each
Housing Bore (B) 49.23 mm _{(1.938 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 52.22 mm + 0.00 / - 0.07 _{(2.056 in.)}	Approx. Loose Circlip OD (Dr) 54.38 mm + 0.89 / - 0.64
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 38.61 mm Clearance in Groove (C1): 41.66 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-04923-S15 Internal Retaining Rings - 49.23x1.57x52.22 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Each View the product page first if you are unsure.
CCI-04923-S15 --- Internal Retaining Rings - 49.23x1.57x52.22 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-04923-S15 --- Internal Retaining Rings - 49.23x1.57x52.22 mm - Stainless Steel Grade PH15-7 Mo Regular price $29.32 AUD Regular price ~~$35.18 AUD~~ Sale price $29.32 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 49.23 mm _{(1.938 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 52.22 mm + 0.00 / - 0.07 _{(2.056 in.)}	Approx. Loose Circlip OD (Dr) 54.38 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 38.61 mm Clearance in Groove (C1): 41.66 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04923-C (5 Pcs) Internal Retaining Rings - 49.23x1.57x52.22 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Per 5
Housing Bore (B) 49.23 mm _{(1.938 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 52.22 mm + 0.00 / - 0.07 _{(2.056 in.)}	Approx. Loose Circlip OD (Dr) 54.38 mm + 0.89 / - 0.64
Material: Carbon Steel Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 38.61 mm Clearance in Groove (C1): 41.66 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-04923-C (5 Pcs) Internal Retaining Rings - 49.23x1.57x52.22 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-04923-C (5 Pcs) --- Internal Retaining Rings - 49.23x1.57x52.22 mm - Carbon Steel Sale CCI-04923-C (5 Pcs) --- Internal Retaining Rings - 49.23x1.57x52.22 mm - Carbon Steel Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 53.00 mm + 0.00 / - 0.07 _{(2.087 in.)}	Approx. Loose Circlip OD (Dr) 54.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 36.30 mm Clearance in Groove (C1): 40.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05000-C (5 Pcs) Internal Retaining Rings - 50x2x53 mm - Carbon Steel 27 units (135 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 5
Housing Bore (B) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 53.00 mm + 0.00 / - 0.07 _{(2.087 in.)}	Approx. Loose Circlip OD (Dr) 54.20 mm + 1.10 / - 0.46
Material: Carbon Steel Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 36.30 mm Clearance in Groove (C1): 40.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05000-C (5 Pcs) Internal Retaining Rings - 50x2x53 mm - Carbon Steel 27 units (135 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-05000-C (5 Pcs) --- Internal Retaining Rings - 50x2x53 mm - Carbon Steel CCI-05000-C (5 Pcs) --- Internal Retaining Rings - 50x2x53 mm - Carbon Steel Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per 27 Available Now
Housing Bore (B) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 53.00 mm + 0.00 / - 0.07 _{(2.087 in.)}	Approx. Loose Circlip OD (Dr) 54.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 36.30 mm Clearance in Groove (C1): 40.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05000-S15 (2 Pcs) Internal Retaining Rings - 50x2x53 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $45.05 AUD Regular price ~~$54.05 AUD~~ Sale price $45.05 AUD Unit price per Per 2
Housing Bore (B) 50.00 mm _{(1.969 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 53.00 mm + 0.00 / - 0.07 _{(2.087 in.)}	Approx. Loose Circlip OD (Dr) 54.20 mm + 1.10 / - 0.46
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 36.30 mm Clearance in Groove (C1): 40.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05000-S15 (2 Pcs) Internal Retaining Rings - 50x2x53 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $45.05 AUD Regular price ~~$54.05 AUD~~ Sale price $45.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-05000-S15 (2 Pcs) --- Internal Retaining Rings - 50x2x53 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-05000-S15 (2 Pcs) --- Internal Retaining Rings - 50x2x53 mm - Stainless Steel Grade PH15-7 Mo Regular price $45.05 AUD Regular price ~~$54.05 AUD~~ Sale price $45.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm + 0.00 / - 0.07 _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 56.13 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 40.39 mm Clearance in Groove (C1): 43.43 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.65 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-05080-CZY (5 Pcs) Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Per 5
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm + 0.00 / - 0.07 _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 56.13 mm + 0.89 / - 0.64
Material: Carbon Steel Zinc Plated Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 40.39 mm Clearance in Groove (C1): 43.43 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.65 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-05080-CZY (5 Pcs) Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-05080-CZY (5 Pcs) --- Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Zinc Plated Sale CCI-05080-CZY (5 Pcs) --- Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Zinc Plated Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm + 0.00 / - 0.07 _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 56.13 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 40.39 mm Clearance in Groove (C1): 43.43 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.65 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05080-C (5 Pcs) Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Per 5
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm + 0.00 / - 0.07 _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 56.13 mm + 0.89 / - 0.64
Material: Carbon Steel Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 40.39 mm Clearance in Groove (C1): 43.43 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.65 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05080-C (5 Pcs) Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-05080-C (5 Pcs) --- Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Sale CCI-05080-C (5 Pcs) --- Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm + 0.00 / - 0.07 _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 56.13 mm + 0.89 / - 0.64		Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 40.39 mm Clearance in Groove (C1): 43.43 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.65 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05080-S15 Internal Retaining Rings - 50.8x1.57x53.9 mm - Stainless Steel Grade PH15-7 Mo 27 Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per Each
Housing Bore (B) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 53.90 mm + 0.00 / - 0.07 _{(2.122 in.)}	Approx. Loose Circlip OD (Dr) 56.13 mm + 0.89 / - 0.64
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm + 0.10 / - 0.00 Clearance in Bore (C): 40.39 mm Clearance in Groove (C1): 43.43 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.65 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05080-S15 Internal Retaining Rings - 50.8x1.57x53.9 mm - Stainless Steel Grade PH15-7 Mo 27 Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per Each View the product page first if you are unsure.
CCI-05080-S15 --- Internal Retaining Rings - 50.8x1.57x53.9 mm - Stainless Steel Grade PH15-7 Mo CCI-05080-S15 --- Internal Retaining Rings - 50.8x1.57x53.9 mm - Stainless Steel Grade PH15-7 Mo Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per 27 Available Now
Housing Bore (B) 51.00 mm _{(2.008 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 54.00 mm + 0.00 / - 0.07 _{(2.126 in.)}	Approx. Loose Circlip OD (Dr) 55.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 37.30 mm Clearance in Groove (C1): 41.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05100-C (5 Pcs) Internal Retaining Rings - 51x2x54 mm - Carbon Steel 1370 units (6850 pcs) Available Immediately \| Item Discontinued - Up to 1370 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.95 AUD Regular price ~~$8.73 AUD~~ Sale price $3.95 AUD Unit price per Per 5
Housing Bore (B) 51.00 mm _{(2.008 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 54.00 mm + 0.00 / - 0.07 _{(2.126 in.)}	Approx. Loose Circlip OD (Dr) 55.20 mm + 1.10 / - 0.46
Material: Carbon Steel Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 37.30 mm Clearance in Groove (C1): 41.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05100-C (5 Pcs) Internal Retaining Rings - 51x2x54 mm - Carbon Steel 1370 units (6850 pcs) Available Immediately \| Item Discontinued - Up to 1370 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.95 AUD Regular price ~~$8.73 AUD~~ Sale price $3.95 AUD Unit price per Per 5
CCI-05100-C (5 Pcs) --- Internal Retaining Rings - 51x2x54 mm - Carbon Steel Sale CCI-05100-C (5 Pcs) --- Internal Retaining Rings - 51x2x54 mm - Carbon Steel Regular price $3.95 AUD Regular price ~~$8.73 AUD~~ Sale price $3.95 AUD Unit price per 1370 Available Now Sale
Housing Bore (B) 51.00 mm _{(2.008 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 54.00 mm + 0.00 / - 0.07 _{(2.126 in.)}	Approx. Loose Circlip OD (Dr) 55.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 37.30 mm Clearance in Groove (C1): 41.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05100-S15 Internal Retaining Rings - 51x2x54 mm - Stainless Steel Grade PH15-7 Mo Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 51.00 mm _{(2.008 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 54.00 mm + 0.00 / - 0.07 _{(2.126 in.)}	Approx. Loose Circlip OD (Dr) 55.20 mm + 1.10 / - 0.46
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 37.30 mm Clearance in Groove (C1): 41.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05100-S15 Internal Retaining Rings - 51x2x54 mm - Stainless Steel Grade PH15-7 Mo Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 52.00 mm _{(2.047 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 55.00 mm + 0.00 / - 0.07 _{(2.165 in.)}	Approx. Loose Circlip OD (Dr) 56.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 37.90 mm Clearance in Groove (C1): 41.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05200-C (2 Pcs) Internal Retaining Rings - 52x2x55 mm - Carbon Steel 12 units (24 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 2
Housing Bore (B) 52.00 mm _{(2.047 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 55.00 mm + 0.00 / - 0.07 _{(2.165 in.)}	Approx. Loose Circlip OD (Dr) 56.20 mm + 1.10 / - 0.46
Material: Carbon Steel Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 37.90 mm Clearance in Groove (C1): 41.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05200-C (2 Pcs) Internal Retaining Rings - 52x2x55 mm - Carbon Steel 12 units (24 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-05200-C (2 Pcs) --- Internal Retaining Rings - 52x2x55 mm - Carbon Steel CCI-05200-C (2 Pcs) --- Internal Retaining Rings - 52x2x55 mm - Carbon Steel Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 12 Available Now
Housing Bore (B) 52.00 mm _{(2.047 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 55.00 mm + 0.00 / - 0.07 _{(2.165 in.)}	Approx. Loose Circlip OD (Dr) 56.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 37.90 mm Clearance in Groove (C1): 41.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05200-S15 Internal Retaining Rings - 52x2x55 mm - Stainless Steel Grade PH15-7 Mo 14 Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $32.95 AUD Regular price Sale price $32.95 AUD Unit price per Each
Housing Bore (B) 52.00 mm _{(2.047 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 55.00 mm + 0.00 / - 0.07 _{(2.165 in.)}	Approx. Loose Circlip OD (Dr) 56.20 mm + 1.10 / - 0.46
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.10 / - 0.00 Clearance in Bore (C): 37.90 mm Clearance in Groove (C1): 41.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05200-S15 Internal Retaining Rings - 52x2x55 mm - Stainless Steel Grade PH15-7 Mo 14 Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $32.95 AUD Regular price Sale price $32.95 AUD Unit price per Each View the product page first if you are unsure.
CCI-05200-S15 --- Internal Retaining Rings - 52x2x55 mm - Stainless Steel Grade PH15-7 Mo CCI-05200-S15 --- Internal Retaining Rings - 52x2x55 mm - Stainless Steel Grade PH15-7 Mo Regular price $32.95 AUD Regular price Sale price $32.95 AUD Unit price per 14 Available Now
Housing Bore (B) 52.00 mm _{(2.047 in.)}	Clip Thickness (T) 2.50 mm + 0.30 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 55.00 mm + 0.00 / - 0.07 _{(2.165 in.)}	Approx. Loose Circlip OD (Dr) 56.20 mm + 1.10 / - 0.46		Groove Width (W) 2.65 mm + 0.10 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05200H-C (62 Pcs) Internal Retaining Rings - 52x2.5x55 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 12, 2025 Regular price $220.77 AUD Regular price Sale price $220.77 AUD Unit price per Per 62
Housing Bore (B) 52.00 mm _{(2.047 in.)}	Clip Thickness (T) 2.50 mm + 0.30 / - 0.00 _{(0.098 in.)}	Groove Dia. (Dg) 55.00 mm + 0.00 / - 0.07 _{(2.165 in.)}	Approx. Loose Circlip OD (Dr) 56.20 mm + 1.10 / - 0.46
Material: Carbon Steel Groove Width (W): 2.65 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05200H-C (62 Pcs) Internal Retaining Rings - 52x2.5x55 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 12, 2025 Regular price $220.77 AUD Regular price Sale price $220.77 AUD Unit price per Per 62 View the product page first if you are unsure.
CCI-05200H-C (62 Pcs) --- Internal Retaining Rings - 52x2.5x55 mm - Carbon Steel CCI-05200H-C (62 Pcs) --- Internal Retaining Rings - 52x2.5x55 mm - Carbon Steel Regular price $220.77 AUD Regular price Sale price $220.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.52 mm + 0.00 / - 0.07 _{(2.186 in.)}	Approx. Loose Circlip OD (Dr) 57.91 mm + 1.02 / - 0.76		Groove Width (W) 2.18 mm + 0.13 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 40.89 mm Clearance in Groove (C1): 43.94 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.72 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-05239-CZY (4 Pcs) Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $20.77 AUD Regular price ~~$24.93 AUD~~ Sale price $20.77 AUD Unit price per Per 4
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.52 mm + 0.00 / - 0.07 _{(2.186 in.)}	Approx. Loose Circlip OD (Dr) 57.91 mm + 1.02 / - 0.76
Material: Carbon Steel Zinc Plated Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 40.89 mm Clearance in Groove (C1): 43.94 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.72 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-05239-CZY (4 Pcs) Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $20.77 AUD Regular price ~~$24.93 AUD~~ Sale price $20.77 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-05239-CZY (4 Pcs) --- Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Zinc Plated Sale CCI-05239-CZY (4 Pcs) --- Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Zinc Plated Regular price $20.77 AUD Regular price ~~$24.93 AUD~~ Sale price $20.77 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.52 mm + 0.00 / - 0.07 _{(2.186 in.)}	Approx. Loose Circlip OD (Dr) 57.91 mm + 1.02 / - 0.76		Groove Width (W) 2.18 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 40.89 mm Clearance in Groove (C1): 43.94 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.72 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05239-S15 Internal Retaining Rings - 52.39x1.98x55.52 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $31.05 AUD Regular price ~~$37.25 AUD~~ Sale price $31.05 AUD Unit price per Each
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.52 mm + 0.00 / - 0.07 _{(2.186 in.)}	Approx. Loose Circlip OD (Dr) 57.91 mm + 1.02 / - 0.76
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 40.89 mm Clearance in Groove (C1): 43.94 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.72 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05239-S15 Internal Retaining Rings - 52.39x1.98x55.52 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $31.05 AUD Regular price ~~$37.25 AUD~~ Sale price $31.05 AUD Unit price per Each View the product page first if you are unsure.
CCI-05239-S15 --- Internal Retaining Rings - 52.39x1.98x55.52 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-05239-S15 --- Internal Retaining Rings - 52.39x1.98x55.52 mm - Stainless Steel Grade PH15-7 Mo Regular price $31.05 AUD Regular price ~~$37.25 AUD~~ Sale price $31.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.52 mm + 0.00 / - 0.07 _{(2.186 in.)}	Approx. Loose Circlip OD (Dr) 57.91 mm + 1.02 / - 0.76		Groove Width (W) 2.18 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 40.89 mm Clearance in Groove (C1): 43.94 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.72 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05239-C (5 Pcs) Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Per 5
Housing Bore (B) 52.39 mm _{(2.063 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 55.52 mm + 0.00 / - 0.07 _{(2.186 in.)}	Approx. Loose Circlip OD (Dr) 57.91 mm + 1.02 / - 0.76
Material: Carbon Steel Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 40.89 mm Clearance in Groove (C1): 43.94 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.72 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05239-C (5 Pcs) Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-05239-C (5 Pcs) --- Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Sale CCI-05239-C (5 Pcs) --- Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Regular price $12.32 AUD Regular price ~~$14.78 AUD~~ Sale price $12.32 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 53.00 mm _{(2.087 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 56.00 mm + 0.00 / - 0.07 _{(2.205 in.)}	Approx. Loose Circlip OD (Dr) 57.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 38.90 mm Clearance in Groove (C1): 42.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05300-C (5 Pcs) Internal Retaining Rings - 53x2x56 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Per 5
Housing Bore (B) 53.00 mm _{(2.087 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 56.00 mm + 0.00 / - 0.07 _{(2.205 in.)}	Approx. Loose Circlip OD (Dr) 57.20 mm + 1.10 / - 0.46
Material: Carbon Steel Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 38.90 mm Clearance in Groove (C1): 42.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05300-C (5 Pcs) Internal Retaining Rings - 53x2x56 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-05300-C (5 Pcs) --- Internal Retaining Rings - 53x2x56 mm - Carbon Steel Sale CCI-05300-C (5 Pcs) --- Internal Retaining Rings - 53x2x56 mm - Carbon Steel Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 57.18 mm + 0.00 / - 0.07 _{(2.251 in.)}	Approx. Loose Circlip OD (Dr) 59.69 mm + 1.02 / - 0.76		Groove Width (W) 2.18 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 41.91 mm Clearance in Groove (C1): 45.21 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05398-C (2 Pcs) Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel 33 units (66 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 57.18 mm + 0.00 / - 0.07 _{(2.251 in.)}	Approx. Loose Circlip OD (Dr) 59.69 mm + 1.02 / - 0.76
Material: Carbon Steel Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 41.91 mm Clearance in Groove (C1): 45.21 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05398-C (2 Pcs) Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel 33 units (66 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-05398-C (2 Pcs) --- Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel CCI-05398-C (2 Pcs) --- Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 33 Available Now
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 57.18 mm + 0.00 / - 0.07 _{(2.251 in.)}	Approx. Loose Circlip OD (Dr) 59.69 mm + 1.02 / - 0.76		Groove Width (W) 2.18 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 41.91 mm Clearance in Groove (C1): 45.21 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05398-S15 Internal Retaining Rings - 53.98x1.98x57.18 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $39.50 AUD Regular price ~~$47.40 AUD~~ Sale price $39.50 AUD Unit price per Each
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 57.18 mm + 0.00 / - 0.07 _{(2.251 in.)}	Approx. Loose Circlip OD (Dr) 59.69 mm + 1.02 / - 0.76
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 41.91 mm Clearance in Groove (C1): 45.21 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05398-S15 Internal Retaining Rings - 53.98x1.98x57.18 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $39.50 AUD Regular price ~~$47.40 AUD~~ Sale price $39.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-05398-S15 --- Internal Retaining Rings - 53.98x1.98x57.18 mm - Stainless Steel Grade PH15-7 Mo Sale CCI-05398-S15 --- Internal Retaining Rings - 53.98x1.98x57.18 mm - Stainless Steel Grade PH15-7 Mo Regular price $39.50 AUD Regular price ~~$47.40 AUD~~ Sale price $39.50 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 57.18 mm + 0.00 / - 0.07 _{(2.251 in.)}	Approx. Loose Circlip OD (Dr) 59.69 mm + 1.02 / - 0.76		Groove Width (W) 2.18 mm + 0.13 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 41.91 mm Clearance in Groove (C1): 45.21 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.80 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-05398-CZY (4 Pcs) Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Per 4
Housing Bore (B) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.98 mm +/- 0.152 _{(0.078 in.)}	Groove Dia. (Dg) 57.18 mm + 0.00 / - 0.07 _{(2.251 in.)}	Approx. Loose Circlip OD (Dr) 59.69 mm + 1.02 / - 0.76
Material: Carbon Steel Zinc Plated Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 41.91 mm Clearance in Groove (C1): 45.21 mm Min. Lug Diameter (h): 2.31 mm Min. Extension (n): 4.80 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-05398-CZY (4 Pcs) Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-05398-CZY (4 Pcs) --- Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Zinc Plated Sale CCI-05398-CZY (4 Pcs) --- Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Zinc Plated Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 54.00 mm _{(2.126 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 57.00 mm + 0.00 / - 0.07 _{(2.244 in.)}	Approx. Loose Circlip OD (Dr) 58.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.13 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05400-S15 Internal Retaining Rings - 54x2x57 mm - Stainless Steel Grade PH15-7 Mo Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 54.00 mm _{(2.126 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 57.00 mm + 0.00 / - 0.07 _{(2.244 in.)}	Approx. Loose Circlip OD (Dr) 58.20 mm + 1.10 / - 0.46
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm + 0.13 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-05400-S15 Internal Retaining Rings - 54x2x57 mm - Stainless Steel Grade PH15-7 Mo Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 54.00 mm _{(2.126 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 57.00 mm + 0.00 / - 0.07 _{(2.244 in.)}	Approx. Loose Circlip OD (Dr) 58.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.13 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05400-C (250 Pcs) Internal Retaining Rings - 54x2x57 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $436.23 AUD Regular price ~~$523.47 AUD~~ Sale price $436.23 AUD Unit price per Per 250
Housing Bore (B) 54.00 mm _{(2.126 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 57.00 mm + 0.00 / - 0.07 _{(2.244 in.)}	Approx. Loose Circlip OD (Dr) 58.20 mm + 1.10 / - 0.46
Material: Carbon Steel Groove Width (W): 2.15 mm + 0.13 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05400-C (250 Pcs) Internal Retaining Rings - 54x2x57 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $436.23 AUD Regular price ~~$523.47 AUD~~ Sale price $436.23 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-05400-C (250 Pcs) --- Internal Retaining Rings - 54x2x57 mm - Carbon Steel Sale CCI-05400-C (250 Pcs) --- Internal Retaining Rings - 54x2x57 mm - Carbon Steel Regular price $436.23 AUD Regular price ~~$523.47 AUD~~ Sale price $436.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 55.00 mm _{(2.165 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 58.00 mm + 0.00 / - 0.07 _{(2.283 in.)}	Approx. Loose Circlip OD (Dr) 59.20 mm + 1.10 / - 0.46		Groove Width (W) 2.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 40.70 mm Clearance in Groove (C1): 44.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05500-C (5 Pcs) Internal Retaining Rings - 55x2x58 mm - Carbon Steel 41 units (205 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 5
Housing Bore (B) 55.00 mm _{(2.165 in.)}	Clip Thickness (T) 2.00 mm + 0.30 / - 0.00 _{(0.079 in.)}	Groove Dia. (Dg) 58.00 mm + 0.00 / - 0.07 _{(2.283 in.)}	Approx. Loose Circlip OD (Dr) 59.20 mm + 1.10 / - 0.46
Material: Carbon Steel Groove Width (W): 2.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 40.70 mm Clearance in Groove (C1): 44.40 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-05500-C (5 Pcs) Internal Retaining Rings - 55x2x58 mm - Carbon Steel 41 units (205 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 12, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-05500-C (5 Pcs) --- Internal Retaining Rings - 55x2x58 mm - Carbon Steel CCI-05500-C (5 Pcs) --- Internal Retaining Rings - 55x2x58 mm - Carbon Steel Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per 41 Available Now
