Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings (With Images)

Internal

Circlips

Tabbed

511 Products in this selection

This is a combined category of Standard Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Standard. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03175-CZY (7 Pcs) Internal Retaining Rings - 31.75x1.27x33.72 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Per 7
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03175-CZY (7 Pcs) Internal Retaining Rings - 31.75x1.27x33.72 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Per 7 View the product page first if you are unsure.
CCI-03175-CZY (7 Pcs) --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Carbon Steel Zinc Plated CCI-03175-CZY (7 Pcs) --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Carbon Steel Zinc Plated Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00

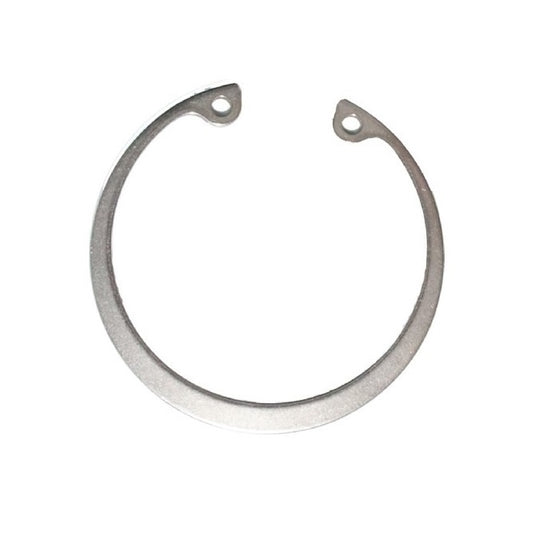

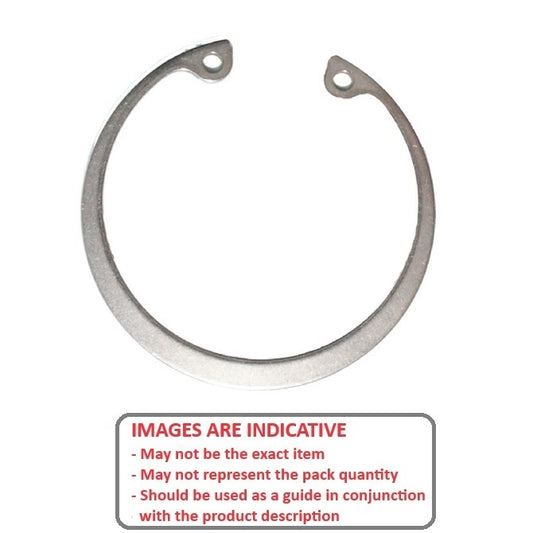

Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03175-S15 Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo 13 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03175-S15 Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo 13 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each View the product page first if you are unsure.
CCI-03175-S15 --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo CCI-03175-S15 --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per 13 Available Now
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03200-S15 (5 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 5
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03200-S15 (5 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03200-S15 (5 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo CCI-03200-S15 (5 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03200-C (10 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel 31 units (310 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 10
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03200-C (10 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel 31 units (310 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-03200-C (10 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel CCI-03200-C (10 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per 31 Available Now
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03200H-C (250 Pcs) Internal Retaining Rings - 32x1.5x33.71 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $240.77 AUD Regular price Sale price $240.77 AUD Unit price per Per 250
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03200H-C (250 Pcs) Internal Retaining Rings - 32x1.5x33.71 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $240.77 AUD Regular price Sale price $240.77 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03200H-C (250 Pcs) --- Internal Retaining Rings - 32x1.5x33.71 mm - Carbon Steel CCI-03200H-C (250 Pcs) --- Internal Retaining Rings - 32x1.5x33.71 mm - Carbon Steel Regular price $240.77 AUD Regular price Sale price $240.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03300-C (5 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Carbon Steel 38 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 5
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03300-C (5 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Carbon Steel 38 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03300-C (5 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Carbon Steel CCI-03300-C (5 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Carbon Steel Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per 38 Available Now
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03300-S15 (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Per 250
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03300-S15 (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03300-S15 (250 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo CCI-03300-S15 (250 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.20 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03338-S15 (2 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 2
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.20 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03338-S15 (2 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03338-S15 (2 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Stainless Steel Grade PH15-7 Mo CCI-03338-S15 (2 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.20 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03338-CZY (5 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Per 5
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.20 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03338-CZY (5 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03338-CZY (5 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated CCI-03338-CZY (5 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.20 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03338-C (50 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Per 50
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.20 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03338-C (50 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03338-C (50 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel CCI-03338-C (50 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.50 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 22.60 mm Clearance in Groove (C1): 24.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03400-C (5 Pcs) Internal Retaining Rings - 34x1.5x35.7 mm - Carbon Steel 99 units (495 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Per 5
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.50 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.60 mm Clearance in Groove (C1): 24.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03400-C (5 Pcs) Internal Retaining Rings - 34x1.5x35.7 mm - Carbon Steel 99 units (495 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03400-C (5 Pcs) --- Internal Retaining Rings - 34x1.5x35.7 mm - Carbon Steel CCI-03400-C (5 Pcs) --- Internal Retaining Rings - 34x1.5x35.7 mm - Carbon Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 99 Available Now
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.50 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 22.60 mm Clearance in Groove (C1): 24.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03400-S15 (2 Pcs) Internal Retaining Rings - 34x1.5x35.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Per 2
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.50 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.60 mm Clearance in Groove (C1): 24.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03400-S15 (2 Pcs) Internal Retaining Rings - 34x1.5x35.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03400-S15 (2 Pcs) --- Internal Retaining Rings - 34x1.5x35.7 mm - Stainless Steel Grade PH15-7 Mo CCI-03400-S15 (2 Pcs) --- Internal Retaining Rings - 34x1.5x35.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.60 mm + 0.50 / - 0.25		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03400H-C Internal Retaining Rings - 34x1.75x35.7 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.60 mm + 0.50 / - 0.25
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.85 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03400H-C Internal Retaining Rings - 34x1.75x35.7 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.28 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03493-CZY (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Per 50
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.28 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03493-CZY (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03493-CZY (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated CCI-03493-CZY (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.28 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03493-S15 (2 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Per 2
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.28 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03493-S15 (2 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03493-S15 (2 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Stainless Steel Grade PH15-7 Mo CCI-03493-S15 (2 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Stainless Steel Grade PH15-7 Mo Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.28 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03493-C (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 50
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.28 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03493-C (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03493-C (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel CCI-03493-C (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03500-C (5 Pcs) Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel 119 units (595 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 5
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03500-C (5 Pcs) Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel 119 units (595 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03500-C (5 Pcs) --- Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel CCI-03500-C (5 Pcs) --- Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 119 Available Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03500-S15 Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03500-S15 Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each View the product page first if you are unsure.
CCI-03500-S15 --- Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo CCI-03500-S15 --- Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 2 Available Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03500H-C (250 Pcs) Internal Retaining Rings - 35x1.75x37 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $548.23 AUD Regular price Sale price $548.23 AUD Unit price per Per 250
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.85 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03500H-C (250 Pcs) Internal Retaining Rings - 35x1.75x37 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $548.23 AUD Regular price Sale price $548.23 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03500H-C (250 Pcs) --- Internal Retaining Rings - 35x1.75x37 mm - Carbon Steel CCI-03500H-C (250 Pcs) --- Internal Retaining Rings - 35x1.75x37 mm - Carbon Steel Regular price $548.23 AUD Regular price Sale price $548.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 24.60 mm Clearance in Groove (C1): 27.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03600-C (5 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Carbon Steel 16 units (80 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 5
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 24.60 mm Clearance in Groove (C1): 27.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03600-C (5 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Carbon Steel 16 units (80 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03600-C (5 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Carbon Steel CCI-03600-C (5 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Carbon Steel Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per 16 Available Now
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 24.60 mm Clearance in Groove (C1): 27.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03600-S15 (2 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Per 2
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 24.60 mm Clearance in Groove (C1): 27.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03600-S15 (2 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03600-S15 (2 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Stainless Steel Grade PH15-7 Mo CCI-03600-S15 (2 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Stainless Steel Grade PH15-7 Mo Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.43 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03653-S15 (2 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Per 2
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.43 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-03653-S15 (2 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03653-S15 (2 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Stainless Steel Grade PH15-7 Mo CCI-03653-S15 (2 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Stainless Steel Grade PH15-7 Mo Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.43 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03653-CZY (6 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Per 6
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.43 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-03653-CZY (6 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Per 6 View the product page first if you are unsure.
CCI-03653-CZY (6 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated CCI-03653-CZY (6 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.43 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03653-C (50 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $82.59 AUD Regular price Sale price $82.59 AUD Unit price per Per 50
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.43 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-03653-C (50 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $82.59 AUD Regular price Sale price $82.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03653-C (50 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel CCI-03653-C (50 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Regular price $82.59 AUD Regular price Sale price $82.59 AUD Unit price per Out of stock! Backorder Now
