| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

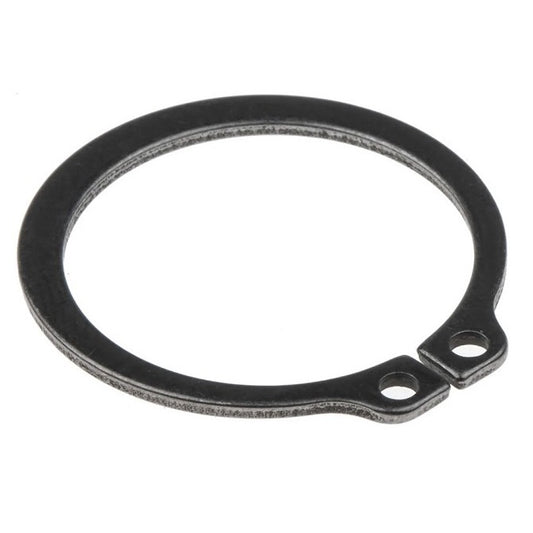

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
72.09
mm +/- 0.076 (2.838 in.) |
Approx. Loose Circlip ID (A)
70.49
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 90.17 mm Clearance in Groove (C1): 85.85 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.40 Standard: MIL-16624 | ||||||
|
Part Number: CCE-07620-C External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel
9 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
72.09
mm +/- 0.076 (2.838 in.) |
Approx. Loose Circlip ID (A)
70.49
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 90.17 mm Clearance in Groove (C1): 85.85 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.40 Standard: MIL-16624 | ||||||
|
Part Number: CCE-07620-C External Retaining Rings - 76.2x2.36x72.09 mm - Carbon Steel
9 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
77.79
mm (3.063 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
73.61
mm +/- 0.076 (2.898 in.) |
Approx. Loose Circlip ID (A)
73.00
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Standard: MIL-16624 | ||||||
|
Part Number: CCE-07779-C External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$37.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
77.79
mm (3.063 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
73.61
mm +/- 0.076 (2.898 in.) |
Approx. Loose Circlip ID (A)
73.00
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Standard: MIL-16624 | ||||||
|
Part Number: CCE-07779-C External Retaining Rings - 77.79x2.36x73.61 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$37.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
78.00
mm (3.071 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
74.78
mm + 0.00 / - 0.07 (2.944 in.) |
Approx. Loose Circlip ID (A)
72.40
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 92.20 mm Clearance in Groove (C1): 96.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-07800-C (4 Pcs) External Retaining Rings - 78x2.5x74.78 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.95 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Shaft Diameter (Ds)
78.00
mm (3.071 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
74.78
mm + 0.00 / - 0.07 (2.944 in.) |
Approx. Loose Circlip ID (A)
72.40
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 92.20 mm Clearance in Groove (C1): 96.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-07800-C (4 Pcs) External Retaining Rings - 78x2.5x74.78 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.95 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Shaft Diameter (Ds)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
75.11
mm +/- 0.076 (2.957 in.) |
Approx. Loose Circlip ID (A)
73.46
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 95.25 mm Clearance in Groove (C1): 90.68 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.63 Standard: MIL-16624 | ||||||
|
Part Number: CCE-07938-C (2 Pcs) External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
75.11
mm +/- 0.076 (2.957 in.) |
Approx. Loose Circlip ID (A)
73.46
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 95.25 mm Clearance in Groove (C1): 90.68 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.63 Standard: MIL-16624 | ||||||
|
Part Number: CCE-07938-C (2 Pcs) External Retaining Rings - 79.38x2.36x75.11 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
80.00
mm (3.15 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
76.50
mm + 0.00 / - 0.07 (3.012 in.) |
Approx. Loose Circlip ID (A)
74.50
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 93.70 mm Clearance in Groove (C1): 98.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-08000-C External Retaining Rings - 80x2.5x76.5 mm - Carbon Steel
52 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
80.00
mm (3.15 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
76.50
mm + 0.00 / - 0.07 (3.012 in.) |
Approx. Loose Circlip ID (A)
74.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 93.70 mm Clearance in Groove (C1): 98.10 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-08000-C External Retaining Rings - 80x2.5x76.5 mm - Carbon Steel
52 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
80.17
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
75.84
mm +/- 0.076 (2.986 in.) |
Approx. Loose Circlip ID (A)
74.20
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Min. Extension (n): 6.71 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08017-C (2 Pcs) External Retaining Rings - 80.17x2.36x75.84 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$17.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
80.17
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
75.84
mm +/- 0.076 (2.986 in.) |
Approx. Loose Circlip ID (A)
74.20
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Min. Extension (n): 6.71 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08017-C (2 Pcs) External Retaining Rings - 80.17x2.36x75.84 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$17.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
82.00
mm (3.228 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
78.50
mm + 0.00 / - 0.07 (3.091 in.) |
Approx. Loose Circlip ID (A)
76.50
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 95.90 mm Clearance in Groove (C1): 100.30 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-08200-C (10 Pcs) External Retaining Rings - 82x2.5x78.5 mm - Carbon Steel
1 pack (10 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
82.00
mm (3.228 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
78.50
mm + 0.00 / - 0.07 (3.091 in.) |
Approx. Loose Circlip ID (A)
76.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 95.90 mm Clearance in Groove (C1): 100.30 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-08200-C (10 Pcs) External Retaining Rings - 82x2.5x78.5 mm - Carbon Steel
1 pack (10 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
82.55
mm (3.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
78.13
mm +/- 0.076 (3.076 in.) |
Approx. Loose Circlip ID (A)
76.35
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 97.28 mm Clearance in Groove (C1): 92.71 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.86 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08255-C (2 Pcs) External Retaining Rings - 82.55x2.36x78.13 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$18.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
82.55
mm (3.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
78.13
mm +/- 0.076 (3.076 in.) |
Approx. Loose Circlip ID (A)
76.35
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 97.28 mm Clearance in Groove (C1): 92.71 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.86 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08255-C (2 Pcs) External Retaining Rings - 82.55x2.36x78.13 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$18.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
84.99
mm (3.346 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
80.42
mm +/- 0.076 (3.166 in.) |
Approx. Loose Circlip ID (A)
78.54
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 99.82 mm Clearance in Groove (C1): 95.00 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.09 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08499-C External Retaining Rings - 84.99x2.36x80.42 mm - Carbon Steel
34 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
84.99
mm (3.346 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
80.42
mm +/- 0.076 (3.166 in.) |
Approx. Loose Circlip ID (A)
78.54
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 99.82 mm Clearance in Groove (C1): 95.00 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.09 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08499-C External Retaining Rings - 84.99x2.36x80.42 mm - Carbon Steel
34 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
85.00
mm (3.346 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
81.50
mm + 0.00 / - 0.08 (3.209 in.) |
Approx. Loose Circlip ID (A)
79.50
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 98.90 mm Clearance in Groove (C1): 103.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-08500-C External Retaining Rings - 85x3x81.5 mm - Carbon Steel
13 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
85.00
mm (3.346 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
81.50
mm + 0.00 / - 0.08 (3.209 in.) |
Approx. Loose Circlip ID (A)
79.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.15 mm Clearance on Shaft (C1): 98.90 mm Clearance in Groove (C1): 103.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-08500-C External Retaining Rings - 85x3x81.5 mm - Carbon Steel
13 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
87.31
mm (3.437 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.076 (3.257 in.) |
Approx. Loose Circlip ID (A)
80.75
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 102.11 mm Clearance in Groove (C1): 97.28 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.11 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08731-C External Retaining Rings - 87.31x2.36x82.73 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
87.31
mm (3.437 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.076 (3.257 in.) |
Approx. Loose Circlip ID (A)
80.75
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 102.11 mm Clearance in Groove (C1): 97.28 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.11 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08731-C External Retaining Rings - 87.31x2.36x82.73 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.00
mm (3.465 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
84.45
mm + 0.00 / - 0.08 (3.325 in.) |
Approx. Loose Circlip ID (A)
82.50
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 102.00 mm Clearance in Groove (C1): 106.50 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-08800-C External Retaining Rings - 88x3x84.45 mm - Carbon Steel
20 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$2.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
88.00
mm (3.465 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
84.45
mm + 0.00 / - 0.08 (3.325 in.) |
Approx. Loose Circlip ID (A)
82.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.15 mm Clearance on Shaft (C1): 102.00 mm Clearance in Groove (C1): 106.50 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-08800-C External Retaining Rings - 88x3x84.45 mm - Carbon Steel
20 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$2.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.22
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 105.41 mm Clearance in Groove (C1): 100.58 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.24 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08890-C (2 Pcs) External Retaining Rings - 88.9x2.77x84.23 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.22
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 105.41 mm Clearance in Groove (C1): 100.58 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.24 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08890-C (2 Pcs) External Retaining Rings - 88.9x2.77x84.23 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.076 (3.357 in.) |
Approx. Loose Circlip ID (A)
83.24
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 106.68 mm Clearance in Groove (C1): 101.60 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.32 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08999-C External Retaining Rings - 89.99x2.77x85.27 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$24.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.076 (3.357 in.) |
Approx. Loose Circlip ID (A)
83.24
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 106.68 mm Clearance in Groove (C1): 101.60 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.32 Standard: MIL-16624 | ||||||
|
Part Number: CCE-08999-C External Retaining Rings - 89.99x2.77x85.27 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$24.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
90.00
mm (3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
86.50
mm + 0.00 / - 0.08 (3.406 in.) |
Approx. Loose Circlip ID (A)
84.50
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Steel Clearance in Groove (C1): 108.50 mm Min. Lug Diameter (h): 3.50 mm Standard: DIN471 | ||||||
|
Part Number: CCE-09000-C External Retaining Rings - 90x3x86.5 mm - Carbon Steel
52 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
90.00
mm (3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
86.50
mm + 0.00 / - 0.08 (3.406 in.) |
Approx. Loose Circlip ID (A)
84.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.15 mm Clearance in Groove (C1): 108.50 mm Min. Lug Diameter (h): 3.50 mm Standard: DIN471 | ||||||
|
Part Number: CCE-09000-C External Retaining Rings - 90x3x86.5 mm - Carbon Steel
52 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
90.00
mm (3.543 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.35 (0.157 in.) |
Groove Dia. (Dg)
86.50
mm + 0.00 / - 0.10 (3.406 in.) |
Approx. Loose Circlip ID (A)
84.50
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 111.40 mm Clearance in Groove (C1): 106.90 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-09000H-C (25 Pcs) External Retaining Rings - 90x4x86.5 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$317.41 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Shaft Diameter (Ds)
90.00
mm (3.543 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.35 (0.157 in.) |
Groove Dia. (Dg)
86.50
mm + 0.00 / - 0.10 (3.406 in.) |
Approx. Loose Circlip ID (A)
84.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 111.40 mm Clearance in Groove (C1): 106.90 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-09000H-C (25 Pcs) External Retaining Rings - 90x4x86.5 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$317.41 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Shaft Diameter (Ds)
92.00
mm (3.622 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
88.15
mm + 0.00 / - 0.08 (3.47 in.) |
Approx. Loose Circlip ID (A)
84.20
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Min. Lug Diameter (h): 3.50 mm Standard: DIN471 | ||||||
|
Part Number: CCE-09200-C External Retaining Rings - 92x3x88.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
92.00
mm (3.622 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
88.15
mm + 0.00 / - 0.08 (3.47 in.) |
Approx. Loose Circlip ID (A)
84.20
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 3.15 mm Min. Lug Diameter (h): 3.50 mm Standard: DIN471 | ||||||
|
Part Number: CCE-09200-C External Retaining Rings - 92x3x88.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
92.08
mm (3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
87.25
mm +/- 0.076 (3.435 in.) |
Approx. Loose Circlip ID (A)
85.14
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 108.71 mm Clearance in Groove (C1): 103.89 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.47 Standard: MIL-16624 | ||||||
|
Part Number: CCE-09208-C External Retaining Rings - 92.08x2.77x87.25 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$27.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
92.08
mm (3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
87.25
mm +/- 0.076 (3.435 in.) |
Approx. Loose Circlip ID (A)
85.14
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 108.71 mm Clearance in Groove (C1): 103.89 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.47 Standard: MIL-16624 | ||||||
|
Part Number: CCE-09208-C External Retaining Rings - 92.08x2.77x87.25 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$27.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
93.68
mm (3.688 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
88.72
mm +/- 0.076 (3.493 in.) |
Approx. Loose Circlip ID (A)
86.61
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 109.47 mm Clearance in Groove (C1): 104.39 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.65 Standard: MIL-16624 | ||||||
|
Part Number: CCE-09368-C External Retaining Rings - 93.68x2.77x88.72 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
93.68
mm (3.688 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
88.72
mm +/- 0.076 (3.493 in.) |
Approx. Loose Circlip ID (A)
86.61
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 109.47 mm Clearance in Groove (C1): 104.39 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.65 Standard: MIL-16624 | ||||||
|
Part Number: CCE-09368-C External Retaining Rings - 93.68x2.77x88.72 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.00
mm (3.74 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.08 (3.602 in.) |
Approx. Loose Circlip ID (A)
89.50
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 111.00 mm Clearance in Groove (C1): 114.80 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-09500-C External Retaining Rings - 95x3x91.5 mm - Carbon Steel
20 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
95.00
mm (3.74 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.08 (3.602 in.) |
Approx. Loose Circlip ID (A)
89.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.15 mm Clearance on Shaft (C1): 111.00 mm Clearance in Groove (C1): 114.80 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-09500-C External Retaining Rings - 95x3x91.5 mm - Carbon Steel
20 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.00
mm (3.74 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.35 (0.157 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.10 (3.602 in.) |
Approx. Loose Circlip ID (A)
89.50
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Clearance on Shaft (C1): 116.60 mm Clearance in Groove (C1): 112.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-09500H-C External Retaining Rings - 95x4x91.5 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.00
mm (3.74 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.35 (0.157 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.10 (3.602 in.) |
Approx. Loose Circlip ID (A)
89.50
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Clearance on Shaft (C1): 116.60 mm Clearance in Groove (C1): 112.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-09500H-C External Retaining Rings - 95x4x91.5 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
90.25
mm +/- 0.076 (3.553 in.) |
Approx. Loose Circlip ID (A)
88.09
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 112.78 mm Clearance in Groove (C1): 107.44 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.77 Standard: MIL-16624 | ||||||
|
Part Number: CCE-09525-C External Retaining Rings - 95.25x2.77x90.25 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
90.25
mm +/- 0.076 (3.553 in.) |
Approx. Loose Circlip ID (A)
88.09
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 112.78 mm Clearance in Groove (C1): 107.44 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.77 Standard: MIL-16624 | ||||||
|
Part Number: CCE-09525-C External Retaining Rings - 95.25x2.77x90.25 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
97.00
mm (3.819 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
93.15
mm + 0.00 / - 0.08 (3.667 in.) |
Approx. Loose Circlip ID (A)
90.20
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Min. Lug Diameter (h): 3.50 mm Standard: DIN471 | ||||||
|
Part Number: CCE-09700-C (4 Pcs) External Retaining Rings - 97x3x93.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
97.00
mm (3.819 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
93.15
mm + 0.00 / - 0.08 (3.667 in.) |
Approx. Loose Circlip ID (A)
90.20
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 3.15 mm Min. Lug Diameter (h): 3.50 mm Standard: DIN471 | ||||||
|
Part Number: CCE-09700-C (4 Pcs) External Retaining Rings - 97x3x93.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.00
mm (3.858 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
94.15
mm + 0.00 / - 0.08 (3.707 in.) |
Approx. Loose Circlip ID (A)
91.20
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Clearance on Shaft (C1): 114.00 mm Clearance in Groove (C1): 118.60 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-09800-C External Retaining Rings - 98x3x94.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.00
mm (3.858 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
94.15
mm + 0.00 / - 0.08 (3.707 in.) |
Approx. Loose Circlip ID (A)
91.20
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 3.15 mm Clearance on Shaft (C1): 114.00 mm Clearance in Groove (C1): 118.60 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-09800-C External Retaining Rings - 98x3x94.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
