| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

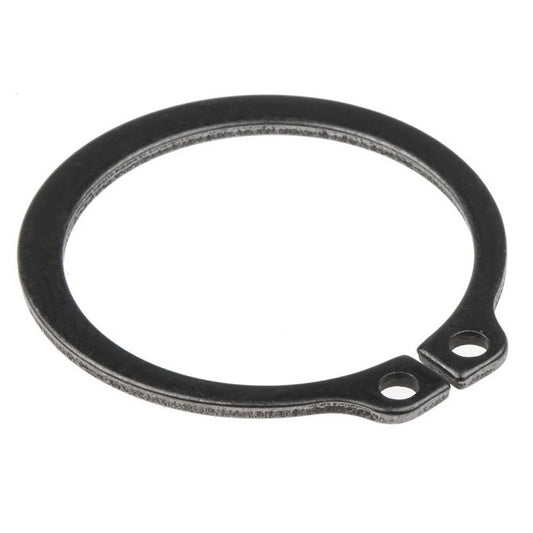

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
93.19
mm +/- 0.076 (3.669 in.) |
Approx. Loose Circlip ID (A)
91.03
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 115.82 mm Clearance in Groove (C1): 110.49 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.93 Standard: MIL-16624 | ||||||
|
Part Number: CCE-09843-C (250 Pcs) External Retaining Rings - 98.43x2.77x93.19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$6,665.68 AUD
Regular price
Unit price
per
Per 250
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
93.19
mm +/- 0.076 (3.669 in.) |
Approx. Loose Circlip ID (A)
91.03
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 115.82 mm Clearance in Groove (C1): 110.49 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.93 Standard: MIL-16624 | ||||||
|
Part Number: CCE-09843-C (250 Pcs) External Retaining Rings - 98.43x2.77x93.19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$6,665.68 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (3.799 in.) |
Approx. Loose Circlip ID (A)
94.50
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 116.00 mm Clearance in Groove (C1): 120.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-10000-C External Retaining Rings - 100x3x96.5 mm - Carbon Steel
80 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (3.799 in.) |
Approx. Loose Circlip ID (A)
94.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.15 mm Clearance on Shaft (C1): 116.00 mm Clearance in Groove (C1): 120.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN471 | ||||||
|
Part Number: CCE-10000-C External Retaining Rings - 100x3x96.5 mm - Carbon Steel
80 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
100.01
mm (3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
94.78
mm +/- 0.076 (3.731 in.) |
Approx. Loose Circlip ID (A)
92.51
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 116.84 mm Clearance in Groove (C1): 111.51 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.00 Standard: MIL-16624 | ||||||
|
Part Number: CCE-10001-C External Retaining Rings - 100.01x2.77x94.78 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
100.01
mm (3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
94.78
mm +/- 0.076 (3.731 in.) |
Approx. Loose Circlip ID (A)
92.51
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 116.84 mm Clearance in Groove (C1): 111.51 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.00 Standard: MIL-16624 | ||||||
|
Part Number: CCE-10001-C External Retaining Rings - 100.01x2.77x94.78 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
101.60
mm (4 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
96.32
mm +/- 0.076 (3.792 in.) |
Approx. Loose Circlip ID (A)
93.98
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 114.30 mm Clearance in Groove (C1): 199.89 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.15 Standard: MIL-16624 | ||||||
|
Part Number: CCE-10160-C External Retaining Rings - 101.6x2.77x96.32 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$17.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
101.60
mm (4 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
96.32
mm +/- 0.076 (3.792 in.) |
Approx. Loose Circlip ID (A)
93.98
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 114.30 mm Clearance in Groove (C1): 199.89 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.15 Standard: MIL-16624 | ||||||
|
Part Number: CCE-10160-C External Retaining Rings - 101.6x2.77x96.32 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$17.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
102.00
mm (4.016 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
98.00
mm + 0.00 / - 0.10 (3.858 in.) |
Approx. Loose Circlip ID (A)
96.20
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Clearance on Shaft (C1): 118.00 mm Clearance in Groove (C1): 122.40 mm Min. Lug Diameter (h): 3.500 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-10200-C External Retaining Rings - 102x4x98 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
102.00
mm (4.016 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
98.00
mm + 0.00 / - 0.10 (3.858 in.) |
Approx. Loose Circlip ID (A)
96.20
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Clearance on Shaft (C1): 118.00 mm Clearance in Groove (C1): 122.40 mm Min. Lug Diameter (h): 3.500 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-10200-C External Retaining Rings - 102x4x98 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
104.78
mm (4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
99.60
mm +/- 0.076 (3.921 in.) |
Approx. Loose Circlip ID (A)
96.50
mm |
Groove Width (W)
3.10
mm |
|
|
| Material: Carbon Steel Standard: MIL-16624 | ||||||
|
Part Number: CCE-10478-C (5 Pcs) External Retaining Rings - 104.78x2.77x99.6 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$367.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
104.78
mm (4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
99.60
mm +/- 0.076 (3.921 in.) |
Approx. Loose Circlip ID (A)
96.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.10 mm Standard: MIL-16624 | ||||||
|
Part Number: CCE-10478-C (5 Pcs) External Retaining Rings - 104.78x2.77x99.6 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$367.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
105.00
mm (4.134 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
101.00
mm + 0.00 / - 0.10 (3.976 in.) |
Approx. Loose Circlip ID (A)
98.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 122.00 mm Clearance in Groove (C1): 126.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-10500-C External Retaining Rings - 105x4x101 mm - Carbon Steel
20 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
105.00
mm (4.134 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
101.00
mm + 0.00 / - 0.10 (3.976 in.) |
Approx. Loose Circlip ID (A)
98.00
mm |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 122.00 mm Clearance in Groove (C1): 126.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-10500-C External Retaining Rings - 105x4x101 mm - Carbon Steel
20 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
105.00
mm (4.134 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.54 (0.197 in.) |
Groove Dia. (Dg)
101.00
mm + 0.00 / - 0.12 (3.976 in.) |
Approx. Loose Circlip ID (A)
98.00
mm |
Groove Width (W)
5.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-10500H-C External Retaining Rings - 105x5x101 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
105.00
mm (4.134 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.54 (0.197 in.) |
Groove Dia. (Dg)
101.00
mm + 0.00 / - 0.12 (3.976 in.) |
Approx. Loose Circlip ID (A)
98.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-10500H-C External Retaining Rings - 105x5x101 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
107.95
mm (4.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
103.19
mm +/- 0.076 (4.063 in.) |
Approx. Loose Circlip ID (A)
101.32
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 119.89 mm Clearance in Groove (C1): 124.71 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.29 Standard: MIL-16624 | ||||||
|
Part Number: CCE-10795-C External Retaining Rings - 107.95x2.77x103.19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
107.95
mm (4.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
103.19
mm +/- 0.076 (4.063 in.) |
Approx. Loose Circlip ID (A)
101.32
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 119.89 mm Clearance in Groove (C1): 124.71 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.29 Standard: MIL-16624 | ||||||
|
Part Number: CCE-10795-C External Retaining Rings - 107.95x2.77x103.19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
108.00
mm (4.252 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
103.46
mm + 0.00 / - 0.10 (4.073 in.) |
Approx. Loose Circlip ID (A)
101.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Clearance on Shaft (C1): 124.00 mm Clearance in Groove (C1): 129.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-10800-C External Retaining Rings - 108x4x103.46 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
108.00
mm (4.252 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
103.46
mm + 0.00 / - 0.10 (4.073 in.) |
Approx. Loose Circlip ID (A)
101.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Clearance on Shaft (C1): 124.00 mm Clearance in Groove (C1): 129.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-10800-C External Retaining Rings - 108x4x103.46 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
110.00
mm (4.331 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.10 (4.173 in.) |
Approx. Loose Circlip ID (A)
103.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 127.00 mm Clearance in Groove (C1): 131.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-11000-C External Retaining Rings - 110x4x106 mm - Carbon Steel
1 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$16.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
110.00
mm (4.331 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.10 (4.173 in.) |
Approx. Loose Circlip ID (A)
103.00
mm |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 127.00 mm Clearance in Groove (C1): 131.20 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-11000-C External Retaining Rings - 110x4x106 mm - Carbon Steel
1 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$16.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
110.00
mm (4.331 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.54 (0.197 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.12 (4.173 in.) |
Approx. Loose Circlip ID (A)
102.80
mm |
Groove Width (W)
5.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-11000H-C External Retaining Rings - 110x5x106 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
110.00
mm (4.331 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.54 (0.197 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.12 (4.173 in.) |
Approx. Loose Circlip ID (A)
102.80
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-11000H-C External Retaining Rings - 110x5x106 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
111.00
mm (4.37 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
107.00
mm + 0.00 / - 0.10 (4.213 in.) |
Approx. Loose Circlip ID (A)
103.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Clearance on Shaft (C1): 127.00 mm Clearance in Groove (C1): 131.20 mm Min. Lug Diameter (h): 3.500 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-11100-C External Retaining Rings - 111x4x107 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
111.00
mm (4.37 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
107.00
mm + 0.00 / - 0.10 (4.213 in.) |
Approx. Loose Circlip ID (A)
103.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Clearance on Shaft (C1): 127.00 mm Clearance in Groove (C1): 131.20 mm Min. Lug Diameter (h): 3.500 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-11100-C External Retaining Rings - 111x4x107 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
111.13
mm (4.375 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
106.40
mm +/- 0.076 (4.189 in.) |
Approx. Loose Circlip ID (A)
104.30
mm |
Groove Width (W)
3.10
mm |
|
|
| Material: Carbon Steel Standard: MIL-16624 | ||||||
|
Part Number: CCE-11113-C External Retaining Rings - 111.13x2.77x106.4 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$33.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
111.13
mm (4.375 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
106.40
mm +/- 0.076 (4.189 in.) |
Approx. Loose Circlip ID (A)
104.30
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.10 mm Standard: MIL-16624 | ||||||
|
Part Number: CCE-11113-C External Retaining Rings - 111.13x2.77x106.4 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$33.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
112.00
mm (4.409 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
108.00
mm + 0.00 / - 0.10 (4.252 in.) |
Approx. Loose Circlip ID (A)
105.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN471 | ||||||
|
Part Number: CCE-11200-C External Retaining Rings - 112x4x108 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
112.00
mm (4.409 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
108.00
mm + 0.00 / - 0.10 (4.252 in.) |
Approx. Loose Circlip ID (A)
105.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Standard: DIN471 | ||||||
|
Part Number: CCE-11200-C External Retaining Rings - 112x4x108 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
114.30
mm (4.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
109.50
mm +/- 0.076 (4.311 in.) |
Approx. Loose Circlip ID (A)
107.30
mm |
Groove Width (W)
3.10
mm |
|
|
| Material: Carbon Steel Standard: MIL-16624 | ||||||
|
Part Number: CCE-11430-C External Retaining Rings - 114.3x2.77x109.5 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$24.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
114.30
mm (4.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
109.50
mm +/- 0.076 (4.311 in.) |
Approx. Loose Circlip ID (A)
107.30
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.10 mm Standard: MIL-16624 | ||||||
|
Part Number: CCE-11430-C External Retaining Rings - 114.3x2.77x109.5 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$24.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
115.00
mm (4.528 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
111.00
mm + 0.00 / - 0.10 (4.37 in.) |
Approx. Loose Circlip ID (A)
108.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 133.00 mm Clearance in Groove (C1): 137.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-11500-C External Retaining Rings - 115x4x111 mm - Carbon Steel
32 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$17.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
115.00
mm (4.528 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
111.00
mm + 0.00 / - 0.10 (4.37 in.) |
Approx. Loose Circlip ID (A)
108.00
mm |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 133.00 mm Clearance in Groove (C1): 137.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-11500-C External Retaining Rings - 115x4x111 mm - Carbon Steel
32 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$17.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
115.00
mm (4.528 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.54 (0.197 in.) |
Groove Dia. (Dg)
111.00
mm + 0.00 / - 0.12 (4.37 in.) |
Approx. Loose Circlip ID (A)
108.00
mm |
Groove Width (W)
5.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-11500H-C External Retaining Rings - 115x5x111 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
115.00
mm (4.528 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.54 (0.197 in.) |
Groove Dia. (Dg)
111.00
mm + 0.00 / - 0.12 (4.37 in.) |
Approx. Loose Circlip ID (A)
108.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-11500H-C External Retaining Rings - 115x5x111 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
117.00
mm (4.606 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
113.00
mm + 0.00 / - 0.10 (4.449 in.) |
Approx. Loose Circlip ID (A)
110.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN471 | ||||||
|
Part Number: CCE-11700-C External Retaining Rings - 117x4x113 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
117.00
mm (4.606 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
113.00
mm + 0.00 / - 0.10 (4.449 in.) |
Approx. Loose Circlip ID (A)
110.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Standard: DIN471 | ||||||
|
Part Number: CCE-11700-C External Retaining Rings - 117x4x113 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
118.00
mm (4.646 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
114.00
mm + 0.00 / - 0.10 (4.488 in.) |
Approx. Loose Circlip ID (A)
110.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN471 | ||||||
|
Part Number: CCE-11800-C External Retaining Rings - 118x4x114 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
118.00
mm (4.646 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
114.00
mm + 0.00 / - 0.10 (4.488 in.) |
Approx. Loose Circlip ID (A)
110.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Standard: DIN471 | ||||||
|
Part Number: CCE-11800-C External Retaining Rings - 118x4x114 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
120.00
mm (4.724 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
116.00
mm + 0.00 / - 0.10 (4.567 in.) |
Approx. Loose Circlip ID (A)
113.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 138.00 mm Clearance in Groove (C1): 143.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-12000-C External Retaining Rings - 120x4x116 mm - Carbon Steel
20 Available Immediately | Further orders can be expected around Wed, Sep 10, 2025 Regular price
$17.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
120.00
mm (4.724 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
116.00
mm + 0.00 / - 0.10 (4.567 in.) |
Approx. Loose Circlip ID (A)
113.00
mm |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 138.00 mm Clearance in Groove (C1): 143.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN471 | ||||||
|
Part Number: CCE-12000-C External Retaining Rings - 120x4x116 mm - Carbon Steel
20 Available Immediately | Further orders can be expected around Wed, Sep 10, 2025 Regular price
$17.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
120.00
mm (4.724 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.54 (0.197 in.) |
Groove Dia. (Dg)
116.00
mm + 0.00 / - 0.12 (4.567 in.) |
Approx. Loose Circlip ID (A)
113.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Clearance in Groove (C1): 143.10 mm Min. Lug Diameter (h): 3.50 mm Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-12000H-C External Retaining Rings - 120x5x116 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
120.00
mm (4.724 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.54 (0.197 in.) |
Groove Dia. (Dg)
116.00
mm + 0.00 / - 0.12 (4.567 in.) |
Approx. Loose Circlip ID (A)
113.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Clearance in Groove (C1): 143.10 mm Min. Lug Diameter (h): 3.50 mm Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-12000H-C External Retaining Rings - 120x5x116 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
120.65
mm (4.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
115.57
mm +/- 0.076 (4.55 in.) |
Approx. Loose Circlip ID (A)
113.23
mm |
Groove Width (W)
3.05
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 133.60 mm Clearance in Groove (C1): 138.94 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.85 Standard: MIL-16624 | ||||||
|
Part Number: CCE-12065-C External Retaining Rings - 120.65x2.77x115.57 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$39.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
120.65
mm (4.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
115.57
mm +/- 0.076 (4.55 in.) |
Approx. Loose Circlip ID (A)
113.23
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.05 mm Clearance on Shaft (C1): 133.60 mm Clearance in Groove (C1): 138.94 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.85 Standard: MIL-16624 | ||||||
|
Part Number: CCE-12065-C External Retaining Rings - 120.65x2.77x115.57 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$39.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
122.00
mm (4.803 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
118.00
mm + 0.00 / - 0.10 (4.646 in.) |
Approx. Loose Circlip ID (A)
115.00
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN471 | ||||||
|
Part Number: CCE-12200-C External Retaining Rings - 122x4x118 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
122.00
mm (4.803 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.54 (0.157 in.) |
Groove Dia. (Dg)
118.00
mm + 0.00 / - 0.10 (4.646 in.) |
Approx. Loose Circlip ID (A)
115.00
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm Standard: DIN471 | ||||||
|
Part Number: CCE-12200-C External Retaining Rings - 122x4x118 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
