| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

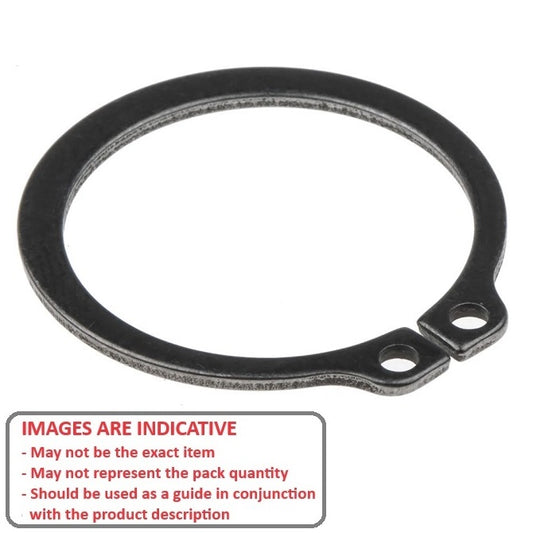

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
58.00
mm (2.283 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (2.165 in.) |
Approx. Loose Circlip ID (A)
53.80
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 73.60 mm Clearance in Groove (C1): 69.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-05800-C (2 Pcs) External Retaining Rings - 58x2x55 mm - Carbon Steel
10 units (20 pcs) Available Immediately | Further orders can be expected around Fri, Aug 08, 2025 Regular price
$5.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |

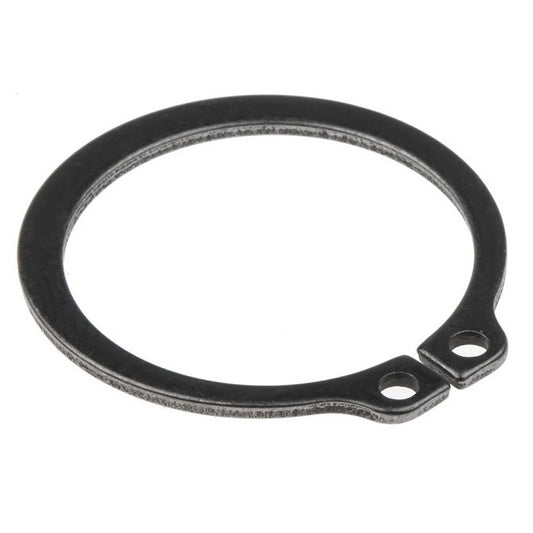

Indicative Image |
||
|
Shaft Diameter (Ds)
58.00
mm (2.283 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (2.165 in.) |
Approx. Loose Circlip ID (A)
53.80
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 73.60 mm Clearance in Groove (C1): 69.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-05800-C (2 Pcs) External Retaining Rings - 58x2x55 mm - Carbon Steel
10 units (20 pcs) Available Immediately | Further orders can be expected around Fri, Aug 08, 2025 Regular price
$5.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
58.74
mm (2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
55.32
mm +/- 0.076 (2.178 in.) |
Approx. Loose Circlip ID (A)
54.33
mm |
Groove Width (W)
2.18
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 74.68 mm Clearance in Groove (C1): 71.37 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.33 Standard: MIL-16624 | ||||||
|
Part Number: CCE-05874-C External Retaining Rings - 58.74x1.98x55.32 mm - Carbon Steel
50 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$5.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
58.74
mm (2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
55.32
mm +/- 0.076 (2.178 in.) |
Approx. Loose Circlip ID (A)
54.33
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.18 mm Clearance on Shaft (C1): 74.68 mm Clearance in Groove (C1): 71.37 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.33 Standard: MIL-16624 | ||||||
|
Part Number: CCE-05874-C External Retaining Rings - 58.74x1.98x55.32 mm - Carbon Steel
50 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$5.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
60.00
mm (2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (2.244 in.) |
Approx. Loose Circlip ID (A)
55.80
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 75.60 mm Clearance in Groove (C1): 71.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06000-C (2 Pcs) External Retaining Rings - 60x2x57 mm - Carbon Steel
117 units (234 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
60.00
mm (2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (2.244 in.) |
Approx. Loose Circlip ID (A)
55.80
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 75.60 mm Clearance in Groove (C1): 71.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06000-C (2 Pcs) External Retaining Rings - 60x2x57 mm - Carbon Steel
117 units (234 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
60.00
mm (2.362 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (0.118 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.08 (2.244 in.) |
Approx. Loose Circlip ID (A)
55.80
mm |
Groove Width (W)
3.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 79.00 mm Clearance in Groove (C1): 75.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-06000H-C (100 Pcs) External Retaining Rings - 60x3x57 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$264.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
60.00
mm (2.362 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (0.118 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.08 (2.244 in.) |
Approx. Loose Circlip ID (A)
55.80
mm |
|
||
| Material: Carbon Steel Groove Width (W): 3.15 mm Clearance on Shaft (C1): 79.00 mm Clearance in Groove (C1): 75.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-06000H-C (100 Pcs) External Retaining Rings - 60x3x57 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$264.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
60.33
mm (2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
56.87
mm +/- 0.076 (2.239 in.) |
Approx. Loose Circlip ID (A)
55.80
mm |
Groove Width (W)
2.18
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 72.64 mm Clearance in Groove (C1): 69.09 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.41 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06033-C (4 Pcs) External Retaining Rings - 60.33x1.98x56.87 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$17.41 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Shaft Diameter (Ds)
60.33
mm (2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
56.87
mm +/- 0.076 (2.239 in.) |
Approx. Loose Circlip ID (A)
55.80
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.18 mm Clearance on Shaft (C1): 72.64 mm Clearance in Groove (C1): 69.09 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.41 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06033-C (4 Pcs) External Retaining Rings - 60.33x1.98x56.87 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$17.41 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Shaft Diameter (Ds)
61.91
mm (2.437 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
58.39
mm +/- 0.076 (2.299 in.) |
Approx. Loose Circlip ID (A)
57.30
mm |
Groove Width (W)
2.20
mm |
|
|
| Material: Carbon Steel Standard: MIL-16624 | ||||||
|
Part Number: CCE-06191-C (2 Pcs) External Retaining Rings - 61.91x1.98x58.39 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
61.91
mm (2.437 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
58.39
mm +/- 0.076 (2.299 in.) |
Approx. Loose Circlip ID (A)
57.30
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.20 mm Standard: MIL-16624 | ||||||
|
Part Number: CCE-06191-C (2 Pcs) External Retaining Rings - 61.91x1.98x58.39 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
62.00
mm (2.441 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (2.323 in.) |
Approx. Loose Circlip ID (A)
57.80
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 77.80 mm Clearance in Groove (C1): 74.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06200-C (6 Pcs) External Retaining Rings - 62x2x59 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$17.86 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
Shaft Diameter (Ds)
62.00
mm (2.441 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (2.323 in.) |
Approx. Loose Circlip ID (A)
57.80
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 77.80 mm Clearance in Groove (C1): 74.00 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06200-C (6 Pcs) External Retaining Rings - 62x2x59 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$17.86 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
||||||
|
Shaft Diameter (Ds)
63.00
mm (2.48 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
60.00
mm + 0.00 / - 0.07 (2.362 in.) |
Approx. Loose Circlip ID (A)
58.80
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 79.00 mm Clearance in Groove (C1): 75.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06300-C (2 Pcs) External Retaining Rings - 63x2x60 mm - Carbon Steel
53 units (106 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
63.00
mm (2.48 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
60.00
mm + 0.00 / - 0.07 (2.362 in.) |
Approx. Loose Circlip ID (A)
58.80
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.15 mm Clearance on Shaft (C1): 79.00 mm Clearance in Groove (C1): 75.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06300-C (2 Pcs) External Retaining Rings - 63x2x60 mm - Carbon Steel
53 units (106 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
63.50
mm (2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
59.94
mm +/- 0.076 (2.36 in.) |
Approx. Loose Circlip ID (A)
58.75
mm |
Groove Width (W)
2.18
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 75.69 mm Clearance in Groove (C1): 72.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.56 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06350-C External Retaining Rings - 63.5x1.98x59.94 mm - Carbon Steel
24 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$5.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
63.50
mm (2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
59.94
mm +/- 0.076 (2.36 in.) |
Approx. Loose Circlip ID (A)
58.75
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.18 mm Clearance on Shaft (C1): 75.69 mm Clearance in Groove (C1): 72.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.56 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06350-C External Retaining Rings - 63.5x1.98x59.94 mm - Carbon Steel
24 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$5.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
64.00
mm (2.52 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
61.00
mm + 0.00 / - 0.07 (2.402 in.) |
Approx. Loose Circlip ID (A)
58.90
mm |
Groove Width (W)
2.15
mm |
|
|
| Material: Carbon Spring Steel Self Finish Clearance on Shaft (C1): 80.20 mm Clearance in Groove (C1): 76.40 mm Min. Lug Diameter (h): 2.500 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06400-C External Retaining Rings - 64x2x61 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
64.00
mm (2.52 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (0.079 in.) |
Groove Dia. (Dg)
61.00
mm + 0.00 / - 0.07 (2.402 in.) |
Approx. Loose Circlip ID (A)
58.90
mm |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 2.15 mm Clearance on Shaft (C1): 80.20 mm Clearance in Groove (C1): 76.40 mm Min. Lug Diameter (h): 2.500 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06400-C External Retaining Rings - 64x2x61 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
64.99
mm (2.559 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
61.44
mm +/- 0.076 (2.419 in.) |
Approx. Loose Circlip ID (A)
60.38
mm |
Groove Width (W)
2.18
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 74.68 mm Clearance in Groove (C1): 78.49 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.56 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06499-C (3 Pcs) External Retaining Rings - 64.99x1.98x61.44 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$19.77 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
64.99
mm (2.559 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
61.44
mm +/- 0.076 (2.419 in.) |
Approx. Loose Circlip ID (A)
60.38
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.18 mm Clearance on Shaft (C1): 74.68 mm Clearance in Groove (C1): 78.49 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.56 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06499-C (3 Pcs) External Retaining Rings - 64.99x1.98x61.44 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$19.77 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
65.00
mm (2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
62.00
mm + 0.00 / - 0.07 (2.441 in.) |
Approx. Loose Circlip ID (A)
60.80
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 81.40 mm Clearance in Groove (C1): 77.60 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06500-C (2 Pcs) External Retaining Rings - 65x2.5x62 mm - Carbon Steel
38 units (76 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
65.00
mm (2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
62.00
mm + 0.00 / - 0.07 (2.441 in.) |
Approx. Loose Circlip ID (A)
60.80
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 81.40 mm Clearance in Groove (C1): 77.60 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06500-C (2 Pcs) External Retaining Rings - 65x2.5x62 mm - Carbon Steel
38 units (76 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
65.00
mm (2.559 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.30 (0.157 in.) |
Groove Dia. (Dg)
62.00
mm + 0.00 / - 0.10 (2.441 in.) |
Approx. Loose Circlip ID (A)
60.80
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 84.60 mm Clearance in Groove (C1): 80.60 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-06500H-C (25 Pcs) External Retaining Rings - 65x4x62 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$617.68 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Shaft Diameter (Ds)
65.00
mm (2.559 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.30 (0.157 in.) |
Groove Dia. (Dg)
62.00
mm + 0.00 / - 0.10 (2.441 in.) |
Approx. Loose Circlip ID (A)
60.80
mm |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 84.60 mm Clearance in Groove (C1): 80.60 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-06500H-C (25 Pcs) External Retaining Rings - 65x4x62 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$617.68 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Shaft Diameter (Ds)
66.68
mm (2.625 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
63.02
mm +/- 0.076 (2.481 in.) |
Approx. Loose Circlip ID (A)
61.67
mm |
Groove Width (W)
2.18
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 78.99 mm Clearance in Groove (C1): 75.18 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.72 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06668-C (3 Pcs) External Retaining Rings - 66.68x1.98x63.02 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
66.68
mm (2.625 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
63.02
mm +/- 0.076 (2.481 in.) |
Approx. Loose Circlip ID (A)
61.67
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.18 mm Clearance on Shaft (C1): 78.99 mm Clearance in Groove (C1): 75.18 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.72 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06668-C (3 Pcs) External Retaining Rings - 66.68x1.98x63.02 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
67.00
mm (2.638 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
63.71
mm + 0.00 / - 0.07 (2.508 in.) |
Approx. Loose Circlip ID (A)
62.60
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 79.80 mm Clearance in Groove (C1): 83.60 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06700-C (100 Pcs) External Retaining Rings - 67x2.5x63.71 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$269.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
67.00
mm (2.638 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
63.71
mm + 0.00 / - 0.07 (2.508 in.) |
Approx. Loose Circlip ID (A)
62.60
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 79.80 mm Clearance in Groove (C1): 83.60 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06700-C (100 Pcs) External Retaining Rings - 67x2.5x63.71 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$269.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
68.00
mm (2.677 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
65.00
mm + 0.00 / - 0.07 (2.559 in.) |
Approx. Loose Circlip ID (A)
63.50
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 81.00 mm Clearance in Groove (C1): 84.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06800-C (2 Pcs) External Retaining Rings - 68x2.5x65 mm - Carbon Steel
23 units (46 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
68.00
mm (2.677 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
65.00
mm + 0.00 / - 0.07 (2.559 in.) |
Approx. Loose Circlip ID (A)
63.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 81.00 mm Clearance in Groove (C1): 84.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-06800-C (2 Pcs) External Retaining Rings - 68x2.5x65 mm - Carbon Steel
23 units (46 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
68.26
mm (2.687 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
89.90
mm +/- 0.076 (3.539 in.) |
Approx. Loose Circlip ID (A)
63.10
mm |
Groove Width (W)
2.20
mm |
|
|
| Material: Carbon Steel Standard: MIL-16624 | ||||||
|
Part Number: CCE-06826-C (2 Pcs) External Retaining Rings - 68.26x1.98x89.9 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
68.26
mm (2.687 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (0.078 in.) |
Groove Dia. (Dg)
89.90
mm +/- 0.076 (3.539 in.) |
Approx. Loose Circlip ID (A)
63.10
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.20 mm Standard: MIL-16624 | ||||||
|
Part Number: CCE-06826-C (2 Pcs) External Retaining Rings - 68.26x1.98x89.9 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$22.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
69.85
mm (2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
66.09
mm +/- 0.076 (2.602 in.) |
Approx. Loose Circlip ID (A)
64.59
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 84.58 mm Clearance in Groove (C1): 80.77 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.87 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06985-C (2 Pcs) External Retaining Rings - 69.85x2.36x66.09 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$14.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
69.85
mm (2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
66.09
mm +/- 0.076 (2.602 in.) |
Approx. Loose Circlip ID (A)
64.59
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 84.58 mm Clearance in Groove (C1): 80.77 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 5.87 Standard: MIL-16624 | ||||||
|
Part Number: CCE-06985-C (2 Pcs) External Retaining Rings - 69.85x2.36x66.09 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$14.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
70.00
mm (2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.07 (2.638 in.) |
Approx. Loose Circlip ID (A)
65.50
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 83.20 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-07000-C (2 Pcs) External Retaining Rings - 70x2.5x67 mm - Carbon Steel
28 units (56 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
70.00
mm (2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.07 (2.638 in.) |
Approx. Loose Circlip ID (A)
65.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.65 mm Clearance on Shaft (C1): 83.20 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-07000-C (2 Pcs) External Retaining Rings - 70x2.5x67 mm - Carbon Steel
28 units (56 pcs) Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
72.00
mm (2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
69.00
mm + 0.00 / - 0.07 (2.717 in.) |
Approx. Loose Circlip ID (A)
67.50
mm |
Groove Width (W)
2.67
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 85.40 mm Clearance in Groove (C1): 89.20 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-07200-C (2 Pcs) External Retaining Rings - 72x2.5x69 mm - Carbon Steel
183 units (366 pcs) Available Immediately | Further orders can be expected around Fri, Aug 08, 2025 Regular price
$9.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
72.00
mm (2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
69.00
mm + 0.00 / - 0.07 (2.717 in.) |
Approx. Loose Circlip ID (A)
67.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.67 mm Clearance on Shaft (C1): 85.40 mm Clearance in Groove (C1): 89.20 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN471 | ||||||
|
Part Number: CCE-07200-C (2 Pcs) External Retaining Rings - 72x2.5x69 mm - Carbon Steel
183 units (366 pcs) Available Immediately | Further orders can be expected around Fri, Aug 08, 2025 Regular price
$9.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
73.03
mm (2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
69.11
mm +/- 0.076 (2.721 in.) |
Approx. Loose Circlip ID (A)
67.54
mm |
Groove Width (W)
2.62
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 86.87 mm Clearance in Groove (C1): 82.80 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.10 Standard: MIL-16624 | ||||||
|
Part Number: CCE-07303-C (2 Pcs) External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
73.03
mm (2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
69.11
mm +/- 0.076 (2.721 in.) |
Approx. Loose Circlip ID (A)
67.54
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.62 mm Clearance on Shaft (C1): 86.87 mm Clearance in Groove (C1): 82.80 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 6.10 Standard: MIL-16624 | ||||||
|
Part Number: CCE-07303-C (2 Pcs) External Retaining Rings - 73.03x2.36x69.11 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
74.61
mm (2.937 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
70.59
mm +/- 0.076 (2.779 in.) |
Approx. Loose Circlip ID (A)
69.00
mm |
Groove Width (W)
2.60
mm |
|
|
| Material: Carbon Steel Standard: MIL-16624 | ||||||
|
Part Number: CCE-07461-C (2 Pcs) External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$16.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
74.61
mm (2.937 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
70.59
mm +/- 0.076 (2.779 in.) |
Approx. Loose Circlip ID (A)
69.00
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.60 mm Standard: MIL-16624 | ||||||
|
Part Number: CCE-07461-C (2 Pcs) External Retaining Rings - 74.61x2.36x70.59 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$16.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
75.00
mm (2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
72.00
mm + 0.00 / - 0.07 (2.835 in.) |
Approx. Loose Circlip ID (A)
70.50
mm |
Groove Width (W)
2.65
mm |
|
|
| Material: Carbon Steel Clearance in Groove (C1): 92.80 mm Min. Lug Diameter (h): 3.00 mm Standard: DIN471 | ||||||
|
Part Number: CCE-07500-C External Retaining Rings - 75x2.5x72 mm - Carbon Steel
68 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
75.00
mm (2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (0.098 in.) |
Groove Dia. (Dg)
72.00
mm + 0.00 / - 0.07 (2.835 in.) |
Approx. Loose Circlip ID (A)
70.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 2.65 mm Clearance in Groove (C1): 92.80 mm Min. Lug Diameter (h): 3.00 mm Standard: DIN471 | ||||||
|
Part Number: CCE-07500-C External Retaining Rings - 75x2.5x72 mm - Carbon Steel
68 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
75.00
mm (2.953 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.30 (0.157 in.) |
Groove Dia. (Dg)
72.00
mm + 0.00 / - 0.10 (2.835 in.) |
Approx. Loose Circlip ID (A)
70.50
mm |
Groove Width (W)
4.15
mm |
|
|
| Material: Carbon Steel Clearance on Shaft (C1): 95.40 mm Clearance in Groove (C1): 91.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-07500H-C (25 Pcs) External Retaining Rings - 75x4x72 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$226.68 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Shaft Diameter (Ds)
75.00
mm (2.953 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.30 (0.157 in.) |
Groove Dia. (Dg)
72.00
mm + 0.00 / - 0.10 (2.835 in.) |
Approx. Loose Circlip ID (A)
70.50
mm |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm Clearance on Shaft (C1): 95.40 mm Clearance in Groove (C1): 91.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: Heavy Duty Variation DIN471 table 2 | ||||||
|
Part Number: CCE-07500H-C (25 Pcs) External Retaining Rings - 75x4x72 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$226.68 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
