Collection: Retaining Rings - External - Circlips - Inverted

Retaining Rings (With Images)

External

Circlips

65 Products in this selection

N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).

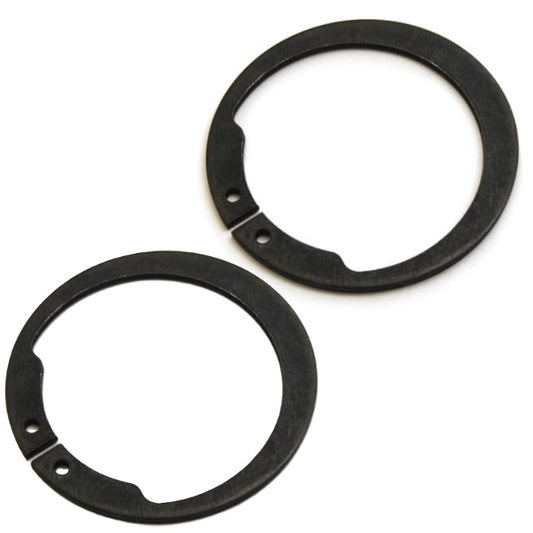

Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
Less thrust load than standard circlips.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Inverted. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.11 _{(0.024 in.)}	Groove Dia. (Dg) 9.50 mm + 0.00 / - 0.05 _{(0.374 in.)}	Approx. Loose Circlip ID (A) 9.20 mm	Radial Wall (S) min/max 1.80 mm	Groove Width (W) 0.70 mm

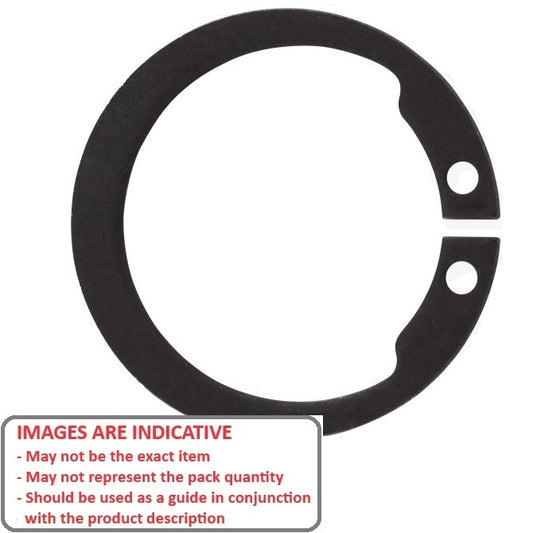

Material: Spring Steel Tool: PRS-E009
Part Number: CCE-01000-C-V External Retaining Rings - 10x0.6x9.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 0.60 mm + 0.00 / - 0.11 _{(0.024 in.)}	Groove Dia. (Dg) 9.50 mm + 0.00 / - 0.05 _{(0.374 in.)}	Approx. Loose Circlip ID (A) 9.20 mm
Material: Spring Steel Radial Wall (S) min/max: 1.80 mm Groove Width (W): 0.70 mm Tool: PRS-E009
Part Number: CCE-01000-C-V External Retaining Rings - 10x0.6x9.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.051 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm +/- 0.051 _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.71 mm	Radial Wall (S) min/max 1.04 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E038
Part Number: CCE-01270-C-V (10 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm - Carbon Steel 97 units (970 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 10
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.051 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm +/- 0.051 _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.71 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.04 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Tool: PRS-E038
Part Number: CCE-01270-C-V (10 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm - Carbon Steel 97 units (970 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-01270-C-V (10 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm - Carbon Steel CCE-01270-C-V (10 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm - Carbon Steel Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 97 Available Now
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.051 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm +/- 0.051 _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.71 mm	Radial Wall (S) min/max 1.04 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00

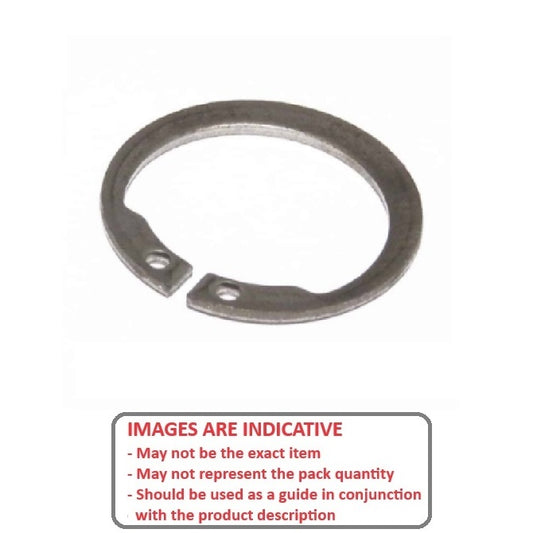

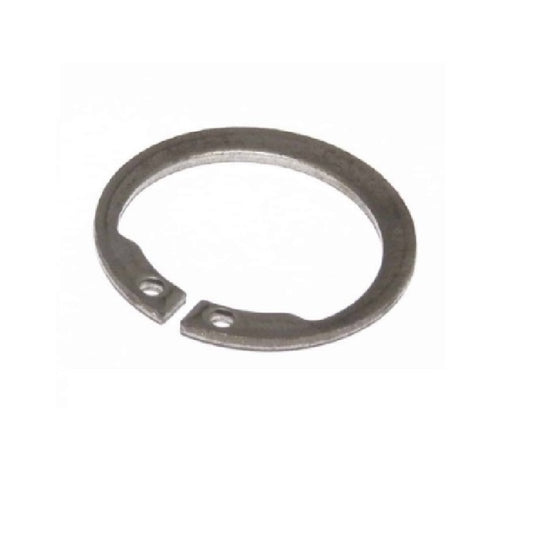

Material: Stainless Steel Grade PH15-7 Mo Tool: PRS-E038
Part Number: CCE-01270-S15-V (4 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Per 4
Shaft Diameter (Ds) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.89 mm +/- 0.051 _{(0.035 in.)}	Groove Dia. (Dg) 11.89 mm +/- 0.051 _{(0.468 in.)}	Approx. Loose Circlip ID (A) 11.71 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 1.04 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Tool: PRS-E038
Part Number: CCE-01270-S15-V (4 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Per 4 View the product page first if you are unsure.
CCE-01270-S15-V (4 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel Grade PH15-7 Mo CCE-01270-S15-V (4 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm - Stainless Steel Grade PH15-7 Mo Regular price $29.14 AUD Regular price Sale price $29.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.89 mm +/- 0.051 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm +/- 0.051 _{(0.53 in.)}	Approx. Loose Circlip ID (A) 13.23 mm	Radial Wall (S) min/max 1.09 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E038
Part Number: CCE-01429-C-V (50 Pcs) External Retaining Rings - 14.29x0.89x13.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $49.14 AUD Regular price Sale price $49.14 AUD Unit price per Per 50
Shaft Diameter (Ds) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.89 mm +/- 0.051 _{(0.035 in.)}	Groove Dia. (Dg) 13.46 mm +/- 0.051 _{(0.53 in.)}	Approx. Loose Circlip ID (A) 13.23 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.09 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Tool: PRS-E038
Part Number: CCE-01429-C-V (50 Pcs) External Retaining Rings - 14.29x0.89x13.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $49.14 AUD Regular price Sale price $49.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-01429-C-V (50 Pcs) --- External Retaining Rings - 14.29x0.89x13.46 mm - Carbon Steel CCE-01429-C-V (50 Pcs) --- External Retaining Rings - 14.29x0.89x13.46 mm - Carbon Steel Regular price $49.14 AUD Regular price Sale price $49.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 14.30 mm + 0.00 / - 0.06 _{(0.563 in.)}	Approx. Loose Circlip ID (A) 13.80 mm	Radial Wall (S) min/max 1.00 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Tool: PRS-E009
Part Number: CCE-01500-C-V (100 Pcs) External Retaining Rings - 15x1x14.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Per 100
Shaft Diameter (Ds) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 14.30 mm + 0.00 / - 0.06 _{(0.563 in.)}	Approx. Loose Circlip ID (A) 13.80 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.00 mm Groove Width (W): 1.10 mm Tool: PRS-E009
Part Number: CCE-01500-C-V (100 Pcs) External Retaining Rings - 15x1x14.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-01500-C-V (100 Pcs) --- External Retaining Rings - 15x1x14.3 mm - Carbon Steel CCE-01500-C-V (100 Pcs) --- External Retaining Rings - 15x1x14.3 mm - Carbon Steel Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.89 mm +/- 0.076 _{(0.035 in.)}	Groove Dia. (Dg) 14.20 mm +/- 0.051 _{(0.559 in.)}	Approx. Loose Circlip ID (A) 13.97 mm	Radial Wall (S) min/max 1.17 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E038
Part Number: CCE-01509-C-V (50 Pcs) External Retaining Rings - 15.09x0.89x14.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Per 50
Shaft Diameter (Ds) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.89 mm +/- 0.076 _{(0.035 in.)}	Groove Dia. (Dg) 14.20 mm +/- 0.051 _{(0.559 in.)}	Approx. Loose Circlip ID (A) 13.97 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.17 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00 Tool: PRS-E038
Part Number: CCE-01509-C-V (50 Pcs) External Retaining Rings - 15.09x0.89x14.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-01509-C-V (50 Pcs) --- External Retaining Rings - 15.09x0.89x14.2 mm - Carbon Steel CCE-01509-C-V (50 Pcs) --- External Retaining Rings - 15.09x0.89x14.2 mm - Carbon Steel Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 14.94 mm +/- 0.051 _{(0.588 in.)}	Approx. Loose Circlip ID (A) 14.71 mm	Radial Wall (S) min/max 1.22 mm	Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel
Part Number: CCE-01588-C-V (100 Pcs) External Retaining Rings - 15.88x1.07x14.94 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 14.94 mm +/- 0.051 _{(0.588 in.)}	Approx. Loose Circlip ID (A) 14.71 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.22 mm Groove Width (W): 0.99 mm + 0.08 / - 0.00
Part Number: CCE-01588-C-V (100 Pcs) External Retaining Rings - 15.88x1.07x14.94 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-01588-C-V (100 Pcs) --- External Retaining Rings - 15.88x1.07x14.94 mm - Carbon Steel CCE-01588-C-V (100 Pcs) --- External Retaining Rings - 15.88x1.07x14.94 mm - Carbon Steel Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 15.20 mm + 0.00 / - 0.06 _{(0.598 in.)}	Approx. Loose Circlip ID (A) 14.70 mm	Radial Wall (S) min/max 2.30 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Tool: PRS-E009
Part Number: CCE-01600-C-V (10 Pcs) External Retaining Rings - 16x1x15.2 mm - Carbon Steel 40 units (400 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 10
Shaft Diameter (Ds) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 15.20 mm + 0.00 / - 0.06 _{(0.598 in.)}	Approx. Loose Circlip ID (A) 14.70 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.30 mm Groove Width (W): 1.10 mm Tool: PRS-E009
Part Number: CCE-01600-C-V (10 Pcs) External Retaining Rings - 16x1x15.2 mm - Carbon Steel 40 units (400 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-01600-C-V (10 Pcs) --- External Retaining Rings - 16x1x15.2 mm - Carbon Steel CCE-01600-C-V (10 Pcs) --- External Retaining Rings - 16x1x15.2 mm - Carbon Steel Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 40 Available Now
Shaft Diameter (Ds) 17.00 mm _{(0.669 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 16.20 mm + 0.00 / - 0.06 _{(0.638 in.)}	Approx. Loose Circlip ID (A) 15.70 mm	Radial Wall (S) min/max 2.40 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Tool: PRS-E009
Part Number: CCE-01700-C-V (5 Pcs) External Retaining Rings - 17x1x16.2 mm - Carbon Steel 61 units (305 pcs) Available Immediately \| Further orders can be expected around Thu, Aug 07, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 5
Shaft Diameter (Ds) 17.00 mm _{(0.669 in.)}	Clip Thickness (T) 1.00 mm + 0.00 / - 0.11 _{(0.039 in.)}	Groove Dia. (Dg) 16.20 mm + 0.00 / - 0.06 _{(0.638 in.)}	Approx. Loose Circlip ID (A) 15.70 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.40 mm Groove Width (W): 1.10 mm Tool: PRS-E009
Part Number: CCE-01700-C-V (5 Pcs) External Retaining Rings - 17x1x16.2 mm - Carbon Steel 61 units (305 pcs) Available Immediately \| Further orders can be expected around Thu, Aug 07, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-01700-C-V (5 Pcs) --- External Retaining Rings - 17x1x16.2 mm - Carbon Steel CCE-01700-C-V (5 Pcs) --- External Retaining Rings - 17x1x16.2 mm - Carbon Steel Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per 61 Available Now
Shaft Diameter (Ds) 17.46 mm _{(0.687 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 16.41 mm +/- 0.051 _{(0.646 in.)}	Approx. Loose Circlip ID (A) 16.13 mm	Radial Wall (S) min/max 1.32 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo
Part Number: CCE-01746-S15-V (3 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Per 3
Shaft Diameter (Ds) 17.46 mm _{(0.687 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 16.41 mm +/- 0.051 _{(0.646 in.)}	Approx. Loose Circlip ID (A) 16.13 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 1.32 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00
Part Number: CCE-01746-S15-V (3 Pcs) External Retaining Rings - 17.46x1.07x16.41 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Per 3 View the product page first if you are unsure.
CCE-01746-S15-V (3 Pcs) --- External Retaining Rings - 17.46x1.07x16.41 mm - Stainless Steel Grade PH15-7 Mo CCE-01746-S15-V (3 Pcs) --- External Retaining Rings - 17.46x1.07x16.41 mm - Stainless Steel Grade PH15-7 Mo Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 17.88 mm +/- 0.051 _{(0.704 in.)}	Approx. Loose Circlip ID (A) 17.60 mm	Radial Wall (S) min/max 1.42 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo
Part Number: CCE-01905-S15-V (3 Pcs) External Retaining Rings - 19.05x1.07x17.88 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per Per 3
Shaft Diameter (Ds) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 17.88 mm +/- 0.051 _{(0.704 in.)}	Approx. Loose Circlip ID (A) 17.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 1.42 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00
Part Number: CCE-01905-S15-V (3 Pcs) External Retaining Rings - 19.05x1.07x17.88 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per Per 3 View the product page first if you are unsure.
CCE-01905-S15-V (3 Pcs) --- External Retaining Rings - 19.05x1.07x17.88 mm - Stainless Steel Grade PH15-7 Mo CCE-01905-S15-V (3 Pcs) --- External Retaining Rings - 19.05x1.07x17.88 mm - Stainless Steel Grade PH15-7 Mo Regular price $22.77 AUD Regular price Sale price $22.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 17.88 mm +/- 0.051 _{(0.704 in.)}	Approx. Loose Circlip ID (A) 17.60 mm	Radial Wall (S) min/max 1.42 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel
Part Number: CCE-01905-C-V (50 Pcs) External Retaining Rings - 19.05x1.07x17.88 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Per 50
Shaft Diameter (Ds) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 17.88 mm +/- 0.051 _{(0.704 in.)}	Approx. Loose Circlip ID (A) 17.60 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.42 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00
Part Number: CCE-01905-C-V (50 Pcs) External Retaining Rings - 19.05x1.07x17.88 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-01905-C-V (50 Pcs) --- External Retaining Rings - 19.05x1.07x17.88 mm - Carbon Steel CCE-01905-C-V (50 Pcs) --- External Retaining Rings - 19.05x1.07x17.88 mm - Carbon Steel Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 19.84 mm _{(0.781 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 18.62 mm +/- 0.051 _{(0.733 in.)}	Approx. Loose Circlip ID (A) 18.34 mm	Radial Wall (S) min/max 1.45 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E038
Part Number: CCE-01984-C-V (2 Pcs) External Retaining Rings - 19.84x1.07x18.62 mm - Carbon Steel 671 units (1342 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 2
Shaft Diameter (Ds) 19.84 mm _{(0.781 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 18.62 mm +/- 0.051 _{(0.733 in.)}	Approx. Loose Circlip ID (A) 18.34 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.45 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Tool: PRS-E038
Part Number: CCE-01984-C-V (2 Pcs) External Retaining Rings - 19.84x1.07x18.62 mm - Carbon Steel 671 units (1342 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-01984-C-V (2 Pcs) --- External Retaining Rings - 19.84x1.07x18.62 mm - Carbon Steel CCE-01984-C-V (2 Pcs) --- External Retaining Rings - 19.84x1.07x18.62 mm - Carbon Steel Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 671 Available Now
Shaft Diameter (Ds) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 19.00 mm + 0.00 / - 0.06 _{(0.748 in.)}	Approx. Loose Circlip ID (A) 18.50 mm	Radial Wall (S) min/max 2.80 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E013
Part Number: CCE-02000-C-V (250 Pcs) External Retaining Rings - 20x1.2x19 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $281.14 AUD Regular price Sale price $281.14 AUD Unit price per Per 250
Shaft Diameter (Ds) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 19.00 mm + 0.00 / - 0.06 _{(0.748 in.)}	Approx. Loose Circlip ID (A) 18.50 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.80 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02000-C-V (250 Pcs) External Retaining Rings - 20x1.2x19 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $281.14 AUD Regular price Sale price $281.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCE-02000-C-V (250 Pcs) --- External Retaining Rings - 20x1.2x19 mm - Carbon Steel CCE-02000-C-V (250 Pcs) --- External Retaining Rings - 20x1.2x19 mm - Carbon Steel Regular price $281.14 AUD Regular price Sale price $281.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 19.35 mm +/- 0.051 _{(0.762 in.)}	Approx. Loose Circlip ID (A) 19.10 mm	Radial Wall (S) min/max 1.52 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E047
Part Number: CCE-02064-C-V (50 Pcs) External Retaining Rings - 20.64x1.07x19.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $68.50 AUD Regular price Sale price $68.50 AUD Unit price per Per 50
Shaft Diameter (Ds) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 19.35 mm +/- 0.051 _{(0.762 in.)}	Approx. Loose Circlip ID (A) 19.10 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.52 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Tool: PRS-E047
Part Number: CCE-02064-C-V (50 Pcs) External Retaining Rings - 20.64x1.07x19.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $68.50 AUD Regular price Sale price $68.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-02064-C-V (50 Pcs) --- External Retaining Rings - 20.64x1.07x19.35 mm - Carbon Steel CCE-02064-C-V (50 Pcs) --- External Retaining Rings - 20.64x1.07x19.35 mm - Carbon Steel Regular price $68.50 AUD Regular price Sale price $68.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 20.00 mm + 0.00 / - 0.06 _{(0.787 in.)}	Approx. Loose Circlip ID (A) 19.35 mm	Radial Wall (S) min/max 2.80 mm	Groove Width (W) 1.30 mm
Material: Spring Steel Tool: PRS-E013
Part Number: CCE-02100-C-V External Retaining Rings - 21x1.2x20 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 20.00 mm + 0.00 / - 0.06 _{(0.787 in.)}	Approx. Loose Circlip ID (A) 19.35 mm
Material: Spring Steel Radial Wall (S) min/max: 2.80 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02100-C-V External Retaining Rings - 21x1.2x20 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip ID (A) 20.50 mm	Radial Wall (S) min/max 3.00 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E013
Part Number: CCE-02200-C-V (250 Pcs) External Retaining Rings - 22x1.2x21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $586.14 AUD Regular price Sale price $586.14 AUD Unit price per Per 250
Shaft Diameter (Ds) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 21.00 mm + 0.00 / - 0.06 _{(0.827 in.)}	Approx. Loose Circlip ID (A) 20.50 mm
Material: Carbon Steel Radial Wall (S) min/max: 3.00 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02200-C-V (250 Pcs) External Retaining Rings - 22x1.2x21 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $586.14 AUD Regular price Sale price $586.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCE-02200-C-V (250 Pcs) --- External Retaining Rings - 22x1.2x21 mm - Carbon Steel CCE-02200-C-V (250 Pcs) --- External Retaining Rings - 22x1.2x21 mm - Carbon Steel Regular price $586.14 AUD Regular price Sale price $586.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 20.85 mm +/- 0.051 _{(0.821 in.)}	Approx. Loose Circlip ID (A) 20.57 mm	Radial Wall (S) min/max 1.63 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel
Part Number: CCE-02223-C-V (50 Pcs) External Retaining Rings - 22.23x1.07x20.85 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Per 50
Shaft Diameter (Ds) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 20.85 mm +/- 0.051 _{(0.821 in.)}	Approx. Loose Circlip ID (A) 20.57 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.63 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00
Part Number: CCE-02223-C-V (50 Pcs) External Retaining Rings - 22.23x1.07x20.85 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-02223-C-V (50 Pcs) --- External Retaining Rings - 22.23x1.07x20.85 mm - Carbon Steel CCE-02223-C-V (50 Pcs) --- External Retaining Rings - 22.23x1.07x20.85 mm - Carbon Steel Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 20.85 mm +/- 0.051 _{(0.821 in.)}	Approx. Loose Circlip ID (A) 20.57 mm	Radial Wall (S) min/max 1.63 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo
Part Number: CCE-02223-S15-V External Retaining Rings - 22.23x1.07x20.85 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Each
Shaft Diameter (Ds) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 20.85 mm +/- 0.051 _{(0.821 in.)}	Approx. Loose Circlip ID (A) 20.57 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 1.63 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00
Part Number: CCE-02223-S15-V External Retaining Rings - 22.23x1.07x20.85 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Each View the product page first if you are unsure.
CCE-02223-S15-V --- External Retaining Rings - 22.23x1.07x20.85 mm - Stainless Steel Grade PH15-7 Mo CCE-02223-S15-V --- External Retaining Rings - 22.23x1.07x20.85 mm - Stainless Steel Grade PH15-7 Mo Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 23.00 mm _{(0.906 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip ID (A) 21.50 mm	Radial Wall (S) min/max 3.10 mm	Groove Width (W) 1.30 mm
Material: Spring Steel Tool: PRS-E013
Part Number: CCE-02300-C-V (250 Pcs) External Retaining Rings - 23x1.2x22 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $414.14 AUD Regular price Sale price $414.14 AUD Unit price per Per 250
Shaft Diameter (Ds) 23.00 mm _{(0.906 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.15 _{(0.047 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip ID (A) 21.50 mm
Material: Spring Steel Radial Wall (S) min/max: 3.10 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02300-C-V (250 Pcs) External Retaining Rings - 23x1.2x22 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $414.14 AUD Regular price Sale price $414.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCE-02300-C-V (250 Pcs) --- External Retaining Rings - 23x1.2x22 mm - Spring Steel CCE-02300-C-V (250 Pcs) --- External Retaining Rings - 23x1.2x22 mm - Spring Steel Regular price $414.14 AUD Regular price Sale price $414.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 23.81 mm _{(0.937 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 22.40 mm +/- 0.051 _{(0.882 in.)}	Approx. Loose Circlip ID (A) 22.02 mm	Radial Wall (S) min/max 1.73 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Tool: PRS-E047
Part Number: CCE-02381-S15-V (125 Pcs) External Retaining Rings - 23.81x1.07x22.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $2,227.41 AUD Regular price Sale price $2,227.41 AUD Unit price per Per 125
Shaft Diameter (Ds) 23.81 mm _{(0.937 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 22.40 mm +/- 0.051 _{(0.882 in.)}	Approx. Loose Circlip ID (A) 22.02 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 1.73 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Tool: PRS-E047
Part Number: CCE-02381-S15-V (125 Pcs) External Retaining Rings - 23.81x1.07x22.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $2,227.41 AUD Regular price Sale price $2,227.41 AUD Unit price per Per 125 View the product page first if you are unsure.
CCE-02381-S15-V (125 Pcs) --- External Retaining Rings - 23.81x1.07x22.4 mm - Stainless Steel Grade PH15-7 Mo CCE-02381-S15-V (125 Pcs) --- External Retaining Rings - 23.81x1.07x22.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $2,227.41 AUD Regular price Sale price $2,227.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 24.00 mm _{(0.945 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 22.90 mm + 0.00 / - 0.06 _{(0.902 in.)}	Approx. Loose Circlip ID (A) 22.20 mm	Radial Wall (S) min/max 3.20 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E013
Part Number: CCE-02400-C-V (250 Pcs) External Retaining Rings - 24x1.2x22.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $429.14 AUD Regular price Sale price $429.14 AUD Unit price per Per 250
Shaft Diameter (Ds) 24.00 mm _{(0.945 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 22.90 mm + 0.00 / - 0.06 _{(0.902 in.)}	Approx. Loose Circlip ID (A) 22.20 mm
Material: Carbon Steel Radial Wall (S) min/max: 3.20 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02400-C-V (250 Pcs) External Retaining Rings - 24x1.2x22.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $429.14 AUD Regular price Sale price $429.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCE-02400-C-V (250 Pcs) --- External Retaining Rings - 24x1.2x22.9 mm - Carbon Steel CCE-02400-C-V (250 Pcs) --- External Retaining Rings - 24x1.2x22.9 mm - Carbon Steel Regular price $429.14 AUD Regular price Sale price $429.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 25.00 mm _{(0.984 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 23.90 mm + 0.00 / - 0.06 _{(0.941 in.)}	Approx. Loose Circlip ID (A) 23.20 mm	Radial Wall (S) min/max 3.40 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Tool: PRS-E013
Part Number: CCE-02500-C-V (5 Pcs) External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel 25 units (125 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Per 5
Shaft Diameter (Ds) 25.00 mm _{(0.984 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.21 _{(0.047 in.)}	Groove Dia. (Dg) 23.90 mm + 0.00 / - 0.06 _{(0.941 in.)}	Approx. Loose Circlip ID (A) 23.20 mm
Material: Carbon Steel Radial Wall (S) min/max: 3.40 mm Groove Width (W): 1.30 mm Tool: PRS-E013
Part Number: CCE-02500-C-V (5 Pcs) External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel 25 units (125 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-02500-C-V (5 Pcs) --- External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel CCE-02500-C-V (5 Pcs) --- External Retaining Rings - 25x1.2x23.9 mm - Carbon Steel Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per 25 Available Now
Shaft Diameter (Ds) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 23.52 mm +/- 0.051 _{(0.926 in.)}	Approx. Loose Circlip ID (A) 23.50 mm	Radial Wall (S) min/max 1.83 mm	Groove Width (W) 1.17 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Tool: PRS-E047
Part Number: CCE-02540-S15-V External Retaining Rings - 25.4x1.07x23.52 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Each
Shaft Diameter (Ds) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 23.52 mm +/- 0.051 _{(0.926 in.)}	Approx. Loose Circlip ID (A) 23.50 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 1.83 mm Groove Width (W): 1.17 mm + 0.10 / - 0.00 Tool: PRS-E047
Part Number: CCE-02540-S15-V External Retaining Rings - 25.4x1.07x23.52 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Each View the product page first if you are unsure.
CCE-02540-S15-V --- External Retaining Rings - 25.4x1.07x23.52 mm - Stainless Steel Grade PH15-7 Mo CCE-02540-S15-V --- External Retaining Rings - 25.4x1.07x23.52 mm - Stainless Steel Grade PH15-7 Mo Regular price $20.23 AUD Regular price Sale price $20.23 AUD Unit price per Out of stock! Backorder Now
