Collection: Retaining Rings - External - Circlips - Inverted

Retaining Rings (With Images)

External

Circlips

65 Products in this selection

N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).

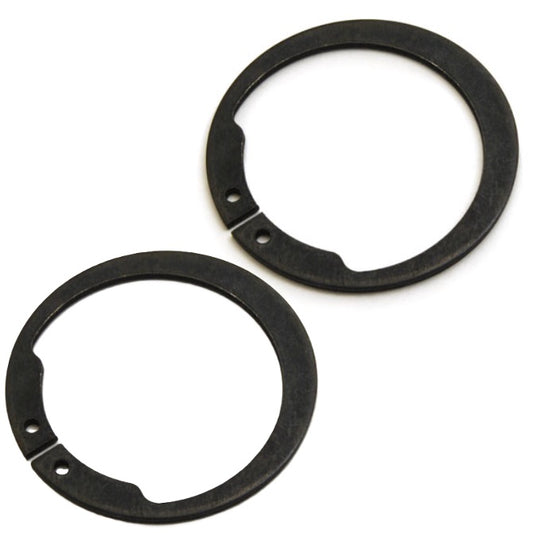

Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
Less thrust load than standard circlips.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips - Inverted. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image

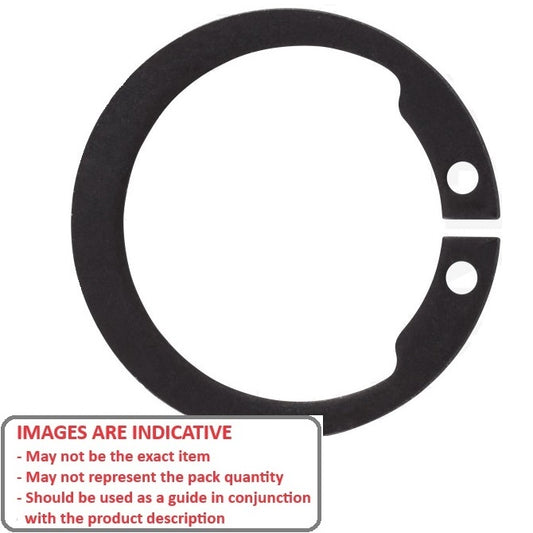

Shaft Diameter (Ds) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 23.52 mm +/- 0.051 _{(0.926 in.)}	Approx. Loose Circlip ID (A) 23.50 mm	Radial Wall (S) min/max 1.83 mm	Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Tool: PRS-E047
Part Number: CCE-02540-C-V (50 Pcs) External Retaining Rings - 25.4x1.07x23.52 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $89.95 AUD Regular price Sale price $89.95 AUD Unit price per Per 50
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.076 _{(0.042 in.)}	Groove Dia. (Dg) 23.52 mm +/- 0.051 _{(0.926 in.)}	Approx. Loose Circlip ID (A) 23.50 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.83 mm Groove Width (W): 1.17 mm + 0.08 / - 0.00 Tool: PRS-E047
Part Number: CCE-02540-C-V (50 Pcs) External Retaining Rings - 25.4x1.07x23.52 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $89.95 AUD Regular price Sale price $89.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-02540-C-V (50 Pcs) --- External Retaining Rings - 25.4x1.07x23.52 mm - Carbon Steel CCE-02540-C-V (50 Pcs) --- External Retaining Rings - 25.4x1.07x23.52 mm - Carbon Steel Regular price $89.95 AUD Regular price Sale price $89.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 26.99 mm _{(1.063 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 25.35 mm +/- 0.051 _{(0.998 in.)}	Approx. Loose Circlip ID (A) 24.94 mm	Radial Wall (S) min/max 1.85 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Tool: PRS-E070
Part Number: CCE-02697-C-V (50 Pcs) External Retaining Rings - 26.99x1.27x25.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $96.14 AUD Regular price Sale price $96.14 AUD Unit price per Per 50
Shaft Diameter (Ds) 26.99 mm _{(1.063 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 25.35 mm +/- 0.051 _{(0.998 in.)}	Approx. Loose Circlip ID (A) 24.94 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.85 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00 Tool: PRS-E070
Part Number: CCE-02697-C-V (50 Pcs) External Retaining Rings - 26.99x1.27x25.35 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $96.14 AUD Regular price Sale price $96.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-02697-C-V (50 Pcs) --- External Retaining Rings - 26.99x1.27x25.35 mm - Carbon Steel CCE-02697-C-V (50 Pcs) --- External Retaining Rings - 26.99x1.27x25.35 mm - Carbon Steel Regular price $96.14 AUD Regular price Sale price $96.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 28.00 mm _{(1.102 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.21 _{(0.059 in.)}	Groove Dia. (Dg) 26.60 mm + 0.00 / - 0.06 _{(1.047 in.)}	Approx. Loose Circlip ID (A) 25.90 mm	Radial Wall (S) min/max 3.80 mm	Groove Width (W) 1.60 mm
Material: Carbon Steel Tool: PRS-E018
Part Number: CCE-02800-C-V (250 Pcs) External Retaining Rings - 28x1.5x26.6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 28.00 mm _{(1.102 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.21 _{(0.059 in.)}	Groove Dia. (Dg) 26.60 mm + 0.00 / - 0.06 _{(1.047 in.)}	Approx. Loose Circlip ID (A) 25.90 mm
Material: Carbon Steel Radial Wall (S) min/max: 3.80 mm Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: CCE-02800-C-V (250 Pcs) External Retaining Rings - 28x1.5x26.6 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 26.90 mm +/- 0.051 _{(1.059 in.)}	Approx. Loose Circlip ID (A) 26.44 mm	Radial Wall (S) min/max 1.91 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel
Part Number: CCE-02858-C-V (50 Pcs) External Retaining Rings - 28.58x1.27x26.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $97.32 AUD Regular price Sale price $97.32 AUD Unit price per Per 50
Shaft Diameter (Ds) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 26.90 mm +/- 0.051 _{(1.059 in.)}	Approx. Loose Circlip ID (A) 26.44 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.91 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-02858-C-V (50 Pcs) External Retaining Rings - 28.58x1.27x26.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $97.32 AUD Regular price Sale price $97.32 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-02858-C-V (50 Pcs) --- External Retaining Rings - 28.58x1.27x26.9 mm - Carbon Steel CCE-02858-C-V (50 Pcs) --- External Retaining Rings - 28.58x1.27x26.9 mm - Carbon Steel Regular price $97.32 AUD Regular price Sale price $97.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 30.16 mm _{(1.187 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 28.40 mm +/- 0.051 _{(1.118 in.)}	Approx. Loose Circlip ID (A) 27.89 mm	Radial Wall (S) min/max 1.93 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel
Part Number: CCE-03016-C-V (50 Pcs) External Retaining Rings - 30.16x1.27x28.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $96.32 AUD Regular price Sale price $96.32 AUD Unit price per Per 50
Shaft Diameter (Ds) 30.16 mm _{(1.187 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 28.40 mm +/- 0.051 _{(1.118 in.)}	Approx. Loose Circlip ID (A) 27.89 mm
Material: Carbon Steel Radial Wall (S) min/max: 1.93 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-03016-C-V (50 Pcs) External Retaining Rings - 30.16x1.27x28.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $96.32 AUD Regular price Sale price $96.32 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-03016-C-V (50 Pcs) --- External Retaining Rings - 30.16x1.27x28.4 mm - Carbon Steel CCE-03016-C-V (50 Pcs) --- External Retaining Rings - 30.16x1.27x28.4 mm - Carbon Steel Regular price $96.32 AUD Regular price Sale price $96.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm +/- 0.051 _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.36 mm	Radial Wall (S) min/max 2.01 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Spring Steel
Part Number: CCE-03175-C-V (50 Pcs) External Retaining Rings - 31.75x1.27x29.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $116.95 AUD Regular price Sale price $116.95 AUD Unit price per Per 50
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm +/- 0.051 _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.36 mm
Material: Spring Steel Radial Wall (S) min/max: 2.01 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-03175-C-V (50 Pcs) External Retaining Rings - 31.75x1.27x29.87 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $116.95 AUD Regular price Sale price $116.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCE-03175-C-V (50 Pcs) --- External Retaining Rings - 31.75x1.27x29.87 mm - Spring Steel CCE-03175-C-V (50 Pcs) --- External Retaining Rings - 31.75x1.27x29.87 mm - Spring Steel Regular price $116.95 AUD Regular price Sale price $116.95 AUD Unit price per Out of stock! Backorder Now

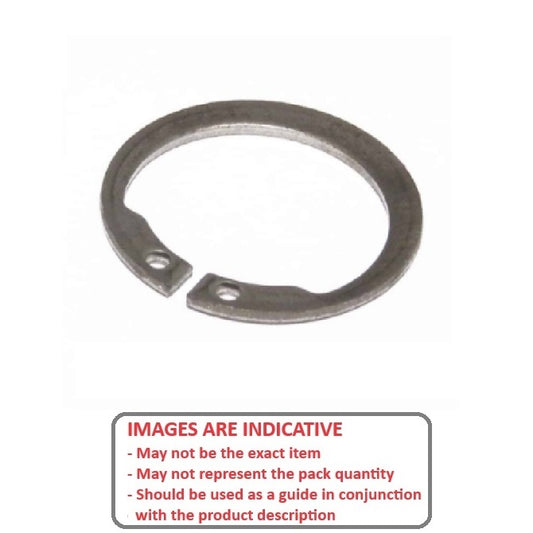

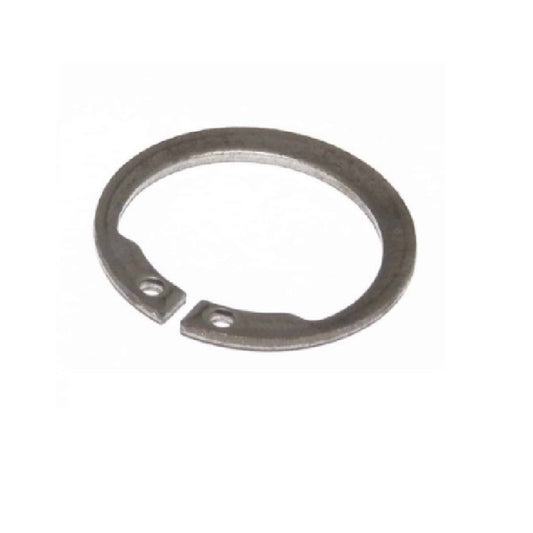

Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm +/- 0.051 _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.36 mm	Radial Wall (S) min/max 2.01 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo
Part Number: CCE-03175-S15-V (62 Pcs) External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,425.41 AUD Regular price Sale price $1,425.41 AUD Unit price per Per 62
Shaft Diameter (Ds) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 29.87 mm +/- 0.051 _{(1.176 in.)}	Approx. Loose Circlip ID (A) 29.36 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 2.01 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-03175-S15-V (62 Pcs) External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $1,425.41 AUD Regular price Sale price $1,425.41 AUD Unit price per Per 62 View the product page first if you are unsure.
CCE-03175-S15-V (62 Pcs) --- External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel Grade PH15-7 Mo CCE-03175-S15-V (62 Pcs) --- External Retaining Rings - 31.75x1.27x29.87 mm - Stainless Steel Grade PH15-7 Mo Regular price $1,425.41 AUD Regular price Sale price $1,425.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 31.29 mm +/- 0.051 _{(1.232 in.)}	Approx. Loose Circlip ID (A) 30.84 mm	Radial Wall (S) min/max 2.03 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Tool: PRS-E070
Part Number: CCE-03332-C-V (7 Pcs) External Retaining Rings - 33.38x1.27x31.29 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Per 7
Shaft Diameter (Ds) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 31.29 mm +/- 0.051 _{(1.232 in.)}	Approx. Loose Circlip ID (A) 30.84 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.03 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00 Tool: PRS-E070
Part Number: CCE-03332-C-V (7 Pcs) External Retaining Rings - 33.38x1.27x31.29 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Per 7 View the product page first if you are unsure.
CCE-03332-C-V (7 Pcs) --- External Retaining Rings - 33.38x1.27x31.29 mm - Carbon Steel CCE-03332-C-V (7 Pcs) --- External Retaining Rings - 33.38x1.27x31.29 mm - Carbon Steel Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 32.30 mm + 0.00 / - 0.06 _{(1.272 in.)}	Approx. Loose Circlip ID (A) 31.50 mm	Radial Wall (S) min/max 3.50 mm	Groove Width (W) 1.60 mm
Material: Spring Steel Tool: PRS-E018
Part Number: CCE-03400-C-V External Retaining Rings - 34x1.5x32.3 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 32.30 mm + 0.00 / - 0.06 _{(1.272 in.)}	Approx. Loose Circlip ID (A) 31.50 mm
Material: Spring Steel Radial Wall (S) min/max: 3.50 mm Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: CCE-03400-C-V External Retaining Rings - 34x1.5x32.3 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm +/- 0.051 _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.31 mm	Radial Wall (S) min/max 2.08 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo
Part Number: CCE-03493-S15-V (2 Pcs) External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Per 2
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm +/- 0.051 _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.31 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 2.08 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-03493-S15-V (2 Pcs) External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Per 2 View the product page first if you are unsure.
CCE-03493-S15-V (2 Pcs) --- External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel Grade PH15-7 Mo CCE-03493-S15-V (2 Pcs) --- External Retaining Rings - 34.93x1.27x32.79 mm - Stainless Steel Grade PH15-7 Mo Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm +/- 0.051 _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.31 mm	Radial Wall (S) min/max 2.08 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Spring Steel
Part Number: CCE-03493-C-V (5 Pcs) External Retaining Rings - 34.93x1.27x32.79 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Per 5
Shaft Diameter (Ds) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 32.79 mm +/- 0.051 _{(1.291 in.)}	Approx. Loose Circlip ID (A) 32.31 mm
Material: Spring Steel Radial Wall (S) min/max: 2.08 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-03493-C-V (5 Pcs) External Retaining Rings - 34.93x1.27x32.79 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-03493-C-V (5 Pcs) --- External Retaining Rings - 34.93x1.27x32.79 mm - Spring Steel CCE-03493-C-V (5 Pcs) --- External Retaining Rings - 34.93x1.27x32.79 mm - Spring Steel Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 33.00 mm + 0.00 / - 0.06 _{(1.299 in.)}	Approx. Loose Circlip ID (A) 32.20 mm	Radial Wall (S) min/max 4.20 mm	Groove Width (W) 1.60 mm
Material: Carbon Steel Tool: PRS-E018
Part Number: CCE-03500-C-V (4 Pcs) External Retaining Rings - 35x1.5x33 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 4
Shaft Diameter (Ds) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 33.00 mm + 0.00 / - 0.06 _{(1.299 in.)}	Approx. Loose Circlip ID (A) 32.20 mm
Material: Carbon Steel Radial Wall (S) min/max: 4.20 mm Groove Width (W): 1.60 mm Tool: PRS-E018
Part Number: CCE-03500-C-V (4 Pcs) External Retaining Rings - 35x1.5x33 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 4 View the product page first if you are unsure.
CCE-03500-C-V (4 Pcs) --- External Retaining Rings - 35x1.5x33 mm - Carbon Steel CCE-03500-C-V (4 Pcs) --- External Retaining Rings - 35x1.5x33 mm - Carbon Steel Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 34.29 mm +/- 0.051 _{(1.35 in.)}	Approx. Loose Circlip ID (A) 33.86 mm	Radial Wall (S) min/max 2.16 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel
Part Number: CCE-03653-C-V (5 Pcs) External Retaining Rings - 36.53x1.27x34.29 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Per 5
Shaft Diameter (Ds) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 34.29 mm +/- 0.051 _{(1.35 in.)}	Approx. Loose Circlip ID (A) 33.86 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.16 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-03653-C-V (5 Pcs) External Retaining Rings - 36.53x1.27x34.29 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-03653-C-V (5 Pcs) --- External Retaining Rings - 36.53x1.27x34.29 mm - Carbon Steel CCE-03653-C-V (5 Pcs) --- External Retaining Rings - 36.53x1.27x34.29 mm - Carbon Steel Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 35.80 mm + 0.00 / - 0.06 _{(1.409 in.)}	Approx. Loose Circlip ID (A) 34.50 mm	Radial Wall (S) min/max 4.50 mm	Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E018
Part Number: CCE-03800-C-V External Retaining Rings - 38x1.75x35.8 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 35.80 mm + 0.00 / - 0.06 _{(1.409 in.)}	Approx. Loose Circlip ID (A) 34.50 mm
Material: Spring Steel Radial Wall (S) min/max: 4.50 mm Groove Width (W): 1.85 mm Tool: PRS-E018
Part Number: CCE-03800-C-V External Retaining Rings - 38x1.75x35.8 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.08 mm +/- 0.051 _{(1.46 in.)}	Approx. Loose Circlip ID (A) 35.23 mm	Radial Wall (S) min/max 2.18 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo
Part Number: CCE-03810-S15-V External Retaining Rings - 38.1x1.27x37.08 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Each
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.08 mm +/- 0.051 _{(1.46 in.)}	Approx. Loose Circlip ID (A) 35.23 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 2.18 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-03810-S15-V External Retaining Rings - 38.1x1.27x37.08 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Each View the product page first if you are unsure.
CCE-03810-S15-V --- External Retaining Rings - 38.1x1.27x37.08 mm - Stainless Steel Grade PH15-7 Mo CCE-03810-S15-V --- External Retaining Rings - 38.1x1.27x37.08 mm - Stainless Steel Grade PH15-7 Mo Regular price $20.77 AUD Regular price Sale price $20.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.08 mm +/- 0.051 _{(1.46 in.)}	Approx. Loose Circlip ID (A) 35.23 mm	Radial Wall (S) min/max 2.18 mm	Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel
Part Number: CCE-03810-C-V (5 Pcs) External Retaining Rings - 38.1x1.27x37.08 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Per 5
Shaft Diameter (Ds) 38.10 mm _{(1.5 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.08 mm +/- 0.051 _{(1.46 in.)}	Approx. Loose Circlip ID (A) 35.23 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.18 mm Groove Width (W): 1.42 mm + 0.10 / - 0.00
Part Number: CCE-03810-C-V (5 Pcs) External Retaining Rings - 38.1x1.27x37.08 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-03810-C-V (5 Pcs) --- External Retaining Rings - 38.1x1.27x37.08 mm - Carbon Steel CCE-03810-C-V (5 Pcs) --- External Retaining Rings - 38.1x1.27x37.08 mm - Carbon Steel Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 37.29 mm +/- 0.076 _{(1.468 in.)}	Approx. Loose Circlip ID (A) 36.73 mm	Radial Wall (S) min/max 2.26 mm	Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel
Part Number: CCE-03967-C-V (4 Pcs) External Retaining Rings - 39.67x1.57x37.29 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Per 4
Shaft Diameter (Ds) 39.67 mm _{(1.562 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 37.29 mm +/- 0.076 _{(1.468 in.)}	Approx. Loose Circlip ID (A) 36.73 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.26 mm Groove Width (W): 1.73 mm + 0.10 / - 0.00
Part Number: CCE-03967-C-V (4 Pcs) External Retaining Rings - 39.67x1.57x37.29 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Per 4 View the product page first if you are unsure.
CCE-03967-C-V (4 Pcs) --- External Retaining Rings - 39.67x1.57x37.29 mm - Carbon Steel CCE-03967-C-V (4 Pcs) --- External Retaining Rings - 39.67x1.57x37.29 mm - Carbon Steel Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 38.84 mm +/- 0.076 _{(1.529 in.)}	Approx. Loose Circlip ID (A) 38.18 mm	Radial Wall (S) min/max 2.34 mm	Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel
Part Number: CCE-04128-C-V (4 Pcs) External Retaining Rings - 41.28x1.57x38.84 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Per 4
Shaft Diameter (Ds) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 38.84 mm +/- 0.076 _{(1.529 in.)}	Approx. Loose Circlip ID (A) 38.18 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.34 mm Groove Width (W): 1.73 mm + 0.10 / - 0.00
Part Number: CCE-04128-C-V (4 Pcs) External Retaining Rings - 41.28x1.57x38.84 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Per 4 View the product page first if you are unsure.
CCE-04128-C-V (4 Pcs) --- External Retaining Rings - 41.28x1.57x38.84 mm - Carbon Steel CCE-04128-C-V (4 Pcs) --- External Retaining Rings - 41.28x1.57x38.84 mm - Carbon Steel Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 42.00 mm _{(1.654 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 39.50 mm + 0.00 / - 0.06 _{(1.555 in.)}	Approx. Loose Circlip ID (A) 38.50 mm	Radial Wall (S) min/max 4.70 mm	Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E018
Part Number: CCE-04200-C-V External Retaining Rings - 42x1.75x39.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 42.00 mm _{(1.654 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 39.50 mm + 0.00 / - 0.06 _{(1.555 in.)}	Approx. Loose Circlip ID (A) 38.50 mm
Material: Spring Steel Radial Wall (S) min/max: 4.70 mm Groove Width (W): 1.85 mm Tool: PRS-E018
Part Number: CCE-04200-C-V External Retaining Rings - 42x1.75x39.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 41.91 mm +/- 0.076 _{(1.65 in.)}	Approx. Loose Circlip ID (A) 41.58 mm	Radial Wall (S) min/max 2.49 mm	Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo
Part Number: CCE-04445-S15-V (5 Pcs) External Retaining Rings - 44.45x1.57x41.91 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $264.05 AUD Regular price Sale price $264.05 AUD Unit price per Per 5
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 41.91 mm +/- 0.076 _{(1.65 in.)}	Approx. Loose Circlip ID (A) 41.58 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 2.49 mm Groove Width (W): 1.73 mm + 0.10 / - 0.00
Part Number: CCE-04445-S15-V (5 Pcs) External Retaining Rings - 44.45x1.57x41.91 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $264.05 AUD Regular price Sale price $264.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-04445-S15-V (5 Pcs) --- External Retaining Rings - 44.45x1.57x41.91 mm - Stainless Steel Grade PH15-7 Mo CCE-04445-S15-V (5 Pcs) --- External Retaining Rings - 44.45x1.57x41.91 mm - Stainless Steel Grade PH15-7 Mo Regular price $264.05 AUD Regular price Sale price $264.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 41.91 mm +/- 0.076 _{(1.65 in.)}	Approx. Loose Circlip ID (A) 41.58 mm	Radial Wall (S) min/max 2.49 mm	Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel
Part Number: CCE-04445-C-V (6 Pcs) External Retaining Rings - 44.45x1.57x41.91 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Per 6
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 41.91 mm +/- 0.076 _{(1.65 in.)}	Approx. Loose Circlip ID (A) 41.58 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.49 mm Groove Width (W): 1.73 mm + 0.10 / - 0.00
Part Number: CCE-04445-C-V (6 Pcs) External Retaining Rings - 44.45x1.57x41.91 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Per 6 View the product page first if you are unsure.
CCE-04445-C-V (6 Pcs) --- External Retaining Rings - 44.45x1.57x41.91 mm - Carbon Steel CCE-04445-C-V (6 Pcs) --- External Retaining Rings - 44.45x1.57x41.91 mm - Carbon Steel Regular price $21.14 AUD Regular price Sale price $21.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 46.04 mm _{(1.813 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.38 mm +/- 0.076 _{(1.708 in.)}	Approx. Loose Circlip ID (A) 42.55 mm	Radial Wall (S) min/max 2.54 mm	Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo
Part Number: CCE-04604-S15-V External Retaining Rings - 46.04x1.57x43.38 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $81.23 AUD Regular price Sale price $81.23 AUD Unit price per Each
Shaft Diameter (Ds) 46.04 mm _{(1.813 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 43.38 mm +/- 0.076 _{(1.708 in.)}	Approx. Loose Circlip ID (A) 42.55 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: 2.54 mm Groove Width (W): 1.73 mm + 0.10 / - 0.00
Part Number: CCE-04604-S15-V External Retaining Rings - 46.04x1.57x43.38 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $81.23 AUD Regular price Sale price $81.23 AUD Unit price per Each View the product page first if you are unsure.
CCE-04604-S15-V --- External Retaining Rings - 46.04x1.57x43.38 mm - Stainless Steel Grade PH15-7 Mo CCE-04604-S15-V --- External Retaining Rings - 46.04x1.57x43.38 mm - Stainless Steel Grade PH15-7 Mo Regular price $81.23 AUD Regular price Sale price $81.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 47.00 mm _{(1.85 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 44.50 mm + 0.00 / - 0.06 _{(1.752 in.)}	Approx. Loose Circlip ID (A) 43.50 mm	Radial Wall (S) min/max 5.00 mm	Groove Width (W) 1.85 mm
Material: Spring Steel Tool: PRS-E018
Part Number: CCE-04700-C-V External Retaining Rings - 47x1.75x44.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 47.00 mm _{(1.85 in.)}	Clip Thickness (T) 1.75 mm + 0.00 / - 0.25 _{(0.069 in.)}	Groove Dia. (Dg) 44.50 mm + 0.00 / - 0.06 _{(1.752 in.)}	Approx. Loose Circlip ID (A) 43.50 mm
Material: Spring Steel Radial Wall (S) min/max: 5.00 mm Groove Width (W): 1.85 mm Tool: PRS-E018
Part Number: CCE-04700-C-V External Retaining Rings - 47x1.75x44.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 50.01 mm _{(1.969 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 47.17 mm +/- 0.076 _{(1.857 in.)}	Approx. Loose Circlip ID (A) 46.20 mm	Radial Wall (S) min/max 2.69 mm	Groove Width (W) 1.73 mm + 0.10 / - 0.00
Material: Carbon Steel Tool: PRS-E070
Part Number: CCE-05001-C-V (6 Pcs) External Retaining Rings - 50.01x1.57x47.17 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 09, 2025 Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per Per 6
Shaft Diameter (Ds) 50.01 mm _{(1.969 in.)}	Clip Thickness (T) 1.57 mm +/- 0.127 _{(0.062 in.)}	Groove Dia. (Dg) 47.17 mm +/- 0.076 _{(1.857 in.)}	Approx. Loose Circlip ID (A) 46.20 mm
Material: Carbon Steel Radial Wall (S) min/max: 2.69 mm Groove Width (W): 1.73 mm + 0.10 / - 0.00 Tool: PRS-E070
Part Number: CCE-05001-C-V (6 Pcs) External Retaining Rings - 50.01x1.57x47.17 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 09, 2025 Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per Per 6 View the product page first if you are unsure.
CCE-05001-C-V (6 Pcs) --- External Retaining Rings - 50.01x1.57x47.17 mm - Carbon Steel CCE-05001-C-V (6 Pcs) --- External Retaining Rings - 50.01x1.57x47.17 mm - Carbon Steel Regular price $25.77 AUD Regular price Sale price $25.77 AUD Unit price per Out of stock! Backorder Now
