Collection: Retaining Rings - Crescent
- Retaining Rings (With Images)
- Crescent
66 Products in this selection

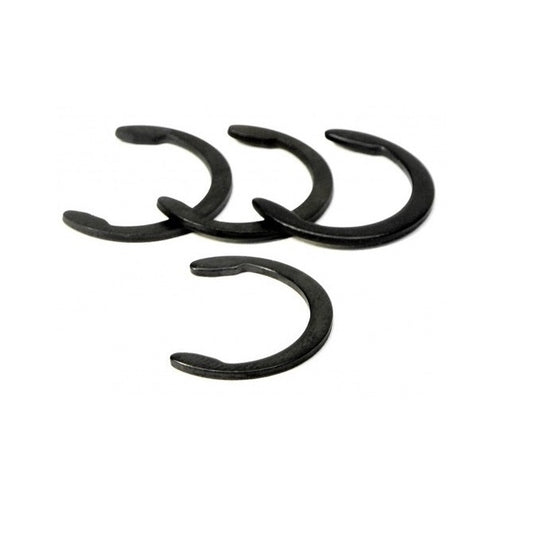

- Variation of an E-Clip with an open face. Also known as a C-Clip.
- Narrow section height provides good clearance capabilities.
- Absence of teeth and deep set mean less thrust load ratings than e-clips.
- For best results install using the recommended applicator tool.
Additional resources:
A more concise listing may be found on the Smallparts store at Retaining Rings - Crescent. Smallparts promote the most popular MBA products.
| Groove Diameter (G) | Shaft Diameter (S) | Thickness (t) | Clip OD in groove (C1) | Clip OD Loose (D1) | Groove Width (W) |

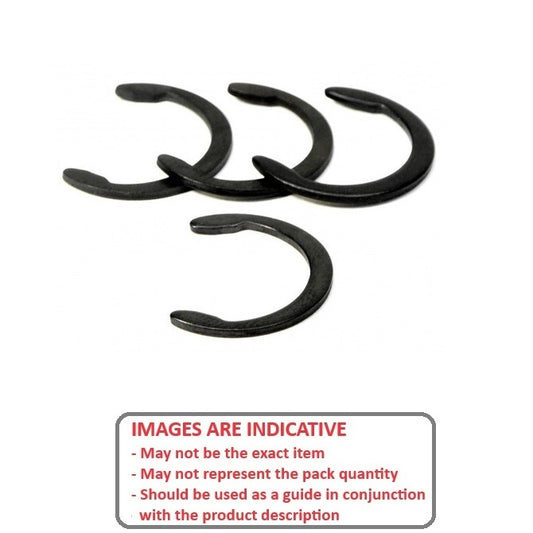

Indicative Image |
|---|---|---|---|---|---|---|
|
Groove Diameter (G)
20.04
mm (0.789 in.) |
Shaft Diameter (S)
22.23
mm (0.875 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
25.65
mm |
Clip OD Loose (D1)
25.17
mm |
Groove Width (W)
1.17
|
|
| Material: Stainless Steel Grade PH15-7-17 | ||||||
|
Part Number: CC-200-222-SS (5 Pcs) Crescent Retaining Rings - 20.04x22.23x1.07 mm - Stainless Steel Grade PH15-7-17
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$18.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
| Groove Diameter (G) | Shaft Diameter (S) | Thickness (t) | Clip OD in groove (C1) |
Indicative Image |
||
|
Groove Diameter (G)
20.04
mm (0.789 in.) |
Shaft Diameter (S)
22.23
mm (0.875 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
25.65
mm |
|
||
| Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 25.17 mm Groove Width (W): 1.17 | ||||||
|
Part Number: CC-200-222-SS (5 Pcs) Crescent Retaining Rings - 20.04x22.23x1.07 mm - Stainless Steel Grade PH15-7-17
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$18.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Groove Diameter (G)
20.04
mm (0.789 in.) |
Shaft Diameter (S)
22.23
mm (0.875 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
25.65
mm |
Clip OD Loose (D1)
25.17
mm |
Groove Width (W)
1.17
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-200-222-C (5 Pcs) Crescent Retaining Rings - 20.04x22.23x1.07 mm - Carbon Spring Steel Self Finish
200 units (1000 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Groove Diameter (G)
20.04
mm (0.789 in.) |
Shaft Diameter (S)
22.23
mm (0.875 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
25.65
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 25.17 mm Groove Width (W): 1.17 | ||||||
|
Part Number: CC-200-222-C (5 Pcs) Crescent Retaining Rings - 20.04x22.23x1.07 mm - Carbon Spring Steel Self Finish
200 units (1000 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Groove Diameter (G)
20.59 - 20.80
mm (0.811 in.) |
Shaft Diameter (S)
23.00
mm (0.906 in.) |
Thickness (t)
1.14
mm (0.045 in.) |
Clip OD in groove (C1)
26.60
mm |
Clip OD Loose (D1)
26.000
mm |
Groove Width (W)
1.30
|
|
| Material: Carbon Spring Steel Self Finish Tool: RRA-200 | ||||||
|
Part Number: CC-206-230-C (50 Pcs) Crescent Retaining Rings - 20.59 - 20.80 23x1.14 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$74.68 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
20.59 - 20.80
mm (0.811 in.) |
Shaft Diameter (S)
23.00
mm (0.906 in.) |
Thickness (t)
1.14
mm (0.045 in.) |
Clip OD in groove (C1)
26.60
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 26.000 mm Groove Width (W): 1.30 Tool: RRA-200 | ||||||
|
Part Number: CC-206-230-C (50 Pcs) Crescent Retaining Rings - 20.59 - 20.80 23x1.14 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025 Regular price
$74.68 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
21.41
mm (0.843 in.) |
Shaft Diameter (S)
23.83
mm (0.938 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
27.43
mm |
Clip OD Loose (D1)
26.87
mm |
Groove Width (W)
1.17
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-214-238-C (50 Pcs) Crescent Retaining Rings - 21.41x23.83x1.07 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$48.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
21.41
mm (0.843 in.) |
Shaft Diameter (S)
23.83
mm (0.938 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
27.43
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 26.87 mm Groove Width (W): 1.17 | ||||||
|
Part Number: CC-214-238-C (50 Pcs) Crescent Retaining Rings - 21.41x23.83x1.07 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$48.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
22.86
mm (0.9 in.) |
Shaft Diameter (S)
25.40
mm (1 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
29.21
mm |
Clip OD Loose (D1)
28.70
mm |
Groove Width (W)
1.17
|
|
| Material: Stainless Steel Grade PH15-7-17 | ||||||
|
Part Number: CC-229-254-SS (5 Pcs) Crescent Retaining Rings - 22.86x25.4x1.07 mm - Stainless Steel Grade PH15-7-17
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Groove Diameter (G)
22.86
mm (0.9 in.) |
Shaft Diameter (S)
25.40
mm (1 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
29.21
mm |
|
||
| Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 28.70 mm Groove Width (W): 1.17 | ||||||
|
Part Number: CC-229-254-SS (5 Pcs) Crescent Retaining Rings - 22.86x25.4x1.07 mm - Stainless Steel Grade PH15-7-17
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Groove Diameter (G)
22.86
mm (0.9 in.) |
Shaft Diameter (S)
25.40
mm (1 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
29.21
mm |
Clip OD Loose (D1)
28.70
mm |
Groove Width (W)
1.17
|
|
| Material: Spring Steel Zinc Plated | ||||||
|
Part Number: CC-229-254-CZ (50 Pcs) Crescent Retaining Rings - 22.86x25.4x1.07 mm - Spring Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$41.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
22.86
mm (0.9 in.) |
Shaft Diameter (S)
25.40
mm (1 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
29.21
mm |
|
||
| Material: Spring Steel Zinc Plated Clip OD Loose (D1): 28.70 mm Groove Width (W): 1.17 | ||||||
|
Part Number: CC-229-254-CZ (50 Pcs) Crescent Retaining Rings - 22.86x25.4x1.07 mm - Spring Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$41.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
22.86
mm (0.9 in.) |
Shaft Diameter (S)
25.40
mm (1 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
29.21
mm |
Clip OD Loose (D1)
28.70
mm |
Groove Width (W)
1.17
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-229-254-C (50 Pcs) Crescent Retaining Rings - 22.86x25.4x1.07 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$32.23 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
22.86
mm (0.9 in.) |
Shaft Diameter (S)
25.40
mm (1 in.) |
Thickness (t)
1.07
mm (0.042 in.) |
Clip OD in groove (C1)
29.21
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 28.70 mm Groove Width (W): 1.17 | ||||||
|
Part Number: CC-229-254-C (50 Pcs) Crescent Retaining Rings - 22.86x25.4x1.07 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$32.23 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
25.73
mm (1.013 in.) |
Shaft Diameter (S)
28.58
mm (1.125 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
33.02
mm |
Clip OD Loose (D1)
32.18
mm |
Groove Width (W)
1.42
|
|
| Material: Spring Steel Zinc Plated | ||||||
|
Part Number: CC-257-286-CZ (50 Pcs) Crescent Retaining Rings - 25.73x28.58x1.27 mm - Spring Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$39.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
25.73
mm (1.013 in.) |
Shaft Diameter (S)
28.58
mm (1.125 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
33.02
mm |
|
||
| Material: Spring Steel Zinc Plated Clip OD Loose (D1): 32.18 mm Groove Width (W): 1.42 | ||||||
|
Part Number: CC-257-286-CZ (50 Pcs) Crescent Retaining Rings - 25.73x28.58x1.27 mm - Spring Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$39.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
25.73
mm (1.013 in.) |
Shaft Diameter (S)
28.58
mm (1.125 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
33.02
mm |
Clip OD Loose (D1)
32.18
mm |
Groove Width (W)
1.42
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-257-286-C (250 Pcs) Crescent Retaining Rings - 25.73x28.58x1.27 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$165.50 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Groove Diameter (G)
25.73
mm (1.013 in.) |
Shaft Diameter (S)
28.58
mm (1.125 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
33.02
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 32.18 mm Groove Width (W): 1.42 | ||||||
|
Part Number: CC-257-286-C (250 Pcs) Crescent Retaining Rings - 25.73x28.58x1.27 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$165.50 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Groove Diameter (G)
28.60
mm (1.126 in.) |
Shaft Diameter (S)
31.75
mm (1.25 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
36.58
mm |
Clip OD Loose (D1)
35.94
mm |
Groove Width (W)
1.42
|
|
| Material: Stainless Steel Grade PH15-7-17 | ||||||
|
Part Number: CC-286-318-SS (2 Pcs) Crescent Retaining Rings - 28.6x31.75x1.27 mm - Stainless Steel Grade PH15-7-17
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$13.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Groove Diameter (G)
28.60
mm (1.126 in.) |
Shaft Diameter (S)
31.75
mm (1.25 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
36.58
mm |
|
||
| Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 35.94 mm Groove Width (W): 1.42 | ||||||
|
Part Number: CC-286-318-SS (2 Pcs) Crescent Retaining Rings - 28.6x31.75x1.27 mm - Stainless Steel Grade PH15-7-17
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$13.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Groove Diameter (G)
28.60
mm (1.126 in.) |
Shaft Diameter (S)
31.75
mm (1.25 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
36.58
mm |
Clip OD Loose (D1)
35.94
mm |
Groove Width (W)
1.42
|
|
| Material: Spring Steel Zinc Plated | ||||||
|
Part Number: CC-286-318-CZ (50 Pcs) Crescent Retaining Rings - 28.6x31.75x1.27 mm - Spring Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$40.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
28.60
mm (1.126 in.) |
Shaft Diameter (S)
31.75
mm (1.25 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
36.58
mm |
|
||
| Material: Spring Steel Zinc Plated Clip OD Loose (D1): 35.94 mm Groove Width (W): 1.42 | ||||||
|
Part Number: CC-286-318-CZ (50 Pcs) Crescent Retaining Rings - 28.6x31.75x1.27 mm - Spring Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$40.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
28.60
mm (1.126 in.) |
Shaft Diameter (S)
31.75
mm (1.25 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
36.58
mm |
Clip OD Loose (D1)
35.94
mm |
Groove Width (W)
1.42
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-286-318-C (50 Pcs) Crescent Retaining Rings - 28.6x31.75x1.27 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$35.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
28.60
mm (1.126 in.) |
Shaft Diameter (S)
31.75
mm (1.25 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
36.58
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 35.94 mm Groove Width (W): 1.42 | ||||||
|
Part Number: CC-286-318-C (50 Pcs) Crescent Retaining Rings - 28.6x31.75x1.27 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$35.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
31.42
mm (1.237 in.) |
Shaft Diameter (S)
34.93
mm (1.375 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
40.13
mm |
Clip OD Loose (D1)
39.50
mm |
Groove Width (W)
1.42
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-314-349-C (50 Pcs) Crescent Retaining Rings - 31.42x34.93x1.27 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$63.41 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
31.42
mm (1.237 in.) |
Shaft Diameter (S)
34.93
mm (1.375 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
40.13
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 39.50 mm Groove Width (W): 1.42 | ||||||
|
Part Number: CC-314-349-C (50 Pcs) Crescent Retaining Rings - 31.42x34.93x1.27 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$63.41 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
34.29
mm (1.35 in.) |
Shaft Diameter (S)
38.10
mm (1.5 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
43.69
mm |
Clip OD Loose (D1)
42.95
mm |
Groove Width (W)
1.42
|
|
| Material: Spring Steel Zinc Plated | ||||||
|
Part Number: CC-343-381-CZ (50 Pcs) Crescent Retaining Rings - 34.29x38.1x1.27 mm - Spring Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$62.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
34.29
mm (1.35 in.) |
Shaft Diameter (S)
38.10
mm (1.5 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
43.69
mm |
|
||
| Material: Spring Steel Zinc Plated Clip OD Loose (D1): 42.95 mm Groove Width (W): 1.42 | ||||||
|
Part Number: CC-343-381-CZ (50 Pcs) Crescent Retaining Rings - 34.29x38.1x1.27 mm - Spring Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$62.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
34.29
mm (1.35 in.) |
Shaft Diameter (S)
38.10
mm (1.5 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
43.69
mm |
Clip OD Loose (D1)
42.95
mm |
Groove Width (W)
1.42
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-343-381-C (50 Pcs) Crescent Retaining Rings - 34.29x38.1x1.27 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$82.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Groove Diameter (G)
34.29
mm (1.35 in.) |
Shaft Diameter (S)
38.10
mm (1.5 in.) |
Thickness (t)
1.27
mm (0.05 in.) |
Clip OD in groove (C1)
43.69
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 42.95 mm Groove Width (W): 1.42 | ||||||
|
Part Number: CC-343-381-C (50 Pcs) Crescent Retaining Rings - 34.29x38.1x1.27 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$82.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Groove Diameter (G)
35.75 - 36.00
mm (1.407 in.) |
Shaft Diameter (S)
40.00
mm (1.575 in.) |
Thickness (t)
1.69
mm (0.067 in.) |
Clip OD in groove (C1)
45.800
mm |
Clip OD Loose (D1)
45.000
mm |
Groove Width (W)
1.85
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-358-400-C (9 Pcs) Crescent Retaining Rings - 35.75 - 36.00 40x1.69 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$17.41 AUD
Regular price
Unit price
per
Per 9
|
||||||
|
Groove Diameter (G)
35.75 - 36.00
mm (1.407 in.) |
Shaft Diameter (S)
40.00
mm (1.575 in.) |
Thickness (t)
1.69
mm (0.067 in.) |
Clip OD in groove (C1)
45.800
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 45.000 mm Groove Width (W): 1.85 | ||||||
|
Part Number: CC-358-400-C (9 Pcs) Crescent Retaining Rings - 35.75 - 36.00 40x1.69 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$17.41 AUD
Regular price
Unit price
per
Per 9
|
||||||
|
||||||
|
Groove Diameter (G)
40.03
mm (1.576 in.) |
Shaft Diameter (S)
44.45
mm (1.75 in.) |
Thickness (t)
1.58
mm (0.062 in.) |
Clip OD in groove (C1)
51.05
mm |
Clip OD Loose (D1)
50.17
mm |
Groove Width (W)
1.73
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-400-445-C (5 Pcs) Crescent Retaining Rings - 40.03x44.45x1.58 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$18.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Groove Diameter (G)
40.03
mm (1.576 in.) |
Shaft Diameter (S)
44.45
mm (1.75 in.) |
Thickness (t)
1.58
mm (0.062 in.) |
Clip OD in groove (C1)
51.05
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 50.17 mm Groove Width (W): 1.73 | ||||||
|
Part Number: CC-400-445-C (5 Pcs) Crescent Retaining Rings - 40.03x44.45x1.58 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$18.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Groove Diameter (G)
45.72
mm (1.8 in.) |
Shaft Diameter (S)
50.80
mm (2 in.) |
Thickness (t)
1.58
mm (0.062 in.) |
Clip OD in groove (C1)
58.42
mm |
Clip OD Loose (D1)
57.33
mm |
Groove Width (W)
1.73
|
|
| Material: Carbon Spring Steel Self Finish | ||||||
|
Part Number: CC-457-508-C (5 Pcs) Crescent Retaining Rings - 45.72x50.8x1.58 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$18.68 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Groove Diameter (G)
45.72
mm (1.8 in.) |
Shaft Diameter (S)
50.80
mm (2 in.) |
Thickness (t)
1.58
mm (0.062 in.) |
Clip OD in groove (C1)
58.42
mm |
|
||
| Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 57.33 mm Groove Width (W): 1.73 | ||||||
|
Part Number: CC-457-508-C (5 Pcs) Crescent Retaining Rings - 45.72x50.8x1.58 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$18.68 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
