Collection: Retaining Rings - Crescent

Retaining Rings (With Images)

Crescent

66 Products in this selection

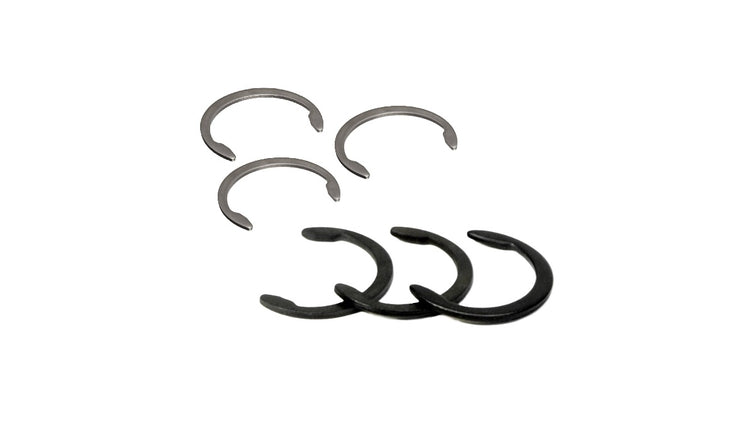

Variation of an E-Clip with an open face. Also known as a C-Clip.
Narrow section height provides good clearance capabilities.
Absence of teeth and deep set mean less thrust load ratings than e-clips.
For best results install using the recommended applicator tool.

Retaining Rings - Crescent

Additional resources:

A more concise listing may be found on the Smallparts store at Retaining Rings - Crescent. Smallparts promote the most popular MBA products.

Groove Diameter (G)	Shaft Diameter (S)	Thickness (t)	Clip OD in groove (C1)	Clip OD Loose (D1)	Groove Width (W)	Indicative Image
Groove Diameter (G) 2.30 mm _{(0.091 in.)}	Shaft Diameter (S) 3.00 mm _{(0.118 in.)}	Thickness (t) 0.4 mm _{(0.016 in.)}	Clip OD in groove (C1) 4.10 mm	Clip OD Loose (D1) 3.96 mm	Groove Width (W) 0.44
Material: Carbon Spring Steel Self Finish
Part Number: CC-023-030-C (50 Pcs) Crescent Retaining Rings - 2.3x3x0.4 mm - Carbon Spring Steel Self Finish 11 units (550 pcs) Available Immediately \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50
Groove Diameter (G)	Shaft Diameter (S)	Thickness (t)	Clip OD in groove (C1)	Indicative Image
Groove Diameter (G) 2.30 mm _{(0.091 in.)}	Shaft Diameter (S) 3.00 mm _{(0.118 in.)}	Thickness (t) 0.4 mm _{(0.016 in.)}	Clip OD in groove (C1) 4.10 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 3.96 mm Groove Width (W): 0.44
Part Number: CC-023-030-C (50 Pcs) Crescent Retaining Rings - 2.3x3x0.4 mm - Carbon Spring Steel Self Finish 11 units (550 pcs) Available Immediately \| Further orders can be expected around Sat, Jan 03, 2026 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-023-030-C (50 Pcs) --- Crescent Retaining Rings - 2.3x3x0.4 mm - Carbon Spring Steel Self Finish CC-023-030-C (50 Pcs) --- Crescent Retaining Rings - 2.3x3x0.4 mm - Carbon Spring Steel Self Finish Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 11 Available Now
Groove Diameter (G) 2.69 mm _{(0.106 in.)}	Shaft Diameter (S) 3.18 mm _{(0.125 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 4.57 mm	Clip OD Loose (D1) 4.19 mm	Groove Width (W) 0.46
Material: Carbon Spring Steel Self Finish
Part Number: CC-027-032-C (50 Pcs) Crescent Retaining Rings - 2.69x3.18x0.38 mm - Carbon Spring Steel Self Finish 16 units (800 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 50
Groove Diameter (G) 2.69 mm _{(0.106 in.)}	Shaft Diameter (S) 3.18 mm _{(0.125 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 4.57 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 4.19 mm Groove Width (W): 0.46
Part Number: CC-027-032-C (50 Pcs) Crescent Retaining Rings - 2.69x3.18x0.38 mm - Carbon Spring Steel Self Finish 16 units (800 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-027-032-C (50 Pcs) --- Crescent Retaining Rings - 2.69x3.18x0.38 mm - Carbon Spring Steel Self Finish CC-027-032-C (50 Pcs) --- Crescent Retaining Rings - 2.69x3.18x0.38 mm - Carbon Spring Steel Self Finish Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 16 Available Now
Groove Diameter (G) 2.69 mm _{(0.106 in.)}	Shaft Diameter (S) 3.18 mm _{(0.125 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 4.57 mm	Clip OD Loose (D1) 4.19 mm	Groove Width (W) 0.46
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-027-032-SS (100 Pcs) Crescent Retaining Rings - 2.69x3.18x0.38 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Per 100
Groove Diameter (G) 2.69 mm _{(0.106 in.)}	Shaft Diameter (S) 3.18 mm _{(0.125 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 4.57 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 4.19 mm Groove Width (W): 0.46
Part Number: CC-027-032-SS (100 Pcs) Crescent Retaining Rings - 2.69x3.18x0.38 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-027-032-SS (100 Pcs) --- Crescent Retaining Rings - 2.69x3.18x0.38 mm - Stainless Steel Grade PH15-7-17 CC-027-032-SS (100 Pcs) --- Crescent Retaining Rings - 2.69x3.18x0.38 mm - Stainless Steel Grade PH15-7-17 Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 3.20 mm _{(0.126 in.)}	Shaft Diameter (S) 4.00 mm _{(0.157 in.)}	Thickness (t) 0.4 mm _{(0.016 in.)}	Clip OD in groove (C1) 5.200 mm	Clip OD Loose (D1) 5.000 mm	Groove Width (W) 0.44
Material: Carbon Spring Steel Self Finish
Part Number: CC-032-040-C (50 Pcs) Crescent Retaining Rings - 3.2x4x0.4 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Per 50
Groove Diameter (G) 3.20 mm _{(0.126 in.)}	Shaft Diameter (S) 4.00 mm _{(0.157 in.)}	Thickness (t) 0.4 mm _{(0.016 in.)}	Clip OD in groove (C1) 5.200 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 5.000 mm Groove Width (W): 0.44
Part Number: CC-032-040-C (50 Pcs) Crescent Retaining Rings - 3.2x4x0.4 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-032-040-C (50 Pcs) --- Crescent Retaining Rings - 3.2x4x0.4 mm - Carbon Spring Steel Self Finish CC-032-040-C (50 Pcs) --- Crescent Retaining Rings - 3.2x4x0.4 mm - Carbon Spring Steel Self Finish Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 3.43 mm _{(0.135 in.)}	Shaft Diameter (S) 3.96 mm _{(0.156 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 5.59 mm	Clip OD Loose (D1) 5.21 mm	Groove Width (W) 0.46
Material: Carbon Spring Steel Self Finish
Part Number: CC-034-040-C (10 Pcs) Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish 65 units (650 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per Per 10
Groove Diameter (G) 3.43 mm _{(0.135 in.)}	Shaft Diameter (S) 3.96 mm _{(0.156 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 5.59 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 5.21 mm Groove Width (W): 0.46
Part Number: CC-034-040-C (10 Pcs) Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish 65 units (650 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-034-040-C (10 Pcs) --- Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish CC-034-040-C (10 Pcs) --- Crescent Retaining Rings - 3.43x3.96x0.38 mm - Carbon Spring Steel Self Finish Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per 65 Available Now
Groove Diameter (G) 3.43 mm _{(0.135 in.)}	Shaft Diameter (S) 3.96 mm _{(0.156 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 5.59 mm	Clip OD Loose (D1) 5.21 mm	Groove Width (W) 0.46
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-034-040-SS (100 Pcs) Crescent Retaining Rings - 3.43x3.96x0.38 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $45.95 AUD Regular price Sale price $45.95 AUD Unit price per Per 100
Groove Diameter (G) 3.43 mm _{(0.135 in.)}	Shaft Diameter (S) 3.96 mm _{(0.156 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 5.59 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 5.21 mm Groove Width (W): 0.46
Part Number: CC-034-040-SS (100 Pcs) Crescent Retaining Rings - 3.43x3.96x0.38 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $45.95 AUD Regular price Sale price $45.95 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-034-040-SS (100 Pcs) --- Crescent Retaining Rings - 3.43x3.96x0.38 mm - Stainless Steel Grade PH15-7-17 CC-034-040-SS (100 Pcs) --- Crescent Retaining Rings - 3.43x3.96x0.38 mm - Stainless Steel Grade PH15-7-17 Regular price $45.95 AUD Regular price Sale price $45.95 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 4.00 mm _{(0.157 in.)}	Shaft Diameter (S) 5.00 mm _{(0.197 in.)}	Thickness (t) 0.6 mm _{(0.024 in.)}	Clip OD in groove (C1) 6.40 mm	Clip OD Loose (D1) 6.20 mm	Groove Width (W) 0.64
Material: Carbon Spring Steel Self Finish
Part Number: CC-040-050-C (10 Pcs) Crescent Retaining Rings - 4x5x0.6 mm - Carbon Spring Steel Self Finish 57 units (570 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per Per 10
Groove Diameter (G) 4.00 mm _{(0.157 in.)}	Shaft Diameter (S) 5.00 mm _{(0.197 in.)}	Thickness (t) 0.6 mm _{(0.024 in.)}	Clip OD in groove (C1) 6.40 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 6.20 mm Groove Width (W): 0.64
Part Number: CC-040-050-C (10 Pcs) Crescent Retaining Rings - 4x5x0.6 mm - Carbon Spring Steel Self Finish 57 units (570 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-040-050-C (10 Pcs) --- Crescent Retaining Rings - 4x5x0.6 mm - Carbon Spring Steel Self Finish CC-040-050-C (10 Pcs) --- Crescent Retaining Rings - 4x5x0.6 mm - Carbon Spring Steel Self Finish Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per 57 Available Now
Groove Diameter (G) 4.19 mm _{(0.165 in.)}	Shaft Diameter (S) 4.78 mm _{(0.188 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 6.35 mm	Clip OD Loose (D1) 6.20 mm	Groove Width (W) 0.46
Material: Carbon Spring Steel Self Finish
Part Number: CC-042-048-C (10 Pcs) Crescent Retaining Rings - 4.19x4.78x0.38 mm - Carbon Spring Steel Self Finish 88 units (880 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per Per 10
Groove Diameter (G) 4.19 mm _{(0.165 in.)}	Shaft Diameter (S) 4.78 mm _{(0.188 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 6.35 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 6.20 mm Groove Width (W): 0.46
Part Number: CC-042-048-C (10 Pcs) Crescent Retaining Rings - 4.19x4.78x0.38 mm - Carbon Spring Steel Self Finish 88 units (880 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-042-048-C (10 Pcs) --- Crescent Retaining Rings - 4.19x4.78x0.38 mm - Carbon Spring Steel Self Finish CC-042-048-C (10 Pcs) --- Crescent Retaining Rings - 4.19x4.78x0.38 mm - Carbon Spring Steel Self Finish Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per 88 Available Now
Groove Diameter (G) 4.19 mm _{(0.165 in.)}	Shaft Diameter (S) 4.78 mm _{(0.188 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 6.35 mm	Clip OD Loose (D1) 6.20 mm	Groove Width (W) 0.46
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-042-048-SS (100 Pcs) Crescent Retaining Rings - 4.19x4.78x0.38 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $30.50 AUD Regular price Sale price $30.50 AUD Unit price per Per 100
Groove Diameter (G) 4.19 mm _{(0.165 in.)}	Shaft Diameter (S) 4.78 mm _{(0.188 in.)}	Thickness (t) 0.38 mm _{(0.015 in.)}	Clip OD in groove (C1) 6.35 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 6.20 mm Groove Width (W): 0.46
Part Number: CC-042-048-SS (100 Pcs) Crescent Retaining Rings - 4.19x4.78x0.38 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $30.50 AUD Regular price Sale price $30.50 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-042-048-SS (100 Pcs) --- Crescent Retaining Rings - 4.19x4.78x0.38 mm - Stainless Steel Grade PH15-7-17 CC-042-048-SS (100 Pcs) --- Crescent Retaining Rings - 4.19x4.78x0.38 mm - Stainless Steel Grade PH15-7-17 Regular price $30.50 AUD Regular price Sale price $30.50 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 4.90 mm _{(0.193 in.)}	Shaft Diameter (S) 5.56 mm _{(0.219 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 7.37 mm	Clip OD Loose (D1) 6.99 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-049-056-C (50 Pcs) Crescent Retaining Rings - 4.9x5.56x0.64 mm - Carbon Spring Steel Self Finish 1 pack (50 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 50
Groove Diameter (G) 4.90 mm _{(0.193 in.)}	Shaft Diameter (S) 5.56 mm _{(0.219 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 7.37 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 6.99 mm Groove Width (W): 0.74
Part Number: CC-049-056-C (50 Pcs) Crescent Retaining Rings - 4.9x5.56x0.64 mm - Carbon Spring Steel Self Finish 1 pack (50 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-049-056-C (50 Pcs) --- Crescent Retaining Rings - 4.9x5.56x0.64 mm - Carbon Spring Steel Self Finish CC-049-056-C (50 Pcs) --- Crescent Retaining Rings - 4.9x5.56x0.64 mm - Carbon Spring Steel Self Finish Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 1 Available Now
Groove Diameter (G) 5.00 mm _{(0.197 in.)}	Shaft Diameter (S) 6.00 mm _{(0.236 in.)}	Thickness (t) 0.7 mm _{(0.028 in.)}	Clip OD in groove (C1) 7.60 mm	Clip OD Loose (D1) 7.40 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-050-060-C (100 Pcs) Crescent Retaining Rings - 5x6x0.7 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Per 100
Groove Diameter (G) 5.00 mm _{(0.197 in.)}	Shaft Diameter (S) 6.00 mm _{(0.236 in.)}	Thickness (t) 0.7 mm _{(0.028 in.)}	Clip OD in groove (C1) 7.60 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 7.40 mm Groove Width (W): 0.74
Part Number: CC-050-060-C (100 Pcs) Crescent Retaining Rings - 5x6x0.7 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-050-060-C (100 Pcs) --- Crescent Retaining Rings - 5x6x0.7 mm - Carbon Spring Steel Self Finish CC-050-060-C (100 Pcs) --- Crescent Retaining Rings - 5x6x0.7 mm - Carbon Spring Steel Self Finish Regular price $12.95 AUD Regular price Sale price $12.95 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 5.28 mm _{(0.208 in.)}	Shaft Diameter (S) 5.99 mm _{(0.236 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 7.87 mm	Clip OD Loose (D1) 7.49 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-053-060-C (10 Pcs) Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish 91 units (910 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 10
Groove Diameter (G) 5.28 mm _{(0.208 in.)}	Shaft Diameter (S) 5.99 mm _{(0.236 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 7.87 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 7.49 mm Groove Width (W): 0.74
Part Number: CC-053-060-C (10 Pcs) Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish 91 units (910 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-053-060-C (10 Pcs) --- Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish CC-053-060-C (10 Pcs) --- Crescent Retaining Rings - 5.28x5.99x0.64 mm - Carbon Spring Steel Self Finish Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per 91 Available Now
Groove Diameter (G) 5.59 mm _{(0.22 in.)}	Shaft Diameter (S) 6.35 mm _{(0.25 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 8.38 mm	Clip OD Loose (D1) 7.90 mm	Groove Width (W) 0.74
Material: Spring Steel Zinc Plated
Part Number: CC-056-064-CZ (100 Pcs) Crescent Retaining Rings - 5.59x6.35x0.64 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 100
Groove Diameter (G) 5.59 mm _{(0.22 in.)}	Shaft Diameter (S) 6.35 mm _{(0.25 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 8.38 mm
Material: Spring Steel Zinc Plated Clip OD Loose (D1): 7.90 mm Groove Width (W): 0.74
Part Number: CC-056-064-CZ (100 Pcs) Crescent Retaining Rings - 5.59x6.35x0.64 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-056-064-CZ (100 Pcs) --- Crescent Retaining Rings - 5.59x6.35x0.64 mm - Spring Steel Zinc Plated CC-056-064-CZ (100 Pcs) --- Crescent Retaining Rings - 5.59x6.35x0.64 mm - Spring Steel Zinc Plated Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 5.59 mm _{(0.22 in.)}	Shaft Diameter (S) 6.35 mm _{(0.25 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 8.38 mm	Clip OD Loose (D1) 7.90 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-056-064-C (50 Pcs) Crescent Retaining Rings - 5.59x6.35x0.64 mm - Carbon Spring Steel Self Finish 13 units (650 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 50
Groove Diameter (G) 5.59 mm _{(0.22 in.)}	Shaft Diameter (S) 6.35 mm _{(0.25 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 8.38 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 7.90 mm Groove Width (W): 0.74
Part Number: CC-056-064-C (50 Pcs) Crescent Retaining Rings - 5.59x6.35x0.64 mm - Carbon Spring Steel Self Finish 13 units (650 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-056-064-C (50 Pcs) --- Crescent Retaining Rings - 5.59x6.35x0.64 mm - Carbon Spring Steel Self Finish CC-056-064-C (50 Pcs) --- Crescent Retaining Rings - 5.59x6.35x0.64 mm - Carbon Spring Steel Self Finish Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per 13 Available Now
Groove Diameter (G) 5.59 mm _{(0.22 in.)}	Shaft Diameter (S) 6.35 mm _{(0.25 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 8.38 mm	Clip OD Loose (D1) 7.90 mm	Groove Width (W) 0.74
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-056-064-SS (100 Pcs) Crescent Retaining Rings - 5.59x6.35x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Per 100
Groove Diameter (G) 5.59 mm _{(0.22 in.)}	Shaft Diameter (S) 6.35 mm _{(0.25 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 8.38 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 7.90 mm Groove Width (W): 0.74
Part Number: CC-056-064-SS (100 Pcs) Crescent Retaining Rings - 5.59x6.35x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-056-064-SS (100 Pcs) --- Crescent Retaining Rings - 5.59x6.35x0.64 mm - Stainless Steel Grade PH15-7-17 CC-056-064-SS (100 Pcs) --- Crescent Retaining Rings - 5.59x6.35x0.64 mm - Stainless Steel Grade PH15-7-17 Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 6.00 mm _{(0.236 in.)}	Shaft Diameter (S) 7.00 mm _{(0.276 in.)}	Thickness (t) 0.8 mm _{(0.031 in.)}	Clip OD in groove (C1) 8.80 mm	Clip OD Loose (D1) 8.60 mm	Groove Width (W) 0.85
Material: Carbon Spring Steel Self Finish
Part Number: CC-060-070-C (10 Pcs) Crescent Retaining Rings - 6x7x0.8 mm - Carbon Spring Steel Self Finish 48 units (480 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per Per 10
Groove Diameter (G) 6.00 mm _{(0.236 in.)}	Shaft Diameter (S) 7.00 mm _{(0.276 in.)}	Thickness (t) 0.8 mm _{(0.031 in.)}	Clip OD in groove (C1) 8.80 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 8.60 mm Groove Width (W): 0.85
Part Number: CC-060-070-C (10 Pcs) Crescent Retaining Rings - 6x7x0.8 mm - Carbon Spring Steel Self Finish 48 units (480 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-060-070-C (10 Pcs) --- Crescent Retaining Rings - 6x7x0.8 mm - Carbon Spring Steel Self Finish CC-060-070-C (10 Pcs) --- Crescent Retaining Rings - 6x7x0.8 mm - Carbon Spring Steel Self Finish Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per 48 Available Now
Groove Diameter (G) 6.27 mm _{(0.247 in.)}	Shaft Diameter (S) 7.14 mm _{(0.281 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.14 mm	Clip OD Loose (D1) 8.79 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-063-071-C (10 Pcs) Crescent Retaining Rings - 6.27x7.14x0.64 mm - Carbon Spring Steel Self Finish 86 units (860 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Per 10
Groove Diameter (G) 6.27 mm _{(0.247 in.)}	Shaft Diameter (S) 7.14 mm _{(0.281 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.14 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 8.79 mm Groove Width (W): 0.74
Part Number: CC-063-071-C (10 Pcs) Crescent Retaining Rings - 6.27x7.14x0.64 mm - Carbon Spring Steel Self Finish 86 units (860 pcs) Available Immediately \| Further orders can be expected around Fri, Aug 08, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-063-071-C (10 Pcs) --- Crescent Retaining Rings - 6.27x7.14x0.64 mm - Carbon Spring Steel Self Finish CC-063-071-C (10 Pcs) --- Crescent Retaining Rings - 6.27x7.14x0.64 mm - Carbon Spring Steel Self Finish Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per 86 Available Now
Groove Diameter (G) 6.27 mm _{(0.247 in.)}	Shaft Diameter (S) 7.14 mm _{(0.281 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.14 mm	Clip OD Loose (D1) 8.79 mm	Groove Width (W) 0.74
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-063-071-SS (100 Pcs) Crescent Retaining Rings - 6.27x7.14x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $56.68 AUD Regular price Sale price $56.68 AUD Unit price per Per 100
Groove Diameter (G) 6.27 mm _{(0.247 in.)}	Shaft Diameter (S) 7.14 mm _{(0.281 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.14 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 8.79 mm Groove Width (W): 0.74
Part Number: CC-063-071-SS (100 Pcs) Crescent Retaining Rings - 6.27x7.14x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $56.68 AUD Regular price Sale price $56.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-063-071-SS (100 Pcs) --- Crescent Retaining Rings - 6.27x7.14x0.64 mm - Stainless Steel Grade PH15-7-17 CC-063-071-SS (100 Pcs) --- Crescent Retaining Rings - 6.27x7.14x0.64 mm - Stainless Steel Grade PH15-7-17 Regular price $56.68 AUD Regular price Sale price $56.68 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 7.01 mm _{(0.276 in.)}	Shaft Diameter (S) 7.93 mm _{(0.312 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.91 mm	Clip OD Loose (D1) 9.55 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-070-079-C (10 Pcs) Crescent Retaining Rings - 7.01x7.93x0.64 mm - Carbon Spring Steel Self Finish 92 units (920 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 10
Groove Diameter (G) 7.01 mm _{(0.276 in.)}	Shaft Diameter (S) 7.93 mm _{(0.312 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.91 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 9.55 mm Groove Width (W): 0.74
Part Number: CC-070-079-C (10 Pcs) Crescent Retaining Rings - 7.01x7.93x0.64 mm - Carbon Spring Steel Self Finish 92 units (920 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-070-079-C (10 Pcs) --- Crescent Retaining Rings - 7.01x7.93x0.64 mm - Carbon Spring Steel Self Finish CC-070-079-C (10 Pcs) --- Crescent Retaining Rings - 7.01x7.93x0.64 mm - Carbon Spring Steel Self Finish Regular price $3.77 AUD Regular price Sale price $3.77 AUD Unit price per 92 Available Now
Groove Diameter (G) 7.01 mm _{(0.276 in.)}	Shaft Diameter (S) 7.93 mm _{(0.312 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.91 mm	Clip OD Loose (D1) 9.55 mm	Groove Width (W) 0.74
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-070-079-SS (100 Pcs) Crescent Retaining Rings - 7.01x7.93x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $59.05 AUD Regular price Sale price $59.05 AUD Unit price per Per 100
Groove Diameter (G) 7.01 mm _{(0.276 in.)}	Shaft Diameter (S) 7.93 mm _{(0.312 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.91 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 9.55 mm Groove Width (W): 0.74
Part Number: CC-070-079-SS (100 Pcs) Crescent Retaining Rings - 7.01x7.93x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $59.05 AUD Regular price Sale price $59.05 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-070-079-SS (100 Pcs) --- Crescent Retaining Rings - 7.01x7.93x0.64 mm - Stainless Steel Grade PH15-7-17 CC-070-079-SS (100 Pcs) --- Crescent Retaining Rings - 7.01x7.93x0.64 mm - Stainless Steel Grade PH15-7-17 Regular price $59.05 AUD Regular price Sale price $59.05 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 7.01 mm _{(0.276 in.)}	Shaft Diameter (S) 7.93 mm _{(0.312 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.91 mm	Clip OD Loose (D1) 9.55 mm	Groove Width (W) 0.74
Material: Spring Steel Zinc Plated
Part Number: CC-070-079-CZ (100 Pcs) Crescent Retaining Rings - 7.01x7.93x0.64 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100
Groove Diameter (G) 7.01 mm _{(0.276 in.)}	Shaft Diameter (S) 7.93 mm _{(0.312 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 9.91 mm
Material: Spring Steel Zinc Plated Clip OD Loose (D1): 9.55 mm Groove Width (W): 0.74
Part Number: CC-070-079-CZ (100 Pcs) Crescent Retaining Rings - 7.01x7.93x0.64 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-070-079-CZ (100 Pcs) --- Crescent Retaining Rings - 7.01x7.93x0.64 mm - Spring Steel Zinc Plated CC-070-079-CZ (100 Pcs) --- Crescent Retaining Rings - 7.01x7.93x0.64 mm - Spring Steel Zinc Plated Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 8.00 mm _{(0.315 in.)}	Shaft Diameter (S) 9.00 mm _{(0.354 in.)}	Thickness (t) 1 mm _{(0.039 in.)}	Clip OD in groove (C1) 11.400 mm	Clip OD Loose (D1) 11.200 mm	Groove Width (W) 1.10
Material: Carbon Spring Steel Self Finish
Part Number: CC-080-090-C (30 Pcs) Crescent Retaining Rings - 8x9x1 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Per 30
Groove Diameter (G) 8.00 mm _{(0.315 in.)}	Shaft Diameter (S) 9.00 mm _{(0.354 in.)}	Thickness (t) 1 mm _{(0.039 in.)}	Clip OD in groove (C1) 11.400 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 11.200 mm Groove Width (W): 1.10
Part Number: CC-080-090-C (30 Pcs) Crescent Retaining Rings - 8x9x1 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Per 30 View the product page first if you are unsure.
CC-080-090-C (30 Pcs) --- Crescent Retaining Rings - 8x9x1 mm - Carbon Spring Steel Self Finish CC-080-090-C (30 Pcs) --- Crescent Retaining Rings - 8x9x1 mm - Carbon Spring Steel Self Finish Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 8.51 mm _{(0.335 in.)}	Shaft Diameter (S) 9.53 mm _{(0.375 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 11.94 mm	Clip OD Loose (D1) 11.38 mm	Groove Width (W) 0.74
Material: Spring Steel Zinc Plated
Part Number: CC-085-095-CZ (100 Pcs) Crescent Retaining Rings - 8.51x9.53x0.64 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Per 100
Groove Diameter (G) 8.51 mm _{(0.335 in.)}	Shaft Diameter (S) 9.53 mm _{(0.375 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 11.94 mm
Material: Spring Steel Zinc Plated Clip OD Loose (D1): 11.38 mm Groove Width (W): 0.74
Part Number: CC-085-095-CZ (100 Pcs) Crescent Retaining Rings - 8.51x9.53x0.64 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-085-095-CZ (100 Pcs) --- Crescent Retaining Rings - 8.51x9.53x0.64 mm - Spring Steel Zinc Plated CC-085-095-CZ (100 Pcs) --- Crescent Retaining Rings - 8.51x9.53x0.64 mm - Spring Steel Zinc Plated Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 8.51 mm _{(0.335 in.)}	Shaft Diameter (S) 9.53 mm _{(0.375 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 11.94 mm	Clip OD Loose (D1) 11.38 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-085-095-C (10 Pcs) Crescent Retaining Rings - 8.51x9.53x0.64 mm - Carbon Spring Steel Self Finish 147 units (1470 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 10
Groove Diameter (G) 8.51 mm _{(0.335 in.)}	Shaft Diameter (S) 9.53 mm _{(0.375 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 11.94 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 11.38 mm Groove Width (W): 0.74
Part Number: CC-085-095-C (10 Pcs) Crescent Retaining Rings - 8.51x9.53x0.64 mm - Carbon Spring Steel Self Finish 147 units (1470 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-085-095-C (10 Pcs) --- Crescent Retaining Rings - 8.51x9.53x0.64 mm - Carbon Spring Steel Self Finish CC-085-095-C (10 Pcs) --- Crescent Retaining Rings - 8.51x9.53x0.64 mm - Carbon Spring Steel Self Finish Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per 147 Available Now
