Collection: Retaining Rings - Crescent

Retaining Rings (With Images)

Crescent

66 Products in this selection

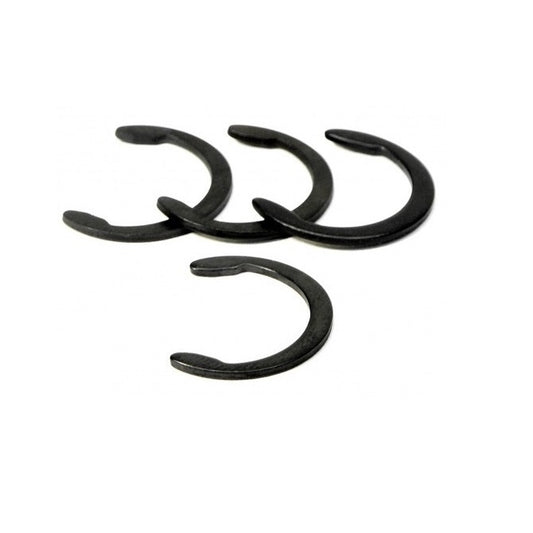

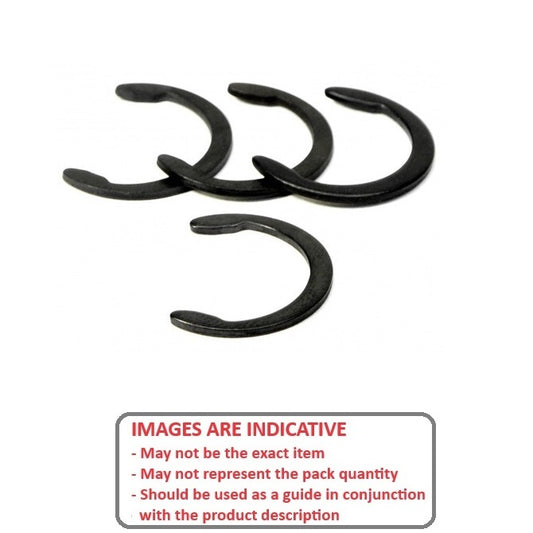

Variation of an E-Clip with an open face. Also known as a C-Clip.
Narrow section height provides good clearance capabilities.
Absence of teeth and deep set mean less thrust load ratings than e-clips.
For best results install using the recommended applicator tool.

Retaining Rings - Crescent

Additional resources:

A more concise listing may be found on the Smallparts store at Retaining Rings - Crescent. Smallparts promote the most popular MBA products.

Groove Diameter (G)	Shaft Diameter (S)	Thickness (t)	Clip OD in groove (C1)	Clip OD Loose (D1)	Groove Width (W)	Indicative Image
Groove Diameter (G) 8.51 mm _{(0.335 in.)}	Shaft Diameter (S) 9.53 mm _{(0.375 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 11.94 mm	Clip OD Loose (D1) 11.38 mm	Groove Width (W) 0.74
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-085-095-SS (50 Pcs) Crescent Retaining Rings - 8.51x9.53x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $32.50 AUD Regular price Sale price $32.50 AUD Unit price per Per 50
Groove Diameter (G)	Shaft Diameter (S)	Thickness (t)	Clip OD in groove (C1)	Indicative Image
Groove Diameter (G) 8.51 mm _{(0.335 in.)}	Shaft Diameter (S) 9.53 mm _{(0.375 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 11.94 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 11.38 mm Groove Width (W): 0.74
Part Number: CC-085-095-SS (50 Pcs) Crescent Retaining Rings - 8.51x9.53x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $32.50 AUD Regular price Sale price $32.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-085-095-SS (50 Pcs) --- Crescent Retaining Rings - 8.51x9.53x0.64 mm - Stainless Steel Grade PH15-7-17 CC-085-095-SS (50 Pcs) --- Crescent Retaining Rings - 8.51x9.53x0.64 mm - Stainless Steel Grade PH15-7-17 Regular price $32.50 AUD Regular price Sale price $32.50 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 9.00 mm _{(0.354 in.)}	Shaft Diameter (S) 10.00 mm _{(0.394 in.)}	Thickness (t) 0.9 mm _{(0.035 in.)}	Clip OD in groove (C1) 12.40 mm	Clip OD Loose (D1) 12.00 mm	Groove Width (W) 0.95
Material: Carbon Spring Steel Self Finish
Part Number: CC-090-100-C (50 Pcs) Crescent Retaining Rings - 9x10x0.9 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 50
Groove Diameter (G) 9.00 mm _{(0.354 in.)}	Shaft Diameter (S) 10.00 mm _{(0.394 in.)}	Thickness (t) 0.9 mm _{(0.035 in.)}	Clip OD in groove (C1) 12.40 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 12.00 mm Groove Width (W): 0.95
Part Number: CC-090-100-C (50 Pcs) Crescent Retaining Rings - 9x10x0.9 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-090-100-C (50 Pcs) --- Crescent Retaining Rings - 9x10x0.9 mm - Carbon Spring Steel Self Finish CC-090-100-C (50 Pcs) --- Crescent Retaining Rings - 9x10x0.9 mm - Carbon Spring Steel Self Finish Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 9.25 mm _{(0.364 in.)}	Shaft Diameter (S) 10.31 mm _{(0.406 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 12.70 mm	Clip OD Loose (D1) 12.34 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-093-103-C (10 Pcs) Crescent Retaining Rings - 9.25x10.31x0.64 mm - Carbon Spring Steel Self Finish 12 units (120 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Per 10
Groove Diameter (G) 9.25 mm _{(0.364 in.)}	Shaft Diameter (S) 10.31 mm _{(0.406 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 12.70 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 12.34 mm Groove Width (W): 0.74
Part Number: CC-093-103-C (10 Pcs) Crescent Retaining Rings - 9.25x10.31x0.64 mm - Carbon Spring Steel Self Finish 12 units (120 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-093-103-C (10 Pcs) --- Crescent Retaining Rings - 9.25x10.31x0.64 mm - Carbon Spring Steel Self Finish CC-093-103-C (10 Pcs) --- Crescent Retaining Rings - 9.25x10.31x0.64 mm - Carbon Spring Steel Self Finish Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per 12 Available Now
Groove Diameter (G) 9.98 mm _{(0.393 in.)}	Shaft Diameter (S) 11.13 mm _{(0.438 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 13.46 mm	Clip OD Loose (D1) 13.13 mm	Groove Width (W) 0.74
Material: Spring Steel Zinc Plated
Part Number: CC-100-111-CZ (100 Pcs) Crescent Retaining Rings - 9.98x11.13x0.64 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Per 100
Groove Diameter (G) 9.98 mm _{(0.393 in.)}	Shaft Diameter (S) 11.13 mm _{(0.438 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 13.46 mm
Material: Spring Steel Zinc Plated Clip OD Loose (D1): 13.13 mm Groove Width (W): 0.74
Part Number: CC-100-111-CZ (100 Pcs) Crescent Retaining Rings - 9.98x11.13x0.64 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-100-111-CZ (100 Pcs) --- Crescent Retaining Rings - 9.98x11.13x0.64 mm - Spring Steel Zinc Plated CC-100-111-CZ (100 Pcs) --- Crescent Retaining Rings - 9.98x11.13x0.64 mm - Spring Steel Zinc Plated Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 9.98 mm _{(0.393 in.)}	Shaft Diameter (S) 11.13 mm _{(0.438 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 13.46 mm	Clip OD Loose (D1) 13.13 mm	Groove Width (W) 0.74
Material: Carbon Spring Steel Self Finish
Part Number: CC-100-111-C (20 Pcs) Crescent Retaining Rings - 9.98x11.13x0.64 mm - Carbon Spring Steel Self Finish 40 units (800 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20
Groove Diameter (G) 9.98 mm _{(0.393 in.)}	Shaft Diameter (S) 11.13 mm _{(0.438 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 13.46 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 13.13 mm Groove Width (W): 0.74
Part Number: CC-100-111-C (20 Pcs) Crescent Retaining Rings - 9.98x11.13x0.64 mm - Carbon Spring Steel Self Finish 40 units (800 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 20 View the product page first if you are unsure.
CC-100-111-C (20 Pcs) --- Crescent Retaining Rings - 9.98x11.13x0.64 mm - Carbon Spring Steel Self Finish CC-100-111-C (20 Pcs) --- Crescent Retaining Rings - 9.98x11.13x0.64 mm - Carbon Spring Steel Self Finish Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 40 Available Now
Groove Diameter (G) 9.98 mm _{(0.393 in.)}	Shaft Diameter (S) 11.13 mm _{(0.438 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 13.46 mm	Clip OD Loose (D1) 13.13 mm	Groove Width (W) 0.74
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-100-111-SS (50 Pcs) Crescent Retaining Rings - 9.98x11.13x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $35.32 AUD Regular price Sale price $35.32 AUD Unit price per Per 50
Groove Diameter (G) 9.98 mm _{(0.393 in.)}	Shaft Diameter (S) 11.13 mm _{(0.438 in.)}	Thickness (t) 0.64 mm _{(0.025 in.)}	Clip OD in groove (C1) 13.46 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 13.13 mm Groove Width (W): 0.74
Part Number: CC-100-111-SS (50 Pcs) Crescent Retaining Rings - 9.98x11.13x0.64 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $35.32 AUD Regular price Sale price $35.32 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-100-111-SS (50 Pcs) --- Crescent Retaining Rings - 9.98x11.13x0.64 mm - Stainless Steel Grade PH15-7-17 CC-100-111-SS (50 Pcs) --- Crescent Retaining Rings - 9.98x11.13x0.64 mm - Stainless Steel Grade PH15-7-17 Regular price $35.32 AUD Regular price Sale price $35.32 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 10.79 - 10.90 mm _{(0.425 in.)}	Shaft Diameter (S) 12.00 mm _{(0.472 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 14.700 mm	Clip OD Loose (D1) 14.350 mm	Groove Width (W) 1.10
Material: Carbon Spring Steel Self Finish Tool: RRA-100
Part Number: CC-108-120-C (250 Pcs) Crescent Retaining Rings - 10.79 - 10.90 12x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $95.59 AUD Regular price Sale price $95.59 AUD Unit price per Per 250
Groove Diameter (G) 10.79 - 10.90 mm _{(0.425 in.)}	Shaft Diameter (S) 12.00 mm _{(0.472 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 14.700 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 14.350 mm Groove Width (W): 1.10 Tool: RRA-100
Part Number: CC-108-120-C (250 Pcs) Crescent Retaining Rings - 10.79 - 10.90 12x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $95.59 AUD Regular price Sale price $95.59 AUD Unit price per Per 250 View the product page first if you are unsure.
CC-108-120-C (250 Pcs) --- Crescent Retaining Rings - 10.79 - 10.90 12x0.94 mm - Carbon Spring Steel Self Finish CC-108-120-C (250 Pcs) --- Crescent Retaining Rings - 10.79 - 10.90 12x0.94 mm - Carbon Spring Steel Self Finish Regular price $95.59 AUD Regular price Sale price $95.59 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 11.43 mm _{(0.45 in.)}	Shaft Diameter (S) 12.70 mm _{(0.5 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 15.24 mm	Clip OD Loose (D1) 14.76 mm	Groove Width (W) 0.99
Material: Spring Steel Zinc Plated
Part Number: CC-114-127-CZ (100 Pcs) Crescent Retaining Rings - 11.43x12.7x0.89 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.41 AUD Regular price Sale price $33.41 AUD Unit price per Per 100
Groove Diameter (G) 11.43 mm _{(0.45 in.)}	Shaft Diameter (S) 12.70 mm _{(0.5 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 15.24 mm
Material: Spring Steel Zinc Plated Clip OD Loose (D1): 14.76 mm Groove Width (W): 0.99
Part Number: CC-114-127-CZ (100 Pcs) Crescent Retaining Rings - 11.43x12.7x0.89 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.41 AUD Regular price Sale price $33.41 AUD Unit price per Per 100 View the product page first if you are unsure.
CC-114-127-CZ (100 Pcs) --- Crescent Retaining Rings - 11.43x12.7x0.89 mm - Spring Steel Zinc Plated CC-114-127-CZ (100 Pcs) --- Crescent Retaining Rings - 11.43x12.7x0.89 mm - Spring Steel Zinc Plated Regular price $33.41 AUD Regular price Sale price $33.41 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 11.43 mm _{(0.45 in.)}	Shaft Diameter (S) 12.70 mm _{(0.5 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 15.24 mm	Clip OD Loose (D1) 14.76 mm	Groove Width (W) 0.99
Material: Carbon Spring Steel Self Finish
Part Number: CC-114-127-C (10 Pcs) Crescent Retaining Rings - 11.43x12.7x0.89 mm - Carbon Spring Steel Self Finish 55 units (550 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 10
Groove Diameter (G) 11.43 mm _{(0.45 in.)}	Shaft Diameter (S) 12.70 mm _{(0.5 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 15.24 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 14.76 mm Groove Width (W): 0.99
Part Number: CC-114-127-C (10 Pcs) Crescent Retaining Rings - 11.43x12.7x0.89 mm - Carbon Spring Steel Self Finish 55 units (550 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-114-127-C (10 Pcs) --- Crescent Retaining Rings - 11.43x12.7x0.89 mm - Carbon Spring Steel Self Finish CC-114-127-C (10 Pcs) --- Crescent Retaining Rings - 11.43x12.7x0.89 mm - Carbon Spring Steel Self Finish Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 55 Available Now
Groove Diameter (G) 11.69 - 11.80 mm _{(0.46 in.)}	Shaft Diameter (S) 13.00 mm _{(0.512 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 15.800 mm	Clip OD Loose (D1) 15.400 mm	Groove Width (W) 1.10
Material: Carbon Spring Steel Self Finish Tool: RRA-110
Part Number: CC-117-130-C (500 Pcs) Crescent Retaining Rings - 11.69 - 11.80 13x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $255.05 AUD Regular price Sale price $255.05 AUD Unit price per Per 500
Groove Diameter (G) 11.69 - 11.80 mm _{(0.46 in.)}	Shaft Diameter (S) 13.00 mm _{(0.512 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 15.800 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 15.400 mm Groove Width (W): 1.10 Tool: RRA-110
Part Number: CC-117-130-C (500 Pcs) Crescent Retaining Rings - 11.69 - 11.80 13x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $255.05 AUD Regular price Sale price $255.05 AUD Unit price per Per 500 View the product page first if you are unsure.
CC-117-130-C (500 Pcs) --- Crescent Retaining Rings - 11.69 - 11.80 13x0.94 mm - Carbon Spring Steel Self Finish CC-117-130-C (500 Pcs) --- Crescent Retaining Rings - 11.69 - 11.80 13x0.94 mm - Carbon Spring Steel Self Finish Regular price $255.05 AUD Regular price Sale price $255.05 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 12.59 - 12.70 mm _{(0.496 in.)}	Shaft Diameter (S) 14.00 mm _{(0.551 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 16.700 mm	Clip OD Loose (D1) 16.300 mm	Groove Width (W) 1.10
Material: Carbon Spring Steel Self Finish Tool: RRA-120
Part Number: CC-126-140-C (500 Pcs) Crescent Retaining Rings - 12.59 - 12.70 14x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $98.23 AUD Regular price Sale price $98.23 AUD Unit price per Per 500
Groove Diameter (G) 12.59 - 12.70 mm _{(0.496 in.)}	Shaft Diameter (S) 14.00 mm _{(0.551 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 16.700 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 16.300 mm Groove Width (W): 1.10 Tool: RRA-120
Part Number: CC-126-140-C (500 Pcs) Crescent Retaining Rings - 12.59 - 12.70 14x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $98.23 AUD Regular price Sale price $98.23 AUD Unit price per Per 500 View the product page first if you are unsure.
CC-126-140-C (500 Pcs) --- Crescent Retaining Rings - 12.59 - 12.70 14x0.94 mm - Carbon Spring Steel Self Finish CC-126-140-C (500 Pcs) --- Crescent Retaining Rings - 12.59 - 12.70 14x0.94 mm - Carbon Spring Steel Self Finish Regular price $98.23 AUD Regular price Sale price $98.23 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 12.88 mm _{(0.507 in.)}	Shaft Diameter (S) 14.28 mm _{(0.562 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 17.02 mm	Clip OD Loose (D1) 16.59 mm	Groove Width (W) 0.99
Material: Carbon Spring Steel Self Finish
Part Number: CC-129-143-C (10 Pcs) Crescent Retaining Rings - 12.88x14.28x0.89 mm - Carbon Spring Steel Self Finish 84 units (840 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 10
Groove Diameter (G) 12.88 mm _{(0.507 in.)}	Shaft Diameter (S) 14.28 mm _{(0.562 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 17.02 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 16.59 mm Groove Width (W): 0.99
Part Number: CC-129-143-C (10 Pcs) Crescent Retaining Rings - 12.88x14.28x0.89 mm - Carbon Spring Steel Self Finish 84 units (840 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-129-143-C (10 Pcs) --- Crescent Retaining Rings - 12.88x14.28x0.89 mm - Carbon Spring Steel Self Finish CC-129-143-C (10 Pcs) --- Crescent Retaining Rings - 12.88x14.28x0.89 mm - Carbon Spring Steel Self Finish Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 84 Available Now
Groove Diameter (G) 13.49 - 13.60 mm _{(0.531 in.)}	Shaft Diameter (S) 15.00 mm _{(0.591 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 17.800 mm	Clip OD Loose (D1) 17.400 mm	Groove Width (W) 1.10
Material: Carbon Spring Steel Self Finish Tool: RRA-130
Part Number: CC-135-150-C (45 Pcs) Crescent Retaining Rings - 13.49 - 13.60 15x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Per 45
Groove Diameter (G) 13.49 - 13.60 mm _{(0.531 in.)}	Shaft Diameter (S) 15.00 mm _{(0.591 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 17.800 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 17.400 mm Groove Width (W): 1.10 Tool: RRA-130
Part Number: CC-135-150-C (45 Pcs) Crescent Retaining Rings - 13.49 - 13.60 15x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Per 45 View the product page first if you are unsure.
CC-135-150-C (45 Pcs) --- Crescent Retaining Rings - 13.49 - 13.60 15x0.94 mm - Carbon Spring Steel Self Finish CC-135-150-C (45 Pcs) --- Crescent Retaining Rings - 13.49 - 13.60 15x0.94 mm - Carbon Spring Steel Self Finish Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 14.30 mm _{(0.563 in.)}	Shaft Diameter (S) 15.88 mm _{(0.625 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 18.80 mm	Clip OD Loose (D1) 18.16 mm	Groove Width (W) 0.99
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-143-159-SS (5 Pcs) Crescent Retaining Rings - 14.3x15.88x0.89 mm - Stainless Steel Grade PH15-7-17 49 units (245 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 5
Groove Diameter (G) 14.30 mm _{(0.563 in.)}	Shaft Diameter (S) 15.88 mm _{(0.625 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 18.80 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 18.16 mm Groove Width (W): 0.99
Part Number: CC-143-159-SS (5 Pcs) Crescent Retaining Rings - 14.3x15.88x0.89 mm - Stainless Steel Grade PH15-7-17 49 units (245 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CC-143-159-SS (5 Pcs) --- Crescent Retaining Rings - 14.3x15.88x0.89 mm - Stainless Steel Grade PH15-7-17 CC-143-159-SS (5 Pcs) --- Crescent Retaining Rings - 14.3x15.88x0.89 mm - Stainless Steel Grade PH15-7-17 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 49 Available Now
Groove Diameter (G) 14.30 mm _{(0.563 in.)}	Shaft Diameter (S) 15.88 mm _{(0.625 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 18.80 mm	Clip OD Loose (D1) 18.16 mm	Groove Width (W) 0.99
Material: Carbon Spring Steel Self Finish
Part Number: CC-143-159-C (10 Pcs) Crescent Retaining Rings - 14.3x15.88x0.89 mm - Carbon Spring Steel Self Finish 89 units (890 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Per 10
Groove Diameter (G) 14.30 mm _{(0.563 in.)}	Shaft Diameter (S) 15.88 mm _{(0.625 in.)}	Thickness (t) 0.89 mm _{(0.035 in.)}	Clip OD in groove (C1) 18.80 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 18.16 mm Groove Width (W): 0.99
Part Number: CC-143-159-C (10 Pcs) Crescent Retaining Rings - 14.3x15.88x0.89 mm - Carbon Spring Steel Self Finish 89 units (890 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Per 10 View the product page first if you are unsure.
CC-143-159-C (10 Pcs) --- Crescent Retaining Rings - 14.3x15.88x0.89 mm - Carbon Spring Steel Self Finish CC-143-159-C (10 Pcs) --- Crescent Retaining Rings - 14.3x15.88x0.89 mm - Carbon Spring Steel Self Finish Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 89 Available Now
Groove Diameter (G) 15.29 - 15.40 mm _{(0.602 in.)}	Shaft Diameter (S) 17.00 mm _{(0.669 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 19.900 mm	Clip OD Loose (D1) 19.400 mm	Groove Width (W) 1.10
Material: Carbon Spring Steel Self Finish Tool: RRA-150
Part Number: CC-153-170-C (33 Pcs) Crescent Retaining Rings - 15.29 - 15.40 17x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Per 33
Groove Diameter (G) 15.29 - 15.40 mm _{(0.602 in.)}	Shaft Diameter (S) 17.00 mm _{(0.669 in.)}	Thickness (t) 0.94 mm _{(0.037 in.)}	Clip OD in groove (C1) 19.900 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 19.400 mm Groove Width (W): 1.10 Tool: RRA-150
Part Number: CC-153-170-C (33 Pcs) Crescent Retaining Rings - 15.29 - 15.40 17x0.94 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Per 33 View the product page first if you are unsure.
CC-153-170-C (33 Pcs) --- Crescent Retaining Rings - 15.29 - 15.40 17x0.94 mm - Carbon Spring Steel Self Finish CC-153-170-C (33 Pcs) --- Crescent Retaining Rings - 15.29 - 15.40 17x0.94 mm - Carbon Spring Steel Self Finish Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 15.72 mm _{(0.619 in.)}	Shaft Diameter (S) 17.48 mm _{(0.688 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 20.32 mm	Clip OD Loose (D1) 19.91 mm	Groove Width (W) 1.17
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-157-175-SS (5 Pcs) Crescent Retaining Rings - 15.72x17.48x1.07 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Per 5
Groove Diameter (G) 15.72 mm _{(0.619 in.)}	Shaft Diameter (S) 17.48 mm _{(0.688 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 20.32 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 19.91 mm Groove Width (W): 1.17
Part Number: CC-157-175-SS (5 Pcs) Crescent Retaining Rings - 15.72x17.48x1.07 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CC-157-175-SS (5 Pcs) --- Crescent Retaining Rings - 15.72x17.48x1.07 mm - Stainless Steel Grade PH15-7-17 CC-157-175-SS (5 Pcs) --- Crescent Retaining Rings - 15.72x17.48x1.07 mm - Stainless Steel Grade PH15-7-17 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 15.72 mm _{(0.619 in.)}	Shaft Diameter (S) 17.48 mm _{(0.688 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 20.32 mm	Clip OD Loose (D1) 19.91 mm	Groove Width (W) 1.17
Material: Carbon Spring Steel Self Finish
Part Number: CC-157-175-C (5 Pcs) Crescent Retaining Rings - 15.72x17.48x1.07 mm - Carbon Spring Steel Self Finish 174 units (870 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per Per 5
Groove Diameter (G) 15.72 mm _{(0.619 in.)}	Shaft Diameter (S) 17.48 mm _{(0.688 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 20.32 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 19.91 mm Groove Width (W): 1.17
Part Number: CC-157-175-C (5 Pcs) Crescent Retaining Rings - 15.72x17.48x1.07 mm - Carbon Spring Steel Self Finish 174 units (870 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per Per 5 View the product page first if you are unsure.
CC-157-175-C (5 Pcs) --- Crescent Retaining Rings - 15.72x17.48x1.07 mm - Carbon Spring Steel Self Finish CC-157-175-C (5 Pcs) --- Crescent Retaining Rings - 15.72x17.48x1.07 mm - Carbon Spring Steel Self Finish Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per 174 Available Now
Groove Diameter (G) 16.19 - 16.30 mm _{(0.637 in.)}	Shaft Diameter (S) 18.00 mm _{(0.709 in.)}	Thickness (t) 1.14 mm _{(0.045 in.)}	Clip OD in groove (C1) 20.900 mm	Clip OD Loose (D1) 20.400 mm	Groove Width (W) 1.10
Material: Carbon Spring Steel Self Finish Tool: RRA-160
Part Number: CC-162-180-C (500 Pcs) Crescent Retaining Rings - 16.19 - 16.30 18x1.14 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $279.95 AUD Regular price Sale price $279.95 AUD Unit price per Per 500
Groove Diameter (G) 16.19 - 16.30 mm _{(0.637 in.)}	Shaft Diameter (S) 18.00 mm _{(0.709 in.)}	Thickness (t) 1.14 mm _{(0.045 in.)}	Clip OD in groove (C1) 20.900 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 20.400 mm Groove Width (W): 1.10 Tool: RRA-160
Part Number: CC-162-180-C (500 Pcs) Crescent Retaining Rings - 16.19 - 16.30 18x1.14 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $279.95 AUD Regular price Sale price $279.95 AUD Unit price per Per 500 View the product page first if you are unsure.
CC-162-180-C (500 Pcs) --- Crescent Retaining Rings - 16.19 - 16.30 18x1.14 mm - Carbon Spring Steel Self Finish CC-162-180-C (500 Pcs) --- Crescent Retaining Rings - 16.19 - 16.30 18x1.14 mm - Carbon Spring Steel Self Finish Regular price $279.95 AUD Regular price Sale price $279.95 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 17.17 mm _{(0.676 in.)}	Shaft Diameter (S) 19.05 mm _{(0.75 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 22.10 mm	Clip OD Loose (D1) 21.46 mm	Groove Width (W) 1.17
Material: Carbon Spring Steel Self Finish
Part Number: CC-172-191-C (5 Pcs) Crescent Retaining Rings - 17.17x19.05x1.07 mm - Carbon Spring Steel Self Finish 178 units (890 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Per 5
Groove Diameter (G) 17.17 mm _{(0.676 in.)}	Shaft Diameter (S) 19.05 mm _{(0.75 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 22.10 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 21.46 mm Groove Width (W): 1.17
Part Number: CC-172-191-C (5 Pcs) Crescent Retaining Rings - 17.17x19.05x1.07 mm - Carbon Spring Steel Self Finish 178 units (890 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CC-172-191-C (5 Pcs) --- Crescent Retaining Rings - 17.17x19.05x1.07 mm - Carbon Spring Steel Self Finish CC-172-191-C (5 Pcs) --- Crescent Retaining Rings - 17.17x19.05x1.07 mm - Carbon Spring Steel Self Finish Regular price $3.32 AUD Regular price Sale price $3.32 AUD Unit price per 178 Available Now
Groove Diameter (G) 17.17 mm _{(0.676 in.)}	Shaft Diameter (S) 19.05 mm _{(0.75 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 22.10 mm	Clip OD Loose (D1) 21.46 mm	Groove Width (W) 1.17
Material: Spring Steel Zinc Plated
Part Number: CC-172-191-CZ (50 Pcs) Crescent Retaining Rings - 17.17x19.05x1.07 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Per 50
Groove Diameter (G) 17.17 mm _{(0.676 in.)}	Shaft Diameter (S) 19.05 mm _{(0.75 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 22.10 mm
Material: Spring Steel Zinc Plated Clip OD Loose (D1): 21.46 mm Groove Width (W): 1.17
Part Number: CC-172-191-CZ (50 Pcs) Crescent Retaining Rings - 17.17x19.05x1.07 mm - Spring Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Per 50 View the product page first if you are unsure.
CC-172-191-CZ (50 Pcs) --- Crescent Retaining Rings - 17.17x19.05x1.07 mm - Spring Steel Zinc Plated CC-172-191-CZ (50 Pcs) --- Crescent Retaining Rings - 17.17x19.05x1.07 mm - Spring Steel Zinc Plated Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 17.17 mm _{(0.676 in.)}	Shaft Diameter (S) 19.05 mm _{(0.75 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 22.10 mm	Clip OD Loose (D1) 21.46 mm	Groove Width (W) 1.17
Material: Stainless Steel Grade PH15-7-17
Part Number: CC-172-191-SS (5 Pcs) Crescent Retaining Rings - 17.17x19.05x1.07 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Per 5
Groove Diameter (G) 17.17 mm _{(0.676 in.)}	Shaft Diameter (S) 19.05 mm _{(0.75 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 22.10 mm
Material: Stainless Steel Grade PH15-7-17 Clip OD Loose (D1): 21.46 mm Groove Width (W): 1.17
Part Number: CC-172-191-SS (5 Pcs) Crescent Retaining Rings - 17.17x19.05x1.07 mm - Stainless Steel Grade PH15-7-17 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CC-172-191-SS (5 Pcs) --- Crescent Retaining Rings - 17.17x19.05x1.07 mm - Stainless Steel Grade PH15-7-17 CC-172-191-SS (5 Pcs) --- Crescent Retaining Rings - 17.17x19.05x1.07 mm - Stainless Steel Grade PH15-7-17 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 17.89 - 18.10 mm _{(0.704 in.)}	Shaft Diameter (S) 20.00 mm _{(0.787 in.)}	Thickness (t) 1.14 mm _{(0.045 in.)}	Clip OD in groove (C1) 23.200 mm	Clip OD Loose (D1) 22.650 mm	Groove Width (W) 1.30
Material: Carbon Spring Steel Self Finish Tool: RRA-180
Part Number: CC-179-200-C (250 Pcs) Crescent Retaining Rings - 17.89 - 18.10 20x1.14 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $148.59 AUD Regular price Sale price $148.59 AUD Unit price per Per 250
Groove Diameter (G) 17.89 - 18.10 mm _{(0.704 in.)}	Shaft Diameter (S) 20.00 mm _{(0.787 in.)}	Thickness (t) 1.14 mm _{(0.045 in.)}	Clip OD in groove (C1) 23.200 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 22.650 mm Groove Width (W): 1.30 Tool: RRA-180
Part Number: CC-179-200-C (250 Pcs) Crescent Retaining Rings - 17.89 - 18.10 20x1.14 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Thu, Aug 07, 2025 Regular price $148.59 AUD Regular price Sale price $148.59 AUD Unit price per Per 250 View the product page first if you are unsure.
CC-179-200-C (250 Pcs) --- Crescent Retaining Rings - 17.89 - 18.10 20x1.14 mm - Carbon Spring Steel Self Finish CC-179-200-C (250 Pcs) --- Crescent Retaining Rings - 17.89 - 18.10 20x1.14 mm - Carbon Spring Steel Self Finish Regular price $148.59 AUD Regular price Sale price $148.59 AUD Unit price per Out of stock! Backorder Now
Groove Diameter (G) 18.59 mm _{(0.732 in.)}	Shaft Diameter (S) 20.63 mm _{(0.812 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 23.88 mm	Clip OD Loose (D1) 23.24 mm	Groove Width (W) 1.17
Material: Carbon Spring Steel Self Finish
Part Number: CC-186-206-C (5 Pcs) Crescent Retaining Rings - 18.59x20.63x1.07 mm - Carbon Spring Steel Self Finish 74 units (370 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 5
Groove Diameter (G) 18.59 mm _{(0.732 in.)}	Shaft Diameter (S) 20.63 mm _{(0.812 in.)}	Thickness (t) 1.07 mm _{(0.042 in.)}	Clip OD in groove (C1) 23.88 mm
Material: Carbon Spring Steel Self Finish Clip OD Loose (D1): 23.24 mm Groove Width (W): 1.17
Part Number: CC-186-206-C (5 Pcs) Crescent Retaining Rings - 18.59x20.63x1.07 mm - Carbon Spring Steel Self Finish 74 units (370 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CC-186-206-C (5 Pcs) --- Crescent Retaining Rings - 18.59x20.63x1.07 mm - Carbon Spring Steel Self Finish CC-186-206-C (5 Pcs) --- Crescent Retaining Rings - 18.59x20.63x1.07 mm - Carbon Spring Steel Self Finish Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 74 Available Now
