WRE-0318-RD-HO

External Retaining Rings - 31.75x3.56x29.52 mm - Spring Steel

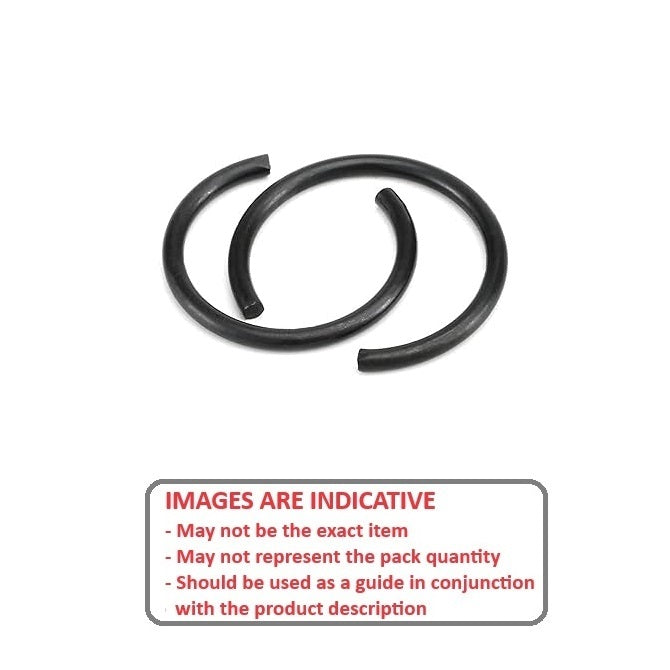

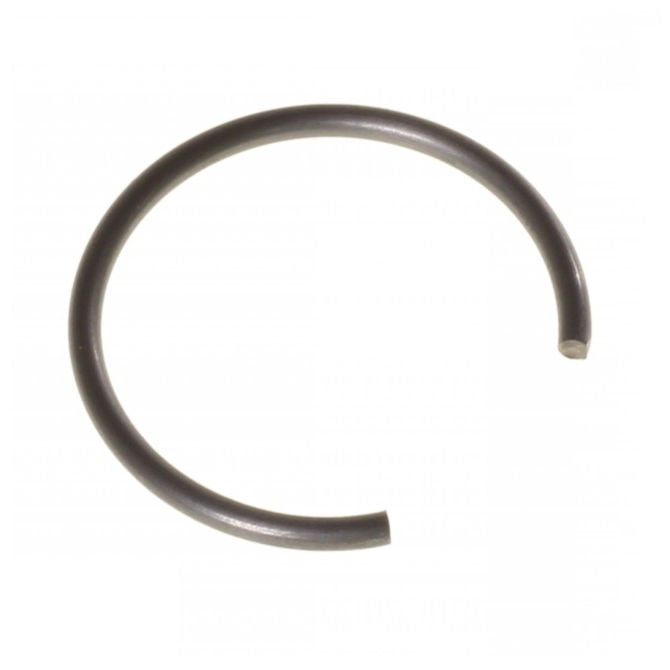

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Round Wire

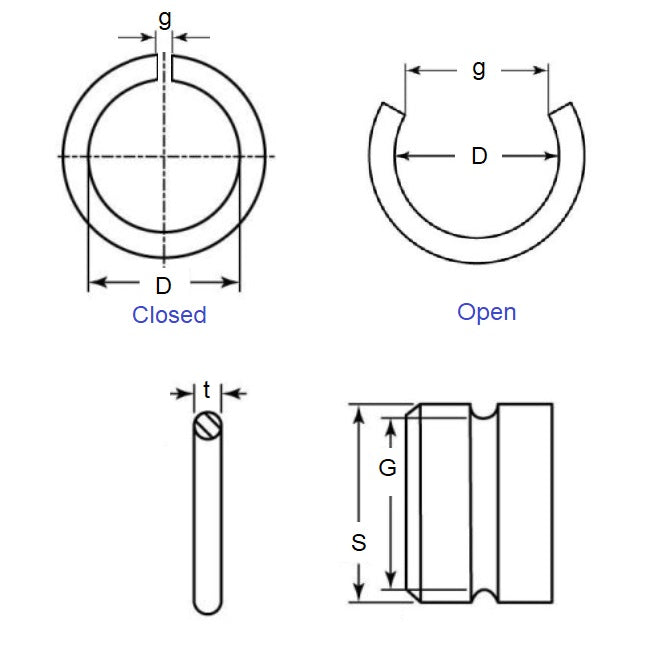

Product Details:

Shaft Diameter (Ds): 31.75mm
(31.75mm is 1.25 in.)

Spring Steel
  • Clip Thickness (T): 3.56mm
    +/- 0.06
    (3.56mm is 0.14 in.)
  • Groove Dia. (Dg): 29.52mm
    + /- 0.08
    (29.52mm is 1.162 in.)
  • Approx. Loose Circlip ID (A): 29.21mm
  • Radial Wall (S) min/max: 29.52mm
  • Groove Width (W): 3.61mm
  • Free Outside Dia (Dr): 36.33
  • Section Profile: Round Section
  • Info: Radial Assembly - Open Gap

Brand: MBA
Country of Origin: USA

Alternative Parts Include: WRE0318SRHO, XRO447, XRO-447, 200-447, 200447, Eaton, Arcon, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
