WRE-0603-LS-N

External Retaining Rings - 60.33x1.98x56.87 mm - Spring Steel

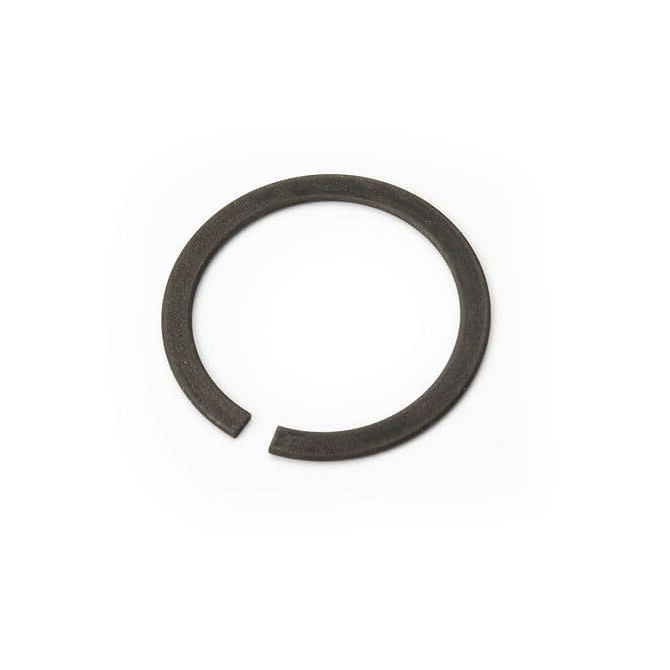

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Snap Rings and Spiral Rings PDF
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel

Product Details:

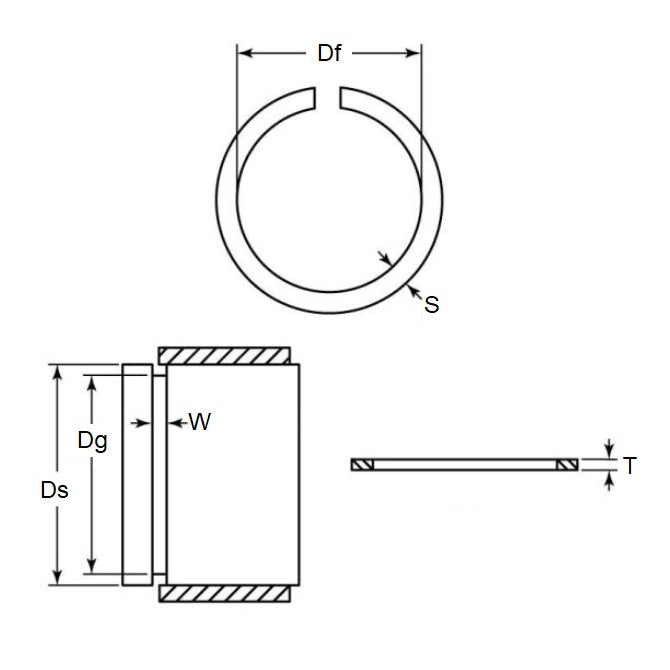

Shaft or Bearing OD (d1): 60.33mm
(60.33mm is 2.375 in.)

Spring Steel
  • Clip Thickness (T): 1.98mm
    +/- 0.05
    (1.98mm is 0.078 in.)
  • Groove Dia. (Dg): 56.87mm
    +/- 0.15
    (56.87mm is 2.239 in.)
  • Approx. Loose Circlip ID (A): 56.36mm
    + 0.00 / - 1.50
  • Radial Wall (S) min/max: 5.16mm
    +/- 0.13
  • Groove Width (W): 2.18mm
  • Approx. Loose Clip OD: 66.68
  • Info: Notched
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: DE

Alternative Parts Include: WRE0603SRN, USH237, USH-237, EN-237, EN237, Eaton, NoCor, Rotorclip

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
