WRE-0572-LS

External Retaining Rings - 57.15x1.98x54.51 mm Snap Rings - Carbon Spring Steel

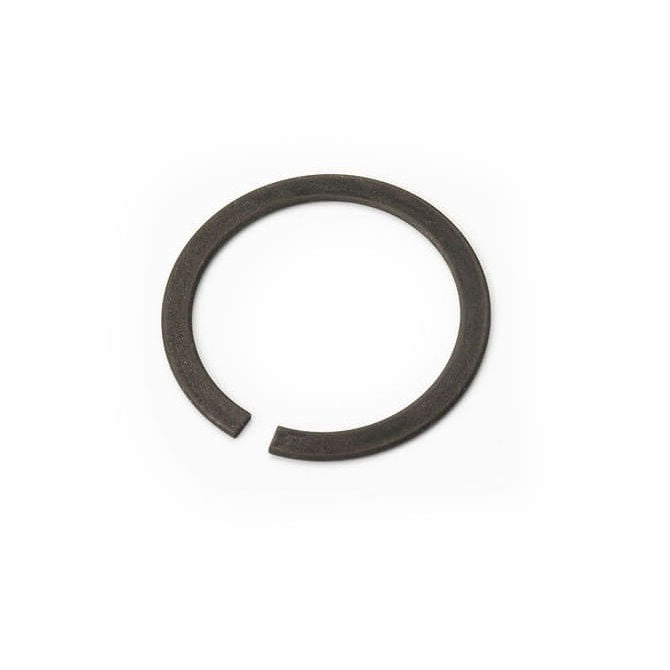

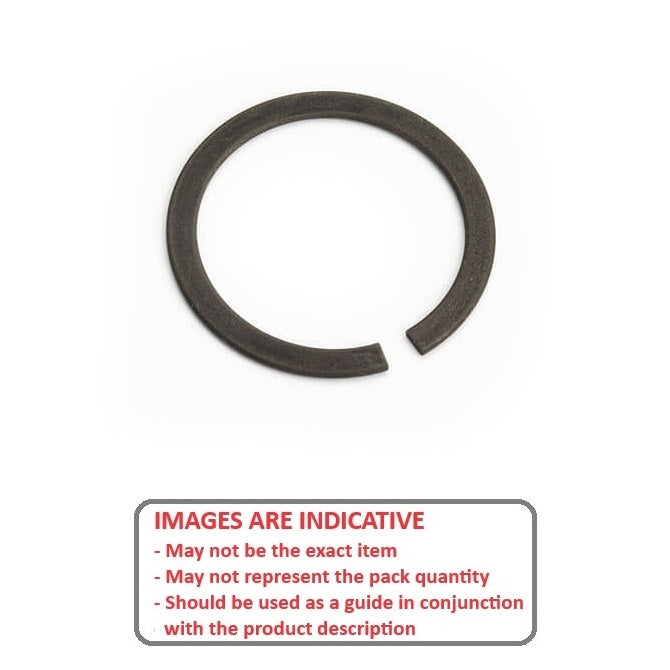

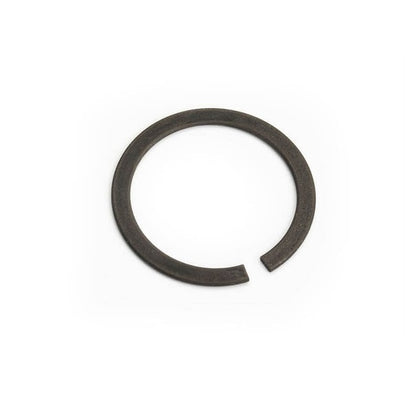

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 57.15x1.98x54.51 mm - Spring Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Snap Rings and Spiral Rings PDF
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel

Product Details

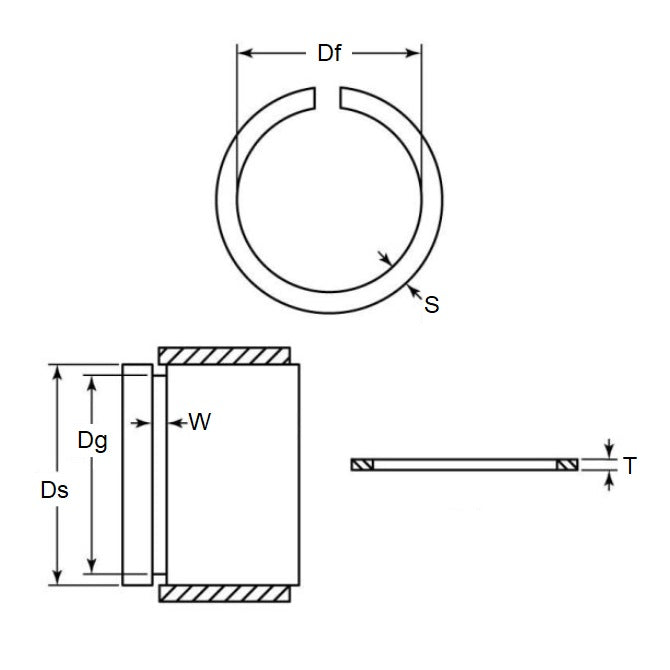

Shaft or Bearing OD (d1): 57.15mm
(57.15mm is 2.25 in.)

Carbon Spring Steel
  • Shaft or Bearing OD (d1): 57.15mm
    (57.15mm is 2.25 in.)
  • Clip Thickness (T): 1.98mm
    +/- 0.05
    (1.98mm is 0.078 in.)
  • Groove Dia. (Dg): 54.51mm
    +/- 0.15
    (54.51mm is 2.146 in.)
  • Approx. Loose Circlip ID (A): 53.75mm
    + 0.00 / - 1.17
  • Radial Wall (S) min/max: 3.96mm
    +/- 0.13
  • Groove Width (W): 2.18mm
  • Approx. Loose Clip OD: 61.67
  • Info: Basic
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor USC-225
  • Rotorclip USC-225
  • Eaton XAN-225
  • USC225
  • WRE0572SR
  • XAN225

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
