SS040M-0065-CS-S440-RB

Rolling Ball Tip Socket Set Screws - M4 - 4x0.7mm - 5.8 mm - Carbon Steel with 440C Stainless HRC 50-55 tip

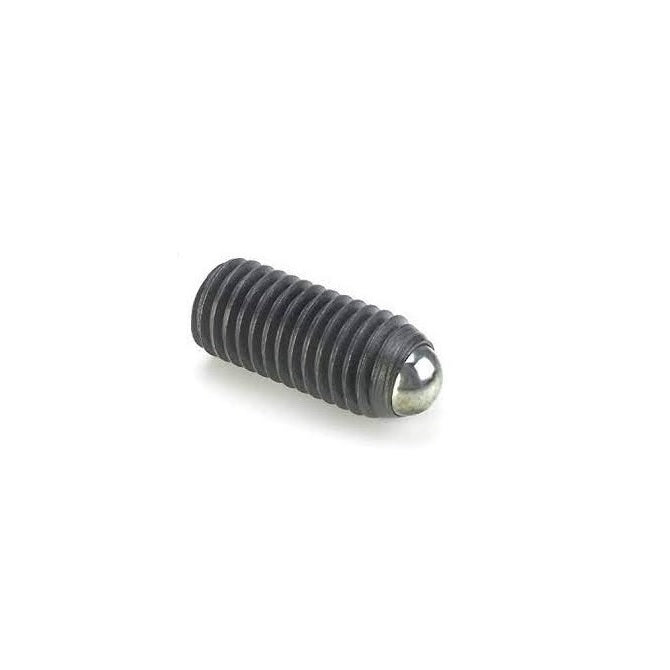

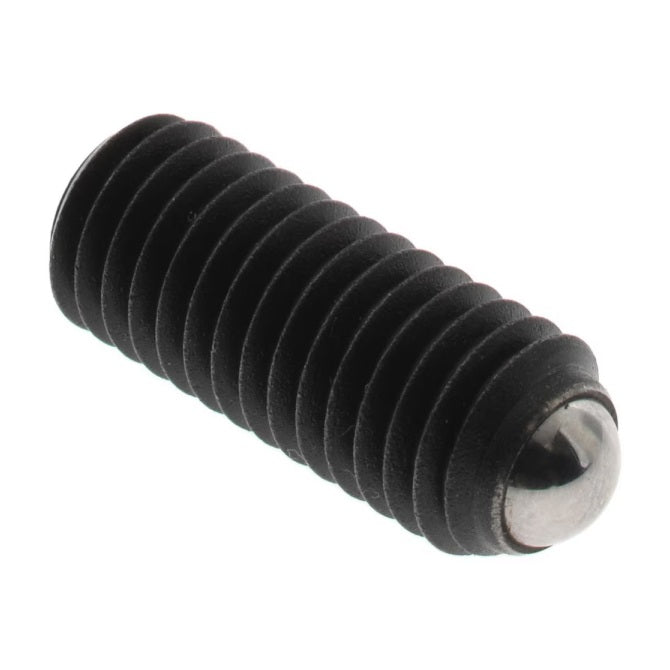

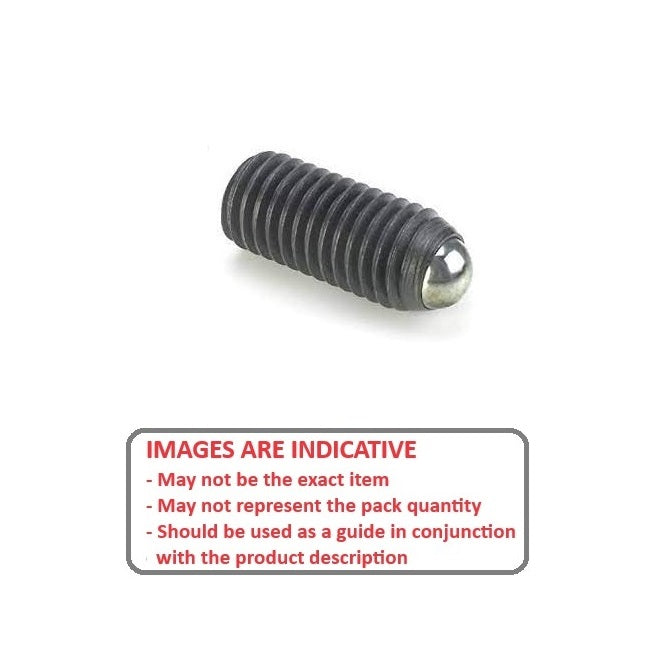

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Rolling Ball Tip Socket Set Screws - M4 -4x0.7mm- 5.8 mm - Carbon Steel with 440C Stainless HRC 50-55 tip
1 4

MBA

Store Name: Miniature Bearings Australia (Minibearings)

Additional resources:
Socket Set Screws Master PDF
Price:
$2.41 AUD
$2.89 AUD $2.41 AUD
Each
Backorder
Order 50 or more for $2.17 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Aug 07, 2025

Base Category: Socket Set Screws - Rolling Ball Tip

Top Level Category: Socket Set Screws - Rolling Ball Tip - Carbon Steel

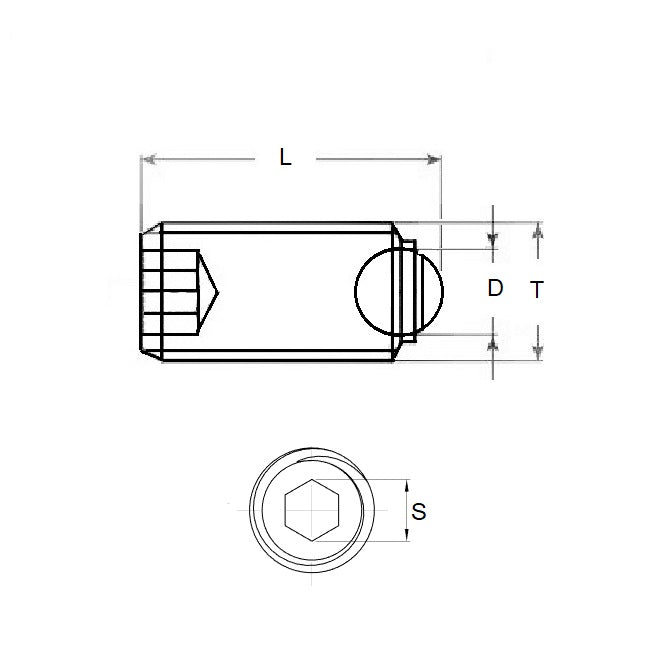

Product Details:

Thread Size: M4 (4x0.7mm)

Carbon Steel with 440C Stainless HRC 50-55 tip
  • Thread Length (L): 5.8mm
    (5.8mm is 0.228 in.)
  • Type: Rolling Ball Tip
  • Overall Length (L): 6.5mm
  • Ball Diameter (D): 2.4mm
  • Hex Key Size: 2.0
  • Body Material: Carbon Steel
  • Ball Material: 440C Stainless HRC 50-55
  • Pitch: 0.7mm
  • Threads Per Inch: 36.29TPI
  • Finish: Black Oxide

Brand: MBA
Country of Origin: DE

Alternative Parts Include: CRSM465, C-RSM4-6.5, C-2RSM4-6.5, KaVo

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
