CCI-29500-C

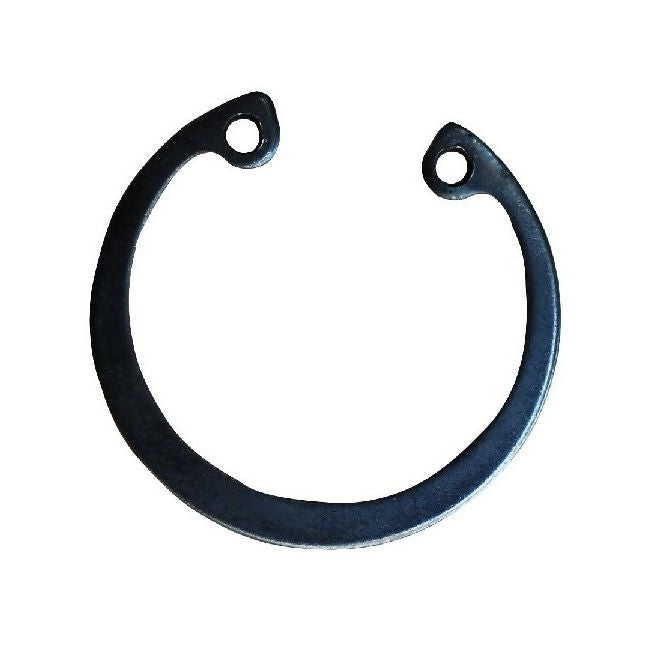

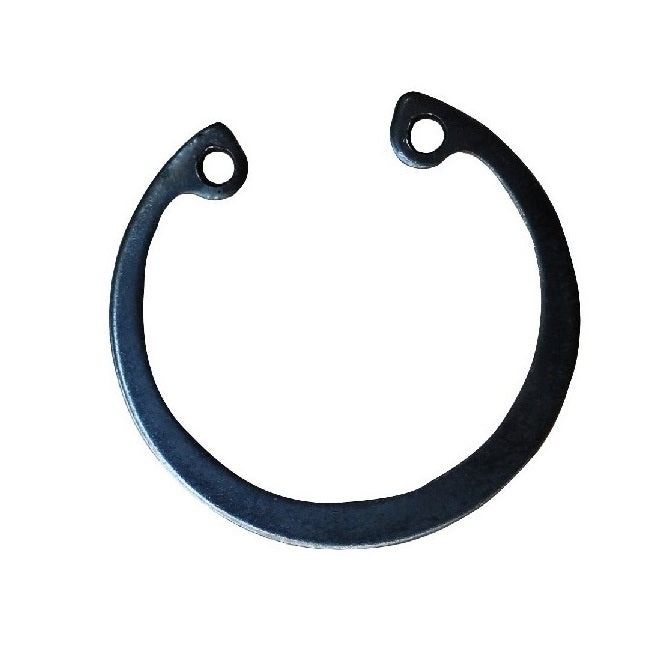

Internal Retaining Rings - 295x5x303 mm - Carbon Spring Steel phosphate and oil finish

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

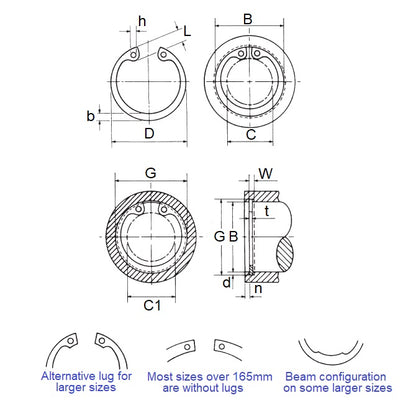

Product Details:

Housing Bore (B): 295.00mm
(295.00mm is 11.614 in.)

Carbon Spring Steel phosphate and oil finish
  • Clip Thickness (T): 5.00mm
    + 0.81 / - 0.00
    (5.00mm is 0.197 in.)
  • Groove Dia. (Dg): 303.00mm
    + 0.00 / - 0.12
    (303.00mm is 11.929 in.)
  • Approx. Loose Circlip OD (Dr): 310.00mm
    + 2.00 / - 0.81
  • Groove Width (W): 5.15mm
    + 0.20 / - 0.00
  • Standard: DIN472

Brand: MBA
Country of Origin: US

Alternative Parts Include: D1300-295, DHO295, DHO-295, D1300295, BN-822-295, BN822295, J295, J-295, J295X5, 472295, 472-295, Ellison, Bossard, Waldes, NoCor, Rotor Clip, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
