CCI-17200-C

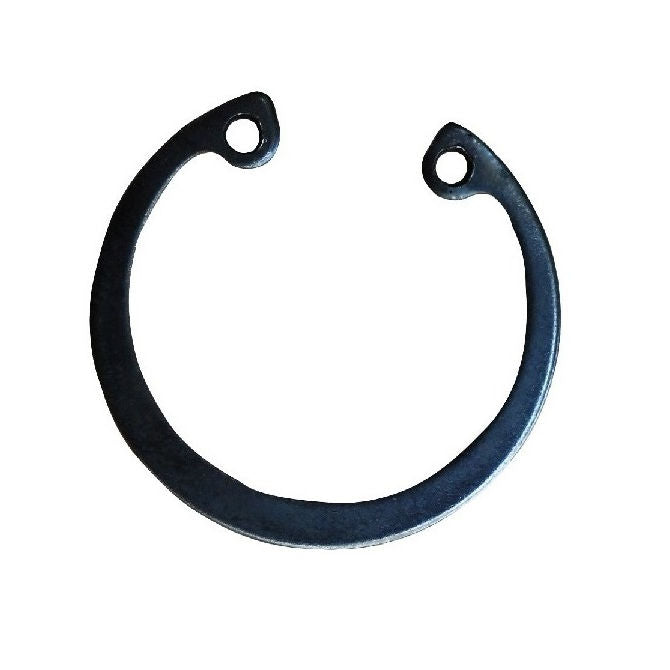

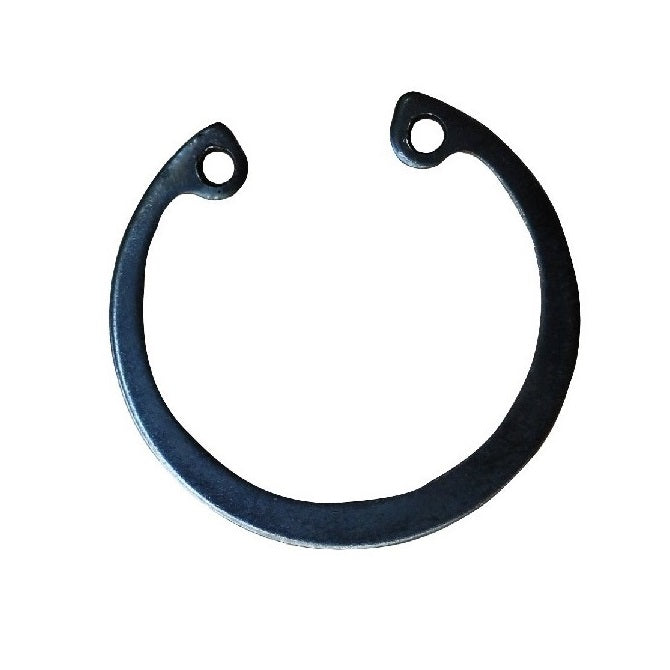

Internal Retaining Rings - 172x4x177 mm - Carbon Spring Steel phosphate and oil finish

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

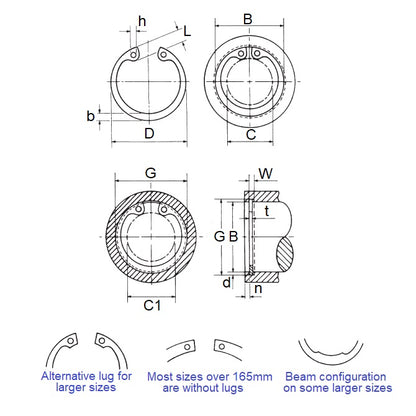

Product Details:

Housing Bore (B): 172.00mm
(172.00mm is 6.772 in.)

Carbon Spring Steel phosphate and oil finish
  • Clip Thickness (T): 4.00mm
    + 0.63 / - 0.00
    (4.00mm is 0.157 in.)
  • Groove Dia. (Dg): 177.00mm
    + 0.00 / - 0.10
    (177.00mm is 6.969 in.)
  • Approx. Loose Circlip OD (Dr): 181.50mm
    + 1.70 / - 0.72
  • Groove Width (W): 4.15mm
    + 0.20 / - 0.00
  • Min. Extension (n): 7.50
  • Standard: DIN472

Brand: MBA
Country of Origin: US

Alternative Parts Include: D1300172, D1300-172, D13001720APP, D1300-1720APP, BN822172, BN-822-172, DHO172, DHO-172, 472-172, 472172, J172, J-172, J172X4, 13001720APP, 1300-1720APP, Ellison, Bossard, Waldes, NoCor, Rotor Clip, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
