SR6-MC3-AF12

Name: SR6-MC3-AF12 - Single Row Ball Bearings - 9.525x22.225x5.556 mm Unflanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: SR6MC3AF12
Price: 5.66 AUD
Availability: InStock

Single Row Ball Bearings - 9.525x22.225x5.556 mm Unflanged - Stainless Steel AISI 440C Bearing

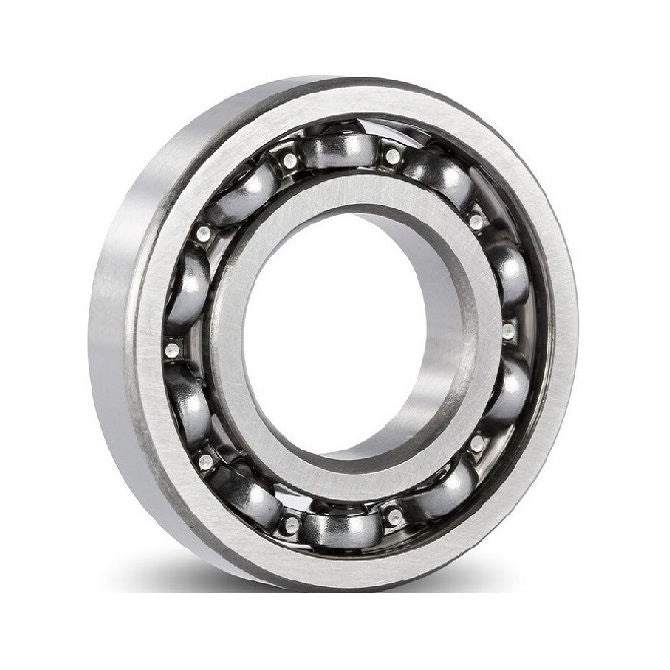

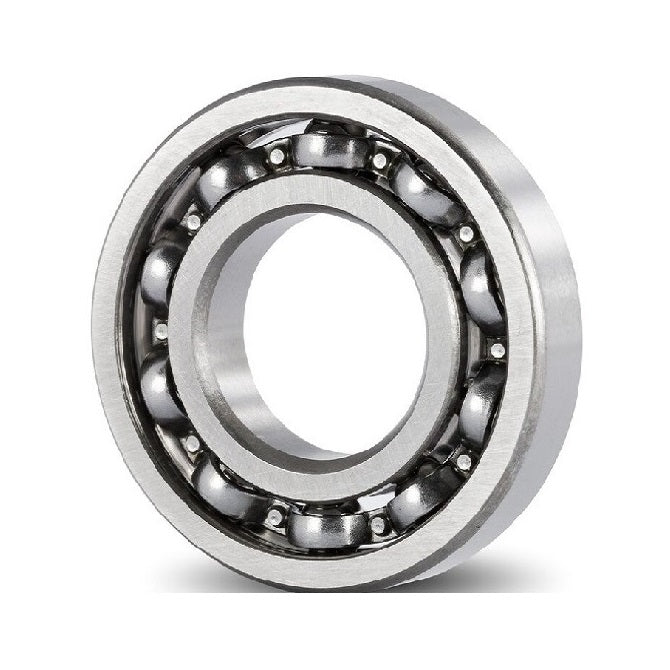

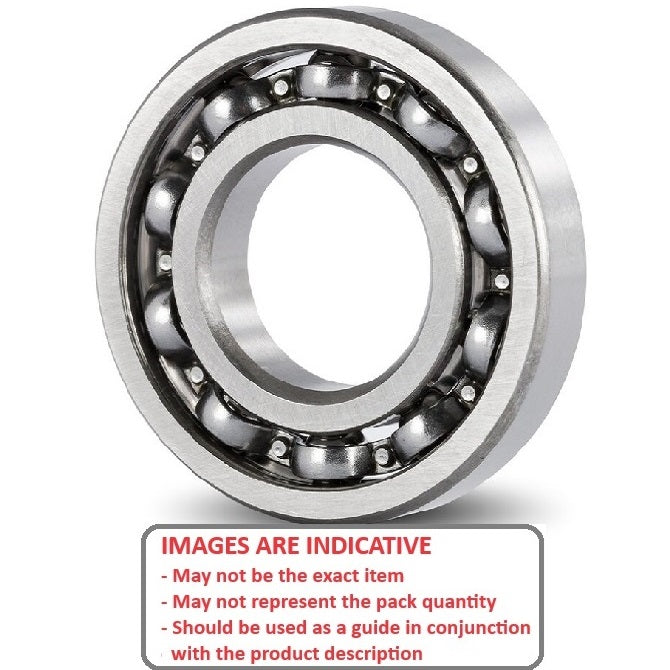

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$5.66 AUD

~~$6.80 AUD~~ $5.66 AUD

Excludes GST and overseas Taxes & Duties

Each
Qty: 37 available now

Product Details

Deleted Item. Available while stocks last.

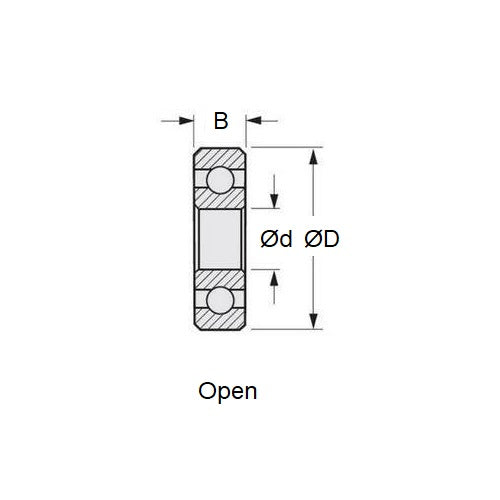

ID (d): 9.525mm
_{+ 0.000 / - 0.0075}
_{(9.525mm is 0.375 in.)}

Stainless Steel AISI 440C

ID (d): 9.525mm
_{+ 0.000 / - 0.0075}
_{(9.525mm is 0.375 in.)}
OD (D): 22.225mm
_{+ 0.000 / - 0.010}
_{(22.225mm is 0.875 in.)}
Width (B): 5.556mm
_{+ 0.000 / - 0.125}
_{(5.556mm is 0.219 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
6138K14
FAFNIR AS3K
Stainless R6MC3AF12
Stainless R6-MC3-AF12
GRW SBR3-8
RINO SR6
Similar Part SR6
Nachi SR-6
MPB SR6R
GRW SSBR3-8
NHBB SSR1-1438
NHBB SSR6
RINO SSR6
Nachi SSR-6
NHBB SSR6D
MPB SSR6R
ADR WY3-8
Similar Part WY3-8
DD-R1-1438
DDR1-1438
DDR11438
SS-R1-1438
SSR11438
SSBR38
WY38
R6BASIC

Used for

RC Nitro Engine Parts
Dooling - 0 - 15 - Bearing 9.53-22.23-5.56mm
Fox - 0.15 - Bearing 9.53-22.23-5.56mm
Fox - 15 All Models - Bearing 9.53-22.23-5.56mm
Fox - 40 All Models - Bearing 9.53-22.23-5.56mm
Fox - 40 With Tapered Collect - 0.17 - Bearing 9.53-22.23-5.56mm
Fox - Quickie - 36 - Bearing 9.53-22.23-5.56mm
Fox - Quickie - 40 - Bearing 9.53-22.23-5.56mm
Fox - Quickie - 74 - Bearing 9.53-22.23-5.56mm
Irvine - SP ABC - 15 - Bearing 9.53-22.23-5.56mm
K.B - 3.5 21CC All Models - Bearing 9.53-22.23-5.56mm
K.B - DF - 91 - Bearing 9.53-22.23-5.56mm
K.B - IB - 11 - Bearing 9.53-22.23-5.56mm
K.B - IB - 25 - Bearing 9.53-22.23-5.56mm
K.B - IB - 61 - Bearing 9.53-22.23-5.56mm
K.B - IB New - 6.5 - Bearing 9.53-22.23-5.56mm
K.B - Inboard Late Model - 11 - Bearing 9.53-22.23-5.56mm
K.B - New - 1 - Bearing 9.53-22.23-5.56mm
K.B - Schnuerle - 67 - Bearing 9.53-22.23-5.56mm
Kraft - 61 - 67 - Bearing 9.53-22.23-5.56mm
McCoy - Old 1946 - 15 - Bearing 9.53-22.23-5.56mm
OPS - 40 All Models - Bearing 9.53-22.23-5.56mm
OPS - 45 All Models - Bearing 9.53-22.23-5.56mm
OPS - 65 All Models - Bearing 9.53-22.23-5.56mm
Webra - 61 FS Speed - 160 - Bearing 9.53-22.23-5.56mm
Webra - DF - 61 - Bearing 9.53-22.23-5.56mm
Webra - Quickee 500 - 32 - Bearing 9.53-22.23-5.56mm
Webra - RI Speed - 61 - Bearing 9.53-22.23-5.56mm
Webra - Speed - 12 - Bearing 9.53-22.23-5.56mm
Webra - Speed - 120 - Bearing 9.53-22.23-5.56mm
Webra - Speed GT With TN II - 50 - Bearing 9.53-22.23-5.56mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
