PBC-1161RS

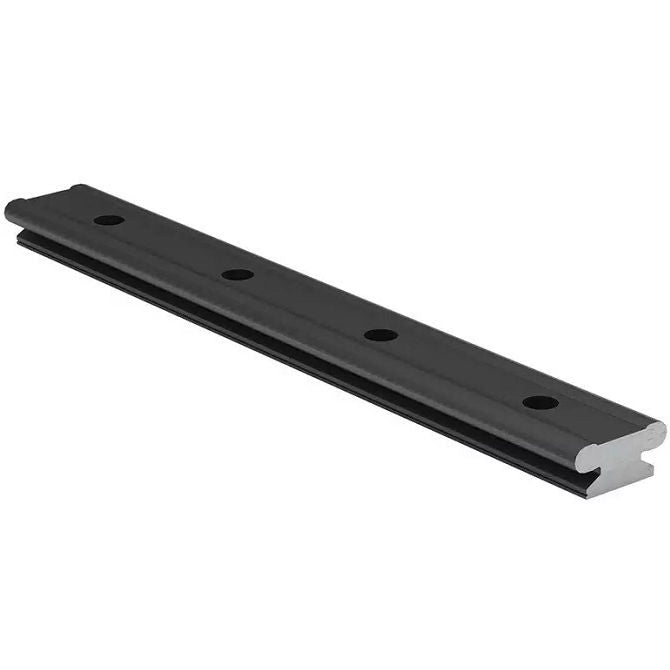

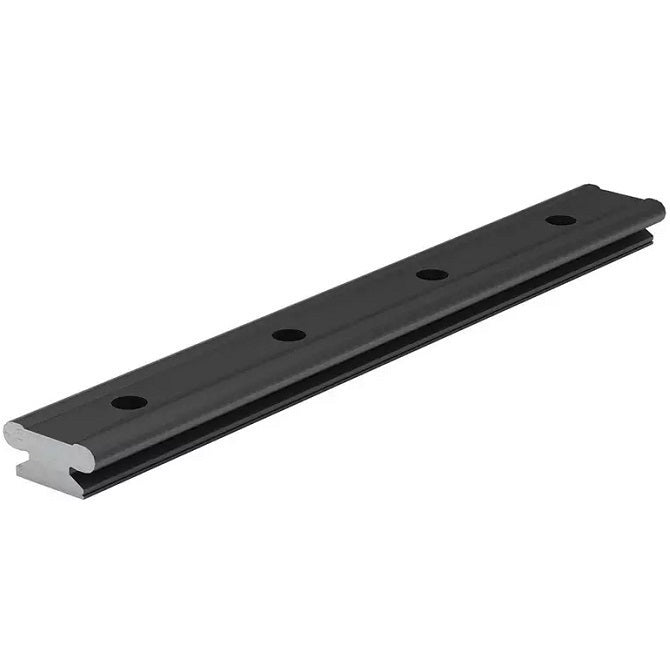

Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold

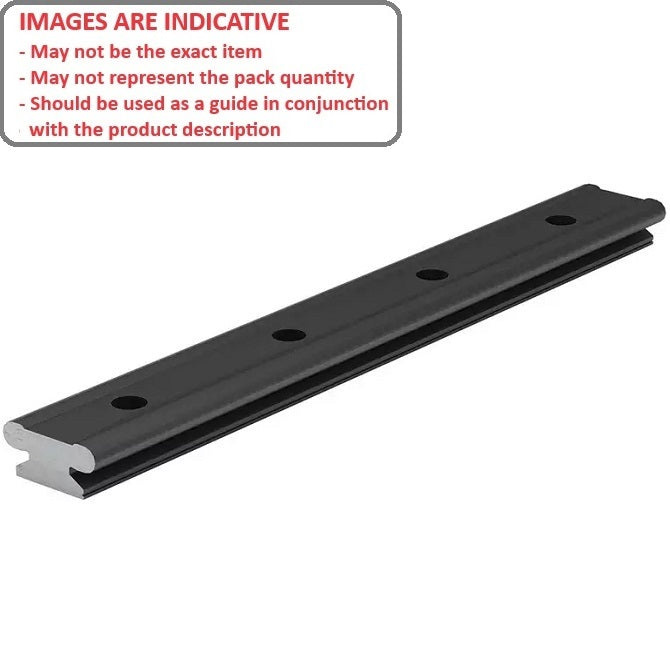

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Mini Rail Self-Lubricating Linear - 9 0.025-0.051 10 mm - Ceramic Coated RC70 with Frelon Gold
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale
Price:
$120.41 AUD
$144.49 AUD $120.41 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $108.37 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 24, 2025

Base Category: Linear - Mini Rail Self-Lubricating

Top Level Category: Linear - Mini Rail Self-Lubricating

Product Details

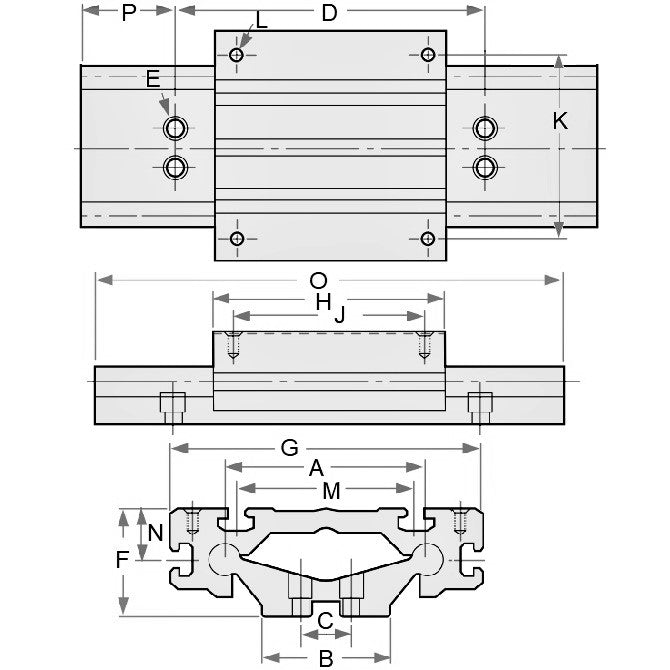

Rail Width (A): 9.00mm
(9.00mm is 0.354 in.)

Ceramic Coated RC70 with Frelon Gold
  • Rail Width (A): 9.00mm
    (9.00mm is 0.354 in.)
  • Running Clearance: 0.025-0.051mm
    (0.025-0.051mm is 0.001 in.)
  • Overall Height (B): 10.00mm
    (10.00mm is 0.394 in.)
  • Rail Height (B1): 7.30mm
  • Rail Hole Size (H): 4.50mm
  • Rail Hole Size (H1): 2.60mm
  • Rail Hole Depth (H2): 3.00mm
  • L: 2.40mm
  • M: 4.50mm
  • Bolt for Rail End (S): 7.50mm
  • Hole Spacing (T): 20.00mm
  • Rail Length: 275.00mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Pacific MR9-275
  • MR9275

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
