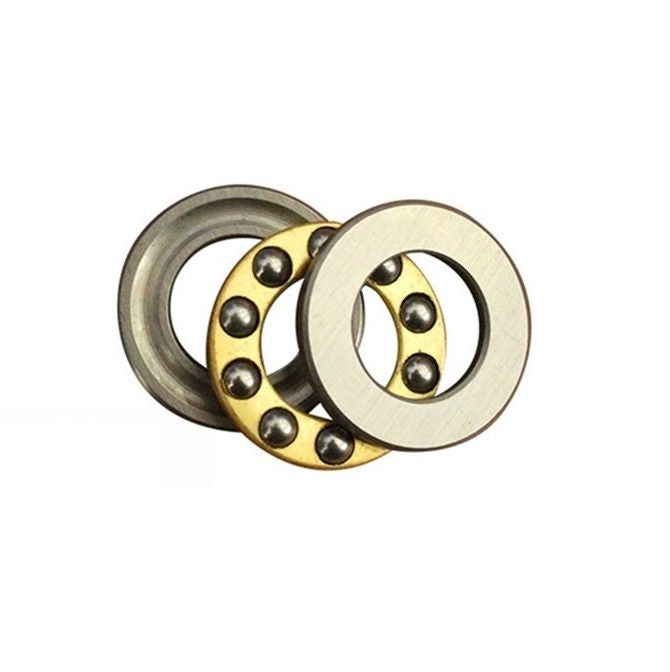

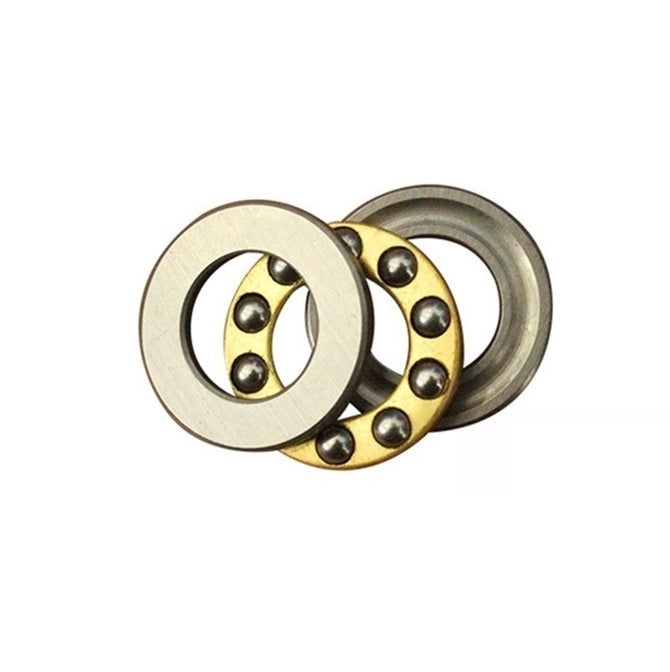

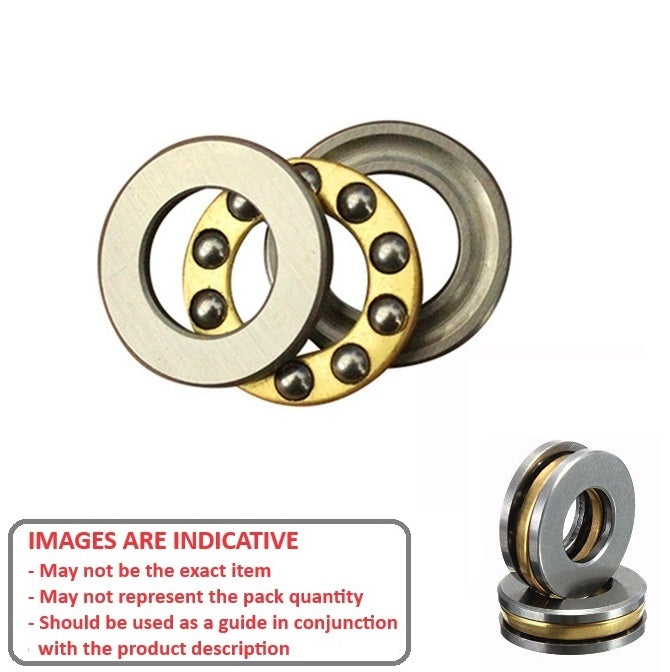

T-0080-0160-G-BR

Base Category: Bearings - Thrust Ball

Top Level Category: Bearings - Thrust Ball - Grooved - Chrome Steel

Product Details

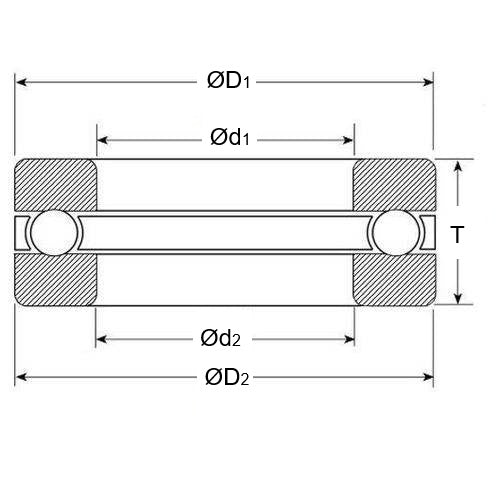

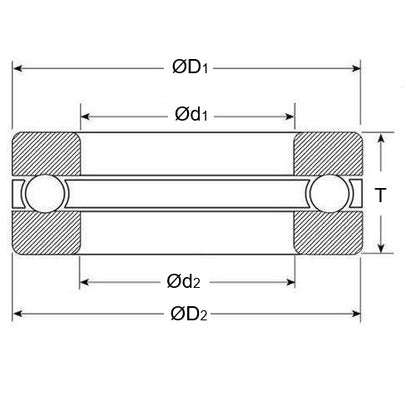

• Shaft Diameter (d1): 8.000mm
  _{(8.000mm is 0.315 in.)}

• OD (D1): 16.000mm
  _{(16.000mm is 0.63 in.)}

• Thickness (T): 5.000mm
  _{(5.000mm is 0.197 in.)}

• Bore (d2): 8.200mm
• OD (D2): 16.000mm
• Dynamic Load Capacity: 391kgf
• Cage Type: Brass

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• KYOSHO 7030
• Nachi 7030
• ALTPART
• 7806K63
• Nachi 8TAM16
• TSK H1114
• F8-16M

Used for

• RC Helicopter Parts
• Joker - CX - Thrust Bearing 8-16-5mm
• JR - Ergo 60 - Thrust Bearing 8-16-5mm
• JR - Vigor CS - Thrust Bearing 8-16-5mm
• Kalt - Cyclone II - Thrust Bearing
• Kalt - Cyclone II - Thrust Bearing 8-16-5mm
• Kyosho - CONCEPT 60 - 17 Thrust Bearing
• Kyosho - CONCEPT 60 - Thrust Bearing 8-16-5mm
• Kyosho - CONCEPT 60 R - 17 Thrust Bearing
• Kyosho - CONCEPT 60 SR - Thrust Bearing 8-16-5mm
• Mikado - Logo 20 - Thrust Bearing 8-16-5mm
• Schluter - Futura SS - Thrust Bearing 8-16-5mm
• Synergy - N9 - Thrust Bearing 8-16-5mm
• Thunder Tiger - Raptor 60 V2 - 60
• Thunder Tiger - Raptor 90 SE - 90
• TSK - Miscellaneous Parts To suit - H1114 Thrust Bearing
