CCI-08890-C (2 Pcs)

Name: CCI-08890-C (2 Pack) - Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip
Brand: MBA
SKU: CCI08890C
Price: 14.50 AUD
Availability: BackOrder

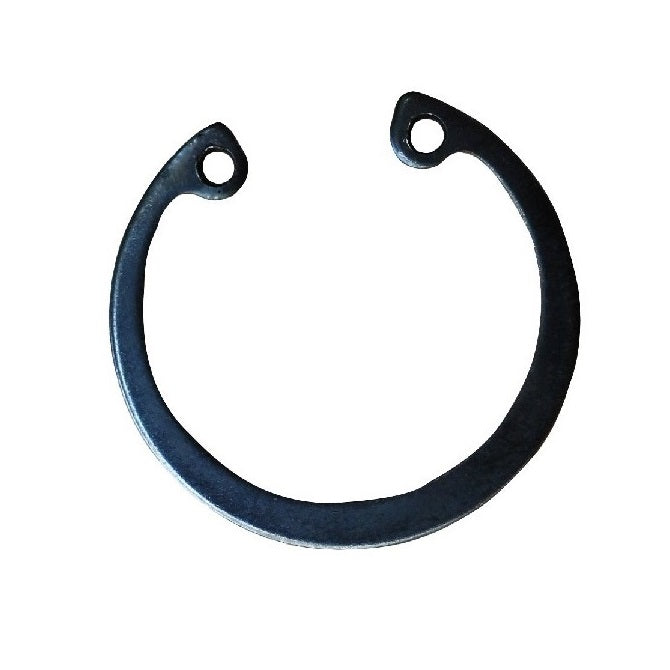

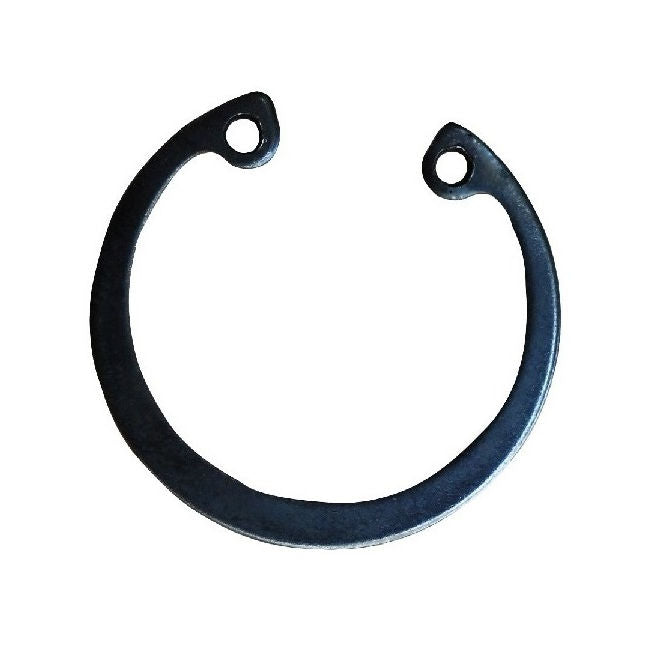

Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip

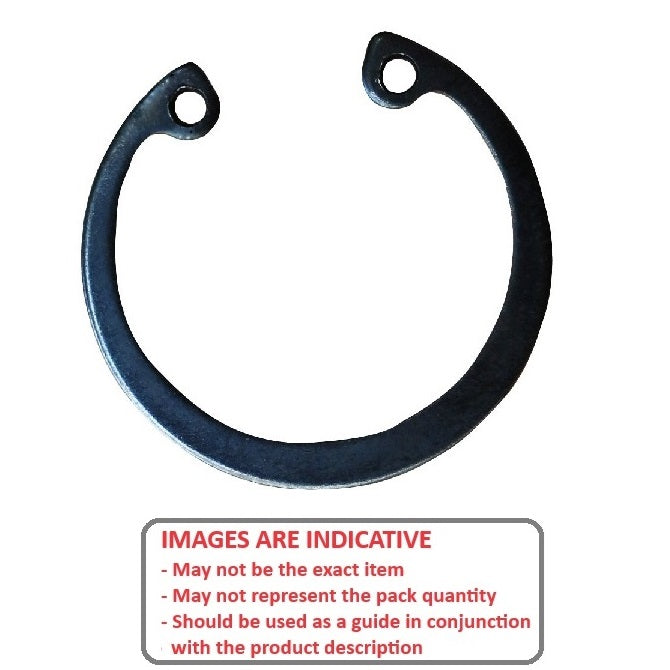

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$14.50 AUD

~~$17.40 AUD~~ $14.50 AUD

2 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $13.05 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 537

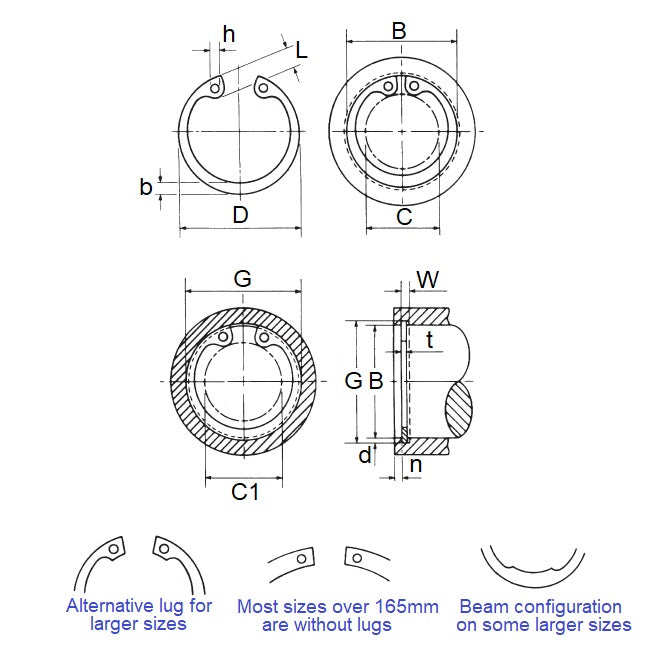

Housing Bore (B): 88.90mm
_{(88.90mm is 3.5 in.)}

Carbon Steel

Housing Bore (B): 88.90mm
_{(88.90mm is 3.5 in.)}
Clip Thickness (T): 2.77mm
_{+/- 0.152}
_{(2.77mm is 0.109 in.)}
Groove Dia. (Dg): 94.23mm
_{+ 0.00 / - 0.08}
_{(94.23mm is 3.71 in.)}
Approx. Loose Circlip OD (Dr): 98.81mm
_{+ 1.40 / - 1.40}
Groove Width (W): 3.05mm
_{+ 0.13 / - 0.00}
Clearance in Bore (C): 71.12mm
Clearance in Groove (C1): 73.66mm
Min. Lug Diameter (h): 3.12mm
Min. Extension (n): 8.00
Standard: MIL-16625

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
99142A670
NoCor HO-350
N1300-0350APP
N13000350APP
HO350

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
