S697-ZZ-MC3 (Each)

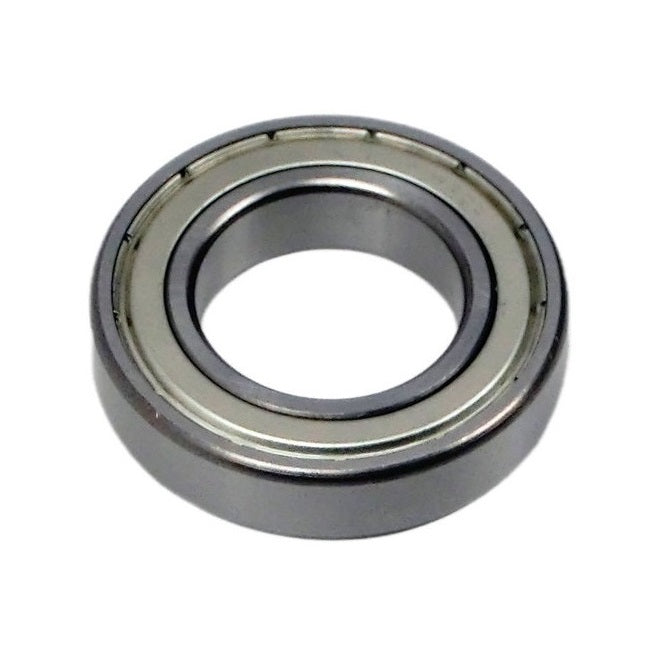

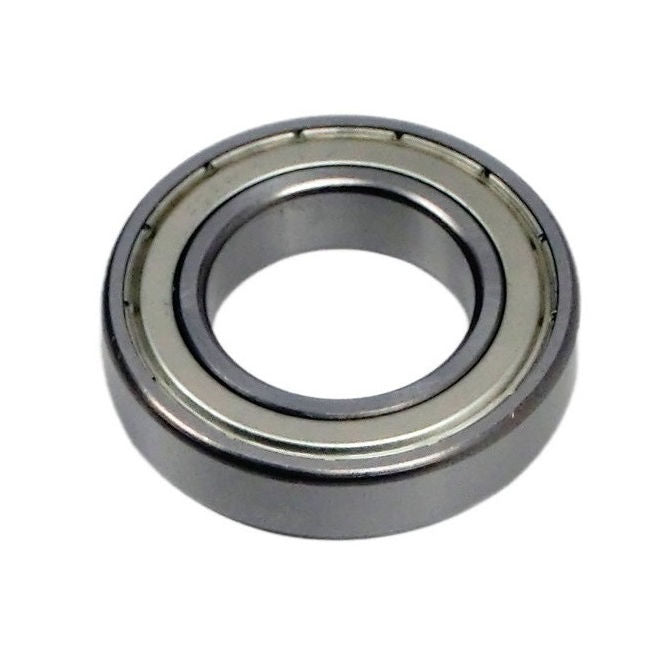

Single Row Ball Bearings - 7x17x5 mm Unflanged - Stainless Steel AISI 440C Bearing

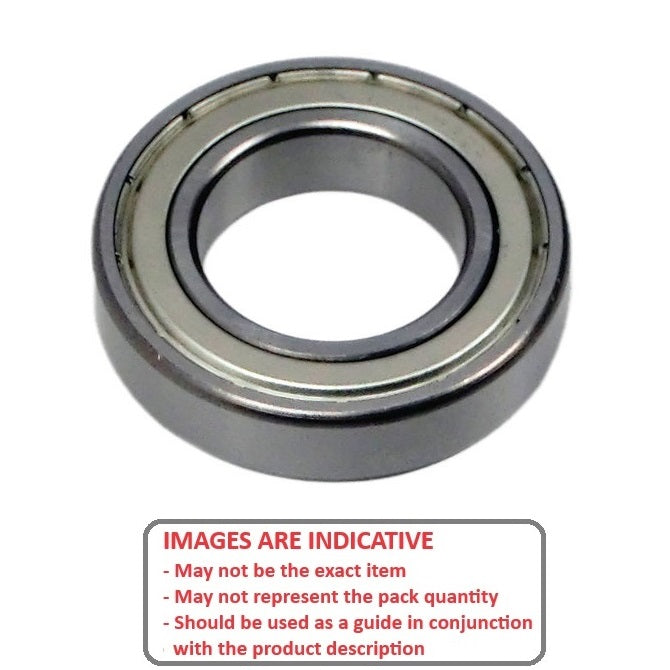

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 7x17x5 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$4.86 AUD
$4.86 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 101 available now

Order 50 or more
for $4.37 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 08, 2026

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Product Details


Double shielded standard stainless steel bearing

ID (d): 7.000mm
+ 0.000 / - 0.0075
(7.000mm is 0.276 in.)

Stainless Steel AISI 440C
  • ID (d): 7.000mm
    + 0.000 / - 0.0075
    (7.000mm is 0.276 in.)
  • O.D. (D): 17.000mm
    + 0.000 / - 0.0075
    (17.000mm is 0.669 in.)
  • Width (B): 5.000mm
    + 0.000 / - 0.125
    (5.000mm is 0.197 in.)
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • SS697ZZMC3 697
  • Stainless 697ZZMC3
  • Stainless 697-ZZ-MC3
  • GRW S697-2Z
  • GRW SS697-2Z
  • SHIMANO® TGT0019
  • SHIMANO® TGT0827
  • SHIMANO® TGT1513
  • SHIMANO® TLD0028
  • SHIMANO® TLD0042
  • SHIMANO® TLD01223A
  • SHIMANO® TLD0123A
  • SHIMANO® TLD0212
  • SHIMANO® TLD123A
  • SHIMANO® TT0181
  • ADR WAY7-ZZ
  • S697-ZZMC3
  • S6972Z
  • S697SS
  • SS697-ZZ
  • SS697-ZZMC3
  • SS6972Z
  • SS697SS
  • 697ZMC3
  • 697-Z-MC3
  • 697HZZ
  • 697H-ZZ
  • WAY7ZZ
  • 697BASIC

Used for

  • Fishing Reel Parts
  • RC Nitro Engine Parts
  • Shimano® - TLD25 - Replacement Drive Pinion Bearing
  • Shimano® - TR2000 LD - Replacement Drive Pinion Bearing
  • ASP® - 25 All Models - Bearing
  • Bluebird® - 21 All Models - Bearing
  • Magnum Power® - 45 All Models - Bearing
  • Magnum Power® - XL - 15 - Bearing
  • OS Engines® - CV-M - 15 - Bearing
  • OS Engines® - CV-R - 15 - Bearing
  • OS Engines® - CV-R - 18 - Bearing
  • OS Engines® - CV-R P With 10 E - 15 - Bearing
  • OS Engines® - CV-R P With 10C - 12 - Bearing
  • OS Engines® - CV-R S With 10E - 12 - Bearing
  • OS Engines® - CV-R S With 10E - 15 - Bearing
  • OS Engines® - CV-R With 10A - 12 - Bearing
  • OS Engines® - CV-R With 10C - 15 - Bearing
  • OS Engines® - CV-R With 10E - 12 - Bearing
  • OS Engines® - CV-RX - 15 - Bearing
  • OS Engines® - CV-RX S W10E - 12 - Bearing
  • OS Engines® - CV-RX S With 10ER - 18 - Bearing
  • OS Engines® - CV-RX With 10E10A - 15 - Bearing
  • OS Engines® - TZ - 12 - Bearing
  • Saito® - 180 All Models - Bearing
  • Traxxas® - 2.5 Marine - 15 - Bearing
  • Traxxas® - 25R - 25 - Bearing
  • Traxxas® - Revo - 15 - Bearing
  • Traxxas® - Sport Max 75 - Bearing
  • Traxxas® - T-Max - 15 - Bearing
  • Traxxas® - TRX - 3.3 - Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
