PBC-750RS

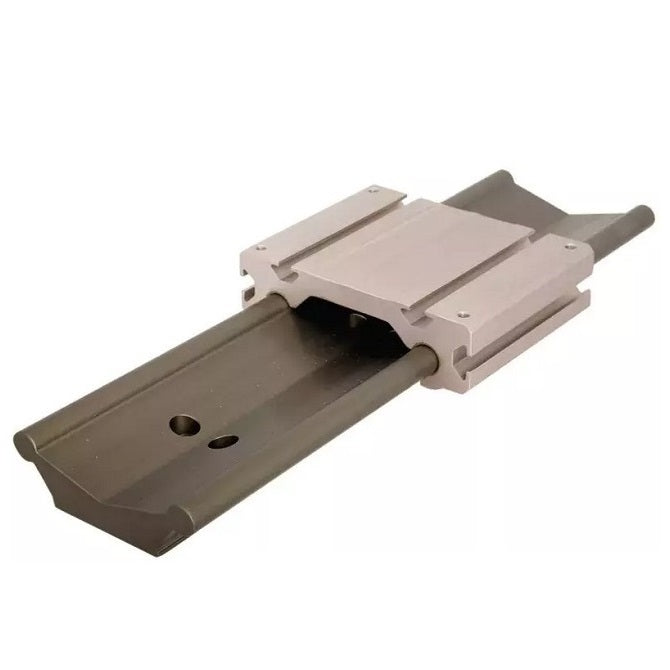

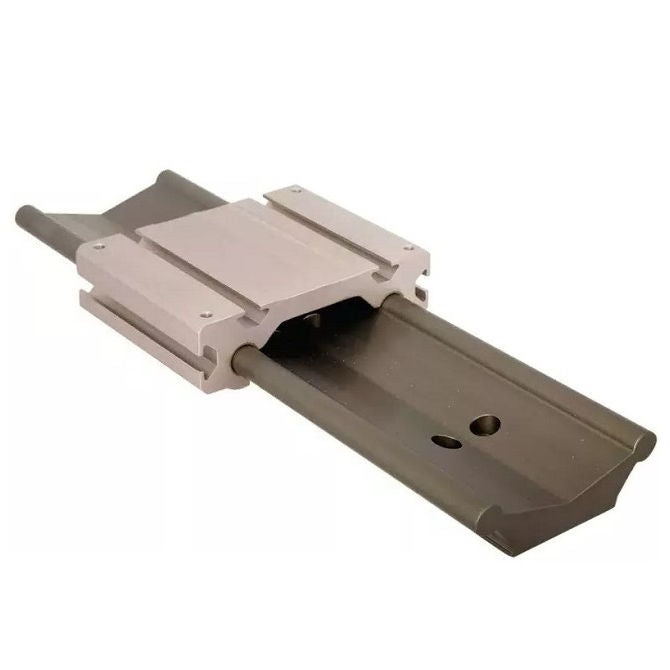

Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating

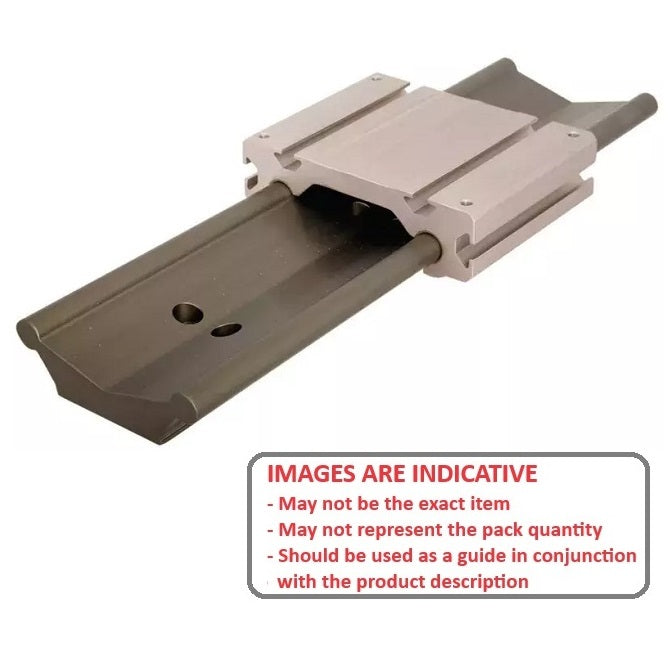

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale
Price:
$1,519.41 AUD
$1,519.41 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $1,367.47 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 25, 2025

Base Category: Linear - Guide System Two Piece

Top Level Category: Linear - Guide System Two Piece

Product Details

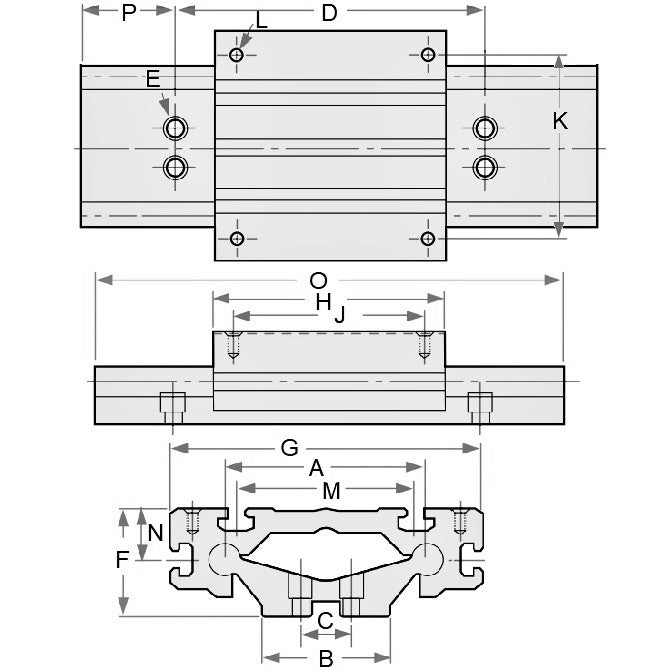

Rail Top Width (A/B): 74.930 / 50.800mm
(74.930 / 50.800mm is 2.95 in.)

Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
  • Rail Top Width (A/B): 74.930 / 50.800mm
    (74.930 / 50.800mm is 2.95 in.)
  • C: 19.050mm
    (19.050mm is 0.75 in.)
  • Rail Bolt Centres (D): 101.600mm
    (101.600mm is 4 in.)
  • Rail Height (F): 41.275mm
  • Carriage Width (G): 116.840mm
  • Carriage Length (H): 88.900mm
  • Carriage Bolt Centre Length (J: 76.200mm
  • Carriage Bolt Centre Width (K): 101.600mm
  • Overall Length (O): 304.80mm
  • P: 50.80mm
  • Bolt Size (L): 10-32 UNF (4.763mm)
  • M: 66.040mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Pacific D75-12
  • D7512

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
