WR5-TTS-MC3

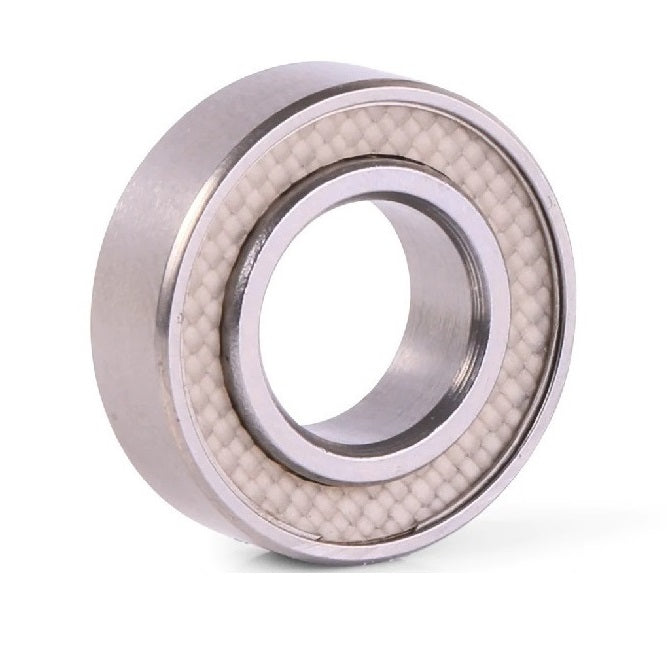

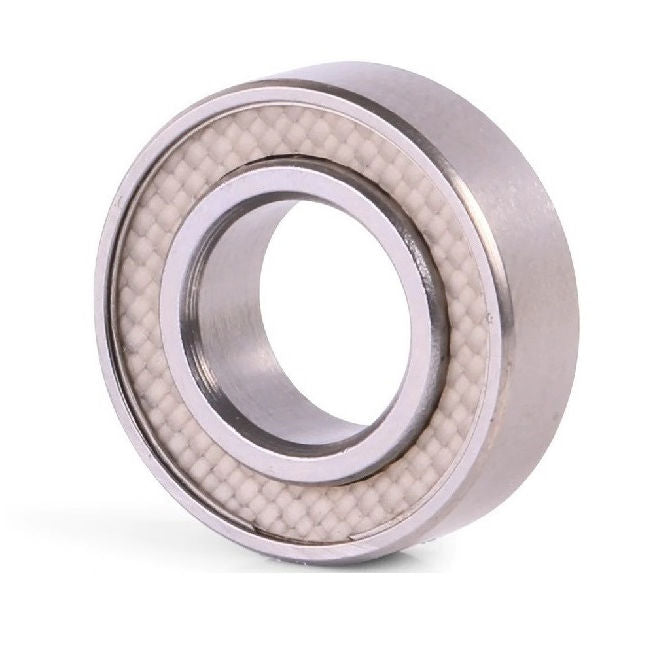

Single Row Ball Bearings - 7.938x20.637x5.944 mm / 7.544 mm Unflanged - Chrome Steel SAE 52100 Bearing

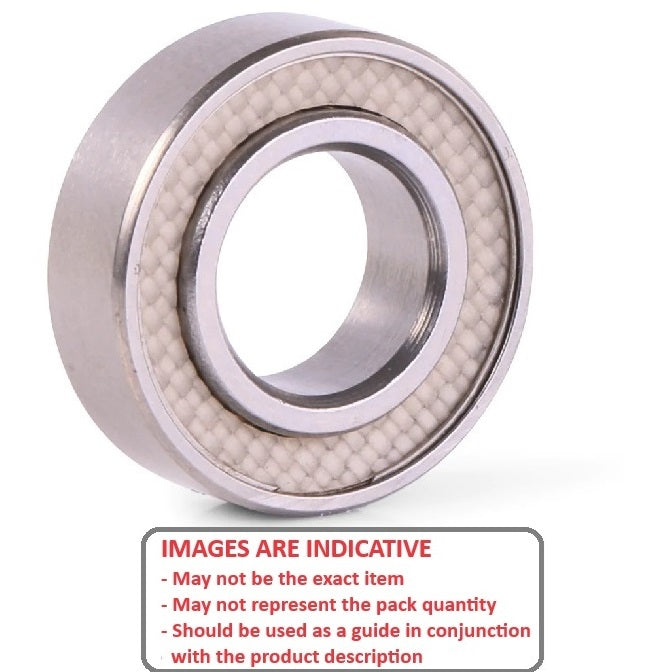

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 7.938x20.637x5.944 mm / 7.544 mm - Chrome Steel SAE 52100
1 4

ECO

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$41.95 AUD
$107.36 AUD $41.95 AUD
Each
Qty: 6 available now
Order 50 or more for $37.76 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 01, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Extended Inner

Product Details

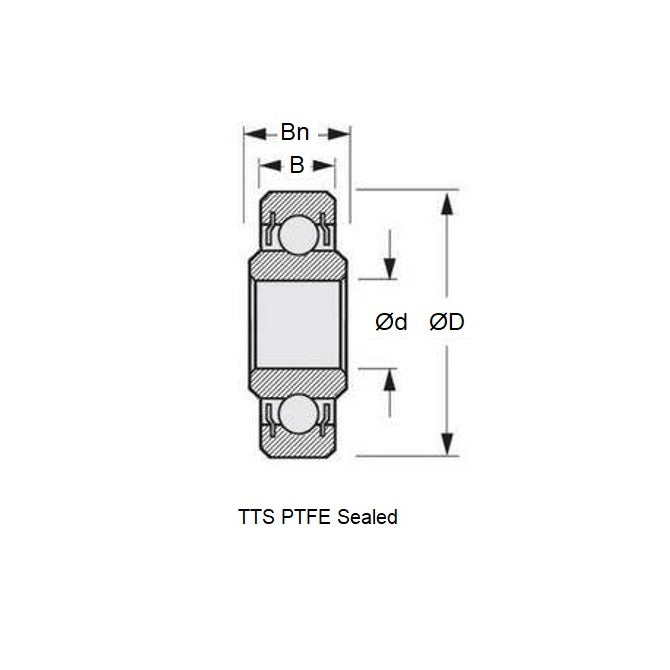

ID (d): 7.938mm
+ 0.000 / - 0.0075
(7.938mm is 0.313 in.)

Chrome Steel SAE 52100
  • ID (d): 7.938mm
    + 0.000 / - 0.0075
    (7.938mm is 0.313 in.)
  • OD (D): 20.637mm
    + 0.000 / - 0.010
    (20.637mm is 0.812 in.)
  • Width (B): 5.944mm
    + 0.000 / - 0.125
    (5.944mm is 0.234 in.)
  • Inner Ring Width (Bn): 7.544mm
  • Precision Grade: Abec 1
  • Closure Type: TTS
  • Bearing Type: Radial with Extended Inner

Brand: ECO
Country of Origin: JP

Product Compliance and Data

Similar to

  • FAFNIR KP5A
  • NHBB KP5A
  • IJK KP5AX
  • NHBB MKP5A
  • WR5
  • WR5-TTSMC3
  • WR5TTSMC3
  • WR5BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
