SFR1810-ZZS-MC3

Name: SFR1810-ZZS-MC3 - Single Row Ball Bearings - 7.938x12.7x3.969 mm Flanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: SFR1810ZZSMC3
Price: 8.95 AUD
Availability: InStock

Single Row Ball Bearings - 7.938x12.7x3.969 mm Flanged - Stainless Steel AISI 440C Bearing

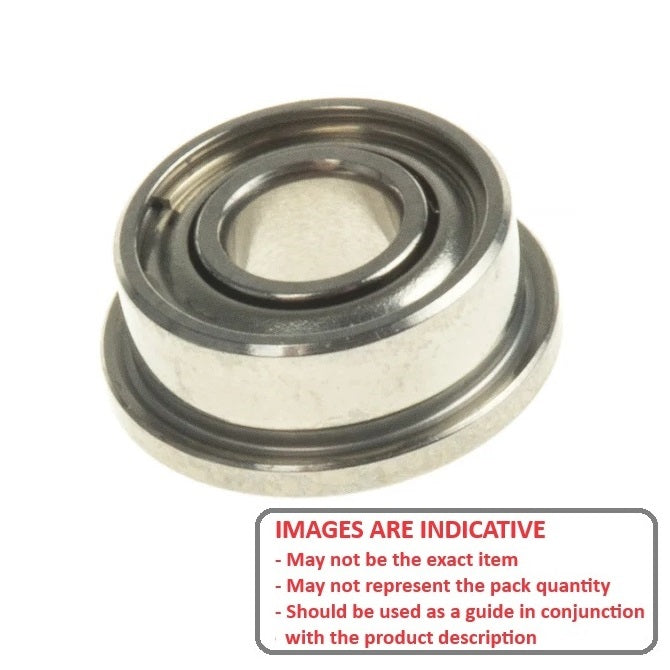

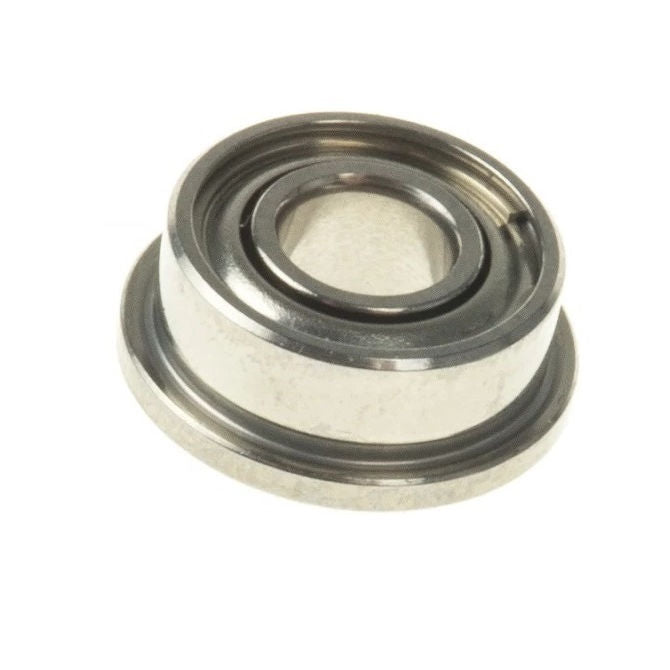

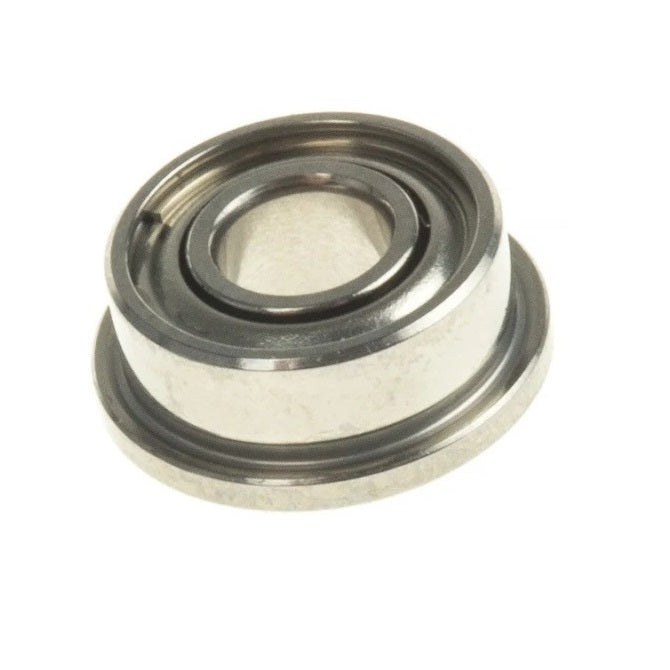

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$8.95 AUD

Excludes GST and overseas Taxes & Duties

Each
Qty: 51 available now
Order 50 or more for $8.06 AUD Each

Product Details

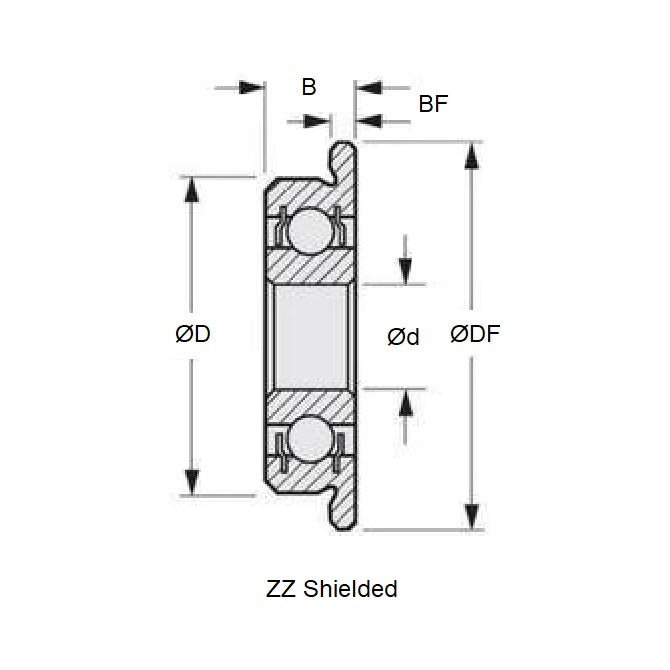

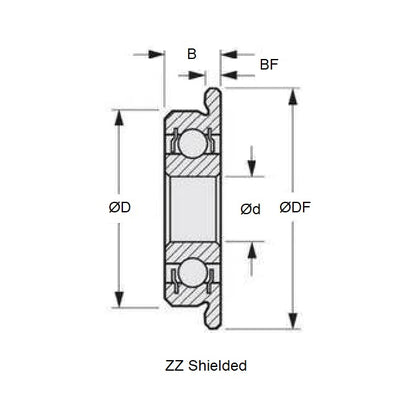

ID (d): 7.938mm
_{+ 0.000 / - 0.0075}
_{(7.938mm is 0.313 in.)}

Stainless Steel AISI 440C

ID (d): 7.938mm
_{+ 0.000 / - 0.0075}
_{(7.938mm is 0.313 in.)}
OD (D): 12.700mm
_{+ 0.000 / - 0.0075}
_{(12.700mm is 0.5 in.)}
Width (B): 3.969mm
_{+ 0.000 / - 0.125}
_{(3.969mm is 0.156 in.)}
Flange Diameter (DF): 13.894mm
Flange Width (BF): 0.787mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
57155K325
Stainless FR1810ZZSMC3
Stainless FR1810-ZZS-MC3
MPB S8516FC-ZZ
MPB S8516FRHH
GRW SF7938-2Z
Similar Part SFR1810
Shielded SFR1810 / 4
Similar Part SRF2032
FAG SRF2032-ZZ
NHBB SSFR1810PP
NHBB SSR1F-8516-ZZ
ADR WFR1810-ZZ
Similar Part WFSP5407
ADR WFSP5407-ZZ
WFR1810ZZ
WFSP5407ZZ
SRF2032ZZ
SSR1F8516ZZ
SS-R1F-8516-ZZ
SFR1810-ZZSMC3
SFR1810SS
SF79382Z
SFR1810ZZ
SFR1810ZZSMC3
DD-R1F-8516-ZZ
DDR1F-8516-ZZ
DMB35
DMB-35
DDR1F8516ZZ
ULKZ10016X
S8516FCZZ
FR1810BASIC

Used for

RC Car Parts
Trinity - Reflex 10 - Flanged Bearing 7.94-12.70-3.97mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
