SWR1810-ZZS-MC3 (50 Pcs)

Name: 1076541 | SWR1810-ZZS-MC3 (50 Pcs) --- Single Row Ball Bearings - 7.938x12.7x3.969 mm / 4.762 mm Unflanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: SWR1810ZZSMC3
Price: 1747.23 AUD
Availability: BackOrder

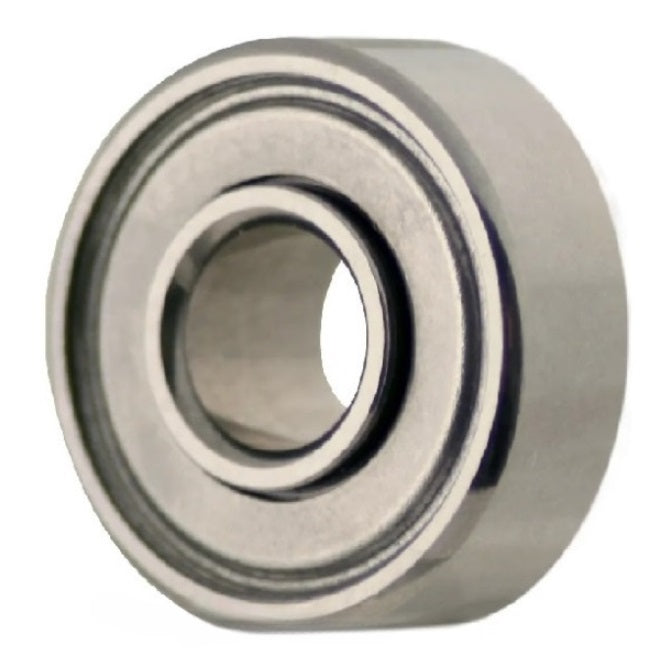

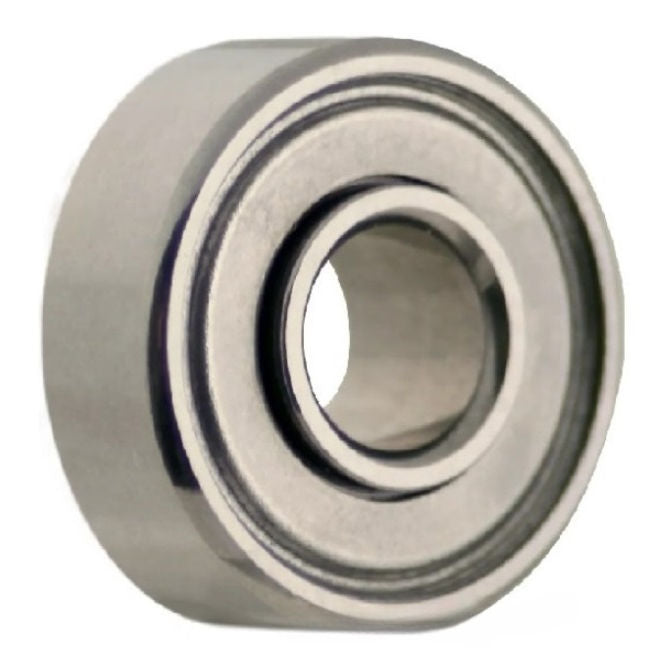

Single Row Ball Bearings - 7.938x12.7x3.969 mm / 4.762 mm Unflanged - Stainless Steel AISI 440C Bearing

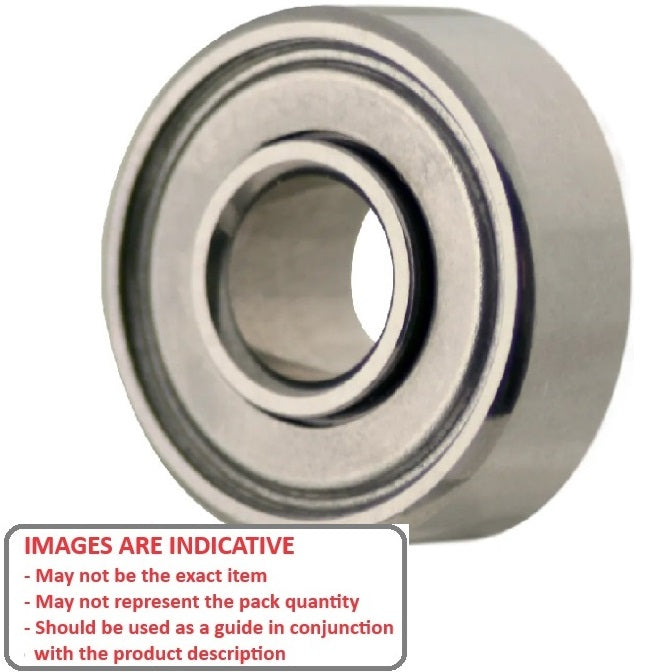

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Extended Inner

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$1,747.23 AUD

per 50
Backorder
Order 50 or more pack (2500 pcs) for $1,572.51 AUD per 50

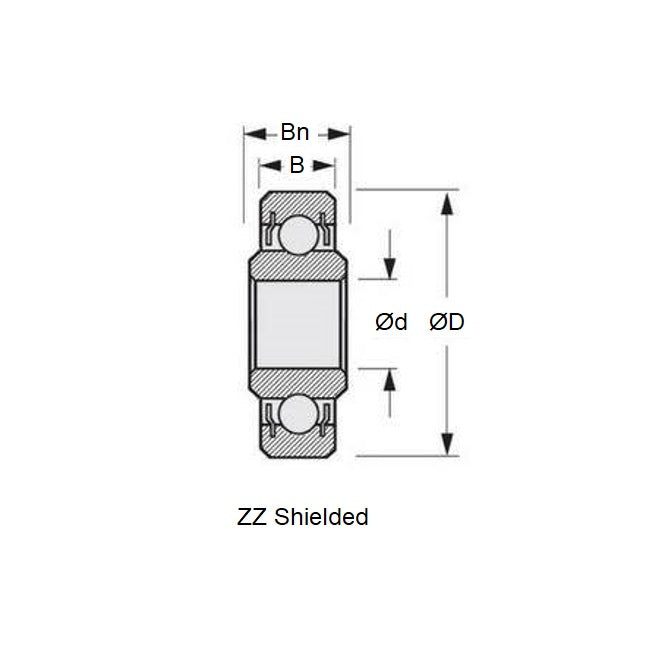

Product Details

ID (d): 7.938mm
_{+ 0.000 / - 0.0075}
_{(7.938mm is 0.313 in.)}

Stainless Steel AISI 440C

ID (d): 7.938mm
_{+ 0.000 / - 0.0075}
_{(7.938mm is 0.313 in.)}
OD (D): 12.700mm
_{+ 0.000 / - 0.0075}
_{(12.700mm is 0.5 in.)}
Width (B): 3.969mm
_{+ 0.000 / - 0.125}
_{(3.969mm is 0.156 in.)}
Inner Ring Width (Bn): 4.762mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial with Extended Inner

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
57155K389
MPB 8516CHHE
MPB 8516RHHE
GRW E7938-2Z
NHBB R1810PPEE
Similar Part RE2032
FAG RE2032-ZZ
Similar Part RW1810
MPB S8516CE
MPB S8516CHHE
MPB S8516RE
MPB S8516RHHE
GRW SE7938
GRW SE7938-2Z
ISO SRW1810ZZ
ISO SRW1810-ZZ
NHBB SSR1810EE
NHBB SSR1810PPEE
NHBB SSR1-8516EE
NHBB SSR1-8516-ZZEE
Shielded SWR1810 / 4
RE2032ZZ
R18516ZZEE
SWR1810ZZSMC3
SWR1810-ZZSMC3
SRW1810SS
SS-R1-8516EE
SSR18516ZZEE
SS-R1-8516-ZZEE
SSR18516EE
DDR18516EE
DDR1-8516EE
DDR1-8516-ZZEE
DD-R1-8516-ZZEE
DDR18516ZZEE
DD-R1-8516EE
DMB50
DMB-50
SE79382Z
WR1810BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
