FMR106A-ZZS-MC3

Name: FMR106A-ZZS-MC3 - Single Row Ball Bearings - 6x10x3 mm Flanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: FMR106AZZSMC3
Price: 4.32 AUD
Availability: InStock

Single Row Ball Bearings - 6x10x3 mm Flanged - Chrome Steel SAE 52100 Bearing

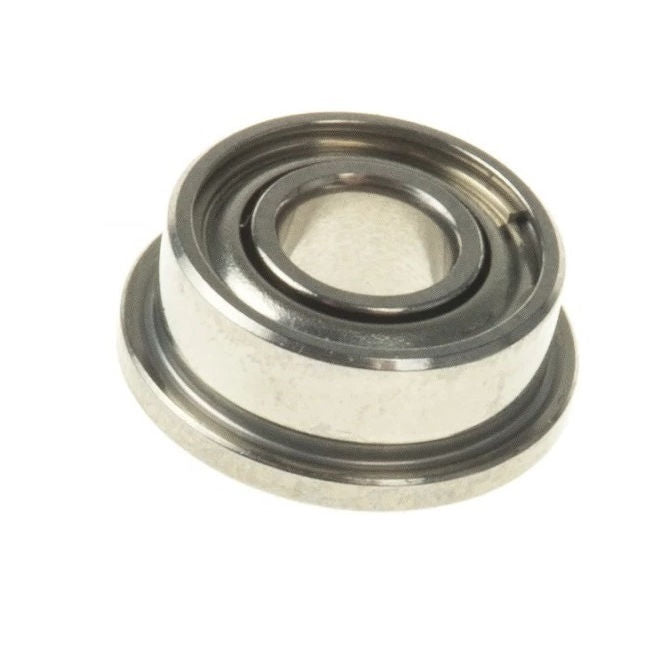

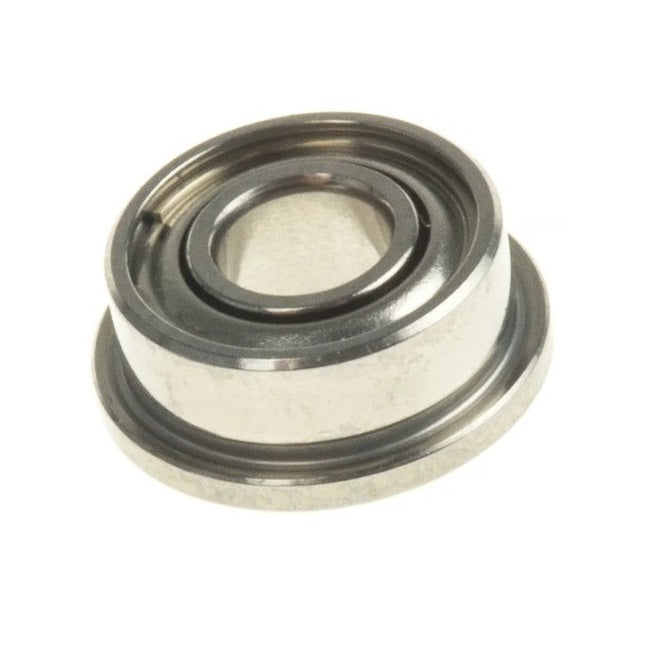

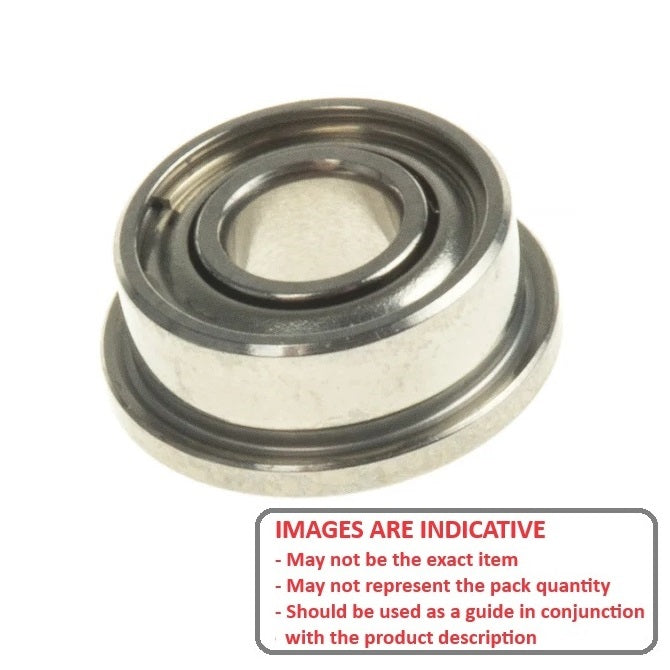

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$4.32 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 299 available now
Order 50 or more for $3.89 AUD

Product Details

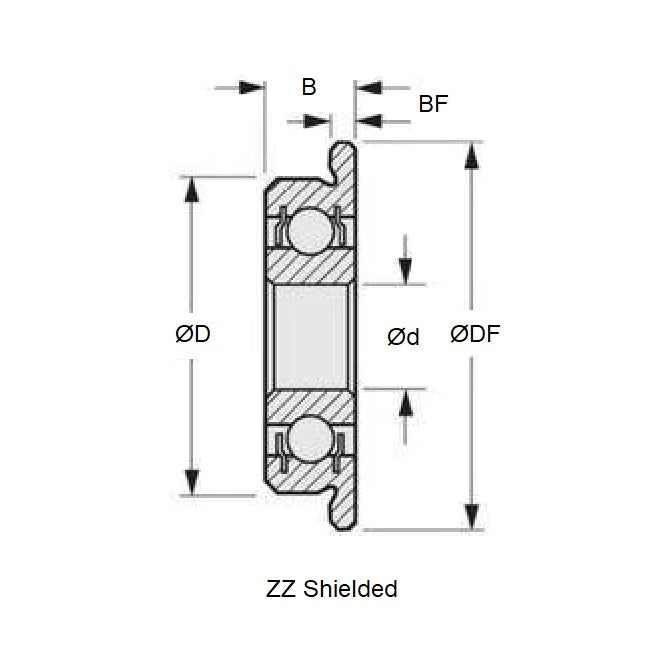

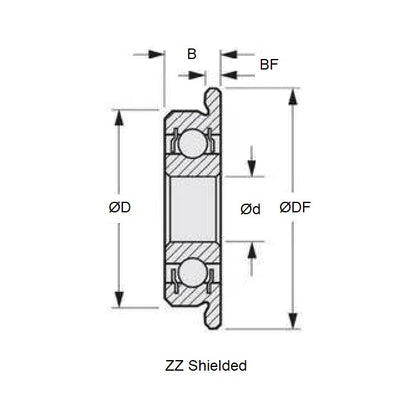

ID (d): 6.000mm
_{+ 0.000 / - 0.0075}
_{(6.000mm is 0.236 in.)}

Chrome Steel SAE 52100

ID (d): 6.000mm
_{+ 0.000 / - 0.0075}
_{(6.000mm is 0.236 in.)}
OD (D): 10.000mm
_{+ 0.000 / - 0.0075}
_{(10.000mm is 0.394 in.)}
Width (B): 3.000mm
_{+ 0.000 / - 0.125}
_{(3.000mm is 0.118 in.)}
Flange Diameter (DF): 11.200mm
Flange Width (BF): 0.600mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

SERPENT 1320
HIROBO 2500-065
GMP 435
GMP 487B
ALTPART
57155K584
GMP 6112
SERPENT 6x10
Nachi F6M10-ZZ
NTN FLAW676-ZZA
Similar Part FMR106A-ZZ-MC3
ISO MF106ZZ
ISO MF106-ZZ
BSC MLF6010-ZZ
F6M10ZZ
MLF6010ZZ
2500065
LF1060ZZ
LF1060-ZZ
FMR106AZZSMC3
FMR106A-ZZSMC3
FMR106A-Z-MC3
FLAW676ZZA
FMR106AZMC3
FMR106ABASIC

Used for

RC Car Parts
RC Helicopter Parts
Academy and MRC - SP-3 Extreme 1/2 Scale EP - Flanged Bearing 6-10-3mm
Academy and MRC - SP-3 Matiz 1/12 Scale - Flanged Bearing 6-10-3mm
Academy and MRC - SP-3 X - Flanged Bearing 6-10-3mm
Cox - Bandito - Flanged Bearing 6-10-3mm
Cox - Scorpion - Flanged Bearing 6-10-3mm
Cox - Ultra Stock - Flanged Bearing 6-10-3mm
Cross Fire Force - F1 Electric - Flanged Bearing 6-10-3mm
GS General Silicone - Storm Pro Gas - Flanged Bearing 6-10-3mm
HPI - Proceed - Flanged Bearing 6-10-3mm
HPI - Proceed Update - Flanged Bearing 6-10-3mm
Kyosho - Assault - Flanged Bearing 6-10-3mm
Kyosho - Beetle - Flanged Bearing 6-10-3mm
Kyosho - Gallop MK-II - Flanged Bearing 6-10-3mm
Kyosho - Montero - Flanged Bearing 6-10-3mm
NEO - 1-10 Scale Attack 4WD - Flanged Bearing 6-10-3mm
NEO - 4WD Sport - Flanged Bearing 6-10-3mm
NEO - T21 Nitro - Flanged Bearing 6-10-3mm
NEO - T21 Nitro 4WD Pro - Flanged Bearing 6-10-3mm
Picco - Integra 1/8 Gas - Flanged Bearing 6-10-3mm
Picco - Shepherd Speed 1/8 - Flanged Bearing 6-10-3mm
Royal - Superbike - Flanged Bearing 6-10-3mm
Royal - Superbike Complete - Flanged Bearing 6-10-3mm
Serpent - 835 1-10 2WD - Flanged Bearing 6-10-3mm
Serpent - 835 1-10 4WD - Flanged Bearing 6-10-3mm
Serpent - 9000 - Centa-Clutch Flanged Bearing 6-10-3mm
Serpent - 950 - Flanged Bearing 6-10-3mm
Serpent - 950R - Flanged Bearing 6-10-3mm
Serpent - 950R With Front Wheel Upgrade - Flanged Bearing 6-10-3mm
Serpent - 950R With STE Ten and Front Wheel UP - Flanged Bearing 6-10-3mm
Serpent - 950R With Steering and Tensioner - Flanged Bearing 6-10-3mm
Serpent - 960 - Flanged Bearing 6-10-3mm
Serpent - 960 FD - Flanged Bearing 6-10-3mm
Serpent - Excel 1/8 Gas - Flanged Bearing 6-10-3mm
Serpent - Impact 10 M2 Challenger - Flanged Bearing 6-10-3mm
Serpent - Impact 10 Pro 2 - Flanged Bearing 6-10-3mm
Serpent - Impact M2 Spec 2000 4WD - Flanged Bearing 6-10-3mm
Serpent - Impact-2 2WD Pro - G-Bo- 2nd Gear Flanged Bearing 6-10-3mm
Serpent - Impact-2 2WD Sport - G-Bo- 2nd Gear Flanged Bearing 6-10-3mm
Serpent - Impact-2 4WD Pro - G-Bo- 2nd Gear Flanged Bearing 6-10-3mm
Serpent - Impact-2 4WD Sport - G-Bo- 2nd Gear Flanged Bearing 6-10-3mm
Serpent - Impulse Pro 1/10 4WD - Flanged Bearing 6-10-3mm
Serpent - Vector - Flanged Bearing 6-10-3mm
Serpent - Vector - GearBo- Flanged Bearing 6-10-3mm
Serpent - Vector Spec 2000 - Flanged Bearing 6-10-3mm
Serpent - XL900 MkII - G-Bo- Flanged Bearing 6-10-3mm
XTM Racing - Nitro X-Cellerator Racer - Flanged Bearing 6-10-3mm
XTM Racing - Nitro X-Cellerator RTR 2WD - Flanged Bearing 6-10-3mm
XTM Racing - X-Cellerator Stadium Truck RTR - Flanged Bearing 6-10-3mm
Century - Ninja Pro 30/46 All - Flanged Bearing 6-10-3mm
Century - Ninja Pro 30/46Upgrade Kit - Flanged Bearing 6-10-3mm
Century - Ninja Pro 30-46 - 6-10-3 Flanged Bearing 6-10-3mm
GMP - Cobra - 435 Flanged Bearing 6-10-3mm
GMP - Cobra - 487B Flanged Bearing 6-10-3mm
GMP - Cobra - 6112 Flanged Bearing 6-10-3mm
GMP - Competition - 435 Flanged Bearing 6-10-3mm
GMP - Competition - 487B Flanged Bearing 6-10-3mm
GMP - Competition - 6112 Flanged Bearing 6-10-3mm
GMP - Cricket - 435 Flanged Bearing 6-10-3mm
GMP - Cricket - 487B Flanged Bearing 6-10-3mm
GMP - Cricket - 6112 Flanged Bearing 6-10-3mm
GMP - Elite Rotor Head - 435 Flanged Bearing 6-10-3mm
GMP - Elite Rotor Head - 487B Flanged Bearing 6-10-3mm
GMP - Elite Rotor Head - 6112 Flanged Bearing 6-10-3mm
GMP - Legend - 435 Flanged Bearing 6-10-3mm
GMP - Legend - 487B Flanged Bearing 6-10-3mm
GMP - Legend - 6112 Flanged Bearing 6-10-3mm
GMP - Rebel - 435 Flanged Bearing 6-10-3mm
GMP - Rebel - 487B Flanged Bearing 6-10-3mm
GMP - Rebel - 6112 Flanged Bearing 6-10-3mm
GMP - Stork - 435 Flanged Bearing 6-10-3mm
GMP - Stork - 487B Flanged Bearing 6-10-3mm
GMP - Stork - 6112 Flanged Bearing 6-10-3mm
Hirobo - Miscellaneous Parts to suit - 2500-065 Flanged Bearing 6-10-3mm
Miniature Aircraft - X-Cell 50-60 - 0283 Flanged Bearing 6-10-3mm
Miniature Aircraft - X-Cell 50-60 All - Flanged Bearing 6-10-3mm
XTM Racing - X-Cellerator EP RTR - Flanged Bearing 6-10-3mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
