FMR106A-CSN-ZZS-ACO-ECO (Each)

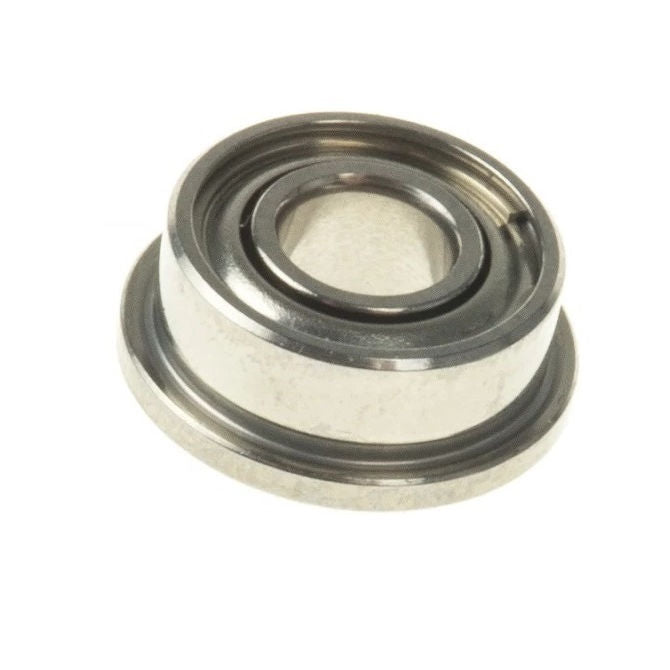

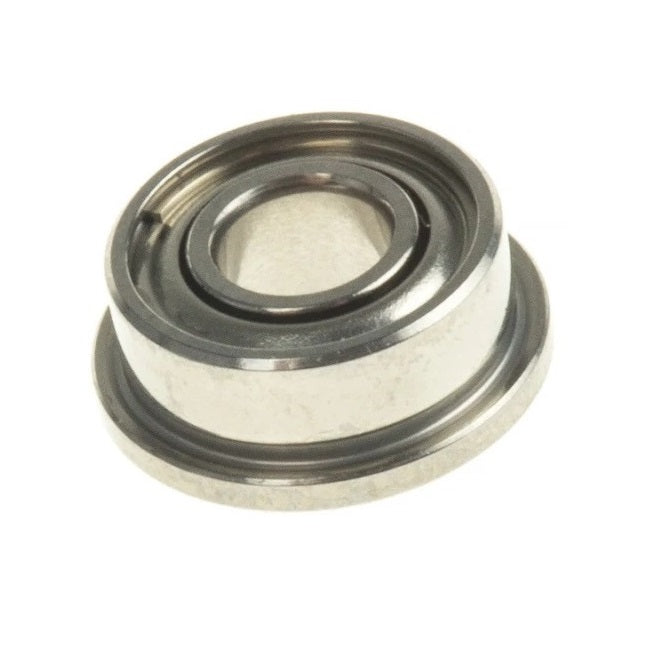

Single Row Ball Bearings - 6x10x3 mm Flanged - Chrome Steel SAE 52100 - Ceramic Si3N4 Balls Bearing

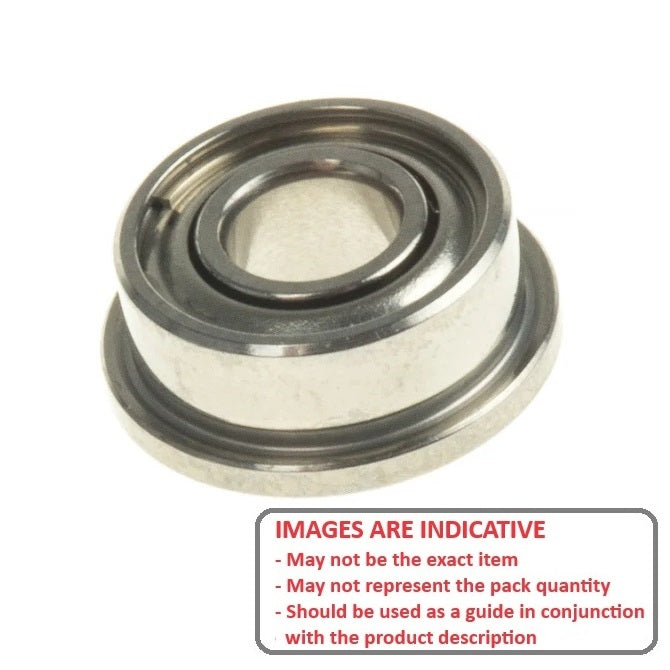

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 6x10x3 mm - Chrome Steel SAE 52100 - Ceramic Si3N4 Balls
1 4

ECO

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$4.01 AUD
$9.44 AUD $4.01 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 205 available now

Order 50 or more
for $3.61 AUD Each
Only 205 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Product Details


Deleted Item. Available while stocks last.

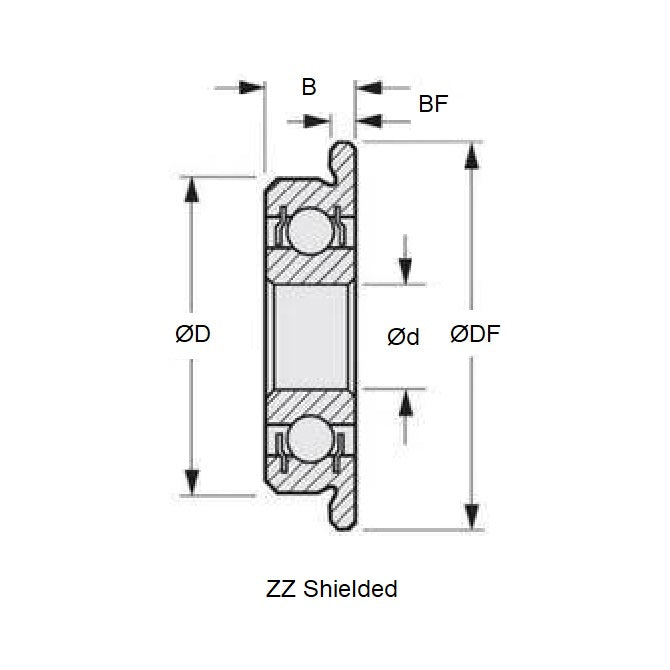

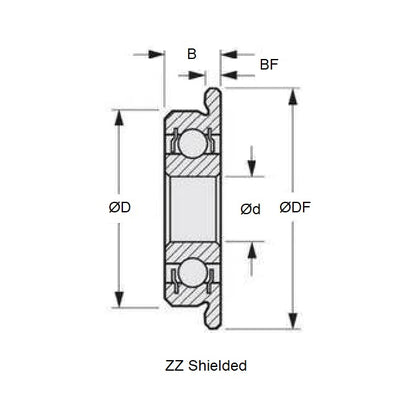

ID (d): 6.000mm
(6.000mm is 0.236 in.)

Chrome Steel SAE 52100 - Ceramic Si3N4 Balls
  • ID (d): 6.000mm
    (6.000mm is 0.236 in.)
  • O.D. (D): 10.000mm
    (10.000mm is 0.394 in.)
  • Width (B): 3.000mm
    (3.000mm is 0.118 in.)
  • Flange Diameter (DF): 11.200mm
  • Flange Width (BF): 0.600mm
  • Precision Grade: Abec 1
  • Closure Type: ZZS
  • Bearing Type: Radial Flanged

Brand: ECO
Country of Origin: TW

Product Compliance and Data

Similar to

  • Shielded Width A FMR106/3
  • Shielded FMR106A / 3
  • Similar Part FMR106A-CSN-ZZ-ACO-ECO
  • ISO MF106ZZC
  • ISO MF106-ZZC
  • FMR106ACSNZACOECO
  • FMR106A-CSN-Z-ACO-ECO
  • FMR106ABASIC

Used for

  • RC Car Parts
  • Academy® & MRC® - SP-3 Extreme 1/2 Scale EP - Replacement Bearing
  • Academy® & MRC® - SP-3 Matiz 1/12 Scale - Replacement Bearing
  • Academy® & MRC® - SP-3 X - Replacement Bearing
  • Cox® - Bandito - Replacement Bearing
  • Cox® - Ultra Stock - Replacement Bearing
  • Cross Fire Force® - F1 Electric - Replacement Bearing
  • GS General Silicone - Storm Pro Gas - Replacement Bearing
  • HPI - Proceed - Replacement Bearing
  • HPI - Proceed Update - Replacement Bearing
  • Kyosho® - Montero - Replacement Bearing
  • NEO - 4WD Sport - Replacement Bearing
  • NEO - T21 Nitro - Replacement Bearing
  • NEO - T21 Nitro 4WD Pro - Replacement Bearing
  • Picco® - Integra 1/8 Gas - Replacement Bearing
  • Picco® - Shepherd Speed 1/8 - Replacement Bearing
  • Royal® - Superbike - Replacement Bearing
  • Serpent® - 835 1-10 2WD - Replacement Bearing
  • Serpent® - 835 1-10 4WD - Replacement Bearing
  • Serpent® - 950 - Replacement Bearing
  • Serpent® - 950R - Replacement Bearing
  • Serpent® - 950R With Front Wheel Upgrade - Replacement Bearing
  • Serpent® - 950R With STE Ten and Front Wheel UP - Replacement Bearing
  • Serpent® - 950R With Steering and Tensioner - Replacement Bearing
  • Serpent® - 960 - Replacement Bearing
  • Serpent® - 960 FD - Replacement Bearing
  • Serpent® - Excel 1/8 Gas - Replacement Bearing
  • Serpent® - Impact 10 M2 Challenger - Replacement Bearing
  • Serpent® - Impact 10 Pro 2 - Replacement Bearing
  • Serpent® - Impact M2 Spec 2000 4WD - Replacement Bearing
  • Serpent® - Impulse Pro 1/10 4WD - Replacement Bearing
  • Serpent® - Impulse Street 2 Speed 4WD - Replacement Bearing
  • Serpent® - Impulse Street Spec 4WD - Replacement Bearing
  • Serpent® - Vector - Replacement Bearing
  • Serpent® - Vector Spec 2000 - Replacement Bearing
  • XTM Racing - Nitro X-Cellerator Racer - Replacement Bearing
  • XTM Racing - Nitro X-Cellerator RTR 2WD - Replacement Bearing
  • XTM Racing - X-Cellerator Stadium Truck RTR - Replacement Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
