CCI-00635-S15 (2 Pcs)

Name: CCI-00635-S15 (2 Pack) - Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Brand: MBA
SKU: CCI00635S15
Price: 4.95 AUD
Availability: InStock

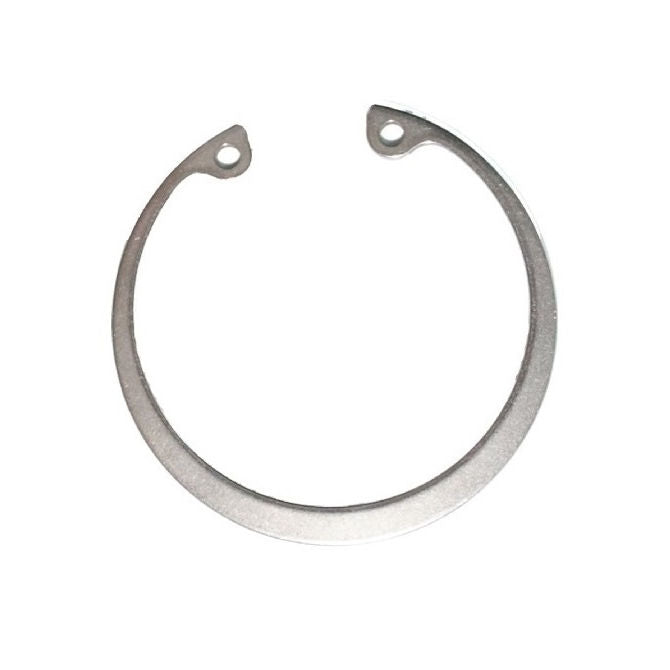

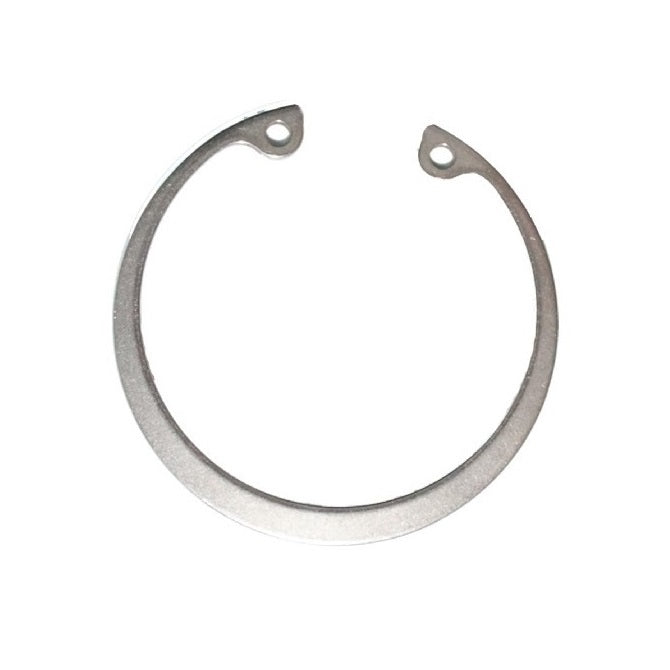

Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip

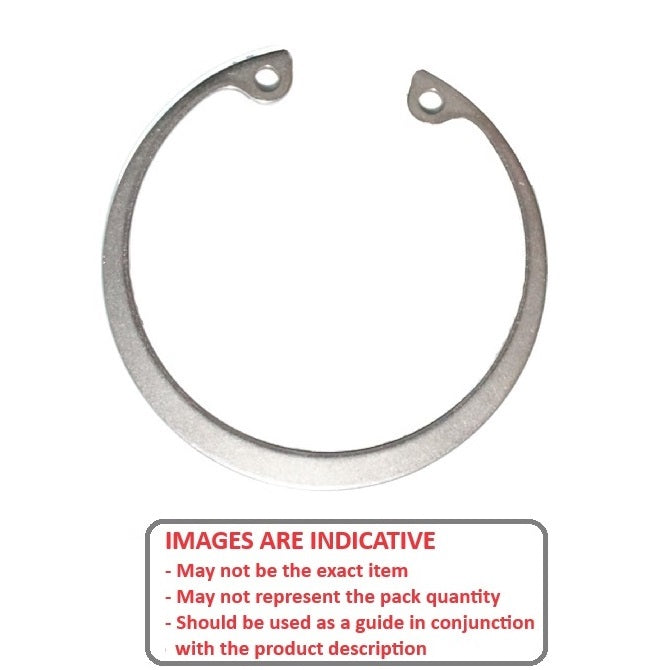

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$4.95 AUD

per 2
Qty: 150 packs (300 pcs) available now
Order 50 or more packs (100 pcs) for $4.46 AUD per 2

Product Details

Additional stock available from USA subject to Prior Sale = 5075

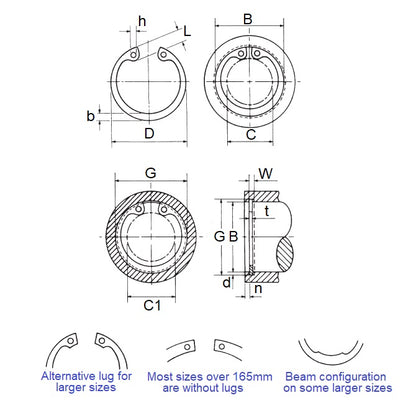

Housing Bore (B): 6.35mm
_{(6.35mm is 0.25 in.)}

Stainless Steel Grade PH15-7 Mo

Clip Thickness (T): 0.31mm
_{+/- 0.025}
_{(0.31mm is 0.012 in.)}
Groove Dia. (Dg): 6.81mm
_{+ 0.00 / - 0.05}
_{(6.81mm is 0.268 in.)}
Approx. Loose Circlip OD (Dr): 7.11mm
_{+ 0.25 / - 0.13}
Groove Width (W): 0.51mm
_{+ 0.05 / - 0.00}
Clearance in Bore (C): 2.79mm
Clearance in Groove (C1): 3.30mm
Min. Lug Diameter (h): 0.74mm
Min. Extension (n): 0.69
Standard: MIL-16625

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
91580A115
NoCor HO-025-SS
Small Parts RIX-4
HO025SS
RIX4
N1300-0025BDS
N13000025BDS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
