CP-064-064-20-034-J-SPLN-X

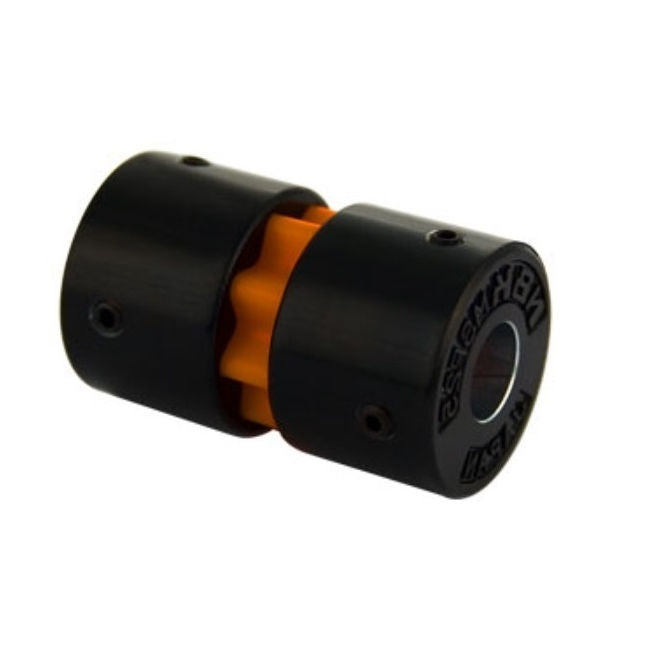

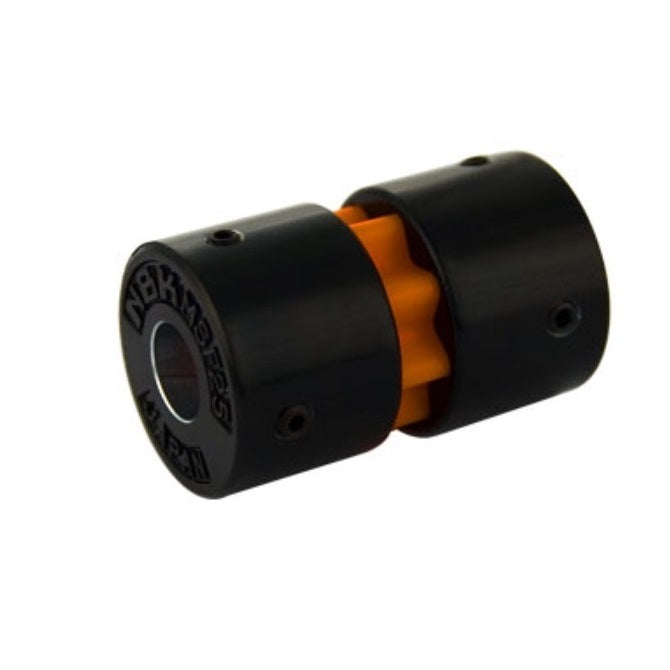

Spline Type Couplings - 6.35x6.35x20 mm Complete - Aluminium and Rubber Coupling

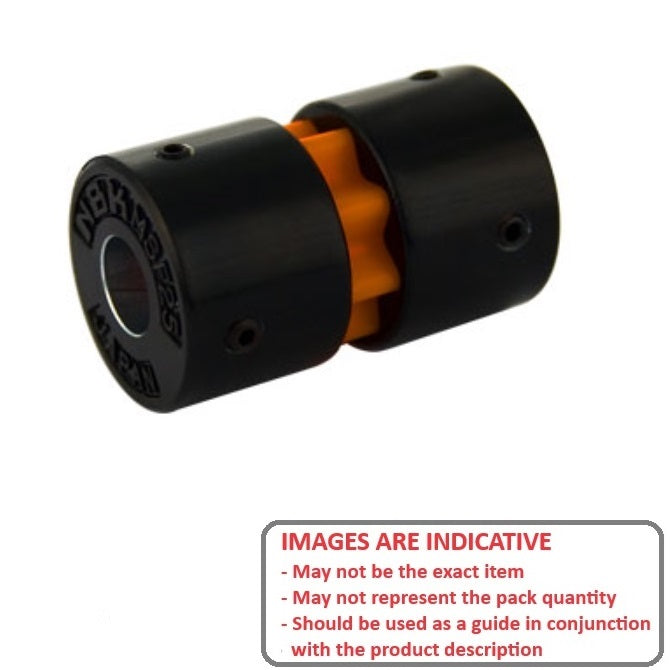

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spline Type Couplings - 6.35x6.35x20 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale
Price:
$10.00 AUD
$19.00 AUD $10.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Couplings - Spline Type

Top Level Category: Couplings - Spline Type - Complete

Product Details


Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Bore Side A (d): 6.350mm
(6.350mm is 0.25 in.)

Aluminium and Rubber
  • Bore Side A (d): 6.350mm
    (6.350mm is 0.25 in.)
  • Bore Side B (d): 6.350mm
    (6.350mm is 0.25 in.)
  • Nom. OD (D): 20.0mm
    (20.0mm is 0.787 in.)
  • Overall Length (L): 34.1mm
  • Description: Complete Coupling
  • Hub Length: 15.1mm
  • Spline Bore (May Vary): 7.9mm
  • Rated Torque: 1.5N.m
  • Max. Speed: 19000RPM
  • Hub Material: Zinc Alloy Die Cast
  • Spline Material: Hytrel

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • A5Z29-2008
  • A5Z292008
  • A 5Z29-2008

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
