GM-25A370-001

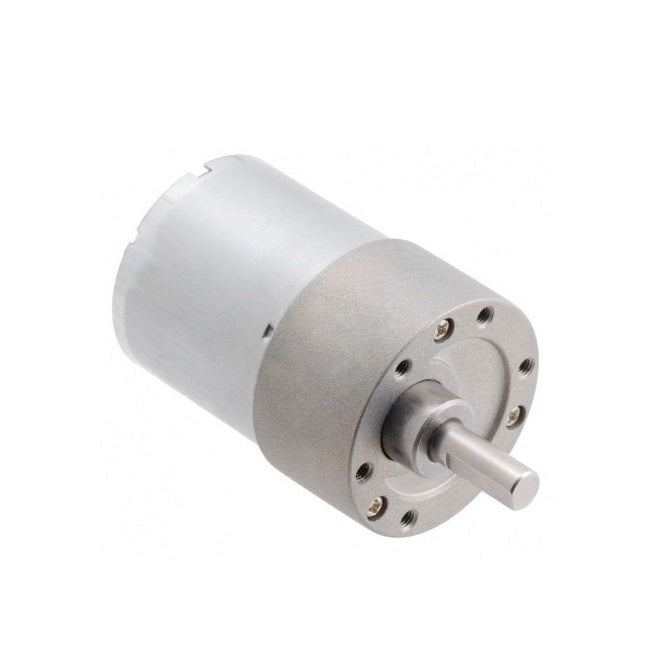

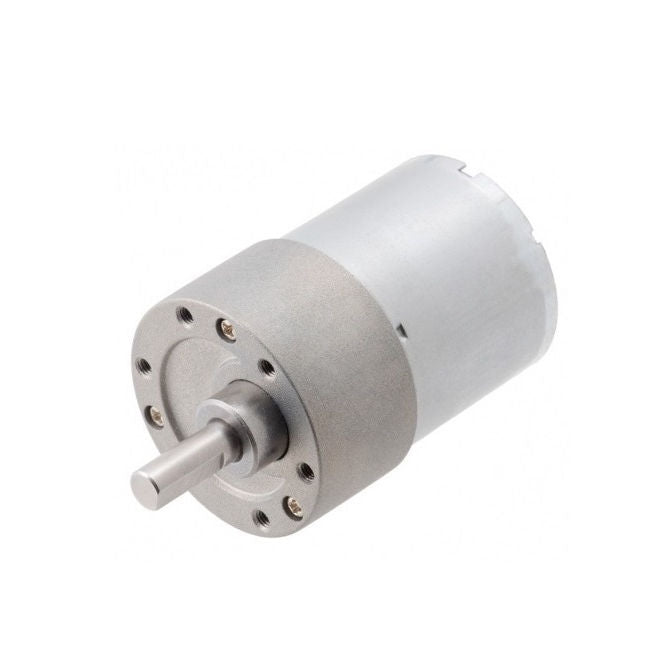

DC Gearmotors - 5600 RPM - 72 g.cm - 17 mm

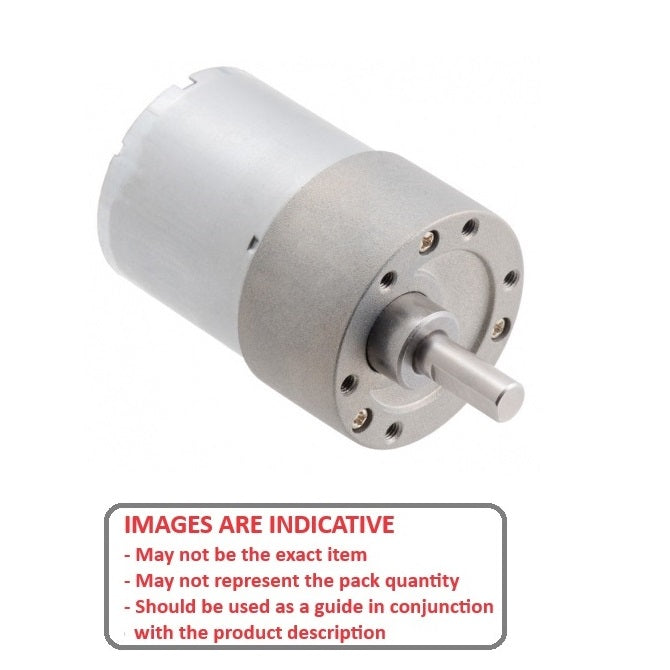

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • DC Gearmotors - 5600 RPM - 72 g.cm - 17 mm
1 4

MBA

Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Qty: 5 available now
Only 5 may be ordered online. If you need a large quantity, please contact us.

Base Category: Gearmotors - DC

Top Level Category: Gearmotors - DC - Size 25 Economy

Product Details:

No Load Speed: 5600RPM
  • Stall Torque at 6V: 72g.cm

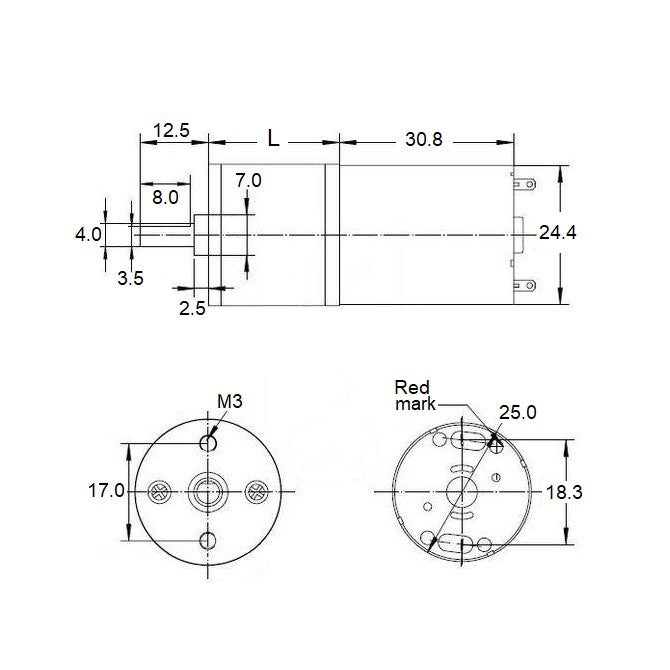

  • Gear Section Length (L): 17mm
    (17mm is 0.669 in.)
  • Overall Length (L + 30.8): 47.8mm
  • Rated Voltage: 6V
  • Stall Current at 6V: 2.2A
  • Output Shaft Size: 4 dia x 8 long with 3.5mm Flatmm
  • Gear Ratio: 60.0

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.
