B-050H-0056-0150-NFB

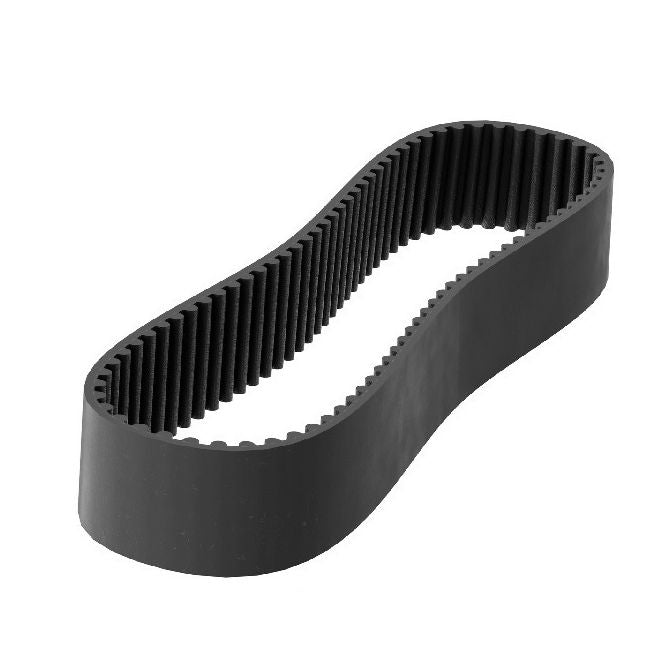

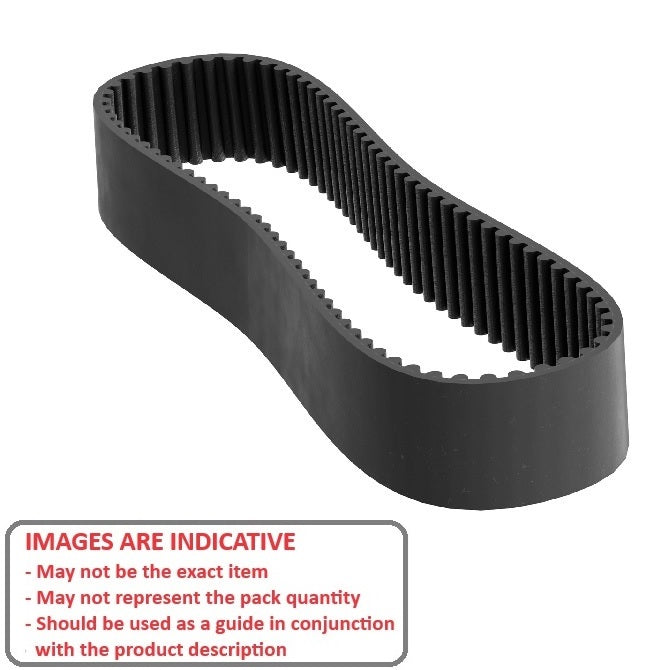

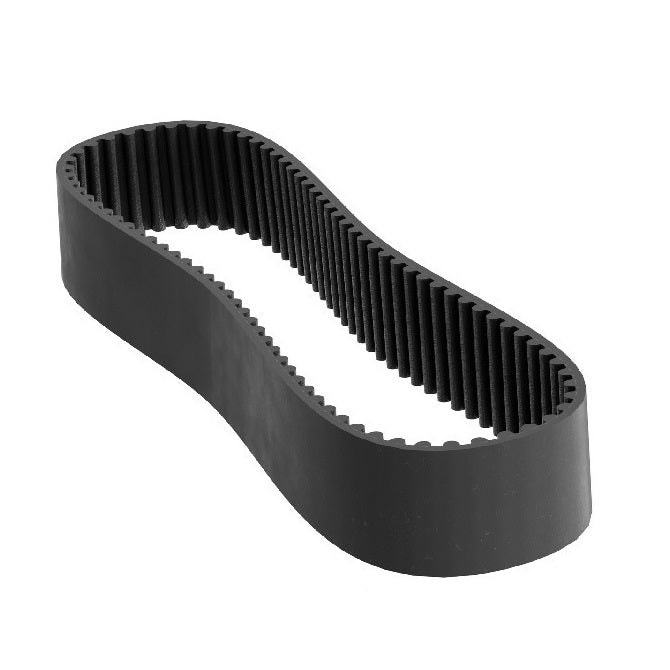

Timing 5.000mm Pitch Belts - 56 tooth - 280x15 mm - Nylon Covered Neoprene with Fibreglass Cords
MBA
Store Name: Miniature Bearings Australia (Minibearings)
Additional resources:Timing Belts Catalogue PDF
Idler Pulleys
5mm HTD Timing Pulleys
Backorder
Order 50 or more for $7.97 AUD Each
Base Category: Belts - Timing 5.000mm Pitch
Top Level Category: Belts - Timing 5.000mm Pitch - HTD - 15mm Wide - Single Sided
Product Details:Teeth: 56
Nylon Covered Neoprene with Fibreglass Cords
- Length: 280mm
(280mm is 11.024 in.)
- Width: 15.0mm
(15.0mm is 0.591 in.)
- Reinforcement: Fibreglass
- Appearance: Black
- Breaking Strength: 4740N
- Min Temperature (C): -34Deg C
- Max Temperature (C): 85Deg C
Brand: MBA
Country of Origin: US
Alternative Parts Include: CHTBN280H5M150, C-HTBN280H5M-150, A6R25M056150, 280-5M-15, 2805M15, Gates, Misumi
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
